[SHIMANO] Genuine Spare Parts for 18 OCEA CONQUEST CT 201HG Product code: 038180 **Back-order (Shipping in 3-4 weeks after receiving order)

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.

- We don't accept order cancellations, changes, or refunds after an order unless the products you ordered are not available because SHIMANO/DAIWA Japan doesn't accept our cancellations.



*Please make sure to read about the conditions before you order.


- Genuine Spool Purchase

* If you just want the genuine spool (No.102 / Spool Unit), you can purchase it from the following link without waiting for weeks if it's in our stock now.
https://www.hedgehog-studio.co.jp/product/4305

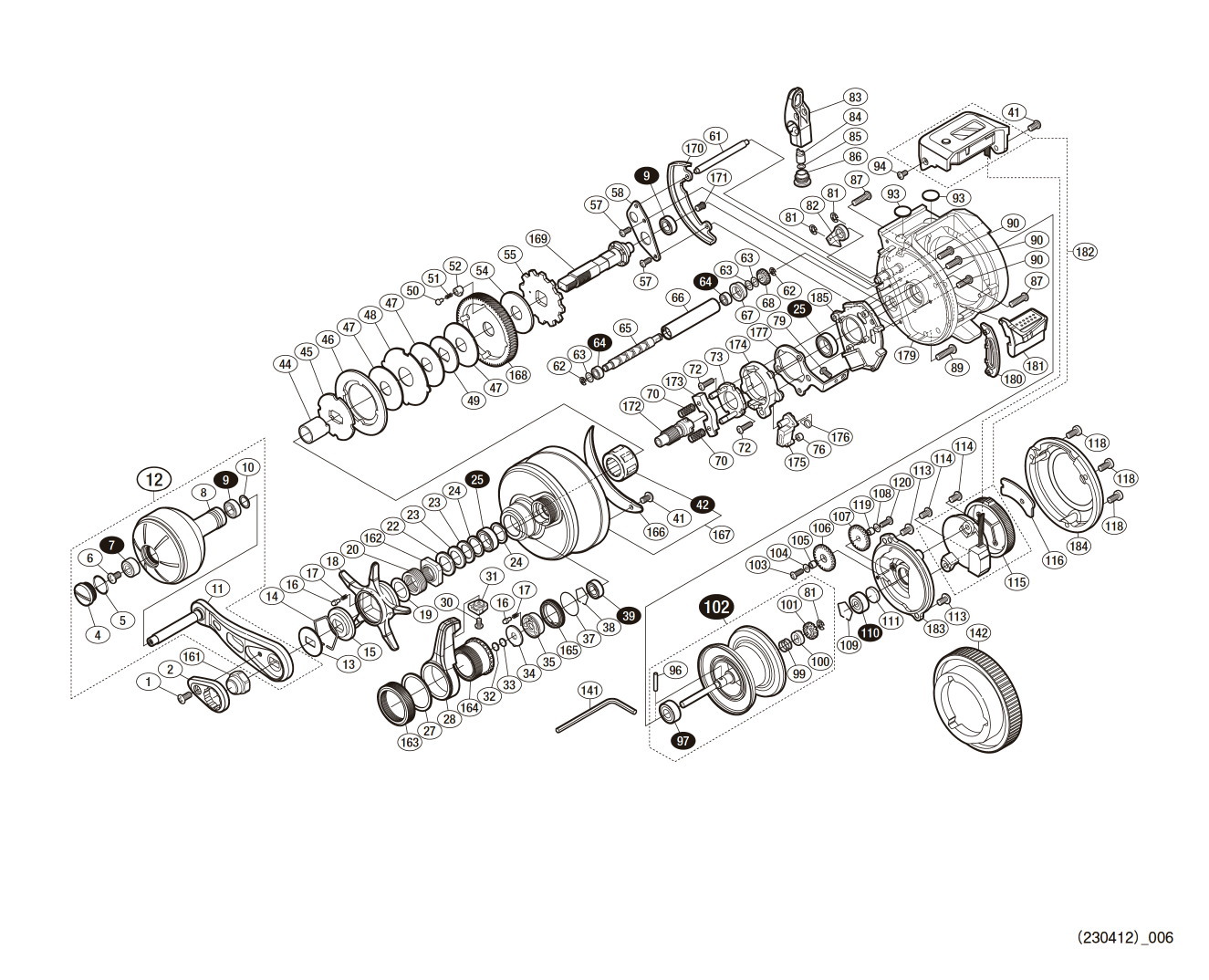

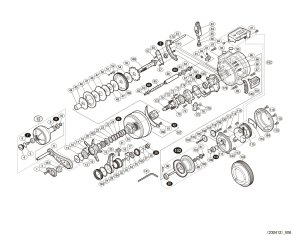

Reel Part's Schematic Diagram

* Circled figures indicate bearings.
* As for the "42 / ROLLER CLUTCH", "97 / BALL BEARING" and "96 / SPOOL CLUTCH PIN", they don't sell separately.
These parts are supposed to be provided when customers send the reel to have it repaired or overhauled.
So we cannot provide you with the products unfortunately.
* Please note disassembly is at your own risk.

No.	S Part No.	Description	Price (USD)
1	103EG	FIXING BOLT	1.10
2	10QL6	RETAINER	3.85
4	10B2B	HANDLE CAP	6.05
5	10LAB	O-RING	1.10
6	103E9	FIXING BOLT	1.10
7	10KX2	BALL BEARING (4X9X4)	13.75
8	10424	HANDLE KNOB	56.10
9	105BP	BALL BEARING (5X9X3)	13.75
10	104FH	WASHER	2.20
11	13HUM	HANDLE	56.10
12	13JC1	HANDLE ASSEMBLY	123.75
13	13V36	HANDLE RECEIVING WASHER	1.65
14	10KXV	STARDRAG CLICK PLATE EXTRACTION STOP	1.65
15	10J26	STARDRAG CLICK PLATE	1.65
16	10B27	CLICK PIN	1.65
17	10988	CLICK SPRING	1.65
18	10AU2	STARDRAG	28.05
19	10HHN	SLIDER WASHER (9X1 3X0.3）	1.65
20	10A71	STAR DRAG SPRING	2.75
22	10J1N	STAR DRAG SPACER	1.65
23	1052E	SALA SPRING (DB8H)	1.65
24	10GHN	WASHER	1.65
25	10EX8	BALL BEARING (8X12X3.5)	13.75
27	13PK8	WASHER	1.65
28	13HVG	FALL LEVER	45.10
30	10LVD	FIXING BOLT	1.10
31	13UDG	LEVER PROTECTOR	9.35
32	1085H	MECHANICAL BRAKE WASHER	1.10
33	1085G	SPOOL DRAG WASHER	1.10
34	10L2E	MECHANICAL BRAKE KNOB CLICK BOARD	2.75
35	10BSX	M BRAKE KNOB CLICK PIN HOLDER	2.75
37	109EB	O RING S11.2	1.65
38	1057X	EXTRACTION STOP	1.65
39	105BR	BALL BEARING (5X9X3)	13.75
41	103EE	FIXING BOLT	2.75
42	10F33	ROLLER CLUTCH *Cannot be ordered	22.55
44	10BN3	ROLLER CLUTCH INNER TUBE	6.05
45	13UTZ	STAR DRAG PLATE	3.85
46	13VC1	DRAG CLICK RATCHET	1.65
47	10CHW	STAR DRAG WASHER	6.05
48	13V82	STAR DRAG WASHER	1.65
49	13V7Q	STAR DRAG WASHER	1.65
50	10C0S	DRAG CLICK PIN	2.75
51	10J89	DRAG CLICK SPRING	1.65
52	13VB6	DRAG SPRING HOLDER	1.65
54	10CJ4	STAR DRAG WASHER (A)	3.85
55	13ULZ	STOPPER GEAR	3.85
57	10MPR	BODY A SEAT B FIXING BOLT	1.10
58	109SU	DRIVE GEAR SHAFT FIXING PLATE	3.85
61	10QSF	LEVEL WINDING ROD	3.85
62	105NC	E TYPE STOPPER RING 2	1.10
63	1018Y	WASHER	1.10
64	10PDA	BALL BEARING (3X6X2.5)	13.75
65	13S5W	WORM SHAFT	9.35
66	10NFR	LEVEL WINDING PIPE	11.55
67	13RZV	WORM SHAFT RECEPTACLE	2.75
68	13S5X	WORM SHAFT GEAR (C)	2.75
70	104BB	CLUTCH YOKE SPRING	1.10
72	10LUZ	FIXING BOLT	1.10
73	10F3Y	CLUTCH CAM PUSH CLUTCH CLAW PLATE	3.85
76	1048C	CLUTCH CLAW BUSHING	1.65
79	103C0	FIXED BOLT	1.10
81	105NK	E-TYPE STOPPER RING 2.5	1.10
82	13H1Z	STOPPER CLAW ASSEMBLY	3.85
83	10TSX	LEVEL WINDING ASSEMBLY	31.90
84	10FFT	WORM SHAFT PIN	3.85
85	10GD0	WASHER	1.10
86	10FJC	LEVEL WINDING RECEIVER	6.05
87	103M0	FIXED BOLT	1.65
89	103LN	FIXED BOLT	1.65
90	103C2	FIXED BOLT	1.10
93	10896	MECHANICAL BRAKE WASHER	1.10
94	10LVF	FIXED BOLT	1.10
96	10MD1	SPOOL CLUTCH PIN *Cannot be ordered	1.10
97	105CA	BALL BEARING (5 X 11 X 4) *Cannot be ordered	13.75
99	10E20	SPOOL SHAFT SPRING	1.65
100	10MCY	SPOOL SHAFT CAM	1.65
101	10JAH	WORM SHAFT GEAR	3.85
102	13GFZ	SPOOL ASSEMBLY (WITH BEARING)	78.65
103	10LVM	FIXED BOLT	1.10
104	10HVD	WASHER	1.10
105	10ECQ	WORM SHAFT GEAR (B) RECEIVER	2.75
106	10T04	WORM SHAFT GEAR (B)	2.75
107	10TUG	WORM SHAFT GEAR (D)	2.75
108	10HYM	WASHER	1.10
109	10GEW	BEARING EXTRACTION STOP	1.10
110	13RQS	BALL BEARING (3X10X4)	13.75
111	1057S	SPOOL SHAFT CONTACT SURFACE (B)	1.10
113	10LSL	FIXED BOLT	1.10
114	10R1Q	FIXED BOLT	1.65
115	13VMP	BATTERY COVER	9.35
116	13RZU	FRAME B RECEIVING PLATE	3.85
118	13JWY	FIXING BOLT	1.65
119	10TUH	WORM SHAFT GEAR (D) RECEIVING PLATE	2.75
120	10TTU	FIXING BOLT	1.10
141	10SY5	REEL WRENCH	1.65
142	13WU9	REEL WRENCH	6.05
161	13V1S	HANDLE FIXING NUT	4.95
162	10A3W	STAR DRAG FIXING NUT	3.85
163	13UDJ	LOCK RING	9.35
164	13U7G	MECHANICAL BRAKE KNOB	22.55
165	13U7M	MECHANICAL BRAKE KNOB CLICK STOP RING	3.85
166	13T6D	BODY FIXING PLATE NAMEPLATE	6.05
167	13HMV	BODY A ASSEMBLY	123.75
168	13UQS	DRIVE GEAR	28.05
169	13UL5	DRIVE GEAR SHAFT	22.55
170	13RX9	WORM SHAFT GEAR COVER	9.35
171	10PVU	FIXING BOLT	1.65
172	13SJL	PINION GEAR	22.55
173	1046Y	CLUTCH YOKE	1.65
174	10K0Y	CLUTCH CAM	2.75
175	105ZV	CLUTCH CLAW	3.85
176	10N1V	CLUTCH CLAW SPRING	1.65
177	10QGL	CLUTCH PLATE	4.95
179	13G9N	FRAME ASSEMBLY	168.30
180	1096V	CLUTCH LEVER RECEIVER	1.65
181	13H23	CLUTCH LEVER	9.35
182	13JJN	COUNTER UNIT ASSEMBLY	168.30
183	13RU1	FRAME B RECEIVER	34.10
184	13RFV	BODY B	45.10
185	10RPE	BODY A SEAT	3.85
