[SHIMANO] Genuine Spare Parts for 18 OCEA CONQUEST CT 200PG Product code: 038173 **Back-order (Shipping in 3-4 weeks after receiving order)

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.

- We don't accept order cancellations, changes, or refunds after an order unless the products you ordered are not available because SHIMANO/DAIWA Japan doesn't accept our cancellations.



*Please make sure to read about the conditions before you order.


- Genuine Spool Purchase

* If you just want the genuine spool (No.102 / Spool Unit), you can purchase it from the following link without waiting for weeks if it's in our stock now.
https://www.hedgehog-studio.co.jp/product/4305

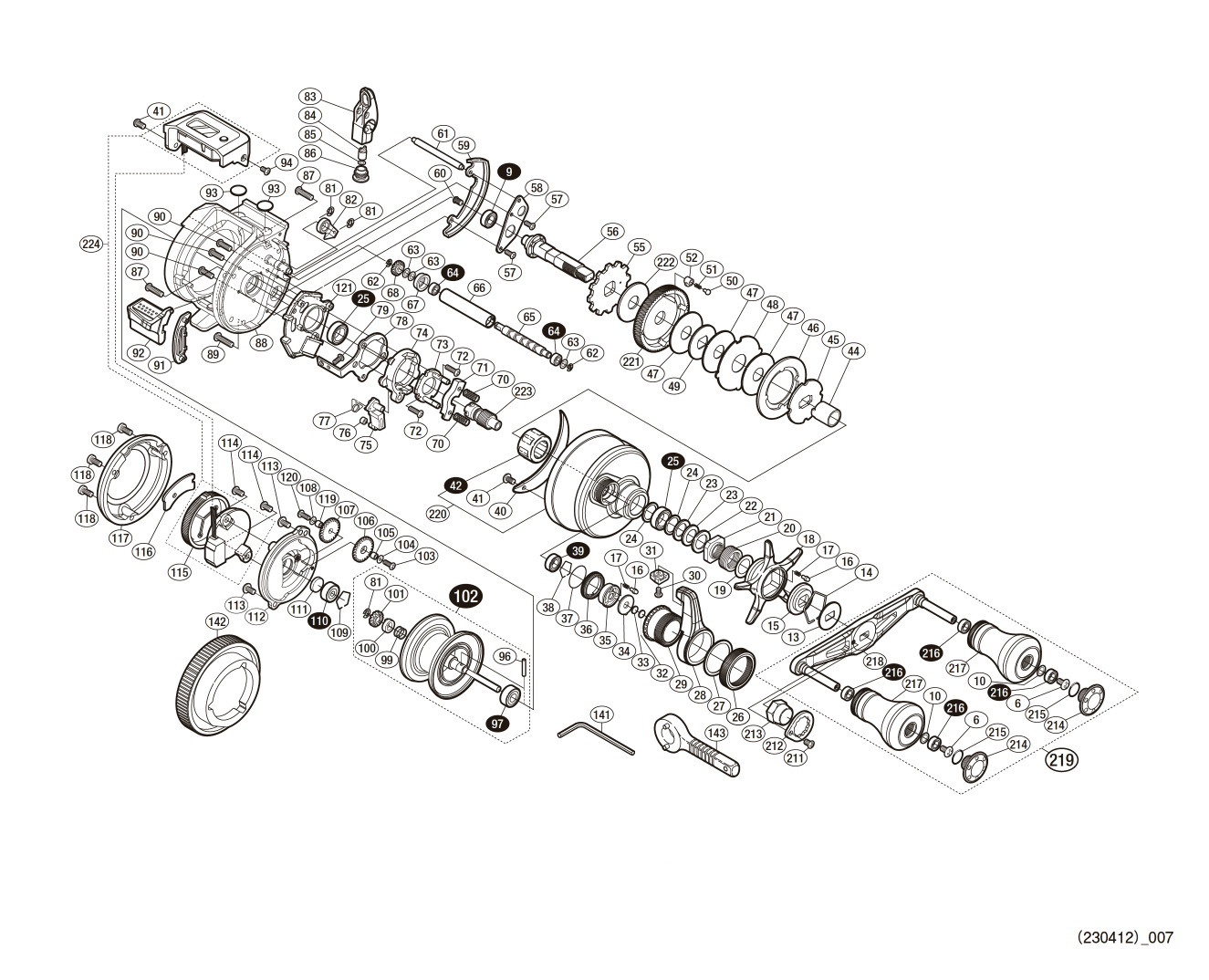

Reel Part's Schematic Diagram

* Circled figures indicate bearings.
* As for the "42 / ROLLER CLUTCH", "97 / BALL BEARING" and "96 / SPOOL CLUTCH PIN", they don't sell separately.
These parts are supposed to be provided when customers send the reel to have it repaired or overhauled.
So we cannot provide you with the products unfortunately.
* Please note disassembly is at your own risk.

No.	S Part No.	Description	Price (USD)
6	103E9	FIXING BOLT	1.10
9	105BP	BALL BEARING (5X9X3)	13.75
10	104FH	WASHER	2.20
13	13V36	HANDLE RECEIVING WASHER	1.65
14	10KXV	STAR DRAG CLICK PLATE EXTRACTION STOP	1.65
15	10J26	STAR DRAG CLICK PLATE	1.65
16	10B27	CLICK PIN	1.65
17	10988	CLICK SPRING	1.65
18	10AU2	STAR DRAG	28.05
19	10HHN	SLIDER WASHER (9X13X0.3)	1.65
20	10A71	STAR DRAG SPRING	2.75
21	10A3V	STAR DRAG FIXING NUT	3.85
22	10J1N	STAR DRAG SPACER	1.65
23	1052E	SARA SPRING (DB8H)	1.65
24	10GHN	WASHER	1.65
25	10EX8	BALL BEARING (8X12X3.5)	13.75
26	13UDH	LOCK RING	9.35
27	13PK8	WASHER	1.65
28	13HVG	FOLL LEVER	45.10
29	13U7E	MECHANICAL BRAKE KNOB	22.55
30	10LVD	FIXING BOLT	1.10
31	13UDG	LEVER PROTECTOR	9.35
32	1085H	MECHANICAL BRAKE WASHER	1.10
33	1085G	SPOOL DRAG WASHER	1.10
34	10L2E	MECHANICAL BRAKE KNOB CLICK PLATE	2.75
35	10BSX	M BRAKE KNOB CLICK PIN HOLDER	2.75
36	13U7F	MECHANICAL BRAKE KNOB CLICK STOP RING	3.85
37	109EB	O RING　S11.2	1.65
38	1057X	EXTRACTION STOP	1.65
39	105BR	BALL BEARING (5X9X3)	13.75
40	13T6C	BODY FIXING PLATE NAMEPLATE	6.05
41	103EE	FIXING BOLT	2.75
42	10F33	ROLLER CLUTCH *Cannot be ordered	22.55
44	10BN3	ROLLER CLUTCH INNER TUBE	6.05
45	13UTZ	STAR DRAG PLATE	3.85
46	13VC1	DRAG CLICK RATCHET	1.65
47	10CHW	STAR DRAG WASHER	6.05
48	13V82	STAR DRAG WASHER	1.65
49	13V7Q	STAR DRAG WASHER	1.65
50	10C0S	DRAG CLICK PIN	2.75
51	10J89	DRAG CLICK SPRING	1.65
52	13VB6	DRAG SPRING HOLDER	1.65
55	13ULZ	STOPPER GEAR	3.85
56	13UL4	DRIVE GEAR SHAFT	22.55
57	10MPR	BODY A SEAT B FIXING BOLT	1.10
58	109SU	DRIVE GEAR SHAFT FIXING PLATE	3.85
59	13RX8	WORM SHAFT GEAR COVER	9.35
60	10PVT	FIXING BOLT	1.65
61	10QSF	LEVEL WINDING ROD	3.85
62	105NC	TYPE E STOPPER RING 2	1.10
63	1018Y	WASHER	1.10
64	10PDA	BALL BEARING (3X6X2.5)	13.75
65	13S5W	WORM SHAFT	9.35
66	10NFR	LEVEL WINDING PIPE	11.55
67	13RZV	WORM SHAFT RECEIVER	2.75
68	13S5X	WORM SHAFT GEAR (C)	2.75
70	104BB	CLUTCH YOKE SPRING	1.10
71	1046X	CLUTCH YOKE	1.65
72	10LUZ	FIXING BOLT	1.10
73	10F3Y	CLUTCH CAM PUSH PLATE	3.85
74	10K0X	CLUTCH CAM	2.75
75	105ZU	CLUTCH CLAW	3.85
76	1048C	CLUTCH CLAW BUSH	1.65
77	10N1Z	CLUTCH CLAW SPRING	1.10
78	10QGK	CLUTCH PLATE	4.95
79	103C0	FIXING BOLT	1.10
81	105NK	TYPE E CLAW RING 2.5	1.10
82	13H1Z	STOPPER CLAW ASSEMBLY	3.85
83	10TSX	LEVEL WINDING ASSEMBLY	31.90
84	10FFT	WORM SHAFT PIN	3.85
85	10GD0	WASHER	1.10
86	10FJC	LEVEL WINDING RECEIVER	6.05
87	103M0	FIXING BOLT	1.65
88	13G9M	FRAME ASSEMBLY	168.30
89	103LN	FIXING BOLT	1.65
90	103C2	FIXING BOLT	1.10
91	1096U	CLUTCH LEVER HOLDER	1.65
92	13H22	CLUTCH LEVER	9.35
93	10896	MECHANICAL BRAKE WASHER	1.10
94	10LVF	FIXING BOLT	1.10
96	10MD1	SPOOL CLUTCH PIN *Cannot be ordered	1.10
97	105CA	BALL BEARING (5X11X4) *Cannot be ordered	13.75
99	10E20	SPOOL SHAFT SPRING	1.65
100	10MCY	SPOOL SHAFT CAM	1.65
101	10JAH	WORM SHAFT GEAR	3.85
102	13GFZ	SPOOL ASSEMBLY (WITH BEARING)	78.65
103	10LVM	FIXING BOLT	1.10
104	10HVD	WASHER	1.10
105	10ECQ	WORM SHAFT GEAR (B) HOLDER	2.75
106	10T04	WORM SHAFT GEAR (B)	2.75
107	10TUG	WORM SHAFT GEAR (D)	2.75
108	10HYM	WASHER	1.10
109	10GEW	BEARING STOPPER	1.10
110	13RQS	BALL BEARING (3X10X4)	13.75
111	1057S	SPOOL SHAFT GEAR (B)	1.10
112	13RU0	FRAME B RECEIVER	34.10
113	10LSL	FIXED BOLT	1.10
114	10R1Q	FIXED BOLT	1.65
115	13VMP	BATTERY COVER	9.35
116	13RZU	FRAME B RECEIVER PLATE	3.85
117	13RFU	BODY B	45.10
118	13JWY	FIXED BOLT	1.65
119	10TUH	WORM SHAFT GEAR (D) RECEIVER	2.75
120	10TTU	FIXED BOLT	1.10
121	10RPM	BODY A SHEET	3.85
141	10SY5	REEL WRENCH	1.65
142	13WU9	REEL WRENCH	6.05
143	10NC0	REEL WRENCH	1.65
211	103GY	FIXING BOLT	2.75
212	10QBJ	RETAINER	2.75
213	10FFP	HANDLE FIXING NUT	2.75
214	10BFJ	HANDLE CAP	6.05
215	10LAA	O-RING	1.10
216	104VX	BALL BEARING (4X7X2.5)	13.75
217	13E37	HANDLE KNOB	34.10
218	13HVB	HANDLE SHAFT ASSEMBLY	28.05
219	13JC2	HANDLE ASSEMBLY	146.30
220	13HMW	BODY A ASSEMBLY	123.75
221	13UQR	DRIVE GEAR	28.05
222	10CHY	STAR DRAG WASHER	3.85
223	13SLR	PINION GEAR	22.55
224	13JJP	COUNTER UNIT ASSEMBLY	168.30
