[DAIWA] Genuine Spare Parts for 25 IM Z TW 100-CL Product code: 00630285 **Back-order (Shipping in 3-4 weeks after receiving order)

[DAIWA] Genuine Spare Parts for 25 IM Z TW 100-CL Product code: 00630285 **Back-order (Shipping in 3-4 weeks after receiving order)

Our Selling Price: US$0.77 - US$246.40 [Regular Price: US$1.10 - US$352.00]

Prices vary according to options.

View availability
Part Number:
Quantity:
Return & Exchange Policy
Contact Us

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship this item after you order unless we have in stock at the time of your order.

- We don't accept order cancellations, changes, or refunds after an order unless the products you ordered are not available because SHIMANO/DAIWA Japan doesn't accept our cancellations.



*Please make sure to read about the conditions before you order.

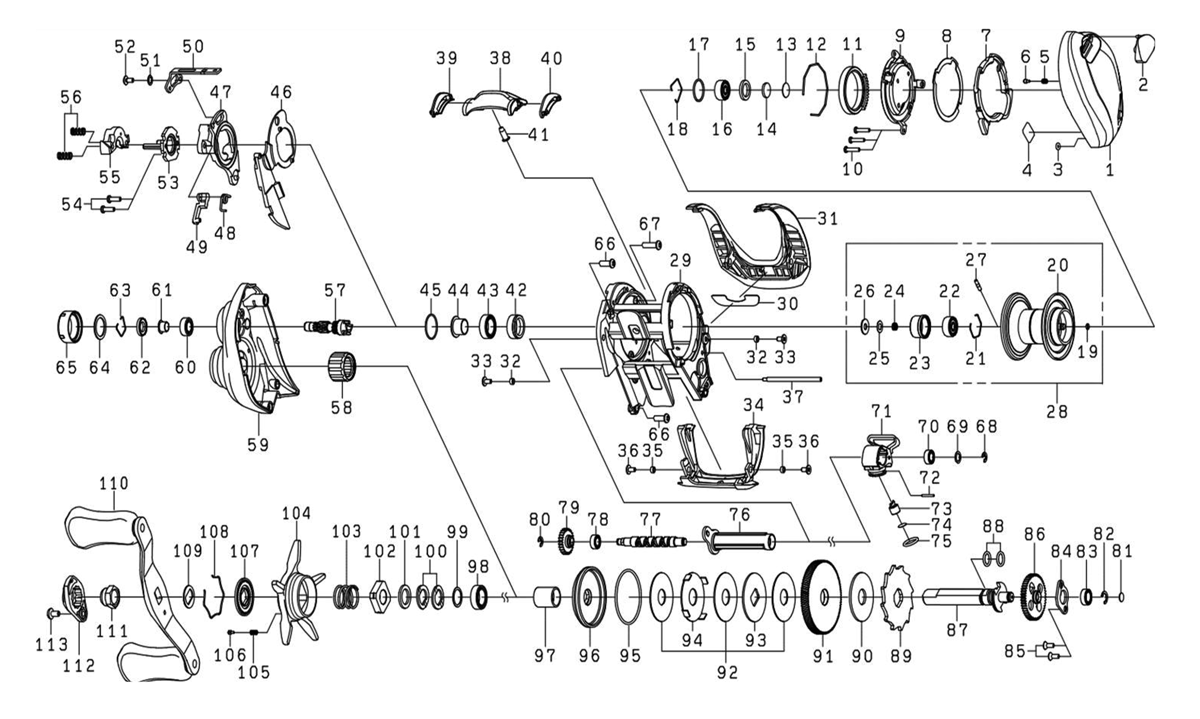

　Reel Part's Schematic Diagram



No. Part Name Part Code Price (USD)
1 RS PLATE UNIT *Cannot be ordered 6M690301 352.00
2 RS PLATE COVER 6M691301 9.90
3 RS PLATE O-RING 6J197901 1.10
4 NINSHO SEAL *Cannot be ordered 6M866802 1.10
5 LEVER PLATE SP 6J631901 2.20
6 LEVER PLATE PIN 6J731201 2.20
7 LEVER PLATE (A) 6M691601 4.40
8 LEVER PLATE (B) 6M691701 2.20
9 SET PLATE *Cannot be ordered 6M691801 39.60
10 SET PLATE SC 6M340202 2.20
11 MAG HOLDER *Cannot be ordered 6M692001 23.10
12 MAG HOLDER RING 6M692201 2.20
13 RS BEARING W (A) 63757406 1.10
14 RS BEARING W (B) 63757411 1.10
15 RS BEARING W (C) 6G185101 1.10
16 RS BALL BEARING 6G511506 15.40
17 RS BEARING O-RING 6G703201 1.10
18 RS BEARING RING 6F032201 2.20
19 SPOOL SHAFT O-RING 6H770601 1.10
21 SPOOL BEARING RING 6J149501 2.20
22 SPOOL BALL BEARING 6G511506 15.40
23 SPOOL BEARING COLLAR 6H232201 2.20
24 SPOOL BEARING SP 6M052601 2.20
25 SPOOL BEARING W (A) 6F774601 1.10
26 SPOOL BEARING W (B) 6M052501 1.10
27 SPOOL PIN 6H358802 2.20
28 SPOOL (19-27) 6M692301 176.00
29 FRAME 6M863701 63.80
30 TOP COVER HOLD SEAL 6M688401 2.20
31 TOP COVER 6M688301 35.20
32 TOP COVER COLLAR 6M047801 2.20
33 TOP COVER SC 6H531508 2.20
34 FRONT COVER 6M690101 22.00
35 FRONT COVER COLLAR 6M047801 2.20
36 FRONT COVER SC 6H531508 2.20
37 OSCILLATING POST 6M690201 2.20
38 CLUTCH LEVER 6M689201 9.90
39 CLUTCH LEVER PLATE (L) 6M688601 2.20
40 CLUTCH LEVER PLATE (R) 6M688501 2.20
41 CLUTCH LEVER SC 6H005701 2.20
42 CLUTCH CAM BEARING COLLAR (A) 6M688701 2.20
43 CLUTCH CAM BALL BEARING 6G431008 15.40
44 CLUTCH CAM BEARING COLLAR (B) 6M518401 7.70
45 CLUTCH CAM BEARING O-RING 6M639101 2.20
46 KICK LEVER PLATE 6M689101 3.30
47 CLUTCH CAM 6M688901 4.40
48 KICK LEVER SP 6M060601 2.20
49 KICK LEVER 6J638601 6.60
50 CLUTCH CAM PLATE (A) 6M689001 6.60
51 CLUTCH CAM SC・W 6M070001 1.10
52 CLUTCH CAM SC 6B360406 2.20
53 CLUTCH CAM PLATE (B) 6H659101 3.30
54 CLUTCH CAM PLATE (B) SC 6B032904 2.20
55 CLUTCH PLATE 6M157501 3.30
56 CLUTCH SP 6J313901 2.20
57 PINION + DRIVE GEAR SET 6Z028319 63.80
58 ONE-WAY CLUTCH 6G819801 20.90
59 LS PLATE 6M687803 121.00
60 PINION BALL BEARING 6G538003 15.40
61 PINION BEARING COLLAR (A) 6J724601 9.90
62 PINION BEARING COLLAR (B) 6M525801 2.20
63 PINION BEARING COLLAR (B) RING 6H448401 2.20
64 OIL INJECTION CAP W 6M526701 1.10
65 OIL INJECTION CAP 6M504907 19.80
66 LS PLATE SC (A) 6B557612 2.20
67 LS PLATE SC (B) 6B557621 2.20
68 WORM SHAFT RETAINER 63205901 2.20
69 WORM SHAFT W 6B411703 1.10
70 WORM SHAFT BALL BEARING (A) 6G469009 15.40
71 LEVEL WIND 6M689501 46.20
72 LEVEL WIND PIN 6J740201 3.30
73 POLE 6J740102 3.30
74 POLE W 6M161301 1.10
75 LEVEL WIND O-RING 6G252202 1.10
76 WORM SHIELD 6M689601 2.20
77 WORM SHAFT 6J243601 8.80
78 WORM SHAFT BALL BEARING (B) 6G469009 15.40
79 WORM SHAFT GEAR 6M048801 4.40
80 WORM SHAFT GEAR RETAINER 6B339801 2.20
81 GEAR SHAFT W 6G099801 1.10
82 GEAR SHAFT RETAINER 63208002 2.20
83 GEAR SHAFT BALL BEARING 6G466201 15.40
84 GEAR SHAFT PLATE 6M335701 3.30
85 GEAR SHAFT PLATE SC 6G297002 2.20
86 WORM GEAR 6M048601 3.30
87 GEAR SHAFT 6M689401 19.80
88 GEAR SHAFT O-RING 6F657801 1.10
89 RATCHET 6H660901 3.30
90 DRIVE GEAR W 63746605 1.10
91 PINION + DRIVE GEAR SET 6Z028319 63.80
92 DRAG W (3 pieces) 6M864101 33.00
93 DRAG DISC W 6F796301 2.20
94 DRAG GRIP W 6M689901 2.20
95 DRIVE COLLAR O-RING 6M361401 1.10
96 DRIVE COLLAR 6M690001 15.40
97 CLUTCH RING 6J327701 8.80
98 HANDLE BALL BEARING 6G431008 15.40
99 HANDLE BEARING W 6B553801 1.10
100 DRAG SP・W 61508901 2.20
101 STAR DRAG W 6H929501 2.20
102 DRAG NUT 6M507002 7.70
103 STAR DRAG SP (A) 6J011901 2.20
104 STAR DRAG *Cannot be ordered 6M506507 41.80
105 STAR DRAG SP (B) 6M627801 2.20
106 STAR DRAG PIN 6J731201 2.20
107 STAR DRAG PLATE 6M506601 2.20
108 STAR DRAG PLATE RING 6M627701 2.20
109 HANDLE W 6G027403 1.10
110 HANDLE 6M718801 110.00
111 HANDLE NUT 6G793319 4.40
112 HANDLE CAP 6J625401 4.40
113 HANDLE CAP SC 6G835506 2.20
301 HANDLE KNOB W 6B411703 1.10
302 HANDLE KNOB SP/W 6H744801 1.10
303 HANDLE KNOB 6J653201 24.20
304 HANDLE KNOB BALL BEARING 6G469009 15.40
305 HANDLE KNOB SC 6B679308 2.20
306 HANDLE KNOB CAP 6J683104 6.60
401 JUDEN CABLE 6M462602 19.80
402 DRIVER 6X390501 4.40
