[DAIWA] Genuine Spare Parts for 25 HRF TW PE SPECIAL 100XH Product code: 00631606 **Back-order (Shipping in 3-4 weeks after receiving order)

[DAIWA] Genuine Spare Parts for 25 HRF TW PE SPECIAL 100XH Product code: 00631606 **Back-order (Shipping in 3-4 weeks after receiving order)

Our Selling Price: US$0.77 - US$114.73 [Regular Price: US$1.10 - US$163.90]

Prices vary according to options.

View availability
Part Number:
Quantity:
Return & Exchange Policy
Contact Us

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship this item after you order unless we have in stock at the time of your order.

- We don't accept order cancellations, changes, or refunds after an order unless the products you ordered are not available because SHIMANO/DAIWA Japan doesn't accept our cancellations.



*Please make sure to read about the conditions before you order.

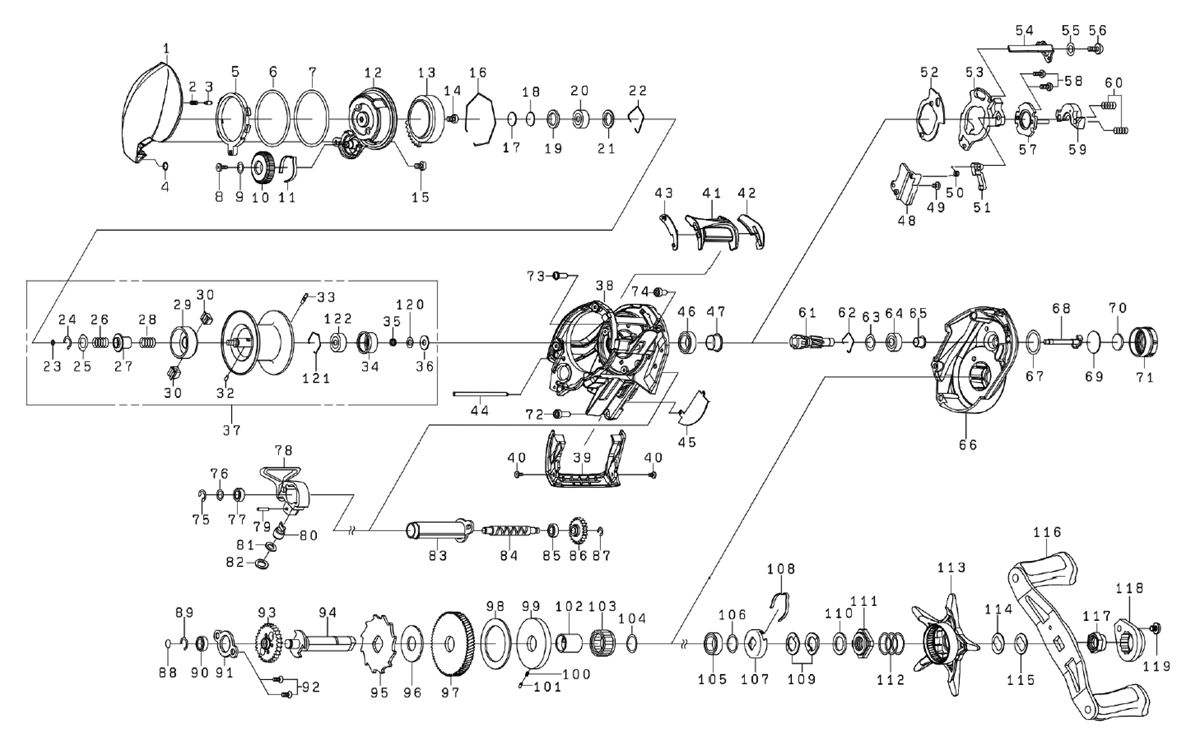

　Reel Part's Schematic Diagram



No. Part Name Part Code Price (USD)
1 LS PLATE 6M823201 27.50
2 LEVER PLATE SP 6J631901 2.20
3 LEVER PLATE PIN 6J286301 2.20
4 LEVER PLATE O-RING 6J197901 1.10
5 LEVER PLATE (A) 6M067401 4.40
6 LEVER PLATE (B) 6J286101 2.20
7 LEVER PLATE (C) 6J645201 2.20
8 BRAKE DIAL SC 6G940402 2.20
9 BRAKE DIAL W 6H159201 1.10
10 BRAKE DIAL 6M053602 7.70
11 BRAKE DIAL LEAF SP 6J886201 2.20
12 SET PLATE 6M067201 44.00
13 MAG HOLDER 6M054701 24.20
14 SET PLATE SC (A) 6H666002 2.20
15 SET PLATE SC (B) 6G939303 2.20
16 MAG HOLDER RING 6G757801 2.20
17 LS BEARING W (A) 63757404 1.10
18 LS BEARING W (B) 63757411 1.10
19 LS BEARING W (C) 6G185101 1.10
20 LS BALL BEARING 6G511506 15.40
21 LS BEARING O-RING 6G703201 1.10
22 LS BEARING RING 6F032201 2.20
23 SPOOL HOLDER O-RING 6H770601 1.10
24 SPOOL HOLDER SP RETAINER 63208002 2.20
25 SPOOL HOLDER SP-W 6J497001 1.10
26 SPOOL HOLDER SP (A) 6M169901 2.20
27 SPOOL HOLDER SP COLLAR 6M169801 3.30
28 SPOOL HOLDER SP (B) 6M381001 2.20
29 SPOOL HOLDER 6M823501 19.80
30 SPOOL HOLDER COLLAR 6M169601 2.20
32 SPOOL HOLDER PIN 6M169301 2.20
33 SPOOL PIN 6H358802 2.20
34 SPOOL BEARING COLLAR 6H232201 2.20
35 SPOOL BEARING SP 6M052601 2.20
36 SPOOL BEARING W (A) 6M052501 1.10
37 SPOOL (23-36, 120-122) 6Z028363 163.90
38 FRAME 6M823701 74.80
39 FRONT COVER 6M041006 8.80
40 FRONT COVER SC 6H531508 2.20
41 CLUTCH LEVER 6M066101 9.90
42 CLUTCH LEVER PLATE (R) 6M065401 2.20
43 CLUTCH LEVER PLATE (L) 6M065501 2.20
44 OSCILLATING POST 6M041101 2.20
45 RS COVER PLATE 6M065601 2.20
46 CLUTCH CAM BALL BEARING 6G431008 15.40
47 CLUTCH CAM BEARING COLLAR 6M518401 7.70
48 KICK LEVER PLATE (A) 6M066001 3.30
49 KICK LEVER PLATE SC 6H531508 2.20
50 KICK LEVER PLATE SP 6M066301 2.20
51 KICK LEVER 6J622901 6.60
52 CLUTCH CAM PLATE (A) 6M065901 2.20
53 CLUTCH CAM 6M065701 3.30
54 CLUTCH CAM PLATE (B) 6M065801 3.30
55 CLUTCH CAM PLATE (B) W 6M070001 1.10
56 CLUTCH CAM PLATE (B) SC 6B360406 2.20
57 CLUTCH CAM PLATE (C) 6H659101 3.30
58 CLUTCH CAM PLATE (C) SC 6B032904 2.20
59 CLUTCH PLATE 6M157601 3.30
60 CLUTCH SP 6J313901 2.20
61 PINION + DRIVE GEAR SET 6Z028408 56.10
62 PINION RING 6H448401 2.20
63 PINION W 6J073501 1.10
64 PINION BALL BEARING *Cannot be ordered 6J019303 45.10
65 PINION BEARING COLLAR *Cannot be ordered 6J724501 7.70
66 RS PLATE 6M822901 90.20
67 ZERO ADJUSTER O-RING 6J279701 1.10
68 PINION SHAFT 6G931001 3.30
69 ZERO ADJUSTER W (A) 6H161001 1.10
70 ZERO ADJUSTER W (B) 6B175503 1.10
71 ZERO ADJUSTER 6J279601 18.70
72 RS PLATE SC (A) 6G945811 2.20
73 RS PLATE SC (B) 6G040802 2.20
74 RS PLATE SC (C) 6G945818 2.20
75 WORM SHAFT RETAINER 63205901 2.20
76 WORM SHAFT W 6B411702 1.10
77 WORM SHAFT BALL BEARING (A) 6G469009 15.40
78 LEVEL WIND 6M823801 62.70
79 LEVEL WIND PIN 6J740201 3.30
80 POLE 6J740102 3.30
81 POLE W 6M161301 1.10
82 LEVEL WIND O-RING 6G252202 1.10
83 WORM SHIELD 6M066601 3.30
84 WORM SHAFT 6M016701 8.80
85 WORM SHAFT BALL BEARING (B) 6G469009 15.40
86 WORM SHAFT GEAR 6M048801 4.40
87 WORM SHAFT GEAR RETAINER 6B339801 2.20
88 GEAR SHAFT W 6G099801 1.10
89 GEAR SHAFT RETAINER 63208002 2.20
90 GEAR SHAFT BALL BEARING 6G466201 15.40
91 GEAR SHAFT PLATE 6J281101 3.30
92 GEAR SHAFT PLATE SC 6G297002 2.20
93 WORM GEAR 6M048601 3.30
94 GEAR SHAFT 6M308401 18.70
95 RATCHET 6H660901 3.30
96 RATCHET W 6E708903 2.20
97 PINION + DRIVE GEAR SET 6Z028408 56.10
98 DRAG W 6H359004 7.70
99 DRIVE COLLAR 6J740501 17.60
100 DRIVE COLLAR SP 6M025201 2.20
101 DRIVE COLLAR PIN 6J566201 2.20
102 CLUTCH RING 6J327701 8.80
103 ONE-WAY CLUTCH 6G819801 20.90
104 CLUTCH RING W 6B553803 1.10
105 HANDLE BALL BEARING 6G431008 15.40
106 HANDLE BEARING W 6B553801 1.10
107 DRAG HOLDER 6F028203 3.30
108 DRAG LEAF SP 6F032401 2.20
109 DRAG SP/W 61508901 2.20
110 STAR DRAG W 6H929501 2.20
111 STAR DRAG NUT 6J141001 7.70
112 STAR DRAG SP 6J011901 2.20
113 STAR DRAG 6J673905 30.80
114 HANDLE W (A) 6J102801 1.10
115 HANDLE W (B) 6J101301 3.30
116 HANDLE 6M823601 118.80
117 HANDLE NUT 6G793309 4.40
118 HANDLE CAP 6J625401 4.40
119 HANDLE CAP SC 6G835506 2.20
120 SPOOL BEARING W (B) 6F774601 1.10
121 SPOOL BEARING RING 6J149501 2.20
122 SPOOL BALL BEARING 6G511506 15.40
200 HANDLE KNOB W 6B411703 1.10
201 HANDLE KNOB 6J672101 19.80
202 HANDLE KNOB BALL BEARING 6G469009 15.40
203 HANDLE KNOB COLLAR (4, 7, 2.5) 6G720001 2.20
204 HANDLE KNOB SC 6B679308 2.20
205 HANDLE KNOB CAP (O-RING INCLUDED) 6Z026543 12.10
206 HANDLE KNOB O-RING 6H100001 1.10
