[SHIMANO] Genuine Spare Parts for 25 Force Master 301DH Product code: 047366 **Back-order (Shipping in 3-4 weeks after receiving order)

[SHIMANO] Genuine Spare Parts for 25 Force Master 301DH Product code: 047366 **Back-order (Shipping in 3-4 weeks after receiving order)

Our Selling Price: US$0.77 - US$300.30 [Regular Price: US$1.10 - US$429.00]

Prices vary according to options.

View availability
Part Number:
Quantity:
Return & Exchange Policy
Contact Us

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship this item after you order unless we have in stock at the time of your order.

- We don't accept order cancellations, changes, or refunds after an order unless the products you ordered are not available because SHIMANO/DAIWA Japan doesn't accept our cancellations.



*Please make sure to read about the conditions before you order.

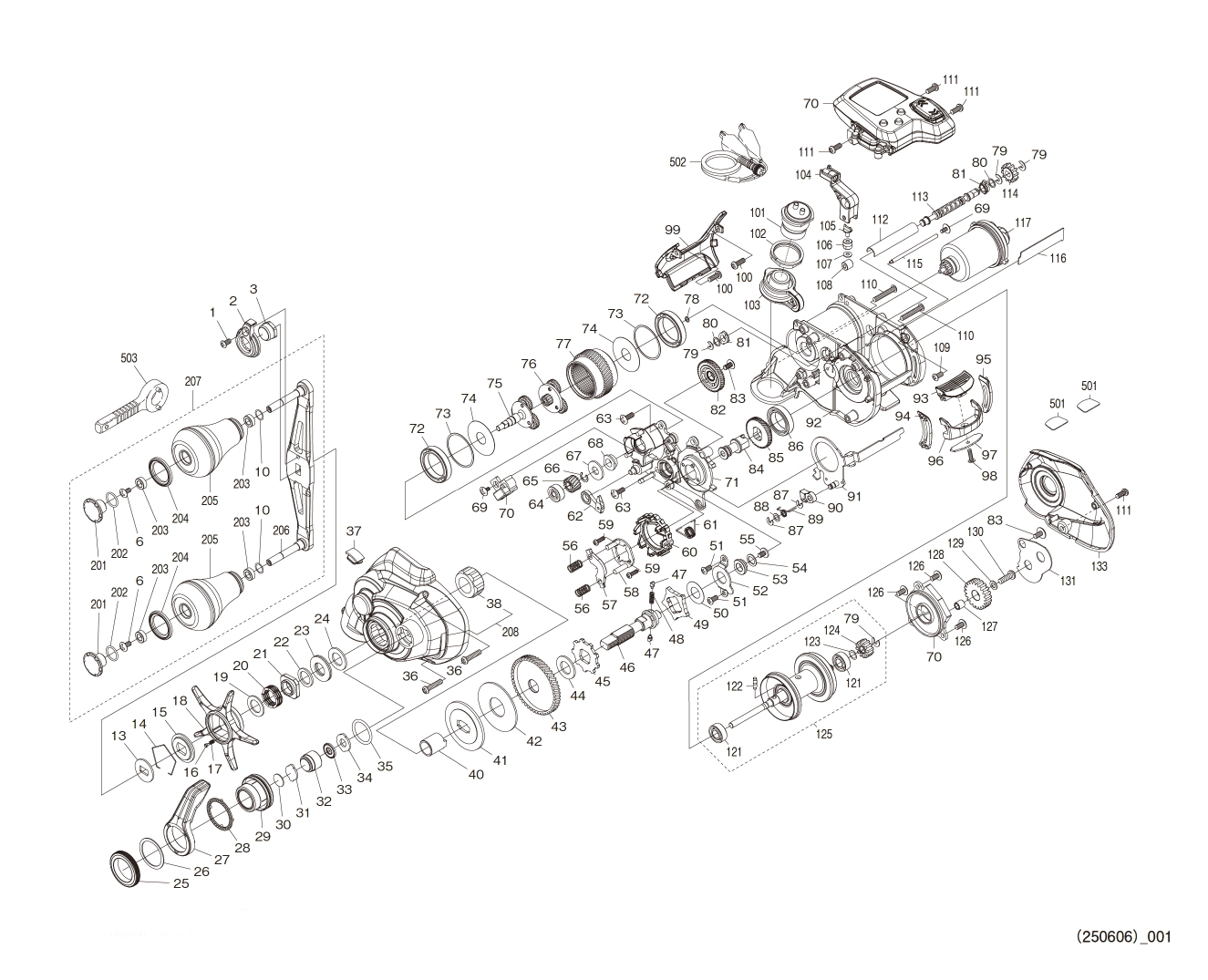

　Reel Part's Schematic Diagram



No. S Part No. Description Price (USD)
1 10R1Q FIXING BOLT 1.65
2 10S80 RETAINER 3.85
3 100G5 HANDLE FIXING NUT 6.05
6 103E9 FIXING BOLT 1.10
10 104FH WASHER 2.20
13 10SAW HANDLE RECEIVING WASHER 1.65
14 10KXV STAR DRAG CLICK PLATE RETAINER 1.65
15 10J1Y STAR DRAG CLICK PLATE 1.65
16 10B27 CLICK PIN 1.65
17 10988 CLICK SPRING 1.65
18 146UJ STAR DRAG 29.70
19 10QXM WASHER 1.10
20 10A71 STAR DRAG SPRING 2.75
21 10A0C STAR DRAG FIXING NUT 2.75
22 10BR2 BEARING PRESS 1.65
23 1052E SPRING (DB8H) 1.65
24 10HVB HANDLE SHAFT WASHER (A) 1.65
25 14270 LOCK RING 11.55
26 1426Z WASHER 1.10
27 14271 FAURE LEVER 5.50
28 1426Y LOCK SPACER 1.10
29 14766 MECHANICAL BRAKE KNOB 22.00
30 10896 MECHANICAL BRAKE WASHER 1.10
31 14272 MECHANICAL BRAKE WASHER 2.75
32 145FP ROLLER CLUTCH HOLDER ASSEMBLY 9.35
33 1426W ROLLER CLUTCH SEAL 3.85
34 142AE MECHANICAL BRAKE WASHER 3.30
35 108WK O-RING SM14 1.65
36 10M33 FIXING BOLT 1.10
37 10RNS THREAD STOPPER 2.75
38 10F3C ROLLER CLUTCH 17.05
40 10BN1 ROLLER CLUTCH INNER TUBE 6.05
41 10S66 STAR DRAG PLATE 3.85
42 10CKS STAR DRAG WASHER 6.05
43 14764 DRIVE GEAR 19.25
44 10EEP STAR DRAG WASHER 2.75
45 10T03 STOPPER GEAR 2.20
46 14763 DRIVE GEAR SHAFT 16.50
47 10S04 CLUTCH RETURN GEAR PIN 1.10
48 10S78 CLUTCH RETURN GEAR SPRING 1.10
49 10EEN CLUTCH RETURN GEAR 1.65
50 10HV9 WASHER 1.10
51 103KS FIXING BOLT 1.10
52 10TEQ DRIVE GEAR SHAFT FIXING PLATE 1.65
53 10S7V DRIVE GEAR SHAFT BUSHING 1.65
54 1058E MAIN GEAR SHAFT WASHER (A) 1.10
55 10PVU FIXING BOLT 1.65
56 10S05 CLUTCH YOKE SPRING 1.10
57 100TN CLUTCH YOKE 11.00
58 10T0Q CLUTCH CAM PUSH PLATE 2.75
59 103NH FIXING BOLT 1.10
60 13HQK CLUTCH CAM ASSEMBLY 30.25
61 100TU CLUTCH LEVER SPRING 3.85
62 10S06 STOPPER CLAW ASSEMBLY 3.30
63 103GS FIXING BOLT 1.10
64 105C1 BALL BEARING (3X10X4) 13.75
65 14762 PINION GEAR 11.00
66 105SA C-CLAMP (NO. 5103-18) 1.10
67 10J1A HANDLE WASHER 1.65
68 10BPD DRIVE GEAR SHAFT BUSHING 1.65
69 10MT5 FIXING BOLT 1.10
70 1475V COUNTER UNIT ASSEMBLY 429.00
71 10SDP MAIN BODY FIXING PLATE ASSEMBLY 21.45
72 100J7 BALL BEARING (16X22X4) 22.55
73 100WH WASHER 1.10
74 10SM4 WASHER 1.65
75 100SQ REDUCTION GEAR PLATE (B) ASSEMBLY 46.20
76 100ST REDUCTION GEAR PLATE (A) ASSEMBLY 41.80
77 100TV MOTOR HOLDER COVER 37.95
78 10G9W WASHER 1.10
79 105NK E-TYPE RETAINING RING 2.5 1.10
80 10G6B WASHER 1.10
81 100AN WORM SHAFT SUPPORT 1.65
82 10SDM PINION TRANSMISSION GEAR (A) ASSEMBLY 39.05
83 10QG5 FIXING BOLT 1.10
84 100U1 PINION TRANSMISSION GEAR (B) SHAFT 14.85
85 10TEJ PINION TRANSMISSION GEAR (B) 21.45
86 108PH BALL BEARING (12X18X4) 13.75
87 105NC E-TYPE RETAINING RING 2 1.10
88 10G8K WASHER 1.10
89 10TEF CLUTCH SPRING 3.85
90 100TT CLUTCH CLAW 1.65
91 10SEF CLUTCH PLATE ASSEMBLY 11.55
92 1475S FRAME 60.50
93 10SRJ CLUTCH LEVER 6.05
94 10TEM CLUTCH LEVER MOUNT (B) 1.10
95 10TEL CLUTCH LEVER MOUNT (A) 1.10
96 10SRH CLUTCH LEVER NAMEPLATE 5.50
97 10SRR CLUTCH LEVER PROTECTOR 1.65
98 1055B FIXED BOLT 1.10
99 1475T LEVEL WIND GUARD 14.30
100 10LZE FIXED BOLT 1.10
101 100XP CONNECTOR 22.55
102 10BGS SOCKET NUT SET 6.05
103 10T2G SOCKET CAP 3.85
104 1027E LEVEL WIND ASSEMBLY 17.05
105 146U6 WORM SHAFT PIN 2.20
106 1461K WORM SHAFT PIN HOLDER 1.10
107 10RR9 WASHER 2.75
108 10FJX LEVEL WIND HOLDER 1.65
109 103KT FIXING BOLT 1.10
110 10TDK FIXING BOLT 1.10
111 10LST FIXING BOLT 1.10
112 1000 LEVEL WIND PIPE 1.65
113 146U5 WORM SHAFT 7.70
114 10T25 WORM SHAFT GEAR (C) 2.75
115 10TDP LEVEL WIND ROD 1.10
116 10173 LEVEL WIND COVER 1.10
117 14CDW MOTOR ASSEMBLY 185.90
121 105CA BALL BEARING (5X11X4) 13.75
122 10MGT SPOOL CLUTCH PIN 2.75
123 10TK0 WASHER 1.65
124 10JAJ WORM SHAFT GEAR 2.75
125 14B5Y SPOOL ASSEMBLY 72.60
126 10PMK FIXING BOLT 1.10
127 1401G WORM SHAFT GEAR RECEIVER 2.75
128 146UA WORM SHAFT GEAR (B) 2.75
129 10HVD WASHER 1.10
130 101LH FIXING BOLT 1.10
131 146UB LEAD WIRE COVER 1.65
133 1475R MAIN BODY B 27.50
201 144SA HANDLE CAP 4.95
202 10LAA O-RING 1.10
203 10PXZ HANDLE KNOB BUSHING 1.65
204 10S9X WASHER 1.65
205 100RJ HANDLE KNOB 22.55
206 14B5Z HANDLE SHAFT ASSEMBLY 49.50
207 14B60 HANDLE ASSEMBLY 82.50
208 14BQ8 MAIN BODY A ASSEMBLY 71.50
501 10CYP LEG ADJUSTMENT SHEET 1.65
502 101VZ CABLE 40.70
503 10NC0 REEL WRENCH 1.65
LINE 10CW0 LINE GUIDE 1.65
