[DAIWA] Genuine Spare Parts for 25 IPRIMI LT2000S-XH Product code: 00060112 **Back-order (Shipping in 3-4 weeks after receiving order)

[DAIWA] Genuine Spare Parts for 25 IPRIMI LT2000S-XH Product code: 00060112 **Back-order (Shipping in 3-4 weeks after receiving order)

Our Selling Price: US$0.77 - US$71.61 [Regular Price: US$1.10 - US$102.30]

Prices vary according to options.

View availability
Part Number:
Quantity:
Return & Exchange Policy
Contact Us

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship this item after you order unless we have in stock at the time of your order.

- We don't accept order cancellations, changes, or refunds after an order unless the products you ordered are not available because SHIMANO/DAIWA Japan doesn't accept our cancellations.



*Please make sure to read about the conditions before you order.

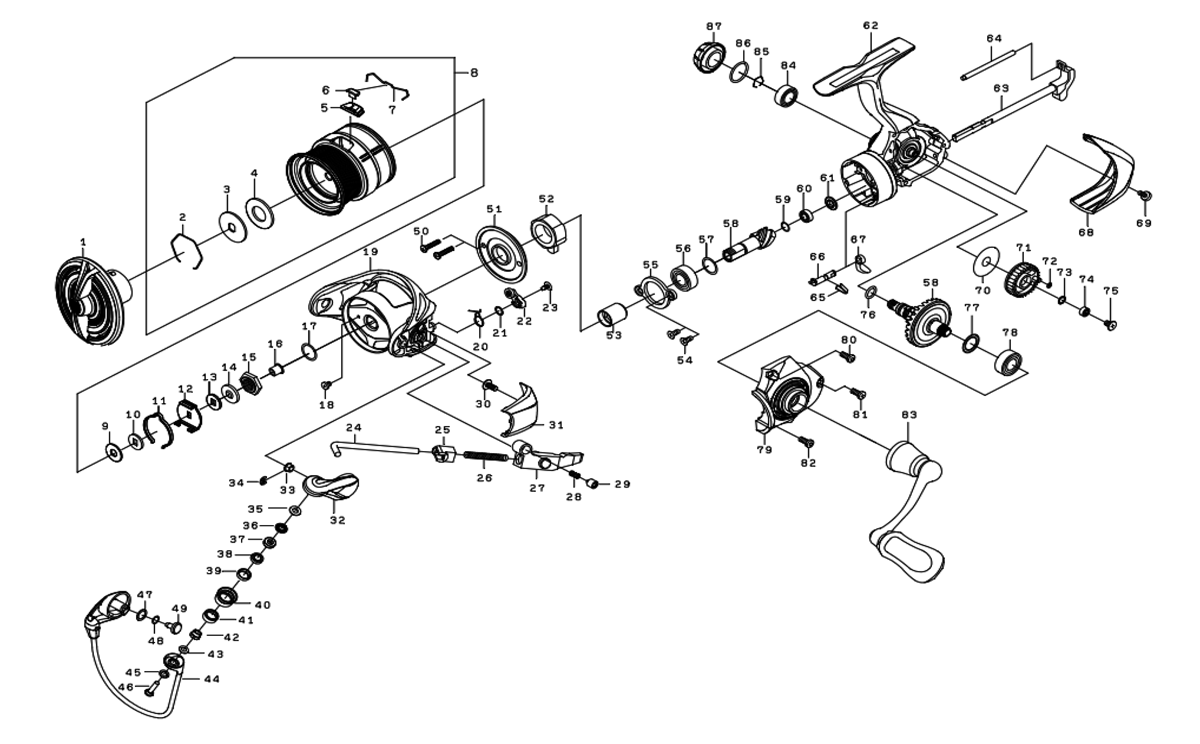

　Reel Part's Schematic Diagram



No. Part Name Part Code Price (USD)
1 DRAG KNOB 6Q376801 12.10
2 DRAG RING 6Q346101 2.20
3 DRAG DISC W 6Q621901 2.20
4 DRAG W (1 piece) 6Q917501 6.60
5 LINE STOPPER PLATE 6Q376701 2.20
6 LINE STOPPER 6Q345501 2.20
7 LINE STOPPER SP 6Q345701 2.20
8 SPOOL (2-8) 6R084301 102.30
9 SPOOL W (A) 6E398003 1.10
10 SPOOL W (B) 6Q348502 1.10
11 CLICK LEAF SP 6Q797701 2.20
12 CLICK HOLDER 6Q798201 2.20
13 CLICK HOLDER W 6Q344001 1.10
14 ROTOR NUT PACKING 6H986901 3.30
15 ROTOR NUT 6Q748401 3.30
16 ROTOR NUT COLLAR 6Q858101 3.30
17 ROTOR NUT W 63727602 1.10
18 ROTOR NUT SC 6H022701 2.20
19 ROTOR 6Q825319 19.80
20 KICK LEVER SP 6Q825401 2.20
21 KICK LEVER W 6M194601 1.10
22 KICK LEVER 6Q825501 2.20
23 KICK LEVER SC 6Q957301 2.20
24 ARM LEVER SHAFT 6Q810901 2.20
25 ARM LEVER SHAFT COLLAR 6Q808501 3.30
26 ARM LEVER SP 6Q873901 2.20
27 ARM LEVER SP HOLDER 6Q826001 2.20
28 ARM LEVER HOLDER SP 6Q812001 2.20
29 ARM LEVER HOLDER PIN 6Q808701 2.20
30 ARM LEVER SP COVER SC 6Q812201 2.20
31 ARM LEVER SP COVER 6Q826402 3.30
32 ARM LEVER 6Q905206 11.00
33 ARM LEVER COLLAR 6Q809101 2.20
34 ARM LEVER RETAINER 6B339801 2.20
35 ROLLER W (A) 6F889105 1.10
36 ROLLER PACKING 6J736201 1.10
37 ROLLER COLLAR (A) 6Q896601 2.20
38 ROLLER BALL BEARING 6J256702 15.40
39 ROLLER COLLAR (B) 6Q896901 3.30
40 LINE ROLLER 6Q881101 8.80
41 ROLLER COLLAR (C) 6Q994201 2.20
42 ROLLER COLLAR (D) 6Q994101 2.20
43 ROLLER W (B) 63754101 1.10
44 BAIL 6R083901 35.20
45 ROLLER SC・W 63754105 1.10
46 ROLLER SC 6M475401 2.20
47 BAIL HOLDER SC・W (A) 6Q416203 1.10
48 BAIL HOLDER SC・W (B) 6F037404 1.10
49 BAIL HOLDER SC 6Q812301 2.20
50 SEALED CAP SC 6G837101 2.20
51 SEALED CAP 6Q139401 3.30
52 ONE-WAY CLUTCH *Cannot be ordered 6J388401 26.40
53 CLUTCH RING *Cannot be ordered 6J001403 6.60
54 PINION BEARING PLATE SC 6Q126201 2.20
55 PINION BEARING PLATE 6Q195601 2.20
56 PINION BALL BEARING (A) 6G467302 8.80
57 PINION BEARING (A) W 63758502 1.10
58 PINION + DRIVE GEAR SET 6Z700890 17.60
59 PINION BEARING (B) W 6H931701 1.10
60 PINION BALL BEARING (B) 6H959601 8.80
61 PINION BEARING (B) COLLAR 6J387701 3.30
62 BODY 6R083101 28.60
63 MAIN SHAFT 6Q866301 8.80
64 OSCILLATING POST 6Q126306 2.20
65 STOPPER CAM SP 6Q845901 2.20
66 STOPPER CAM 6Q852701 2.20
67 STOPPER LEVER 6Q852601 2.20
68 REAR CAP 6Q866902 5.50
69 REAR CAP SC 6Q342902 2.20
70 OSCILLATE GEAR W 6H607902 1.10
71 OSCILLATE GEAR *Cannot be ordered 6Q375201 6.60
72 OSCILLATE GEAR O-RING 6H770601 1.10
73 OSCILLATE GEAR BEARING W 6H129201 1.10
74 OSCILLATE GEAR BALL BEARING 6G469005 8.80
75 OSCILLATE GEAR SC 6Q126101 2.20
76 DRIVE GEAR O-RING 6G670501 1.10
77 DRIVE W 63758511 1.10
78 DRIVE BALL BEARING (A) 6G467302 8.80
79 BODY COVER 6R083301 22.00
80 BODY COVER SC (A) 6Q342602 2.20
81 BODY COVER SC (B) 6Q342701 2.20
82 BODY COVER SC (C) 6Q852402 2.20
83 HANDLE 6R085201 82.50
84 DRIVE BALL BEARING (B) 6G522706 8.80
85 DRIVE BEARING (B) RING 6G472401 2.20
86 HANDLE CAP O-RING 6G162401 2.20
87 HANDLE CAP 6Q345104 4.40
200 HANDLE KNOB W 6B411703 1.10
201 HANDLE KNOB BALL BEARING (A) 6G469005 8.80
202 HANDLE KNOB 6J850001 15.40
203 HANDLE KNOB BALL BEARING (B) 6G469005 8.80
204 HANDLE KNOB SC 6G752603 3.30
