[SHIMANO] Genuine Spare Parts for 25 Soare XR 500SPG Product Code: 048950 **Back-order (Shipping in 3-4 weeks after receiving order)

[SHIMANO] Genuine Spare Parts for 25 Soare XR 500SPG Product Code: 048950 **Back-order (Shipping in 3-4 weeks after receiving order)

Our Selling Price: US$0.66 - US$59.40 [Regular Price: US$1.10 - US$99.00]

Prices vary according to options.

View availability
Part Number:
Quantity:
Return & Exchange Policy
Contact Us

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.

- We don't accept order cancellations, changes, or refunds after an order unless the products you ordered are not available because SHIMANO/DAIWA Japan doesn't accept our cancellations.



*Please make sure to read about the conditions before you order.

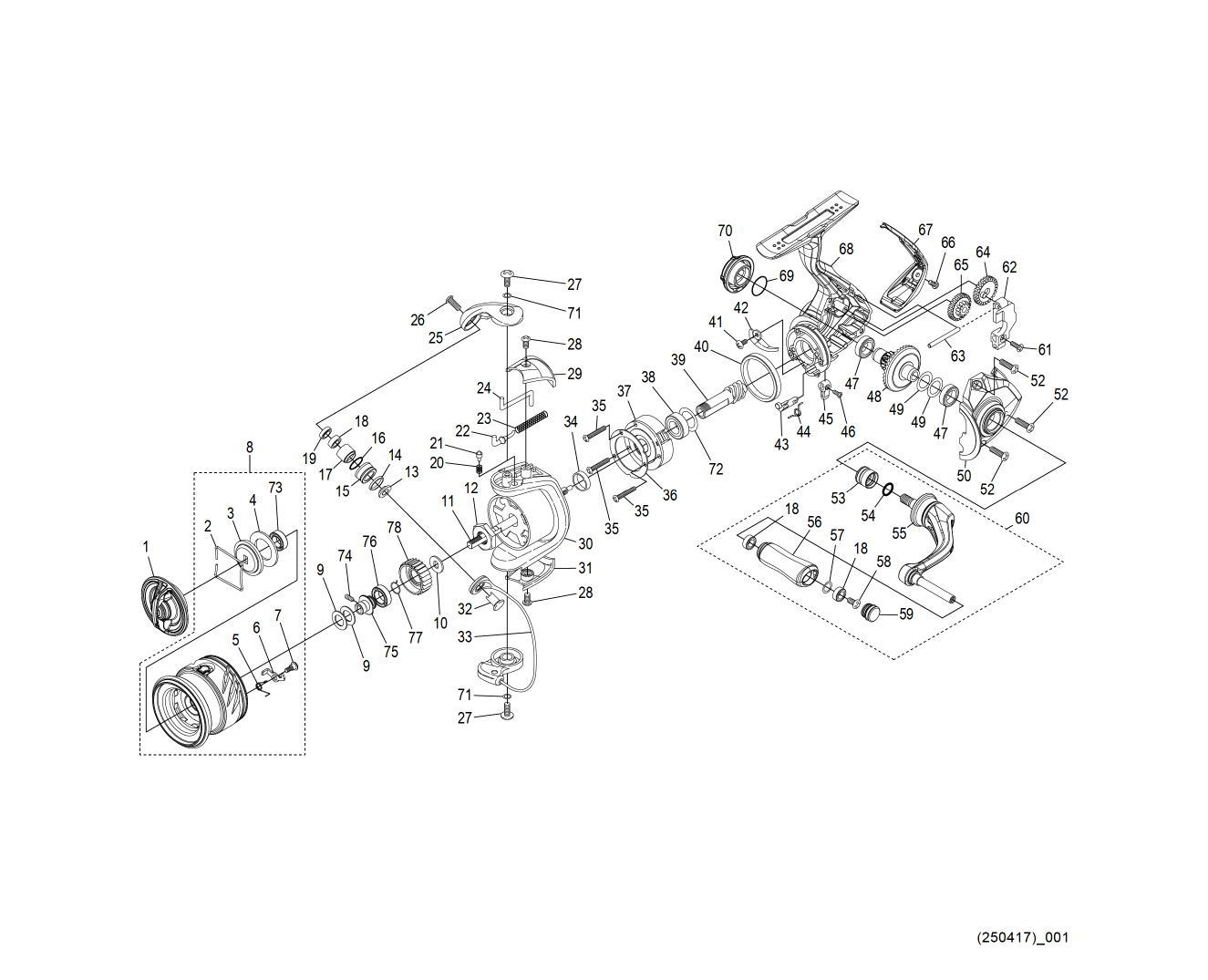

　Reel Part's Schematic Diagram


* Circled figures indicate bearings.
* Please note disassembly is at your own risk.

No. S Part No. Description Price (USD)
1 14A8D DRAG KNOB ASSEMBLY 20.90
2 13K38 ANTI-SLIP SPRING 1.65
3 13K36 OVAL WASHER 1.65
4 13K3H DRAG WASHER 3.03
5 10TNX SPOOL PIN SPRING 1.65
6 10TNV SPOOL PIN 1.65
7 10TRB FIXING BOLT 1.65
8 14C1T SPOOL ASSEMBLY 86.90
9 10BU9 SPOOL WASHER 1.10
10 103PE SPOOL BEARING 1.65
11 13LN6 MAIN SHAFT 6.05
12 1080V ROTOR NUT 3.85
13 10TJM LINE ROLLER BEARING COLLAR 2.75
14 10RFZ LINE ROLLER SPACER 1.65
15 1009A LINE ROLLER 6.05
16 1009E O-RING 1.65
17 1009K LINE ROLLER BUSH 1.65
18 104VX BALL BEARING (4X7X2.5) 13.75
19 10E44 LINE ROLLER COLLAR 2.75
20 10CH0 BAIL TRIP LEVER CLICK SPRING 1.65
21 106UX CLICK PIN 1.65
22 105LS ARM SPRING GUIDE 1.10
23 10SQ8 ARM CAM SPRING 1.65
24 10FAZ INNER GEAR LEVER 3.85
25 14C1U ARM CAM 7.70
26 10TLJ FIXING BOLT 2.75
27 10TLM FIXING BOLT 1.65
28 10SH9 FIXING BOLT 1.65
29 10DGX ARM CAM SPRING COVER 2.75
30 14C1V ROTOR 31.35
31 10DH0 BAIL MOUNTING COVER 9.35
32 10T2U ARM FIXING SHAFT 6.05
33 14C20 BAIL ASSEMBLY 53.90
34 10HB7 ROTATING FRAME RING 2.75
35 10L1Z FIXING BOLT 1.10
36 10AEX ROLLER CLUTCH COVER PLATE 1.65
37 10QPH ROLLER CLUTCH ASSEMBLY 11.55
38 10DZB BALL BEARING (7X13X4) 7.15
39 14BG5 PINION GEAR 19.80
40 10D7P FRICTION RING 3.85
41 10LCS FIXING BOLT 1.10
42 10D8Z INNER GEAR STOPPER 1.65
43 10DC5 STOPPER CAM 1.65
44 10DCS CLICK SPRING 1.10
45 10FPW STOPPER LEVER 1.65
46 10SUK FIXING BOLT 1.65
47 107FA BALL BEARING (7X11X3) 7.15
48 13D1T DRIVE GEAR ASSEMBLY 17.05
49 1022D WASHER 2.75
50 14C1W COVER 33.00
52 10SHA FIXING BOLT 1.65
53 14957 HANDLE SHAFT FLANGE (B) 6.05
54 108WQ O-RING 1.65
55 14C1R HANDLE SHANK ASSEMBLY 77.00
56 13MB2 HANDLE KNOB 28.05
57 104FH WASHER 2.20
58 10LFA FIXING BOLT 1.10
59 14A8P HANDLE CAP 6.05
60 14B5A HANDLE ASSEMBLY 99.00
61 10MGL FIXING BOLT 1.10
62 104WG SLIDER 8.25
63 10QWH SLIDER GUIDE 1.65
64 10QWF SLIDER GEAR 1.65
65 10QWJ INTERMEDIATE GEAR 2.75
66 10RX2 FIXING BOLT 1.65
67 10SGA BODY GUARD 11.55
68 14C1S BODY ASSEMBLY 33.00
69 10E3K O-RING 1.65
70 144RK HANDLE SCREW CAP 5.50
71 10K96 WASHER 1.65
72 10HE5 WASHER 1.65
73 104JT BALL BEARING (6X10X3) 13.75
74 10PN3 SET SCREW (M2X5) 1.65
75 10THY SPOOL SHAFT BEARING GUIDE 3.85
76 104PP BALL BEARING (7X11X3) 13.75
77 107V2 RATCHET SPRING 1.65
78 10SYS DRAG CLICK RATCHET 2.75
MH01 14C1X BASE PLATE 2.75
