[DAIWA] Genuine Spare Parts for 25 EMERALDAS AIR LT2500S-DH Product code: 00061321 **Back-order (Shipping in 3-4 weeks after receiving order)

[DAIWA] Genuine Spare Parts for 25 EMERALDAS AIR LT2500S-DH Product code: 00061321 **Back-order (Shipping in 3-4 weeks after receiving order)

Our Selling Price: US$0.77 - US$113.96 [Regular Price: US$1.10 - US$162.80]

Prices vary according to options.

View availability
Part Number:
Quantity:
Return & Exchange Policy
Contact Us

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship this item after you order unless we have in stock at the time of your order.

- We don't accept order cancellations, changes, or refunds after an order unless the products you ordered are not available because SHIMANO/DAIWA Japan doesn't accept our cancellations.



*Please make sure to read about the conditions before you order.

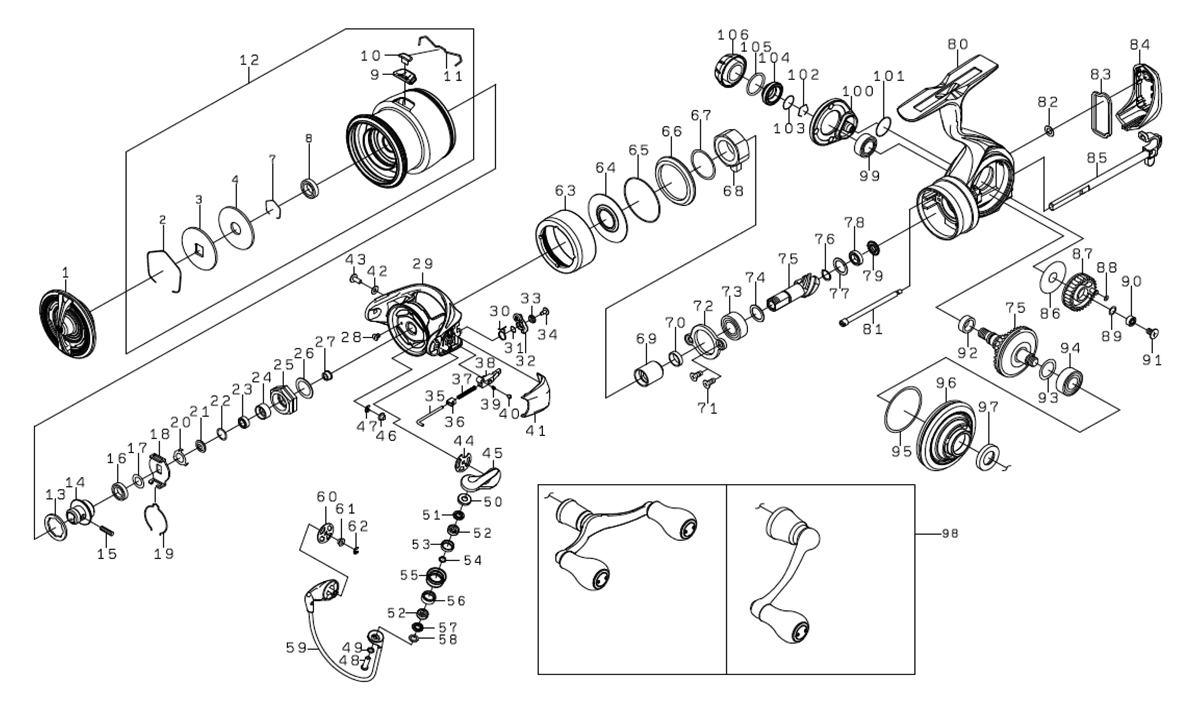

　Reel Part's Schematic Diagram



No. Part Name Part Code Price (USD)
1 DRAG KNOB 6J547201 16.50
2 DRAG RING 6J547101 2.20
3 DRAG DISC W (A) 6J547001 2.20
4 DRAG W (1 piece) 6M358901 6.60
7 SPOOL BEARING RING 6B358703 2.20
8 SPOOL BALL BEARING 6G212503 15.40
9 LINE STOPPER PLATE 6J558101 2.20
10 LINE STOPPER 6J558001 2.20
11 LINE STOPPER SP 6J314801 2.20
12 SPOOL (2-11) 6M817201 137.50
13 SPOOL W 6J546301 1.10
14 SPOOL METAL 6J549501 9.90
15 SPOOL METAL SC 6J558201 2.20
16 SPOOL METAL BALL BEARING 6G818902 15.40
17 SPOOL METAL W 6J602201 1.10
18 CLICK HOLDER 6M021401 2.20
19 CLICK LEAF SP 6H416101 2.20
20 ROTOR NUT PLATE *Not available 6G471501 2.20
21 ROTOR NUT PACKING 6J729101 2.20
22 ROTOR NUT BEARING W 63755202 1.10
23 ROTOR NUT BALL BEARING 6G466205 15.40
24 ROTOR NUT BEARING COLLAR 6M101801 4.40
25 ROTOR NUT 6J253001 8.80
26 ROTOR NUT W 63712824 1.10
27 ROTOR NUT COLLAR 6M402701 4.40
28 ROTOR NUT SC 6H022701 2.20
29 ROTOR *Cannot be ordered 6M816701 49.50
30 KICK LEVER SP 6M194502 2.20
31 KICK LEVER W 6M194601 1.10
32 KICK LEVER 6M194701 8.80
33 KICK LEVER COLLAR 6M196401 2.20
34 KICK LEVER SC 6H022702 2.20
35 ARM LEVER SHAFT 6M194901 2.20
36 ARM LEVER SHAFT COLLAR 6M397001 3.30
37 ARM LEVER SP 6M108801 2.20
38 ARM LEVER SHAFT HOLDER 6M397101 2.20
39 ARM LEVER SHAFT HOLDER SP 6M195301 2.20
40 ARM LEVER SHAFT HOLDER PIN 6M397201 2.20
41 ARM LEVER COVER 6M196001 7.70
42 BAIL HOLDER SC/W 6G256401 1.10
43 BAIL HOLDER SC 6M355601 2.20
44 ARM LEVER PLATE 6M195902 2.20
45 ARM LEVER *Cannot be ordered 6M195509 16.50
46 ARM LEVER COLLAR 6M195801 2.20
47 ARM LEVER RETAINER 6B339801 2.20
48 ARM LEVER SC 6M196801 3.30
49 ARM LEVER W 6M291901 1.10
50 ROLLER COLLAR (A) 6J538001 2.20
51 ROLLER MAG COLLAR (A) *Cannot be ordered 6J538401 12.10
52 ROLLER BALL BEARING 6J256702 15.40
53 ROLLER COLLAR (B) 6J256601 3.30
54 ROLLER COLLAR (C) 6J256301 2.20
55 LINE ROLLER *Cannot be ordered 6M196701 8.80
56 ROLLER COLLAR (D) 6M196601 4.40
57 ROLLER MAG COLLAR (B) *Cannot be ordered 6J537801 12.10
58 ROLLER W 63754101 1.10
59 BAIL *Cannot be ordered 6M196201 72.60
60 BAIL HOLDER PLATE 6M196502 2.20
61 BAIL HOLDER COLLAR 6M195801 2.20
62 BAIL HOLDER RETAINER 6B339801 2.20
63 MAG SHIELD CAP *Cannot be ordered 6J777901 8.80
64 MAG SHIELD PLATE *Cannot be ordered 6J777601 23.10
65 MAG SHIELD PLATE O-RING *Not available 6J791001 1.10
66 MAG SHIELD PLATE COLLAR 6J777802 2.20
67 ONE-WAY CLUTCH W 6J639902 1.10
68 ONE-WAY CLUTCH *Cannot be ordered 6J388401 26.40
69 CLUTCH RING *Cannot be ordered 6J536102 7.70
70 CLUTCH RING COLLAR 6J536202 2.20
71 PINION BEARING PLATE SC 6G997301 2.20
72 PINION BEARING PLATE 6M094001 2.20
73 PINION BALL BEARING (A) 6G279605 8.80
74 PINION BEARING (A) W 63758502 1.10
75 PINION + DRIVE GEAR SET *Cannot be ordered 6Z027781 77.00
76 PINION BEARING (B) SP?W 6H814902 1.10
77 PINION BEARING (B) W 6E096501 1.10
78 PINION BALL BEARING (B) 6G466202 8.80
79 PINION COLLAR *Cannot be ordered 6J588201 3.30
80 BODY *Cannot be ordered 6M816501 57.20
81 REAR CAP SC 6M009501 6.60
82 REAR CAP W 6F037403 1.10
83 REAR CAP PACKING 6J777301 2.20
84 REAR CAP *Cannot be ordered 6M599401 8.80
85 MAIN SHAFT *Cannot be ordered 6J776301 36.30
86 OSCILLATING GEAR W 6J551401 1.10
87 OSCILLATING GEAR *Cannot be ordered 6J551501 9.90
88 OSCILLATING GEAR O-RING 6G869601 1.10
89 OSCILLATING GEAR BEARING W 6H129201 1.10
90 OSCILLATING GEAR BALL BEARING 6G686904 15.40
91 OSCILLATING GEAR SC 6G997001 2.20
92 DRIVE GEAR RING 6J552701 2.20
93 DRIVE W 6E154807 1.10
94 DRIVE BALL BEARING (A) 6G522706 8.80
95 ENGINE PLATE O-RING 6J588801 1.10
96 ENGINE PLATE *Cannot be ordered 6M599308 36.30
97 HANDLE PACKING 6M457801 3.30
98 HANDLE 6M817301 162.80
99 DRIVE BALL BEARING (B) 6G522706 8.80
100 SET PLATE *Cannot be ordered 6J776001 9.90
101 SET PLATE O-RING 6H816401 2.20
102 DRIVE BEARING RING 6G472401 2.20
103 DRIVE BEARING COVER O-RING 6H255001 1.10
104 DRIVE BEARING COVER *Cannot be ordered 6J777003 12.10
105 HANDLE CAP O-RING 6G399702 1.10
106 HANDLE CAP 6J778101 6.60
200 HANDLE KNOB SP・W 6H744801 1.10
201 HANDLE KNOB W 6B411703 1.10
202 COLOR (4 7 2.5)/BLACK 6G720001 2.20
203 HANDLE KNOB 6J672101 19.80
204 HANDLE KNOB BALL BEARING 6G469008 8.80
205 HANDLE KNOB SC 6B679308 2.20
206 HANDLE KNOB CAP (WITH O-RING) 6M819001 15.40
207 HANDLE KNOB O-RING 6H100001 1.10
