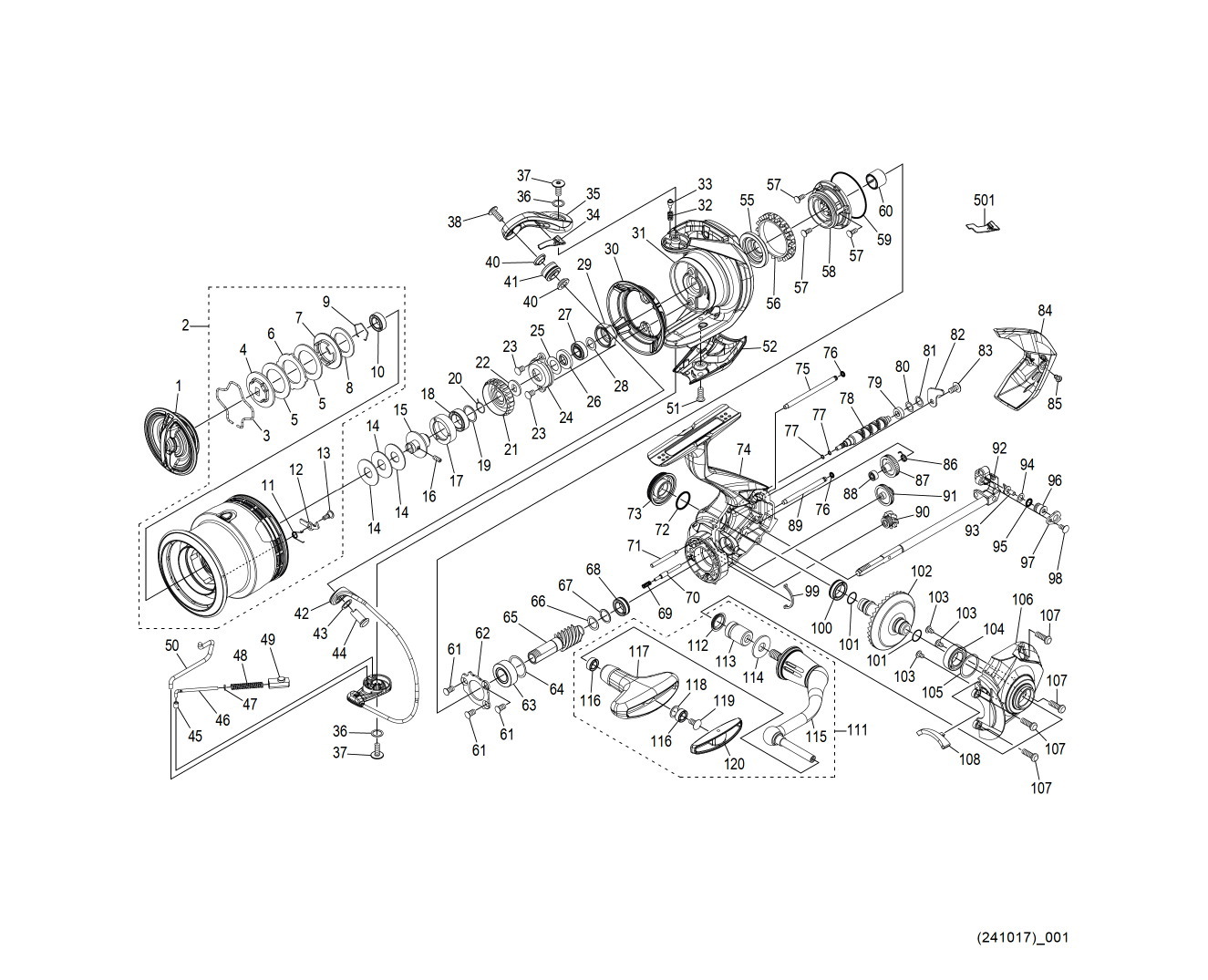

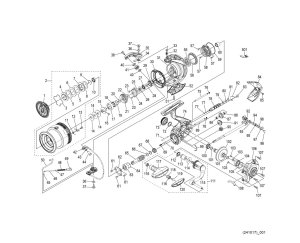

Reel Part's Schematic Diagram

* Circled figures indicate bearings.
* Please note disassembly is at your own risk.

No.	S Part No.	Description	Price (USD)
1	149YU	DRAG KNOB ASSEMBLY	33.00
2	14A1V	SPOOL ASSEMBLY	170.50
3	145QR	EXTRACTION STOPPER SPRING	1.10
4	10QBY	KOBAN WASHER	9.35
5	10R5H	DRAG WASHER (A)	2.20
6	10BCP	DRAG EAR WASHER	6.05
7	10B9D	DRAG KOBAN WASHER	2.75
8	10R4W	DRAG WASHER (B)	2.20
9	10GEW	BEARING EXTRACTION STOPPER	1.10
10	104JT	BALL BEARING (6X10X3)	13.75
11	10BQE	SPOOL PIN SPRING	1.65
12	10TJX	SPOOL PIN	1.65
13	10A6F	FIXED BOLT	1.65
14	101AV	SPOOL WASHER (A)	2.20
15	10LTS	SPOOL AXIS BEARING GUIDE	6.05
16	10PN2	SET SCREW	1.65
17	10TQH	BEARING COLLAR	2.75
18	10EX8	BALL BEARING (8X12X3.5)	13.75
19	10GHN	WASHER	1.65
20	107V2	RATCHET SPRING	1.65
21	107PS	DRAG CLICK RATCHET	2.75
22	103NX	SPOOL RECEIVING COLLAR	1.65
23	10T1G	RETAINER FIXING BOLT	1.10
24	1076N	RETAINER	2.75
25	13XFQ	WASHER	1.10
26	13YF4	ROTOR BEARING SEAL	3.85
27	103B3	ROTOR RECEIVING COLLAR ASSEMBLY (WITH BEARING)	17.05
28	101M1	WASHER	1.10
29	10SQ2	ROTOR NUT	9.35
30	148GC	ROTOR FLANGE	8.80
31	14A1W	ROTOR ASSEMBLY	58.30
32	10CGZ	CLICK SHAFT SPRING	1.65
33	106UX	CLICK SHAFT PIN	1.65
34	10SQ4	ARM CAM FIN	1.10
35	148GE	ARM CAM	9.35
36	13XDP	WASHER	1.65
37	10RFW	FIXING BOLT	1.65
38	10TLJ	FIXING BOLT	2.75
40	1020L	LINE ROLLER BEARING COLLAR	2.75
41	101KE	LINE ROLLER (WITH BEARING) ASSEMBLY	34.10
42	14A1X	BAIL ASSEMBLY	46.20
43	1002S	ARM FIXED SHAFT WASHER	1.10
44	10EAP	ARM FIXED SHAFT	2.75
45	10DKC	ARM SPRING GUIDE (A) COLLAR BUSH	1.65
46	10SAN	ARM SPRING GUIDE (A)	3.85
47	101D9	ARM SPRING GUIDE (A) COLLAR	1.65
48	10R2P	ARM CAM SPRING	1.65
49	10R2E	ARM CAM SPRING GUIDE (B)	2.75
50	13YF9	INTERNAL GERI LEVER	2.75
51	10DT7	FIXING BOLT	1.65
52	147H7	BAIL MOUNTING COVER	10.45
55	101D5	ROTOR COLLAR	9.35
56	10DK7	FRICTION RING	3.85
57	101D7	FIXING BOLT	1.65
58	10S2L	ROLLER CLUTCH ASSEMBLY	12.65
59	10DKD	ROLLER CLUTCH GUIDE SEAL	1.65
60	10DJY	ROLLER CLUTCH INNER	3.85
61	10ML6	FIXING BOLT	1.65
62	10R53	BEARING PRESSING PLATE	2.75
63	104VF	BALL BEARING (7X14X5)	13.75
64	107JT	FRONT FLANGE BEARING ADJUSTMENT WASHER	1.10
65	10SEH	PINION GEAR	21.45
66	10053	WASHER	1.65
67	10GD8	WASHER	1.10
68	10RG4	BALL BEARING (6X10X3)	13.75
69	10R5T	INTERMEDIATE GEAR SPRING	1.10
70	10SEC	INTERMEDIATE GEAR SHAFT	2.75
71	13XY6	INTERMEDIATE GEAR SHAFT (C)	2.75
72	108WA	O-RING	1.65
73	100AB	HANDLE SCREW CAP	20.90
74	14A1Y	BODY ASSEMBLY	132.00
75	10SQ5	SLIDER GUIDE (A)	3.85
76	10JAB	O-RING	1.65
77	10092	O-RING	1.65
78	10SQ6	WORM SHAFT	11.55
79	10TH6	BUSH	3.85
80	100XZ	WASHER	2.20
81	10TK0	WASHER	1.65
82	10SDX	WORM SHAFT COVER	3.30
83	103EB	FIXED BOLT	1.65
84	1011Z	BODY GUARD	11.55
85	106ZG	FIXED BOLT	1.65
86	10R5N	WORM SHAFT GEAR SPRING	2.20
87	10R5L	WORM SHAFT GEAR	9.35
88	10PC0	BALL BEARING (2X5X2.5)	13.75
89	10SPV	SLIDER GUIDE (B)	3.85
90	10SQA	INTERMEDIATE GEAR (LARGE)	8.25
91	10R4Q	INTERMEDIATE GEAR (C)	8.25
92	10DRR	MAIN SHAFT ASSEMBLY	30.80
93	106VM	WORM SHAFT PIN	4.95
94	100CW	WASHER	2.20
95	108W9	O-RING (3X5)	1.65
96	1005H	WORM SHAFT PIN COLLAR	2.75
97	10HAH	WORM SHAFT PIN PUSH PLATE	1.65
98	10MT4	FIXED BOLT	1.10
99	10DKA	FOOT FLANGE SEAL	2.75
100	10R5U	BALL BEARING (7X11X3)	13.75
101	1009S	O-RING	1.65
102	13YFE	DRIVE GEAR	30.80
103	1055G	FIXING BOLT	1.65
104	104PT	BALL BEARING (8X14X4)	13.75
105	100W9	WASHER	2.75
106	14A1Z	FOOT ASSEMBLY	56.10
107	10SJV	FIXING BOLT	1.65
108	10QWW	INTERNAL GERI BOLT	1.65
111	14A20	HANDLE ASSEMBLY	105.60
112	10PXU	HANDLE SHAFT SEAL	2.75
113	10E08	HANDLE SHAFT FLANGE (B)	6.05
114	10FJ6	HANDLE WASHER	1.65
115	14A21	HANDLE SHANK ASSEMBLY	77.00
116	104VX	BALL BEARING (4X7X2.5)	13.75
117	10RHC	HANDLE KNOB	17.05
118	104FH	WASHER	2.20
119	103E9	FIXING BOLT	1.10
120	10S3U	HANDLE CAP	3.85
501	10SE2	ARM CAM FIN	1.10
MH01	14849	LEG BACK NAMEPLATE	2.75
