[SHIMANO] Genuine Spare Parts for 25 EXSENCE 3000MHG Product Code: 048219 **Back-order (Shipping in 3-4 weeks after receiving order)

[SHIMANO] Genuine Spare Parts for 25 EXSENCE 3000MHG Product Code: 048219 **Back-order (Shipping in 3-4 weeks after receiving order)

Our Selling Price: US$0.77 - US$111.65 [Regular Price: US$1.10 - US$159.50]

Prices vary according to options.

View availability
Part Number:
Quantity:
Return & Exchange Policy
Contact Us

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.

- We don't accept order cancellations, changes, or refunds after an order unless the products you ordered are not available because SHIMANO/DAIWA Japan doesn't accept our cancellations.



*Please make sure to read about the conditions before you order.

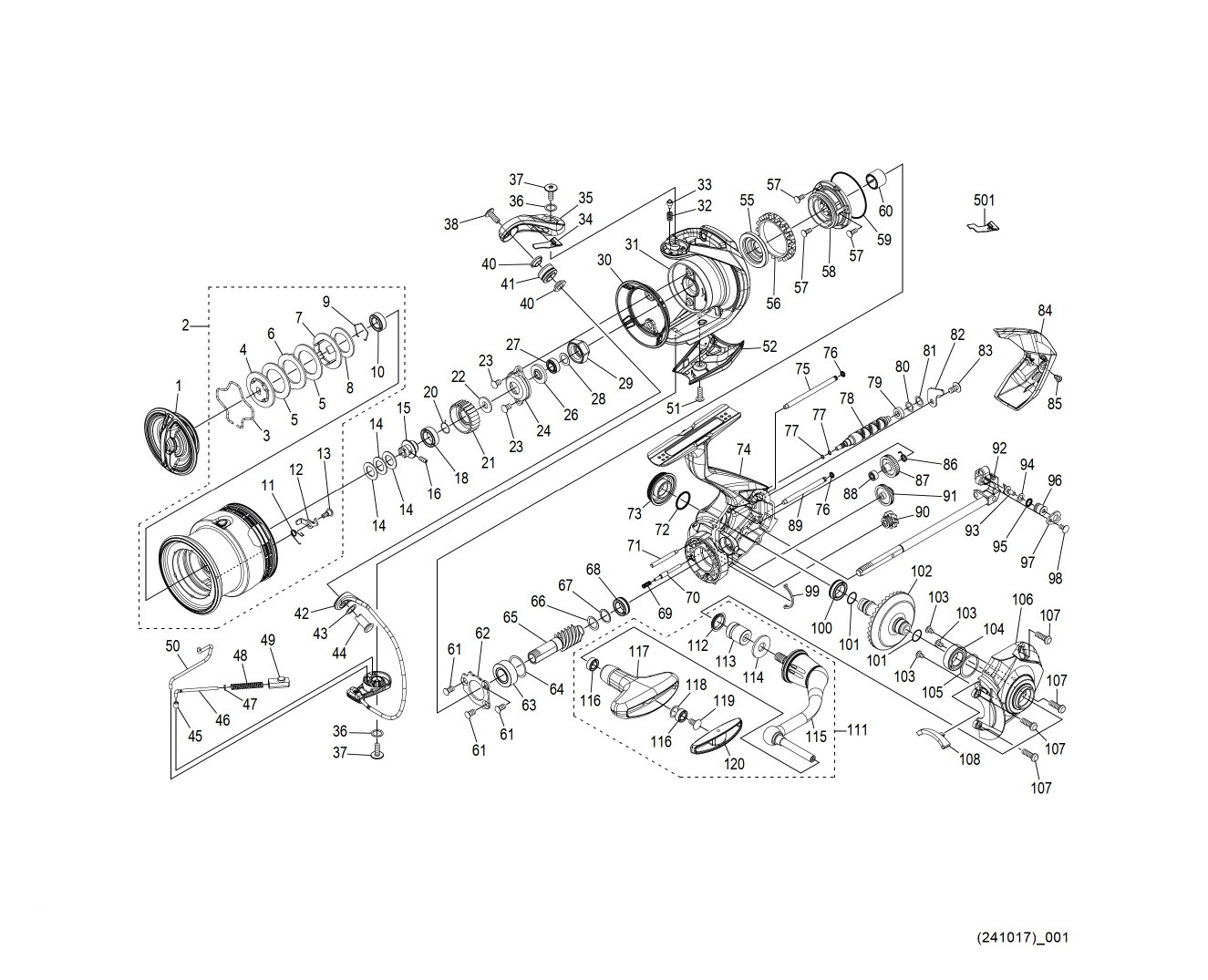

　Reel Part's Schematic Diagram


* Circled figures indicate bearings.
* Please note disassembly is at your own risk.

No. S Part No. Description Price (USD)
1 149YU DRAG KNOB ASSEMBLY 33.00
2 14A2Z SPOOL ASSEMBLY 159.50
3 145QR EXTRACTION STOPPER SPRING 1.10
4 10TJV KOBAN WASHER 9.35
5 10R5H DRAG WASHER (A) 2.20
6 102XW EAR WASHER 1.65
7 10BBQ KOBAN WASHER 2.75
8 10R4W DRAG WASHER (B) 2.20
9 10GEW BEARING EXTRACTION STOPPER 1.10
10 104JT BALL BEARING (6X10X3) 13.75
11 10BQE SPOOL PIN SPRING 1.65
12 10TNV SPOOL PIN 1.65
13 10A6F FIXED BOLT 1.65
14 10DHG SPOOL WASHER 2.20
15 10DKF MAIN SHAFT BEARING GUIDE 6.05
16 10PN2 SET SCREW 1.65
18 104PP BALL BEARING (7X1 (1X3) 13.75
20 107V2 RATCHET SPRING 1.65
21 10SYS DRAG CLICK RATCHET 2.75
22 103PE SPOOL RETAINER 1.65
23 10T1G RETAINER FIXING BOLT 1.10
24 1076N RETAINER 2.75
26 10SPZ ROTOR BEARING SEAL 3.85
27 10TD2 ROTOR RETAINER COLLAR ASSEMBLY (WITH BEARING) 17.05
28 13YVU WASHER 1.65
29 10R5F ROTOR NUT 9.35
30 148G0 ROTOR FLANGE 8.80
31 149YW ROTOR ASSEMBLY 58.30
32 10CGZ CLICK SPRING 1.65
33 106UX CLICK PIN 1.65
34 10R52 ARM CAM FIN 1.10
35 148G2 ARM CAM 9.35
36 13XDP WASHER 1.65
37 10RFW FIXING BOLT 1.65
38 10TLJ FIXING BOLT 2.75
40 1020L LINE ROLLER BEARING COLLAR 2.75
41 101KE LINE ROLLER (WITH BEARING) ASSEMBLY 34.10
42 149YX BAIL ASSEMBLY 46.20
43 1002S ARM FIXING SHAFT WASHER 1.10
44 10EAP ARM FIXING SHAFT 2.75
45 10DKC ARM SPRING GUIDE (A) COLLAR BUSH 1.65
46 10SAN ARM SPRING GUIDE (A) 3.85
47 101D9 ARM SPRING GUIDE (A) COLLAR 1.65
48 10R2P ARM CAM SPRING 1.65
49 10R2E ARM CAM SPRING GUIDE (B) 2.75
50 13XDR INTERNAL GELLI LEVER 2.75
51 10E8R FIXING BOLT 1.10
52 147HA BAIL MOUNTING COVER 10.45
55 101D5 ROTOR COLLAR 9.35
56 10DK7 FRICTION RING 3.85
57 101D7 FIXING BOLT 1.65
58 10S2L ROLLER CLUTCH ASSEMBLY 12.65
59 10DKD ROLLER CLUTCH GUIDE SEAL 1.65
60 10DJY ROLLER CLUTCH INNER 3.85
61 10ML6 FIXING BOLT 1.65
62 10R53 BEARING PUSH PLATE 2.75
63 104VF BALL BEARING (7X14X5) 13.75
64 107JT FRONT FLANGE BEARING ADJUSTMENT WASHER 1.10
65 13LAQ PINION GEAR 21.45
66 10053 WASHER 1.65
67 10GD8 WASHER 1.10
68 10RG4 BALL BEARING (6X10X3) 13.75
69 10R5T INTERMEDIATE GEAR SPRING 1.10
70 10SEC INTERMEDIATE GEAR SHAFT 2.75
71 13XY6 INTERMEDIATE GEAR SHAFT (C) 2.75
72 108WA O-RING 1.65
73 100AB HANDLE SCREW CAP 20.90
74 14A30 BODY ASSEMBLY 132.00
75 10SQ5 SLIDER GUIDE (A) 3.85
76 10JAB O-RING 1.65
77 10092 O-RING 1.65
78 13M64 WORM SHAFT 11.55
79 10TH6 BUSH 3.85
80 100XZ WASHER 2.20
81 10TK0 WASHER 1.65
82 10SDX WORM SHAFT COVER 3.30
83 103EB FIXED BOLT 1.65
84 1011Z BODY GUARD 11.55
85 106ZG FIXED BOLT 1.65
86 10R5N WORM SHAFT GEAR SPRING 2.20
87 100AP WORM SHAFT GEAR 9.35
88 10PC0 BALL BEARING (2X5 (2X2.5) 13.75
89 10SPV SLIDER GUIDE (B) 3.85
90 13MPP INTERMEDIATE GEAR (LARGE) 8.25
91 10R4Q INTERMEDIATE GEAR (C) 8.25
92 13DDB MAIN SHAFT ASSEMBLY 30.80
93 106VM WORM SHAFT PIN 4.95
94 100CW WASHER 2.20
95 108W9 O-RING (3X5) 1.65
96 1005H WORM SHAFT PIN COLLAR 2.75
97 10HAH WORM SHAFT PIN PUSH PLATE 1.65
98 10MT4 FIXED BOLT 1.10
99 10DKA COVER FLANGE SEAL 2.75
100 10R5U BALL BEARING (7X11X3) 13.75
101 1009S O-RING 1.65
102 13YFL DRIVE GEAR 30.80
103 1055G FIXED BOLT 1.65
104 104PT BALL BEARING (8X14X4) 13.75
105 100W9 WASHER 2.75
106 14A1Z FOOT ASSEMBLY 56.10
107 10SJV FIXING BOLT 1.65
108 10QWW INTERNAL GERI HITORI 1.65
111 14A1T HANDLE ASSEMBLY 105.60
112 10PXU HANDLE SHAFT SEAL 2.75
113 10TJW HANDLE SHAFT FLANGE (B) 9.35
114 10FJ6 HANDLE WASHER 1.65
115 149Z1 HANDLE SHANK ASSEMBLY 77.00
116 104VX BALL BEARING (4X7X2.5) 13.75
117 10RHC HANDLE KNOB 17.05
118 104FH WASHER 2.20
119 103E9 FIXING BOLT 1.10
120 13YZA HANDLE CAP 4.95
501 10TD4 ARM CAM FIN 1.10
MH01 14848 LEG BACK NAMEPLATE 2.75
