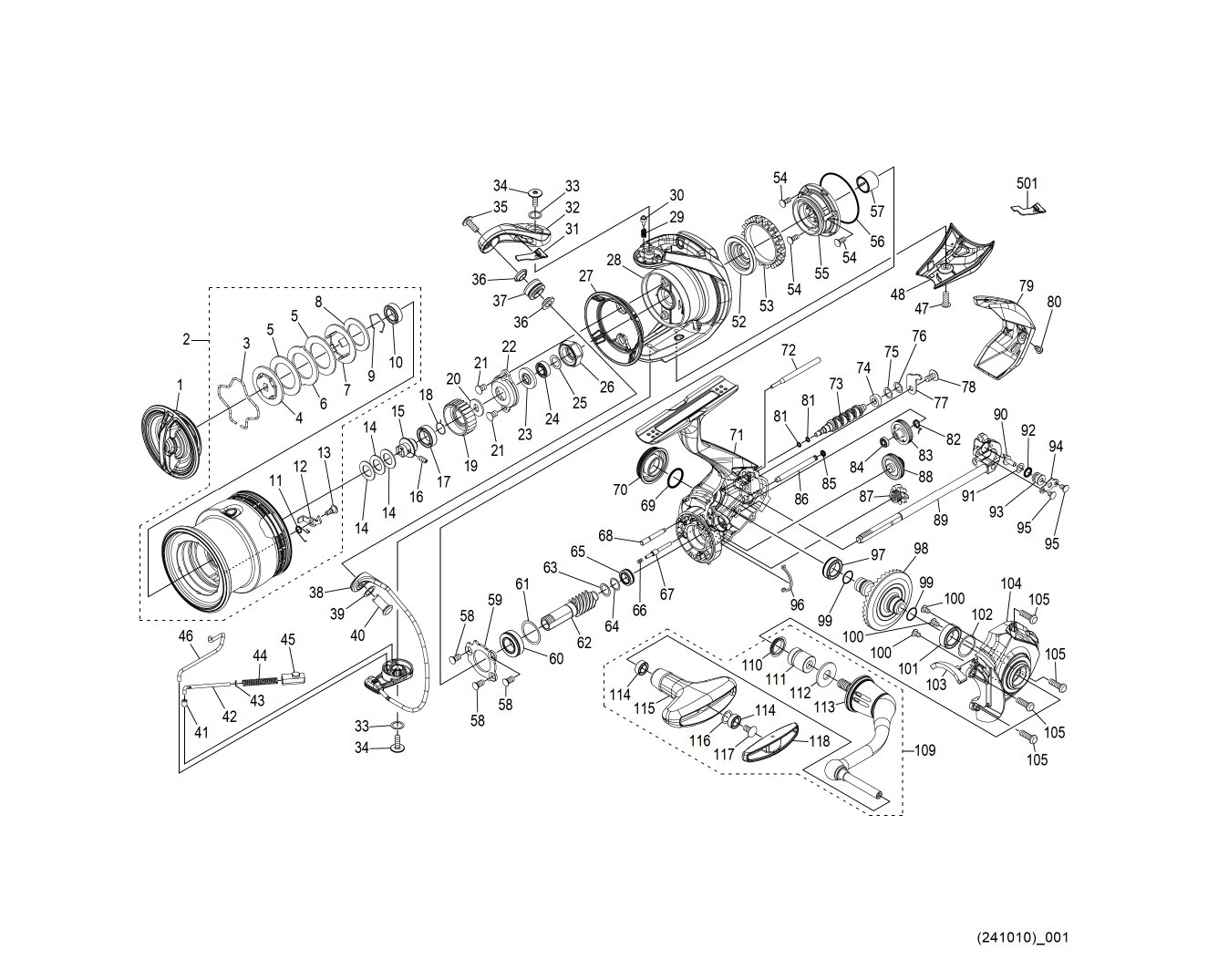

　Reel Part's Schematic Diagram


* Circled figures indicate bearings.
* Please note disassembly is at your own risk.

No. S Part No. Description Price (USD)
1 149YU DRAG KNOB ASSEMBLY 33.00
2 14A1R SPOOL ASSEMBLY 154.00
3 145QR EXTRACTION STOPPER SPRING 1.10
4 10TJV KOBAN WASHER 9.35
5 10R5H DRAG WASHER (A) 2.20
6 102XW EAR WASHER 1.65
7 10BBQ KOBAN WASHER 2.75
8 10R4W DRAG WASHER (B) 2.20
9 10GEW BEARING EXTRACTION STOPPER 1.10
10 104JT BALL BEARING (6X10X3) 13.75
11 10BQE SPOOL PIN SPRING 1.65
12 10TNV SPOOL PIN 1.65
13 10A6F FIXED BOLT 1.65
14 10DHG SPOOL WASHER 2.20
15 10DKF MAIN SHAFT BEARING GUIDE 6.05
16 10PN2 SET SCREW 1.65
17 104PP BALL BEARING (7X1 (1X3) 13.75
18 107V2 RATCHET SPRING 1.65
19 10SYS DRAG CLICK RATCHET 2.75
20 103PE SPOOL RETAINER 1.65
21 10T1G RETAINER FIXING BOLT 1.10
22 1076N RETAINER 2.75
23 10SPZ ROTOR BEARING SEAL 3.85
24 10TD2 ROTOR RETAINER COLLAR ASSEMBLY (WITH BEARING) 17.05
25 13YVU WASHER 1.65
26 10R5F ROTOR NUT 9.35
27 148G0 ROTOR FLANGE 8.80
28 149YW ROTOR ASSEMBLY 58.30
29 10CGZ CLICK SPRING 1.65
30 106UX CLICK PIN 1.65
31 10R52 ARM CAM FIN 1.10
32 148G2 ARM CAM 9.35
33 13XDP WASHER 1.65
34 10RFW FIXING BOLT 1.65
35 10TLJ FIXING BOLT 2.75
36 1020L LINE ROLLER BEARING COLLAR 2.75
37 101KE LINE ROLLER (WITH BEARING) ASSEMBLY 34.10
38 149YX BAIL ASSEMBLY 46.20
39 1002S ARM FIXING SHAFT WASHER 1.10
40 10EAP ARM FIXING SHAFT 2.75
41 10DKC ARM SPRING GUIDE (A) COLLAR BUSH 1.65
42 10SAN ARM SPRING GUIDE (A) 3.85
43 101D9 ARM SPRING GUIDE (A) COLLAR 1.65
44 10R2P ARM CAM SPRING 1.65
45 10R2E ARM CAM SPRING GUIDE (B) 2.75
46 13XDR INTERNAL GELLI LEVER 2.75
47 10E8R FIXING BOLT 1.10
48 147HA BAIL MOUNTING COVER 10.45
52 101D5 ROTOR COLLAR 9.35
53 10DK7 FRICTION RING 3.85
54 101D7 FIXING BOLT 1.65
55 10S2L ROLLER CLUTCH ASSEMBLY 12.65
56 10DKD ROLLER CLUTCH GUIDE SEAL 1.65
57 10DJY ROLLER CLUTCH INNER 3.85
58 10ML6 FIXING BOLT 1.65
59 10R53 BEARING PUSH PLATE 2.75
60 1022A BALL BEARING (7X13X4) 13.75
61 10RYR WASHER 1.10
62 10R5J PINION GEAR 21.45
63 10DJ1 WASHER 1.65
64 10HV4 ADJUSTMENT WASHER 1.10
65 10R50 BALL BEARING (5X8X2.5) 13.75
66 10R5T INTERMEDIATE GEAR SPRING 1.10
67 10R5K INTERMEDIATE GEAR SHAFT 2.75
68 13XDV INTERMEDIATE GEAR SHAFT (C) 2.75
69 108WA O-RING 1.65
70 100AB HANDLE SCREW CAP 20.90
71 14A1S BODY ASSEMBLY 132.00
72 10R4U SLIDER GUIDE (A) 3.85
73 10R55 WORM SHAFT 11.55
74 10TH6 BUSH 3.85
75 100XZ WASHER 2.20
76 10TK0 WASHER 1.65
77 10R5G WORM SHAFT COVER 3.30
78 103EB FIXED BOLT 1.65
79 10R5V BODY GUARD 11.55
80 106ZG FIXED BOLT 1.65
81 10092 O-RING 1.65
82 10R5N WORM SHAFT GEAR SPRING 2.20
83 10R5L WORM SHAFT GEAR 9.35
84 10R5Q BALL BEARING (2X5X1.5) 7.15
85 10JAB O-RING 1.65
86 101D2 SLIDER CHILD GUIDE (B) 3.85
87 13YJ8 INTERMEDIATE GEAR (L) 8.25
88 10R4Q INTERMEDIATE GEAR (C) 8.25
89 100A7 MAIN SHAFT ASSEMBLY 30.80
90 106VL WORM SHAFT PIN 4.95
91 100CW WASHER 2.20
92 108W9 O-RING (3X5) 1.65
93 101BY WORM SHAFT PIN COLLAR 2.75
94 10HAG WORM SHAFT PIN PUSH PLATE 1.65
95 10R4V FIXED BOLT 1.65
96 10DKA FOOT FLANGE SEAL 2.75
97 10R5U BALL BEARING (7X11X3) 13.75
98 13XE7 DRIVE GEAR 30.80
99 1009S O-RING 1.65
100 1055G FIXED BOLT 1.65
101 10EX8 BALL BEARING (8X12X3.5) 13.75
102 1022D WASHER 2.75
103 10R4Y INTERNAL GERI PLATE 1.65
104 149YZ FOOT ASSEMBLY 56.10
105 10M2C FIXING BOLT 1.10
109 14A1T HANDLE ASSEMBLY 105.60
110 10PXU HANDLE SHAFT SEAL 2.75
111 10TJW HANDLE SHAFT FLANGE (B) 9.35
112 10FJ6 HANDLE WASHER 1.65
113 149Z1 HANDLE SHANK ASSEMBLY 77.00
114 104VX BALL BEARING (4X7X2.5) 13.75
115 10RHC HANDLE KNOB 17.05
116 104FH WASHER 2.20
117 103E9 FIXING BOLT 1.10
118 13YZA HANDLE CAP 4.95
501 10TD4 ARM CAM FIN 1.10
MH01 14847 LEG BACK NAMEPLATE 2.75
