[SHIMANO] Genuine Spare Parts for 25 GRAPPLER CT 151XG Product code: 048844 **Back-order (Shipping in 3-4 weeks after receiving order)

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.

- We don't accept order cancellations, changes, or refunds after an order unless the products you ordered are not available because SHIMANO/DAIWA Japan doesn't accept our cancellations.



*Please make sure to read about the conditions before you order.

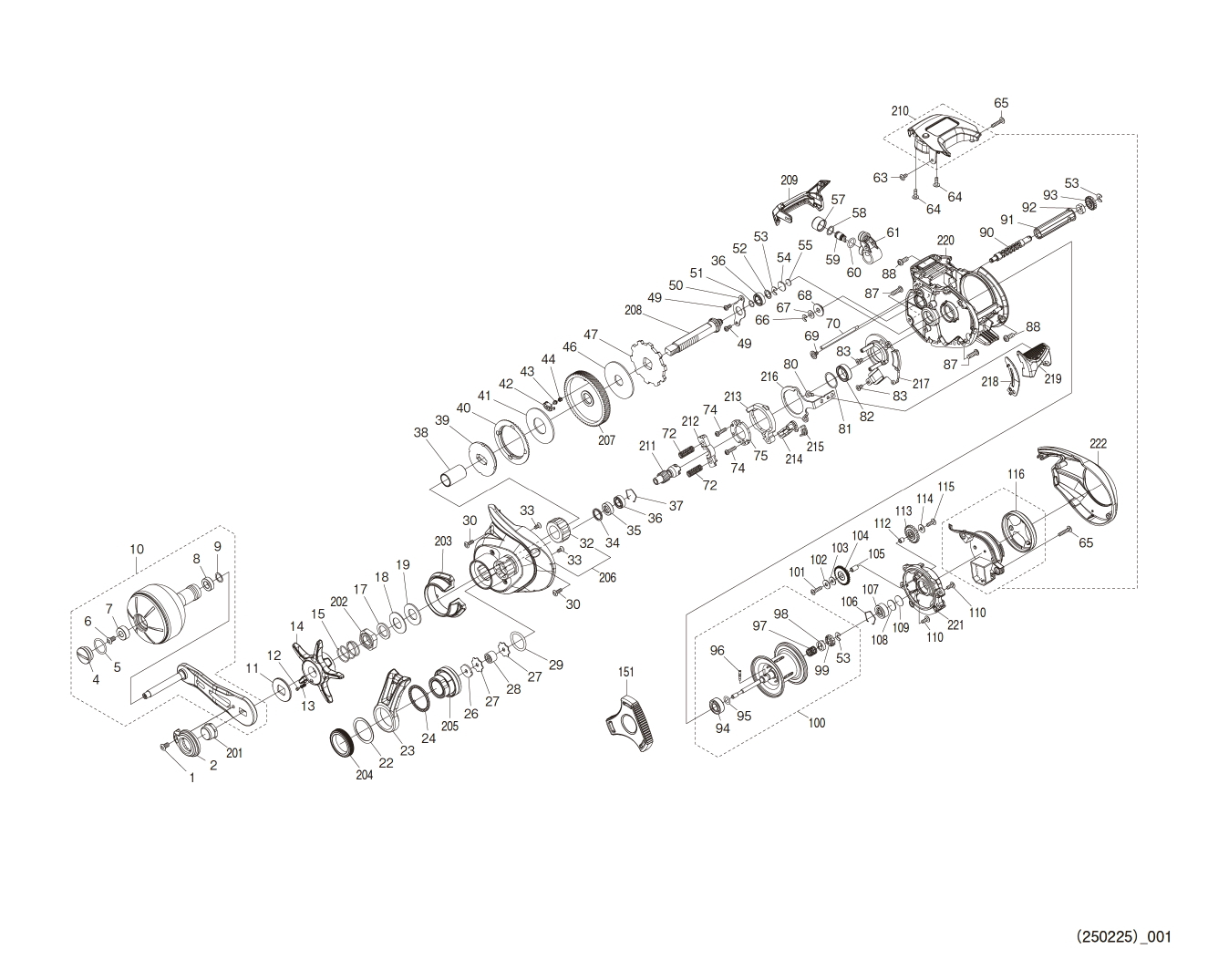

Reel Part's Schematic Diagram

* Circled figures indicate bearings.
* As for the "32 / ROLLER CLUTCH BEARING", "96 /SPOOL CLUTCH PIN" and "94 /BALL BEARING", they don't sell separately.
These parts are supposed to be provided when customers send the reel to have it repaired or overhauled.
So we cannot provide you with the products unfortunately.
* Please note disassembly is at your own risk.

No.	S Part No.	Description	Price (USD)
1	10DV5	FIXED BOLT	1.10
2	10SSK	RETAINER	3.85
4	13AYU	HANDLE CAP	6.05
5	10LAB	O-RING	1.10
6	10LFA	FIXED BOLT	1.10
7	10EU0	HANDLE GRIPPED BUSH (A)	1.65
8	104UJ	HANDLE GRIPPED BUSH (B)	1.65
9	104FH	WASHER	2.20
10	149MX	HANDLE ASSEMBLY	90.20
11	10J22	STAR DRAG CLICK PLATE	1.65
12	10MFC	CLICK PIN	1.65
13	10BT2	CLICK SPRING	1.65
14	149LB	STAR DRAG	6.60
15	10A70	STAR DRAG SPRING	2.75
17	10J1N	STAR DRAG SPACER	1.65
18	10EW3	SPRING (DB8L)	1.65
19	109LA	SPRING (DB-8H)	1.65
22	13B6Z	WASHER	1.65
23	1489N	FALL LEVER	4.95
24	13UD3	LOCK SPACER B	1.65
26	145AB	MECHANICAL BRAKE WASHER	5.50
27	13UET	MECHANICAL BRAKE WASHER	3.85
28	13SVY	ROLLER CLUTCH	16.50
29	10R22	O-RING	1.65
30	10LCY	FIXED BOLT	1.10
32	10F5D	ROLLER CLUTCH BEARING A-RB *Cannot be ordered	17.05
33	10LA3	FIXED BOLT	1.65
34	148U3	SPACER	1.10
35	101V3	BEARING SPACER	2.75
36	105BP	BALL BEARING (5X9X3)	13.75
37	1057X	PULL-OUT STOPPER	1.65
38	1489R	ROLLER CLUTCH INNER TUBE	9.90
39	143C6	STAR DRAG PLATE	4.95
40	143C8	DRAGCLICK RATCHET	1.65
41	10CM0	STAR DRAG WASHER	6.05
42	143CC	DRAG SPRING HOLDER	1.10
43	143C9	CLICK PIN	1.65
44	143CA	CLICK SPRING	1.10
46	1023U	STAR DRAG WASHER	6.05
47	10D73	STOPPER GEAR	6.05
49	10E23	FIXING BOLT	1.10
50	109T1	DRIVE GEAR SHAFT FIXING PLATE	2.75
51	108WU	O-RING	1.65
52	10G6D	WASHER	1.65
53	105NK	E-TYPE STOPPER RING 2.5	1.10
54	143CG	METAL SPACER	1.10
55	14079	RUBBER SPACER	1.65
57	10FJW	LEVEL WIND RECEIVER	1.65
58	10CFU	WASHER	1.10
59	10BHQ	WORM SHAFT PIN	2.75
60	108WQ	O-RING	1.65
61	13GED	LEVEL WIND ASSEMBLY	9.35
63	10LCQ	FIXING BOLT	1.10
64	10LCM	FIXING BOLT	1.10
65	13JWV	FIXING BOLT	1.65
66	105NC	E-TYPE RETAINING RING 2	1.10
67	10FJZ	WASHER	1.10
68	100G7	LEVEL WIND GUARD BUSHING	1.10
69	1022E	FIXING BOLT	1.65
70	13B5P	LEVEL WIND GUIDE	1.65
72	100U9	CLUTCH YOKE SPRING	1.10
74	10LV0	FIXING BOLT	1.10
75	100US	CLUTCH CAM PRESSURE PLATE	3.85
80	10LF4	FIXING BOLT	1.10
81	10190	WASHER	1.65
82	10EX8	BALL BEARING (8X12X3.5)	13.75
83	100S4	FIXING BOLT	1.10
87	10LFP	FIXING BOLT	1.10
88	13JQQ	FIXING BOLT	1.65
90	13S61	WORM SHAFT	11.55
91	13S6D	LEVEL WIND PIPE	1.10
92	10PXZ	HANDLE KNOB BUSH	1.65
93	13S5T	WORM SHAFT GEAR	2.75
94	105CA	BALL BEARING (5X11X4) *Cannot be ordered	13.75
95	10TM7	O-RING	1.65
96	10MD0	SPOOL CLUTCH PIN *Cannot be ordered	1.65
97	13SVD	SPOOL SHAFT SPRING	1.65
98	10MCY	SPOOL SHAFT CAM	1.65
99	10JAH	WORM SHAFT GEAR	3.85
100	149N4	SPOOL ASSEMBLY	66.00
101	13JXR	FIXING BOLT	1.65
102	146B4	WASHER	1.10
103	10G6D	WASHER	1.65
104	13RTV	WORM SHAFT GEAR	1.65
105	13SGH	WORM SHAFT GEAR (B) RECEIVER B	2.75
106	1054D	BEARING RETAINER	1.10
107	105C2	BALL BEARING (3X10X4)	13.75
108	13Z0G	SPOOL SHAFT STOPPER B	1.10
109	13PE6	WASHER	1.65
110	10LCF	FIXED BOLT	1.10
112	13RU2	WORM SHAFT GEAR (B) RECEIVER	1.65
113	13S5R	WORM SHAFT GEAR	2.75
114	1019V	WASHER	1.65
115	10LCP	FIXED BOLT	1.65
116	143CM	BATTERY COVER ASSEMBLY	7.70
151	143CQ	BATTERY CAP WRENCH	2.75
201	1007V	HANDLE FIXING NUT	6.05
202	10A3U	STAR DRAG FIXING NUT	3.85
203	1494R	MAIN BODY A NAMEPLATE	3.85
204	13UDA	LOCK RING	1.65
205	149L8	MECHANICAL BRAKE KNOB	22.00
206	14BM4	MAIN BODY A ASSEMBLY	71.50
207	14953	DRIVE GEAR	28.60
208	149F8	DRIVE GEAR SHAFT	11.00
209	149LE	LEVEL WIND GUARD	4.40
210	14BM5	COUNTER UNIT ASSEMBLY	176.00
211	1494Z	PINION GEAR	11.00
212	10TFA	CLUTCH YOKE	1.65
213	100W0	CLUTCH CAM	2.75
214	10MQM	CLUTCH CLAW	3.85
215	10TMC	CLUTCH CLAW SPRING	1.65
216	143H4	CLUTCH PLATE	2.20
217	10R5C	MAIN BODY A SEAT	3.30
218	143H5	CLUTCH LEVER RECEIVER (B)	1.10
219	13H6R	CLUTCH LEVER ASSEMBLY	5.50
220	14BM6	FRAME ASSEMBLY	57.20
221	13RUC	MAIN BODY B RECEIVER	6.05
222	149LG	MAIN BODY B	19.80
