[SHIMANO] Genuine Spare Parts for 25 GRAPPLER CT 150XG Product code: 048837 **Back-order (Shipping in 3-4 weeks after receiving order)

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.

- We don't accept order cancellations, changes, or refunds after an order unless the products you ordered are not available because SHIMANO/DAIWA Japan doesn't accept our cancellations.



*Please make sure to read about the conditions before you order.

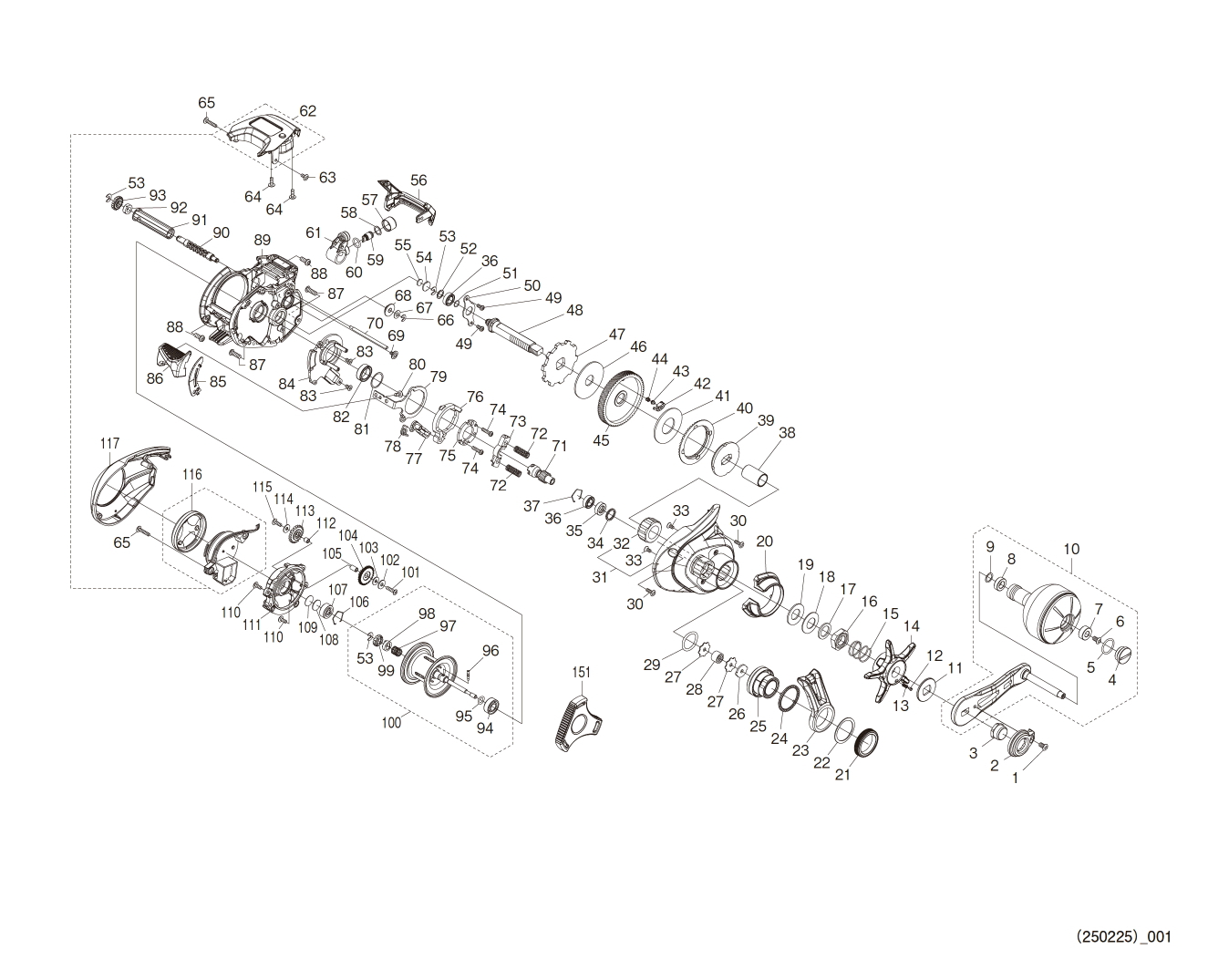

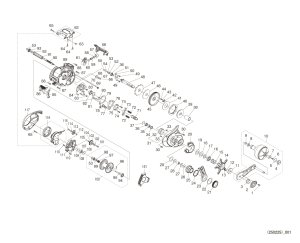

Reel Part's Schematic Diagram

* Circled figures indicate bearings.
* As for the "32 / ROLLER CLUTCH BEARING", "96 /SPOOL CLUTCH PIN" and "94 /BALL BEARING", they don't sell separately.
These parts are supposed to be provided when customers send the reel to have it repaired or overhauled.
So we cannot provide you with the products unfortunately.
* Please note disassembly is at your own risk.

No.	S Part No.	Description	Price (USD)
1	10DV5	FIXED BOLT	1.10
2	10SSK	RETAINER	3.85
3	1013J	HANDLE FIXING NUT	6.05
4	13AYU	HANDLE CAP	6.05
5	10LAB	O-RING	1.10
6	10LFA	FIXED BOLT	1.10
7	10EU0	HANDLE GRIPPED BUSH (A)	1.65
8	104UJ	HANDLE GRIPPED BUSH (B)	1.65
9	104FH	WASHER	2.20
10	149MX	HANDLE ASSEMBLY	90.20
11	10J22	STAR DRAG CLICK PLATE	1.65
12	10MFC	CLICK PIN	1.65
13	10BT2	CLICK SPRING	1.65
14	149LB	STAR DRAG	6.60
15	10A70	STAR DRAG SPRING	2.75
16	10A3T	STAR DRAG FIXING NUT	3.85
17	10J1N	STAR DRAG SPACER	1.65
18	10EW3	SARA SPRING (DB8L)	1.65
19	109LA	SARA SPRING (DB-8H)	1.65
20	1489Q	MAIN BODY A NAMEPLATE	3.85
21	13UD5	LOCK RING	2.75
22	13B6Z	WASHER	1.65
23	1489N	FALL LEVER	4.95
24	13UD3	LOCK SPACER B	1.65
25	149N7	MECHANICAL BRAKE KNOB	22.00
26	145AB	MECHANICAL BRAKE WASHER	5.50
27	13UET	MECHANICAL BRAKE WASHER	3.85
28	13SVY	ROLLER CLUTCH	16.50
29	10R22	O-RING	1.65
30	10LCY	FIXED BOLT	1.10
31	14BM1	MAIN BODY A ASSEMBLY	71.50
32	10F5D	ROLLER CLUTCH BEARING A-RB *Cannot be ordered	17.05
33	10LA3	FIXED BOLT	1.65
34	148U3	SPACER	1.10
35	101V3	BEARING SPACER	2.75
36	105BP	BALL BEARING (5X9X3)	13.75
37	1057X	RETAINER	1.65
38	1489R	ROLLER CLUTCH INNER TUBE	9.90
39	143C6	STAR DRAG PLATE	4.95
40	143C8	DRAG CLICK RATCHET	1.65
41	10CM0	STAR DRAG WASHER	6.05
42	143CC	DRAG SPRING HOLDER	1.10
43	143C9	CLICK PIN	1.65
44	143CA	CLICK SPRING	1.10
45	148A1	DRIVE GEAR	28.60
46	1023U	STAR DRAG WASHER	6.05
47	10D73	STOPPER GEAR	6.05
48	149EV	DRIVE GEAR SHAFT	11.00
49	10E23	FIXING BOLT	1.10
50	109T1	DRIVE GEAR SHAFT FIXING PLATE	2.75
51	108WU	O-RING	1.65
52	10G6D	WASHER	1.65
53	105NK	E-TYPE RETAINING RING 2.5	1.10
54	143CG	METAL SPACER	1.10
55	14079	RUBBER SPACER	1.65
56	149N2	LEVEL WIND GUARD	4.40
57	10FJW	LEVEL WIND RECEIVER	1.65
58	10CFU	WASHER	1.10
59	10BHQ	WORM SHAFT PIN	2.75
60	108WQ	O-RING	1.65
61	13GED	LEVEL WIND ASSEMBLY	9.35
62	14BM2	COUNTER UNIT ASSEMBLY	176.00
63	10LCQ	FIXING BOLT	1.10
64	10LCM	FIXING BOLT	1.10
65	13JWV	FIXING BOLT	1.65
66	105NC	E-TYPE RETAINING RING 2	1.10
67	10FJZ	WASHER	1.10
68	100G7	LEVEL WIND GUARD BUSH	1.10
69	1022E	FIXING BOLT	1.65
70	13B5P	LEVEL WIND GUIDE	1.65
71	148A2	PINION GEAR	11.00
72	100U9	CLUTCH YOKE SPRING	1.10
73	100UH	CLUTCH YOKE	1.65
74	10LV0	FIXING BOLT	1.10
75	100US	CLUTCH CAM PRESS PLATE	3.85
76	100UK	CLUTCH CAM	2.75
77	10MME	CLUTCH CLAW	3.85
78	10R1H	CLUTCH CLAW SPRING	1.65
79	143CJ	CLUTCH PLATE	2.20
80	10LF4	FIXING BOLT	1.10
81	10190	WASHER	1.65
82	10EX8	BALL BEARING (8 X 12 X 3.5)	13.75
83	100S4	FIXING BOLT	1.10
84	10R56	MAIN BODY A SHEET	3.30
85	143CK	CLUTCH LEVER RECEIVER (B)	1.10
86	13H6Q	CLUTCH LEVER ASSEMBLY	5.50
87	10LFP	FIXING BOLT	1.10
88	13JQQ	FIXING BOLT	1.65
89	14BM3	FRAME ASSEMBLY	57.20
90	13S61	WORM SHAFT	11.55
91	13S6D	LEVEL WIND PIPE	1.10
92	10PXZ	HANDLE KNOB BUSHING	1.65
93	13S5T	WORM SHAFT GEAR	2.75
94	105CA	BALL BEARING (5X11X4) *Cannot be ordered	13.75
95	10TM7	O-RING	1.65
96	10MD0	SPOOL CLUTCH PIN *Cannot be ordered	1.65
97	13SVD	SPOOL SHAFT SPRING	1.65
98	10MCY	SPOOL SHAFT CAM	1.65
99	10JAH	WORM SHAFT GEAR	3.85
100	149N4	SPOOL ASSEMBLY	66.00
101	13JXR	FIXING BOLT	1.65
102	146B4	WASHER	1.10
103	10G6D	WASHER	1.65
104	13RTV	WORM SHAFT GEAR	1.65
105	13SGH	WORM SHAFT GEAR (B) HOLDER B	2.75
106	1054D	BEARING RETAINER	1.10
107	105C2	BALL BEARING (3X10X4)	13.75
108	13Z0G	SPOOL SHAFT STOPPER B	1.10
109	13PE6	WASHER	1.65
110	10LCF	FIXED BOLT	1.10
111	13RUA	MAIN BODY B HOLDER	6.05
112	13RU2	WORM SHAFT GEAR (B) HOLDER	1.65
113	13S5R	WORM SHAFT GEAR	2.75
114	1019V	WASHER	1.65
115	10LCP	FIXED BOLT	1.65
116	143CM	BATTERY COVER ASSEMBLY	7.70
117	149N6	MAIN BODY B	19.80
151	143CQ	BATTERY CAP WRENCH	2.75
