[DAIWA] Genuine Spare Parts for 24 IMPULT TOURNAMENT LBD Product code: 00066015 **Back-order (Shipping in 3-4 weeks after receiving order)

[DAIWA] Genuine Spare Parts for 24 IMPULT TOURNAMENT LBD Product code: 00066015 **Back-order (Shipping in 3-4 weeks after receiving order)

Our Selling Price: US$0.77 - US$121.66 [Regular Price: US$1.10 - US$173.80]

Prices vary according to options.

View availability
Part Number:
Quantity:
Return & Exchange Policy
Contact Us

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship this item after you order unless we have in stock at the time of your order.

- We don't accept order cancellations, changes, or refunds after an order unless the products you ordered are not available because SHIMANO/DAIWA Japan doesn't accept our cancellations.



*Please make sure to read about the conditions before you order.

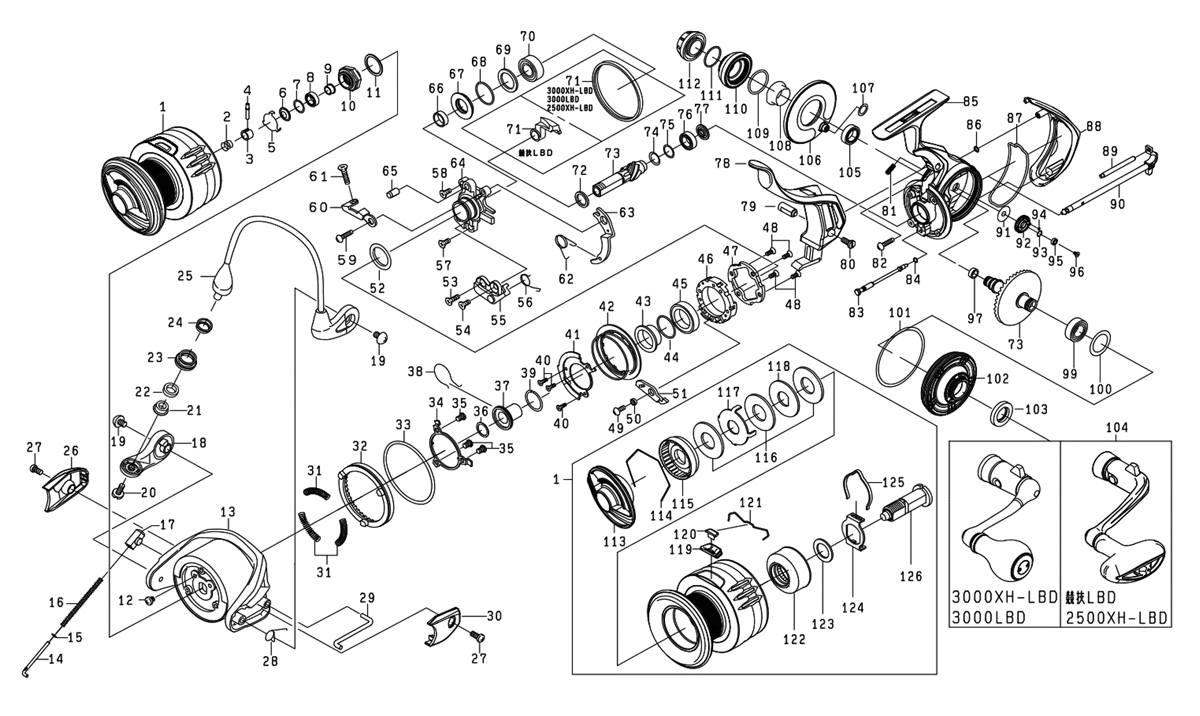

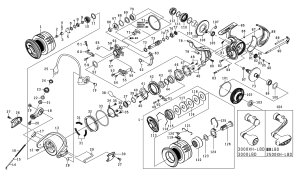

　Reel Part's Schematic Diagram



No. Part Name Part Code Price (USD)
1 SPOOL 6Z027942 143.00
2 METAL SP 6G993001 2.20
3 SPOOL PIN COLLAR 6G992901 2.20
4 SPOOL PIN 6G992801 2.20
5 ROTOR NUT BEARING PLATE 6G471501 2.20
6 ROTOR NUT BEARING PACKING 6H461201 2.20
7 ROTOR NUT BALL BEARING W 6G466103 1.10
8 ROTOR NUT BALL BEARING 6G466205 15.40
9 ROTOR NUT BEARING COLLAR 6J808501 3.30
10 ROTOR NUT 6H818201 4.40
11 ROTOR NUT W 6G613403 1.10
12 ROTOR NUT SC 6G627701 2.20
13 ROTOR 6H919530 68.20
14 ARM LEVER SHAFT 6G471803 3.30
15 ARM LEVER SHAFT W 6G685401 1.10
16 ARM LEVER SP 6G471701 2.20
17 ARM LEVER SP HOLDER 6H360501 4.40
18 ARM LEVER 6G612359 13.20
19 ARM LEVER SC 6G205001 2.20
20 ROLLER SC 6G195601 2.20
21 ROLLER COLLAR (A) 6G195501 2.20
22 ROLLER COLLAR (B) 6G220701 2.20
23 LINE ROLLER 6F921603 11.00
24 ROLLER COLLAR (C) 6G047601 3.30
25 BALE 6J483802 42.90
26 ARM LEVER COVER 6H919602 4.40
27 ARM LEVER COVER SC 6G270801 2.20
28 BALE LOCK SHAFT SP 6J761901 2.20
29 BAIL LOCK SHAFT 6G992601 3.30
30 BAIL HOLDER COVER 6H919702 4.40
31 RATCHET SP 6G992101 2.20
32 RATCHET 6G766005 20.90
33 RATCHET O-RING 6G158601 1.10
34 RATCHET HOLDER 6G766102 3.30
35 RATCHET HOLDER SC 6G992201 2.20
36 METAL BEARING COLLAR W 63758502 1.10
37 METAL BEARING COLLAR 6H817101 7.70
38 METAL STOPPER SP 6G297901 2.20
39 METAL BEARING COLLAR RING 6J089701 2.20
40 BEARING HOLDER PLATE SC 6G297401 2.20
41 BEARING HOLDER PLATE 6G991901 4.40
42 BRAKE DISC *Cannot be ordered 6J947001 15.40
43 METAL COLLAR (A) 6M405201 3.30
44 BRAKE METAL COLLAR W 6J932101 1.10
45 METAL COLLAR (B) 6J947201 3.30
46 BRAKE METAL 6G296802 7.70
47 METAL RATCHET 6G774901 6.60
48 METAL RATCHET SC 6G297001 2.20
49 ROTOR STOPPER SC 63522507 2.20
50 ROTOR STOPPER COLLAR 6G297701 2.20
51 ROTOR STOPPER 6G382401 4.40
52 SET PLATE COLLAR 6M405101 2.20
53 BRAKE STOPPER SC (A) 6H370201 2.20
54 BRAKE STOPPER SC (B) 6H178101 2.20
55 BRAKE STOPPER 6G764902 11.00
56 BRAKE STOPPER SP 6G864101 2.20
57 SET PLATE SC (A) 6H178101 2.20
58 SET PLATE SC (B) 6H370201 2.20
59 BRAKE PLATE SC (A) 6F935402 2.20
60 BRAKE PLATE 6G991701 15.40
61 BRAKE PLATE SC (B) 6H370301 2.20
62 CRANK PLATE SP 6G296205 2.20
63 CRANK PLATE 6H178202 3.30
64 SET PLATE 6H370102 20.90
65 PUSH HEAD *Cannot be ordered 6M667001 11.00
66 MAG SHIELD COLLAR 6H816501 4.40
67 MAG SHIELD PLATE *Cannot be ordered 6H815901 15.40
68 MAG SHIELD O-RING 6H816401 2.20
69 PINION BEARING W 63727601 1.10
70 PINION BALL BEARING (A) 6G279602 15.40
71 BRAKE KICK COLLAR 6H210601 2.20
72 PINION BALL BEARING (A) W 63758509 1.10
73 PINION + DRIVE GEAR SET *Cannot be ordered 6Z026676 93.50
74 PINION BALL BEARING (B) SP, W 6H814902 1.10
75 PINION BALL BEARING (B) W 6E096501 1.10
76 PINION BALL BEARING (B) 6G538007 15.40
77 PINION COLLAR *Cannot be ordered 6J552001 3.30
78 BRAKE LEVER *Cannot be ordered 6M679401 82.50
79 BRAKE LEVER NUT 6G762701 4.40
80 BRAKE LEVER SC 6G762801 4.40
81 BRAKE LEVER SP 6G762601 2.20
82 REAR CAP SC (A) 6J553606 2.20
83 REAR CAP SC (B) 6J609109 3.30
84 REAR CAP SC AND O-RING 6J718601 1.10
85 BODY *Cannot be ordered 6M678801 82.50
86 REAR CAP W 6G315301 1.10
87 REAR CAP GASKET *Cannot be ordered 6M253701 2.20
88 REAR CAP 6M253802 17.60
89 OSCILLATING POST 6G763902 7.70
90 MAIN SHAFT *Cannot be ordered 6M252901 30.80
91 OSCILLATING GEAR W 6J551401 1.10
92 OSCILLATING GEAR *Cannot be ordered 6J570401 9.90
93 OSCILLATING GEAR BEARING W 6H129201 1.10
94 OSCILLATING GEAR O-RING 6G869601 1.10
95 OSCILLATING GEAR BALL BEARING 6G686904 15.40
96 OSCILLATING GEAR SC 6G940402 2.20
97 DRIVE GEAR BEARING 6J552701 2.20
99 DRIVE BALL BEARING (B) 6G467302 8.80
100 DRIVE BALL BEARING (B)W 6G613401 1.10
101 ENGINE PLATE O-RING 6F273301 1.10
102 ENGINE PLATE *Cannot be ordered 6M678006 38.50
103 HANDLE PACKING 6M457801 3.30
104 HANDLE 6M679901 173.80
105 DRIVE BALL BEARING (A) 6G522702 8.80
106 OSCILLATING GEAR PLATE *Cannot be ordered 6M677702 30.80
107 OSCILLATING GEAR PLATE O-RING 6J551301 1.10
108 DRIVE BEARING (A) COLLAR 6M677801 2.20
109 DRIVE BEARING (A) O-RING 6H617001 1.10
110 DRIVE BEARING (A) COVER *Cannot be ordered 6M724803 25.30
111 HANDLE CAP O-RING 6G399702 1.10
112 HANDLE CAP 6J555901 6.60
113 DRAG KNOB 6M679801 20.90
114 DRAG RING 6F742501 2.20
115 DRAG RATCHET 6G367203 8.80
116 DRAG W SET (3 pieces) 6J398701 19.80
117 DRAG LIP W 6F635202 2.20
118 DRAG DISC W 6G367101 2.20
119 LINE STOPPER BLATE 6J558101 2.20
120 LINE STOPPER 6J558001 2.20
121 LINE STOPPER SP 6J314801 2.20
122 SPOOL RATCHET 6M254201 6.60
123 SPOOL W 63755703 1.10
124 CLICK HOLDER 6M256001 2.20
125 CLICK LEAF SP 6H416101 2.20
126 SPOOL METAL 6G364501 27.50
200 HANDLE KNOB SP・W 6H744801 1.10
201 HANDLE KNOB W 6B411703 1.10
202 HANDLE KNOB BALL BEARING 6G469007 15.40
203 HANDLE KNOB 6J555601 24.20
204 HANDLE KNOB SC 6B679308 2.20
205 HANDLE KNOB CAP 6J555801 6.60
