[SHIMANO] Genuine Spare Parts for 25 ENGETSU CT 151HG Product code: 048646 **Back-order (Shipping in 3-4 weeks after receiving order)

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.

- We don't accept order cancellations, changes, or refunds after an order unless the products you ordered are not available because SHIMANO/DAIWA Japan doesn't accept our cancellations.



*Please make sure to read about the conditions before you order.

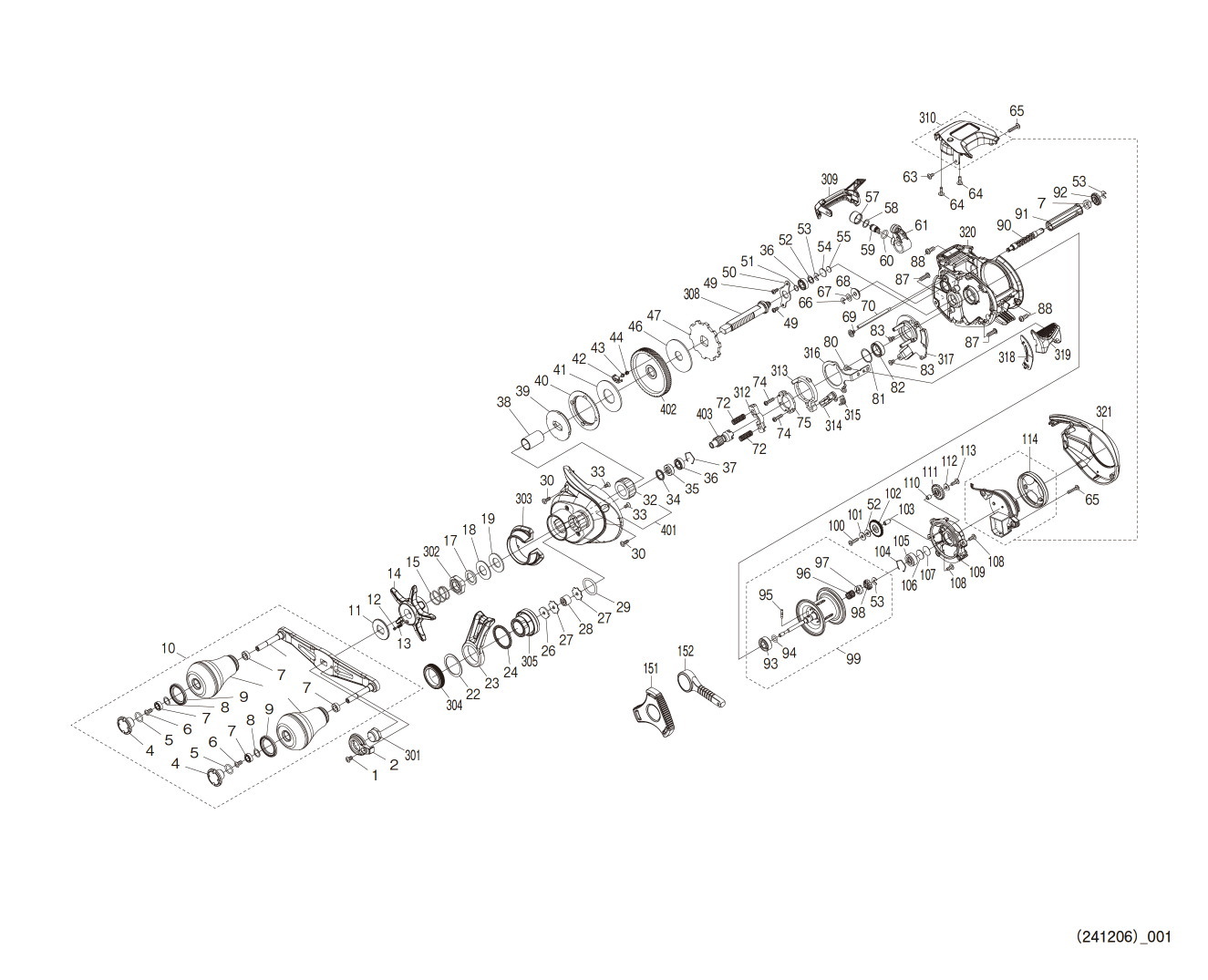

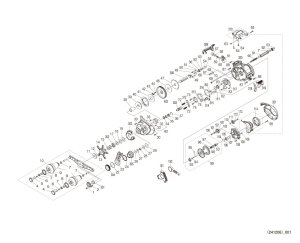

Reel Part's Schematic Diagram

* Circled figures indicate bearings.
* As for the "32 / ROLLER CLUTCH", "95 /SPOOL CLUTCH PIN" and "93 /BALL BEARING", they don't sell separately.
These parts are supposed to be provided when customers send the reel to have it repaired or overhauled.
So we cannot provide you with the products unfortunately.
* Please note disassembly is at your own risk.

No.	S Part No.	Description	Price (USD)
1	10DV5	FIXING BOLT	1.10
2	10SSK	RETAINER	3.85
4	143BW	HANDLE CAP	1.10
5	10LAA	O-RING	1.10
6	10LFA	FIXING BOLT	1.10
7	10PXZ	HANDLE KNOB BUSH	1.65
8	104FH	WASHER	2.20
9	10S9X	WASHER	1.65
10	149EM	HANDLE ASSEMBLY	88.00
11	10J22	STAR DRAG CLICK PLATE	1.65
12	10MFC	CLICK PIN	1.65
13	10BT2	CLICK SPRING	1.65
14	149EX	STAR DRAG	6.60
15	10A70	STAR DRAG SPRING	2.75
17	10J1N	STAR DRAG SPACER	1.65
18	10EW3	SARA SPRING (DB8L)	1.65
19	109LA	SARA SPRING (DB-8H)	1.65
22	13B6Z	WASHER	1.65
23	1489N	FALL LEVER	4.95
24	13UD3	LOCK SPACER B	1.65
26	145AB	MECHANICAL BRAKE WASHER	5.50
27	13UET	MECHANICAL BRAKE WASHER	3.85
28	13SVY	ROLLER CLUTCH	16.50
29	10R22	O-RING	1.65
30	10LCY	FIXING BOLT	1.10
32	10F5D	ROLLER CLUTCH BEARING A-RB *Cannot be ordered	17.05
33	10LA3	FIXING BOLT	1.65
34	148U3	SPACER	1.10
35	101V3	BEARING SPACER	2.75
36	105BP	BALL BEARING (5X9X3)	13.75
37	1057X	EXTRACTION STOPPER	1.65
38	1489R	ROLLER CLUTCH INNER TUBE	9.90
39	143C6	STAR DRAG PLATE	4.95
40	143C8	DRAG CLICK SILRATCHET	1.65
41	10CM0	STAR DRAG WASHER	6.05
42	143CC	DRAG SPRING HOLDER	1.10
43	143C9	CLICK PIN	1.65
44	143CA	CLICK SPRING	1.10
46	1023U	STAR DRAG WASHER	6.05
47	10D73	STOPPER GEAR	6.05
49	10E23	FIXING BOLT	1.10
50	109T1	DRIVE GEAR SHAFT FIXING PLATE	2.75
51	108WU	O-RING	1.65
52	10G6D	WASHER	1.65
53	105NK	E-TYPE STOP RING 2.5	1.10
54	143CG	METAL SPACER	1.10
55	14079	RUBBER SPACER	1.65
57	10FJW	LEVEL WIND RECEPTOR	1.65
58	10CFU	WASHER	1.10
59	10BHQ	WORM SHAFT PIN	2.75
60	108WQ	O-RING	1.65
61	13GED	LEVEL WINDING ASSEMBLY	9.35
63	10LCQ	FIXED BOLT	1.10
64	10LCM	FIXED BOLT	1.10
65	13JWV	FIXED BOLT	1.65
66	105NC	E-TYPE STOPPER RING 2	1.10
67	10FJZ	WASHER	1.10
68	100G7	LEVEL WINDING GUARD BUSH	1.10
69	1022E	FIXED BOLT	1.65
70	13B5P	LEVEL WINDING GUIDE	1.65
72	100U9	CLUTCH YOKE SPRING	1.10
74	10LV0	FIXED BOLT	1.10
75	100US	CLUTCH CAM PUSH PLATE	3.85
80	10LF4	FIXED BOLT	1.10
81	10190	WASHER	1.65
82	10EX8	BALL BEARING (8 X 12 X 3.5)	13.75
83	100S4	FIXED BOLT	1.10
87	10LFP	FIXING BOLT	1.10
88	13JQQ	FIXING BOLT	1.65
90	13S61	WORM SHAFT	11.55
91	13S6D	LEVEL WINDING PIPE	1.10
92	13S5T	WORM SHAFT GEAR	2.75
93	105CA	BALL BEARING (5X11X4) *Cannot be ordered	13.75
94	10TM7	O-RING	1.65
95	10MD0	SPOOL CLUTCH PIN *Cannot be ordered	1.65
96	13SVD	SPOOL SHAFT SPRING	1.65
97	10MCY	SPOOL SHAFT CAM	1.65
98	10JAH	WORM SHAFT GEAR	3.85
99	149EJ	SPOOL ASSEMBLY	66.00
100	13JXR	FIXING BOLT	1.65
101	146B4	WASHER	1.10
102	13RTV	WORM SHAFT GEAR	1.65
103	13SGH	WORM SHAFT GEAR (B) RECEIVER B	2.75
104	1054D	BEARING RETAINING CLIP	1.10
105	105C2	BALL BEARING (3X10X4)	13.75
106	13Z0G	SPOOL SHAFT GEAR B	1.10
107	13PE6	WASHER	1.65
108	10LCF	FIXING BOLT	1.10
109	13RUA	BODY B RECEIVER	6.05
110	13RU2	WORM SHAFT GEAR (B) RECEIVER	1.65
111	13S5R	WORM SHAFT GEAR	2.75
112	1019V	WASHER	1.65
113	10LCP	FIXING BOLT	1.65
114	143CM	BATTERY COVER ASSEMBLY	7.70
151	143CQ	BATTERY CAP WRENCH	2.75
152	10NC0	REEL WRENCH	1.65
301	10RYS	HANDLE FIXING NUT	6.05
302	10A3U	STAR DRAG FIXING NUT	3.85
303	1494R	BODY A NAMEPLATE	3.85
304	13UDA	LOCK RING	1.65
305	149F7	MECHANICAL BRAKE KNOB	22.00
308	149F8	DRIVE GEAR SHAFT	11.00
309	149F4	LEVEL WINDING GUARD	4.40
310	14AR6	COUNTER UNIT ASSEMBLY	176.00
312	1001Q	CLUTCH YOKE	1.10
313	100W0	CLUTCH CAM	2.75
314	10MQM	CLUTCH CLAW	3.85
315	10TMC	CLUTCH CLAW SPRING	1.65
316	143H4	CLUTCH PLATE	2.20
317	10R5C	BODY A SHEET	3.30
318	143H5	CLUTCH LEVER RECEIVER (B)	1.10
319	13H6R	CLUTCH LEVER ASSEMBLY	5.50
320	14AR7	FRAME ASSEMBLY	57.20
321	149F2	BODY B	19.80
401	14AR8	BODY A ASSEMBLY	71.50
402	149FD	DRIVE GEAR	28.60
403	14A1L	PINION GEAR	14.30
