[SHIMANO] Genuine Spare Parts for 25 Stile 101XG Product code: 048493 **Back-order (Shipping in 3-4 weeks after receiving order)

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.

- We don't accept order cancellations, changes, or refunds after an order unless the products you ordered are not available because SHIMANO/DAIWA Japan doesn't accept our cancellations.



*Please make sure to read about the conditions before you order.

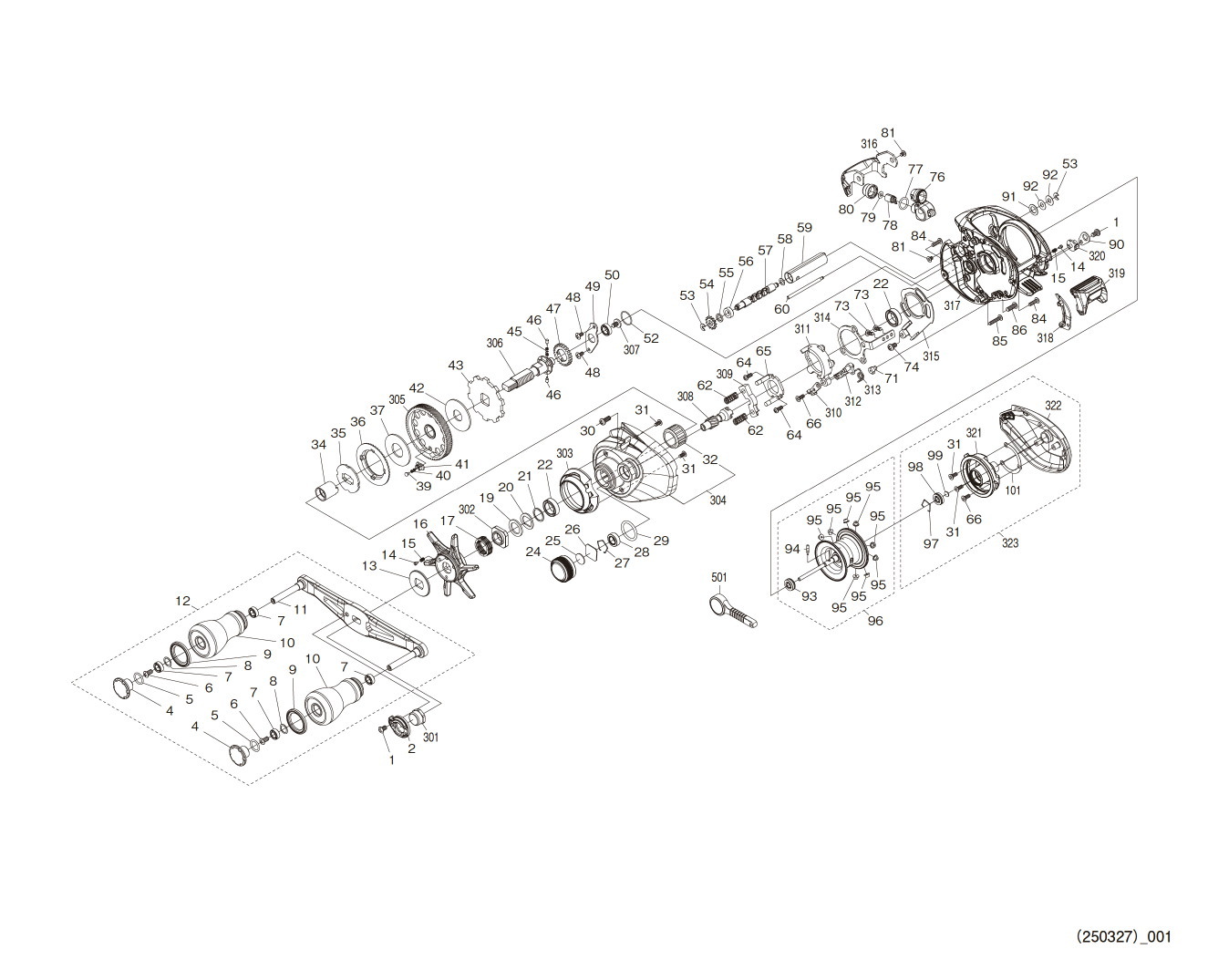

Reel Part's Schematic Diagram

* Circled figures indicate bearings.
* As for the "32 / ROLLER CLUTCH", "94 /SPOOL CLUTCH PIN" and "93 /BALL BEARING", they don't sell separately.
These parts are supposed to be provided when customers send the reel to have it repaired or overhauled.
So we cannot provide you with the products unfortunately.
* Please note disassembly is at your own risk.

No.	S Part No.	Description	Price (USD)
1	10DN7	FIXING BOLT	1.65
2	1017T	RETAINER	3.85
4	144SA	HANDLE CAP	4.95
5	10LAA	O-RING	1.10
6	103E9	FIXING BOLT	1.10
7	104VX	BALL BEARING (4X7X2.5)	13.75
8	104FH	WASHER	2.20
9	10S9X	WASHER	1.65
10	13E8J	HANDLE KNOB	11.55
11	14BJT	HANDLE SHAFT ASSEMBLY	47.30
12	14BJU	HANDLE ASSEMBLY	97.90
13	101JC	STARDRAG CLICK PLATE	1.65
14	10B27	CLICK PIN	1.65
15	10988	CLICK SPRING	1.65
16	148MC	STARDRAG	20.35
17	10A78	STARDRAG SPRING	2.75
19	10J1N	STARDRAG SPACER	1.65
20	10D60	MAIN GEAR WASHER (C)	1.65
21	10EFM	STAR DRAG BEARING WASHER	1.65
22	10EX8	BALL BEARING (8 X 12 X 3.5)	13.75
24	148M3	MECHANICAL BRAKE KNOB	20.35
25	10896	MECHANICAL BRAKE WASHER	1.10
26	1085F	MECHANICAL BRAKE WASHER	1.10
27	1057X	EXTRACTION STOPPER	1.65
28	105BR	BALL BEARING (5 X 9 X 3)	13.75
29	10LA9	O-RING	1.65
30	10SMM	FIXING BOLT	1.10
31	1055J	FIXING BOLT	1.65
32	10TM8	ROLLER CLUTCH *Cannot be ordered	17.05
34	10RZH	ROLLER CLUTCH INNER TUBE	9.90
35	10D55	STAR DRAG PLATE	6.05
36	10JB0	DRAG CLICK RATCHET	2.75
37	10CKS	STAR DRAG WASHER	6.05
39	10C0T	DRAG CLICK PIN	2.75
40	10J8A	DRAG CLICK SPRING	1.65
41	10J87	DRAG SPRING HOLDER	1.65
42	10CJ4	STAR DRAG WASHER (A)	3.85
43	10R5Z	STOPPER GEAR	2.75
45	10JDX	WORM SHAFT GEAR SPRING	1.65
46	10HJF	WORM SHAFT GEAR PIN	1.65
47	10EE3	WORM SHAFT GEAR	1.10
48	10MT2	FIXED BOLT	1.10
49	10RZG	DRIVE GEAR SHAFT FIXING PLATE	1.65
50	104JZ	BALL BEARING (5 X 8 X 2.5)	13.75
52	10SZ4	O-RING	1.65
53	105NC	TYPE E STOPPER RING 2	1.10
54	10EEL	WORM SHAFT GEAR	1.10
55	10J1J	WASHER	1.10
56	10PXY	HANDLE GRIPPED BUSH (B)	1.65
57	10EET	WORM SHAFT	2.75
58	10GHF	WASHER	1.10
59	10NFW	LEVEL WINDING PIPE	1.65
60	10RZL	LEVEL WINDING ROD	3.30
62	104BJ	CLUTCH YOKE SPRING	1.10
64	10LVH	CLUTCH CAM FIXING BOLT	1.10
65	10EE6	CLUTCH CAM PUSH PLATE	8.80
66	10559	FIXED BOLT	1.65
71	10EDY	CLUTCH SPRING HOLDER	1.10
73	101LH	FIXED BOLT	1.10
74	10DSZ	FIXED BOLT	1.10
76	10NYH	LEVEL WINDING ASSEMBLY	22.55
77	108WQ	O RING	1.65
78	100BT	WORM SHAFT PIN	2.75
79	10CFV	WASHER	1.10
80	10FJB	LEVEL WINDING RECEPTACLE	1.65
81	10S2Y	FIXED BOLT	1.10
84	1055A	FIXED BOLT	1.65
85	10TGT	FIXED BOLT	1.10
86	103DF	FIXED BOLT	1.10
90	10BGQ	BODY B CAM LEVER PUSH PLATE	1.65
91	10J4L	WASHER	1.10
92	144QV	WASHER	1.10
93	104VP	BALL BEARING (4X8X3) *Cannot be ordered	13.75
94	10MCZ	SPOOL CLUTCH PIN *Cannot be ordered	2.75
95	13SFV	BRAKE COLLAR (M) RED	1.10
96	14BJY	SPOOL ASSEMBLY	107.80
97	10GEW	BEARING EXTRACTION STOP	1.10
98	13RQS	BALL BEARING (3X10X4)	13.75
99	1057Q	SPOOL SHAFT CONTACT TALLY (B)	1.10
101	148KH	WASHER	1.10
301	148MF	HANDLE FIXING NUT	8.80
302	10EEG	STAR DRAG FIXING NUT	4.40
303	10RZF	BODY A NAMEPLATE	3.85
304	14BK4	BODY A ASSEMBLY	68.20
305	10RZQ	DRIVE GEAR	29.70
306	148M9	DRIVE GEAR SHAFT	12.65
307	10PVU	FIXING BOLT	1.65
308	10RZW	PINION GEAR	23.10
309	10EE4	CLUTCH YOKE	1.10
310	10RWF	CLUTCH CLAW (B)	1.65
311	10SKS	CLUTCH CAM	2.75
312	10RWC	CLUTCH CLAW (A)	1.65
313	101A6	CLUTCH CLAW SPRING	1.65
314	10RZN	CLUTCH PLATE	2.20
315	10EEC	BODY A SHEET	1.10
316	148LM	LEVEL WINDING GUARD	16.50
317	14BK5	FRAME ASSEMBLY	174.90
318	10EE2	CLUTCH LEVER RECEIVER	1.10
319	14BK6	CLUTCH LEVER ASSEMBLY	11.00
320	10BAV	BODY B CAM LEVER	2.75
321	14BK7	FRAME B RECEIVER ASSEMBLY	39.60
322	148KW	BODY B	39.05
323	14BK8	BODY B ASSEMBLY	90.20
501	10NC0	REEL WRENCH	1.65
