[SHIMANO] Genuine Spare Parts for 25 Stile 100PG Product code: 048462 **Back-order (Shipping in 3-4 weeks after receiving order)

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.

- We don't accept order cancellations, changes, or refunds after an order unless the products you ordered are not available because SHIMANO/DAIWA Japan doesn't accept our cancellations.



*Please make sure to read about the conditions before you order.

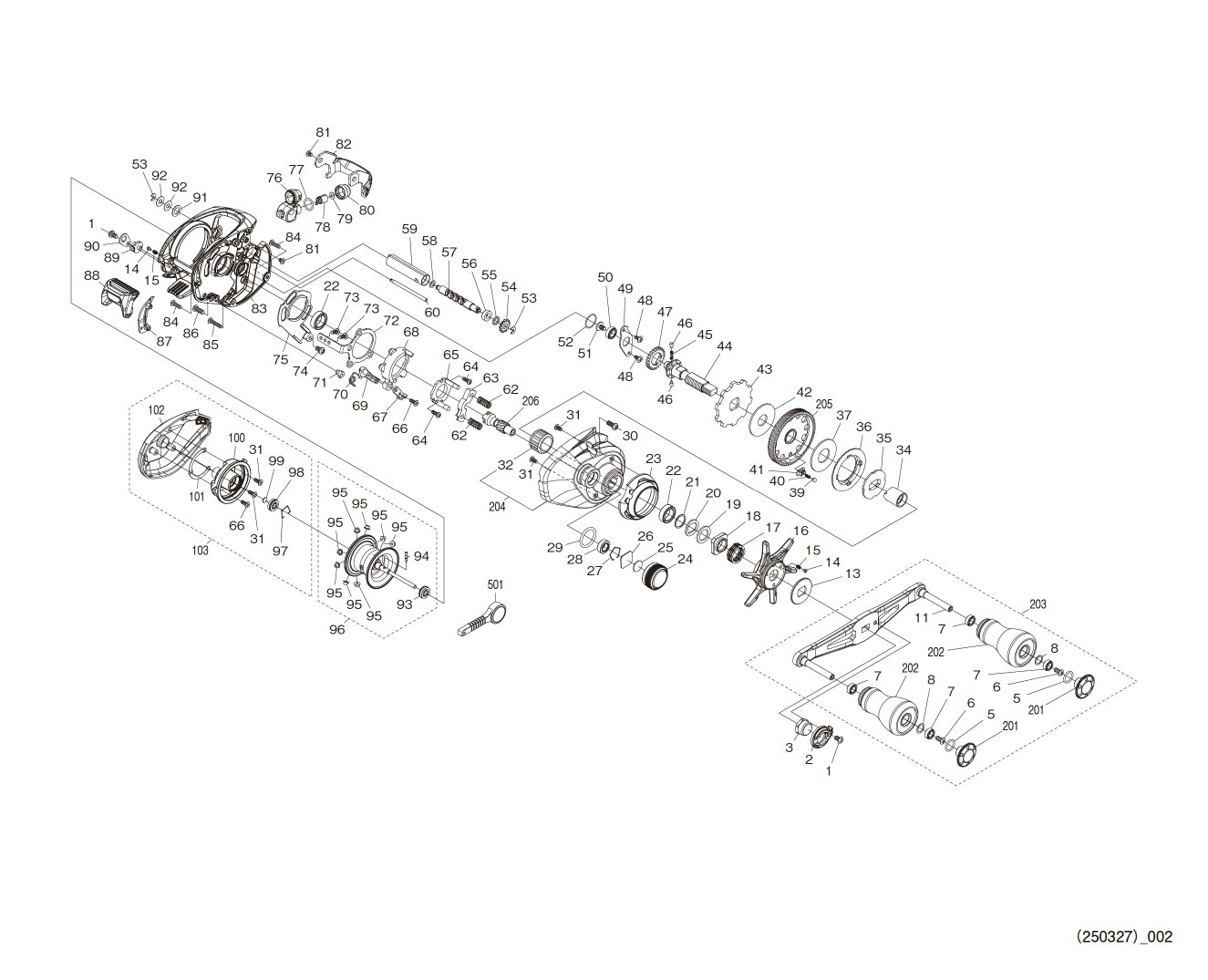

Reel Part's Schematic Diagram

* Circled figures indicate bearings.
* As for the "32 / ROLLER CLUTCH", "94 /SPOOL CLUTCH PIN" and "93 /BALL BEARING", they don't sell separately.
These parts are supposed to be provided when customers send the reel to have it repaired or overhauled.
So we cannot provide you with the products unfortunately.
* Please note disassembly is at your own risk.

No.	S Part No.	Description	Price (USD)
1	10DN7	FIXING BOLT	1.65
2	1017T	RETAINER	3.85
3	148ME	HANDLE FIXING NUT	8.80
5	10LAA	O-RING	1.10
6	103E9	FIXING BOLT	1.10
7	104VX	BALL BEARING (4X7X2.5)	13.75
8	104FH	WASHER	2.20
11	14BJT	HANDLE SHAFT ASSEMBLY	47.30
13	101JC	STAR DRAG CLICK PLATE	1.65
14	10B27	CLICK PIN	1.65
15	10988	CLICK SPRING	1.65
16	148MC	STAR DRAG	20.35
17	10A78	STAR DRAG SPRING	2.75
18	10EDV	STAR DRAG FIXING NUT	4.40
19	10J1N	STAR DRAG SPACER	1.65
20	10D60	MAIN GEAR WASHER (C)	1.65
21	10EFM	STAR DRAG BEARING WASHER	1.65
22	10EX8	BALL BEARING (8 X 12 X 3.5)	13.75
23	10EE9	BODY A NAMEPLATE	3.85
24	148M3	MECHANICAL BRAKE KNOB	20.35
25	10896	MECHANICAL BRAKE WASHER	1.10
26	1085F	MECHANICAL BRAKE WASHER	1.10
27	1057X	EXTRACTION STOPPER	1.65
28	105BR	BALL BEARING (5 X 9 X 3)	13.75
29	10LA9	O-RING	1.65
30	10SMM	FIXING BOLT	1.10
31	1055J	FIXING BOLT	1.65
32	10TM8	ROLLER CLUTCH *Cannot be ordered	17.05
34	10RZH	ROLLER CLUTCH INNER TUBE	9.90
35	10D55	STAR DRAG PLATE	6.05
36	10JB0	DRAG CLICK RATCHET	2.75
37	10CKS	STAR DRAG WASHER	6.05
39	10C0T	DRAG CLICK PIN	2.75
40	10J8A	DRAG CLICK SPRING	1.65
41	10J87	DRAG SPRING HOLDER	1.65
42	10CJ4	STAR DRAG WASHER (A)	3.85
43	10R5Z	STOPPER GEAR	2.75
44	148M8	DRIVE GEAR SHAFT	12.65
45	10JDX	WORM SHAFT GEAR SPRING	1.65
46	10HJF	WORM SHAFT GEAR PIN	1.65
47	10EE3	WORM SHAFT GEAR	1.10
48	10MT2	FIXING BOLT	1.10
49	10RZG	DRIVE GEAR SHAFT FIXING PLATE	1.65
50	104JZ	BALL BEARING (5X8X2.5)	13.75
51	10PVT	FIXING BOLT	1.65
52	10SZ4	O-RING	1.65
53	105NC	E-TYPE STOPPER RING2	1.10
54	10EEL	WORM SHAFT GEAR	1.10
55	10J1J	WASHER	1.10
56	10PXY	HANDLE GRIPPED BUSH (B)	1.65
57	10EET	WORM SHAFT	2.75
58	10GHF	WASHER	1.10
59	10NFW	LEVEL WINDING PIPE	1.65
60	10RZL	LEVEL WINDING ROD	3.30
62	104BJ	CLUTCH YOKE SPRING	1.10
63	1004W	CLUTCH YOKE	1.10
64	10LVH	CLUTCH CAM FIXING BOLT	1.10
65	10EE6	CLUTCH CAM PUSH PLATE	8.80
66	10559	FIXING BOLT	1.65
67	10RWM	CLUTCH CLAW (B)	1.65
68	10SX6	CLUTCH CAM	2.75
69	10RVS	CLUTCH CLAW (A)	1.65
70	10RRB	CLUTCH CLAW SPRING	1.65
71	10EDY	CLUTCH SPRING HOLDER	1.10
72	10EE7	CLUTCH PLATE	2.20
73	101LH	FIXED BOLT	1.10
74	10DSZ	FIXED BOLT	1.10
75	10RZB	BODY A SEAT	1.10
76	10NYH	LEVEL WINDING ASSEMBLY	22.55
77	108WQ	O-RING	1.65
78	100BT	WORM SHAFT PIN	2.75
79	10CFV	WASHER	1.10
80	10FJB	LEVEL WINDING RECEPTACLE	1.65
81	10S2Y	FIXED BOLT	1.10
82	148LL	LEVEL WINDING GUARD	16.50
83	14BJW	FRAME ASSEMBLY	174.90
84	1055A	FIXED BOLT	1.65
85	10TGT	FIXED BOLT	1.10
86	103DF	FIXED BOLT	1.10
87	10EDW	CLUTCH LEVER RECEPTACLE	1.10
88	14BJX	CLUTCH LEVER ASSEMBLY	11.00
89	10BAU	BODY B CAM LEVER	2.75
90	10BGQ	BODY B CAM LEVER PUSH PLATE	1.65
91	10J4L	WASHER	1.10
92	144QV	WASHER	1.10
93	104VP	BALL BEARING (4X8X3) *Cannot be ordered	13.75
94	10MCZ	SPOOL CLUTCH PIN *Cannot be ordered	2.75
95	13SFV	BRAKE COLLAR (M) RED	1.10
96	14BJY	SPOOL ASSEMBLY	107.80
97	10GEW	BEARING STOPPER	1.10
98	13RQS	BALL BEARING (3X10X4)	13.75
99	1057Q	SPOOL SHAFT CONTACT (B)	1.10
100	14BJZ	FRAME B RECEIVING ASSEMBLY	39.60
101	148KH	WASHER	1.10
102	148J0	BODY B	39.05
103	14BK0	BODY B ASSEMBLY	90.75
201	148KU	HANDLE CAP	11.00
202	14BK1	HANDLE KNOB ASSEMBLY	20.35
203	14BK2	HANDLE ASSEMBLY	116.60
204	14BK3	BODY A ASSEMBLY	68.20
205	148MA	DRIVE GEAR	29.70
206	148LP	PINION GEAR	23.10
501	10NC0	REEL WRENCH	1.65
