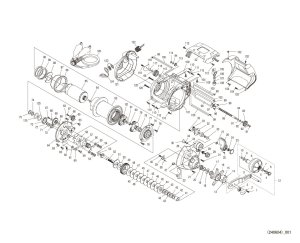

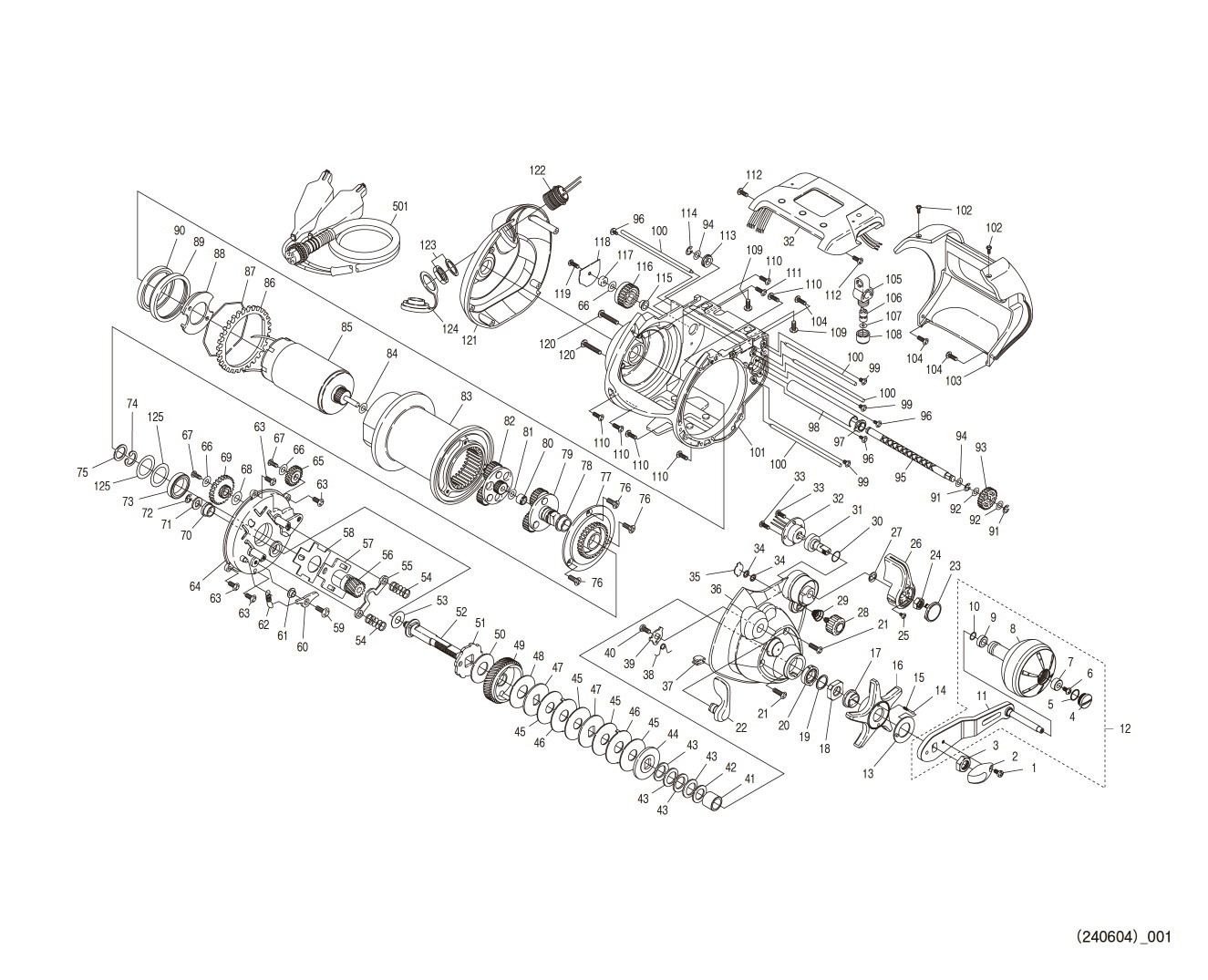

　Reel Part's Schematic Diagram


* Circled figures indicate bearings.
* Please note disassembly is at your own risk.

No. S Part No. Description Price (USD)
1 10QG4 FIXING BOLT 1.10
2 10QUG RETAINER 2.75
3 10FSX HANDLE FIXING NUT 2.75
4 1062R HANDLE CAP 1.10
5 10LAB O-RING 1.10
6 103E9 FIXING BOLT 1.10
7 10EU0 HANDLE GRIPPED BUSH (A) 1.65
8 148P2 HANDLE KNOB ASSEMBLY 45.10
9 104UJ HANDLE GRIPPED BUSH (B) 1.65
10 104FH WASHER 2.20
11 101XW HANDLE 22.55
12 148P3 HANDLE ASSEMBLY 73.15
13 10J1S CLICK WASHER 1.65
14 10BT1 CLICK PIN 1.10
15 10BT3 SPOOL DRAG SPRING 1.10
16 10B66 STAR DRAG 2.75
17 10KZL HANDLE HOLDER 2.75
18 145Y0 STAR DRAG FIXING NUT 6.05
19 10BR2 BEARING PUSH FLY 1.65
20 10BPY MAIN GEAR SHAFT BUSH B 2.75
21 10SLW FIXING BOLT 1.10
22 10KV8 CLUTCH LEVER 4.95
23 1460Y LEVER SWITCH NAMEPLATE 2.20
24 10NAS FIXING NUT 2.75
25 103N3 FIXING BOLT 1.10
26 145XZ LEVER SWITCH 9.35
27 10NAQ OVAL WASHER 1.65
28 10KT6 MECHANICAL BRAKE KNOB 3.85
29 10BRG SPOOL DRAG YURUMI STOP SPRING 1.10
30 10NAR O-RING 1.65
31 10N77 LEVER INSERT SHAFT 3.85
32 145XV COUNTER UNIT ASSEMBLY 220.00
33 10LZF FIXING BOLT 1.10
34 105SB CS TYPE RETAINING RING 3 1.10
35 1085L SPOOLED LUG WASHER (A) 1.10
36 148P4 BODY A ASSEMBLY 34.10
37 106NW THREAD STOPPER 1.65
38 10JYX CLUTCH LEVER SPRING 1.65
39 1084C CLUTCH CAM 3.85
40 10F8M CLUTCH SWITCHING LEVER FIXING BOLT 2.75
41 10BT5 MAIN GEAR SHAFT SLEEVE 1.65
42 104L5 SPOOL SHAFT WASHER (A) 1.10
43 1052E SALA SPRING (DB8H) 1.65
44 10D4G STAR DRAG PLATE 1.65
45 10L88 STAR DRAG WASHER (D) 4.95
46 10L4Y STAR DRAG WASHER (C) 1.65
47 10LB9 STAR DRAG WASHER (E) 1.65
48 10D30 STAR DRAG WASHER B 4.95
49 10Q9T MAIN GEAR 24.75
50 10CJG STAR DRAG WASHER (B) 2.75
51 10A2G STOPPER GEAR ASSEMBLY 4.95
52 105D2 MAIN GEAR SHAFT 11.55
53 10QVL CLUTCH WASHER 1.10
54 104BV CLUTCH YOKE SPRING 1.10
55 1060X CLUTCH YOKE 2.75
56 1066N PINION GEAR ASSEMBLY 19.25
57 1094Q CLUTCH PLATE 4.95
58 10AYD CLUTCH PLATE WASHER 4.95
59 10PR8 FIXING BOLT 1.10
60 10PFV STOPPER CLAW 3.85
61 10PKN STOPPER COVER 2.75
62 10CBS STOPPER CLAW SPRING 1.10
63 10M6K FIXING BOLT 1.10
64 105U0 MAIN UNIT A FIXING PLATE 22.55
65 10MCM CROSS GEAR TRANSMISSION GEAR (A) 2.75
66 105EN CROSS GEAR TRANSMISSION GEAR A MOUNTING WASHER 1.65
67 103GP FIXING BOLT 1.10
68 10J4C WASHER 1.10
69 10PSZ CROSS GEAR TRANSMISSION GEAR B 2.75
70 10BQ3 MAIN GEAR SHAFT BUSH 1.65
71 10J8D SMALL SIZE WASHER 1.65
72 105NG E TYPE STOP RING 3.2 1.10
73 108PG BALL BEARING (15 X 21 X 4) 22.55
74 105S8 C TOME WIRE (S5103-40SUS) 1.10
75 109RA PLATE B STOP WASHER 1.10
76 10ML5 FIXING BOLT 1.10
77 10HSJ SPOOL RIGHT SIDE PLATE 11.55
78 10MGW REDUCTION GEAR PLATE (B) BEARING 3.85
79 10MM3 REDUCTION GEAR PLATE (B) ASSEMBLY 45.10
80 10MCW PLATE FOR REDUCTION GEAR (B) SHAFT BUSHING 2.75
81 109R9 PLANETARY GEAR ADJUSTMENT WASHER (A) 1.10
82 10MHR REDUCTION GEAR PLATE (A) ASSEMBLY 17.05
83 148P5 SPOOL ASSEMBLY 56.10
84 10GN4 SEAT WASHER 1.65
85 10R63 MOTOR ASSEMBLY 39.60
86 10CUW COUNTER GEAR (A) 6.05
87 106PU COUNTER GEAR (A) STOPPER 1.65
88 10F1Q MOTOR HOLDER 17.05
89 10PWQ BEARING COLLAR 4.95
90 104PK BALL BEARING (30X37X4) 53.90
91 105NE E TYPE STOP RING 3 1.10
92 105KF CROSS GEAR WASHER 1.10
93 10N99 GEAR FOR CROSS GEAR 3.85
94 109RN CROSS GEAR WASHER (B1) 0.6 1.10
95 10543 CROSS GEAR 11.55
96 103BW FIXING BOLT 1.10
97 104T6 WORM SHAFT RECEIVER 1.10
98 10NMQ LEVEL WINDING PIPE 6.05
99 103L0 FIXING BOLT 1.10
100 10PCL LEVEL WIND ROD A 2.75
101 1040V MAIN FRAME 67.65
102 103N5 FIXING BOLT 1.10
103 145XX LEVEL WIND GUARD 29.70
104 10LSZ FIXING BOLT 1.10
105 10P3B LEVEL WIND ASSEMBLY 11.55
106 10FFZ WORM SHAFT PIN 2.75
107 10707 CROSS GEAR PIN ADJUSTMENT WASHER 1.10
108 10FJP LEVEL WINDING RECEIVER 1.65
109 103HG FIXING BOLT 1.10
110 10LT0 FIXING BOLT 1.10
111 10M72 FIXING BOLT 1.10
112 10LZP FIXING BOLT 1.10
113 104SX CROSS GEAR UKE B 1.10
114 105NJ TYPE E RETAINING RING 4 1.10
115 106PV COLLAR FOR COUNTER GEAR (B) 1.65
116 10MZL COUNTER GEAR (B) ASSEMBLY 3.85
117 106PZ COLLAR FOR COUNTER GEAR (B) B 1.65
118 10QC8 LEAD WIRE COVER 2.75
119 103CD FIXING BOLT 1.10
120 10MC0 FIXING BOLT 1.65
121 148P6 BODY B ASSEMBLY 34.10
122 100XP CONNECTOR 22.55
123 10BGS SOCKET NUT SET 6.05
124 10T2G SOCKET CAP 3.85
125 10HX0 BODY FIXING PLATE WASHER 1.10
501 10004 CABLE 45.10
LINE 10CW0 LINE THREADING 1.65
