[DAIWA] Genuine Spare Parts for 25 KOHGA IC 150H-C Product code: 00631574 **Back-order (Shipping in 3-4 weeks after receiving order)

[DAIWA] Genuine Spare Parts for 25 KOHGA IC 150H-C Product code: 00631574 **Back-order (Shipping in 3-4 weeks after receiving order)

Our Selling Price: US$0.77 - US$92.40 [Regular Price: US$1.10 - US$132.00]

Prices vary according to options.

View availability
Part Number:
Quantity:
Return & Exchange Policy
Contact Us

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship this item after you order unless we have in stock at the time of your order.

- We don't accept order cancellations, changes, or refunds after an order unless the products you ordered are not available because SHIMANO/DAIWA Japan doesn't accept our cancellations.



*Please make sure to read about the conditions before you order.

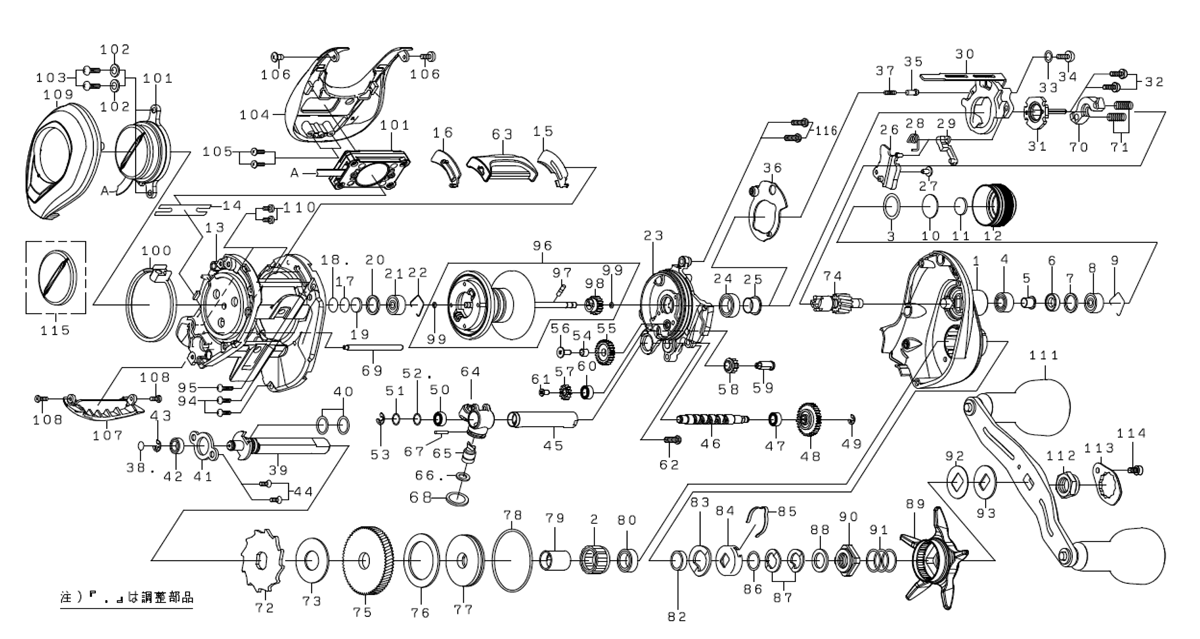

　Reel Part's Schematic Diagram



No. Part Name Part Code Price (USD)
2 ONE-WAY CLUTCH 6G819801 20.90
3 MECHANICAL BRAKE KNOB O-RING 6M150101 1.10
4 PINION BALL BEARING (A) 6G538003 15.40
5 PINION BEARING COLLAR (A) 6J724601 9.90
6 PINION BEARING COLLAR (B) 6M634101 7.70
7 PINION BEARING W 6G185101 1.10
8 PINION BALL BEARING (B) 6G511506 15.40
9 PINION BEARING RING 6F032201 2.20
10 MECHANICAL BRAKE W (A) 6M412001 1.10
11 MECHANICAL BRAKE W (B) 6B175503 1.10
12 MECHANICAL BRAKE KNOB 6M634201 18.70
14 IC MODULE HOLD SEAL 6J619501 2.20
15 CLUTCH LEVER PLATE (R) 6M634501 4.40
16 CLUTCH LEVER PLATE (L) 6M634601 4.40
17 LS BEARING W (A) 63757404 1.10
18 LS BEARING W (B) 63757406 1.10
19 LS BEARING W (C) 63757411 1.10
20 LS BEARING W (D) 6G185101 1.10
21 LS BALL BELLING 6G511506 15.40
22 LS BEARING RING 6F032201 2.20
23 SET PLATE 6M634701 22.00
24 CLUTCH CAM BALL BEARING 6G431008 15.40
25 CLUTCH CAM BEARING COLLAR 6M518401 7.70
26 KICK LEVER PLATE (A) 6M022801 2.20
27 KICK LEVER PLATE (A) SC 6H294101 2.20
28 KICK LEVER SP 6M022901 2.20
29 KICK LEVER 6J622901 6.60
30 CLUTCH CAM 6M634901 4.40
31 KICK LEVER PLATE (B) 6H659101 3.30
32 KICK LEVER PLATE (B) SC 6B032904 2.20
33 CLUTCH CAM W 6H159201 1.10
34 CLUTCH CAM SC 63522501 2.20
35 CLUTCH CAM PLATE PIN 6J055201 2.20
36 CLUTCH CAM PLATE 6J280401 2.20
37 CLUTCH CAM PLATE SP 6H928801 2.20
38 GEAR SHAFT W 6G099801 1.10
39 GEAR SHAFT 6M635101 17.60
40 GEAR SHAFT O-RING 6F657801 1.10
41 GEAR SHAFT PLATE 6J281101 3.30
42 GEAR SHAFT BALL BEARING 6G466201 15.40
43 GEAR SHAFT RETAINER 63208002 2.20
44 GEAR SHAFT PLATE SC 6E134514 2.20
45 WORM SHIELD 6M635201 13.20
46 WORM SHAFT 6M019601 12.10
47 WORM SHAFT BALL BEARING (A) 6G469009 15.40
48 WORM SHAFT GEAR 6M656301 2.20
49 WORM SHAFT GEAR RETAINER 6B339801 2.20
50 WORM SHAFT BALL BEARING (B) 6G469009 15.40
51 WORM SHAFT BEARING W (A) 6B411703 1.10
52 WORM SHAFT BEARING W (B) 6B411702 1.10
53 WORM SHAFT RETAINER 63205901 2.20
54 SET PLATE GEAR (A) COLLAR 6M023601 2.20
55 SET PLATE GEAR (A) 6M023701 2.20
56 SET PLATE GEAR (A) SC 6H472205 2.20
57 SET PLATE GEAR (B) 6M023801 2.20
58 SET PLATE GEAR (C) 6M023901 2.20
59 SET PLATE GEAR (C) SC 6M024001 2.20
60 SET PLATE GEAR (B) BALL BEARING 6G469009 15.40
61 SET PLATE GEAR (B) SC 6H842806 2.20
62 SET PLATE SC (A) 6E705008 2.20
63 CLUTCH LEVER 6M635501 8.80
64 LEVEL WINDING 6J912201 9.90
65 POLE 6J740101 3.30
66 POLE W 6G099801 1.10
67 LEVEL WINDING PIN 6J740201 3.30
68 POLE HOLDER O-RING 6G252202 1.10
69 OSCILLATING POST 6M635601 2.20
70 CLUTCH PLATE 6H929001 3.30
71 CLUTCH PLATE SP 6J313901 2.20
72 RATCHET 6H660901 3.30
73 DRIVE GEAR W 6E708901 2.20
74 PINION + DRIVE GEAR SET *Cannot be ordered 6Z027856 74.80
75 PINION + DRIVE GEAR SET *Cannot be ordered 6Z027856 74.80
76 DRAG W 6H359001 8.80
77 DRIVE COLLAR 6J443001 17.60
78 DRIVE COLLAR O-RING 6J458101 1.10
79 CLUTCH RING 6J327701 8.80
80 HANDLE BALL BEARING 6G431008 15.40
82 DRAG HOLDER COLLAR 6J640605 2.20
83 DRAG HOLDER SP/W 6E253501 2.20
84 DRAG HOLDER 6F028203 3.30
85 DRAG HOLDER LEAF SP 6F032401 2.20
86 DRAG HOLDER W 6B553803 1.10
87 DRAG HOLDER SP-W 61508901 2.20
88 STARDRAG W 6H929501 2.20
89 STAR DRAG 6M289902 41.80
90 STAR DRAG NUT 6J102307 15.40
91 STARDRAG SP 6J011901 2.20
92 HANDLE W (A) 6J102801 1.10
93 HANDLE W (B) 6J101301 3.30
94 RS PLATE SC (A) 6B557619 2.20
95 RS PLATE SC (B) 6B557614 2.20
96 SPOOL (96-99) 6M635801 66.00
97 SPOOL PIN 6J252301 2.20
98 SPOOL GEAR 6M026001 2.20
99 SPOOL SHAFT O-RING 6H770601 1.10
100 LS SENSOR PLATE 6M636201 19.80
101 IC MODULE 6M614402 132.00
102 IC MODULE SC・W 6B536104 1.10
103 IC MODULE SC 6H666003 2.20
104 FINGER COVER 6M636401 15.40
105 FINGER COVER SC (A) 6H881502 2.20
106 FINGER COVER SC (B) 6H531509 2.20
107 FRONT COVER 6M636501 9.90
108 FRONT COVER SC 6H531511 2.20
109 LS PLATE 6M636601 27.50
110 LS PLATE SC 6H005701 2.20
111 HANDLE 6M636701 121.00
112 HANDLE NUT 6J090307 6.60
113 HANDLE LOCK PLATE 6M637101 4.40
114 HANDLE LOCK PLATE SC 6G835506 2.20
115 BATTERY CAP (WITH O-RING) *Cannot be ordered 6Y658601 22.00
116 SET PLATE SC (B) 6B557620 2.20
203 HANDLE KNOB W 6B411703 1.10
204 HANDLE KNOB COLLAR 6G720001 2.20
205 HANDLE KNOB SC (A) 6M636901 39.60
206 HANDLE KNOB SC 6B679308 2.20
207 HANDLE KNOB CAP (WITH O-RING) 6Z027818 15.40
208 HANDLE KNOB CAP O-RING 6H100001 1.10
