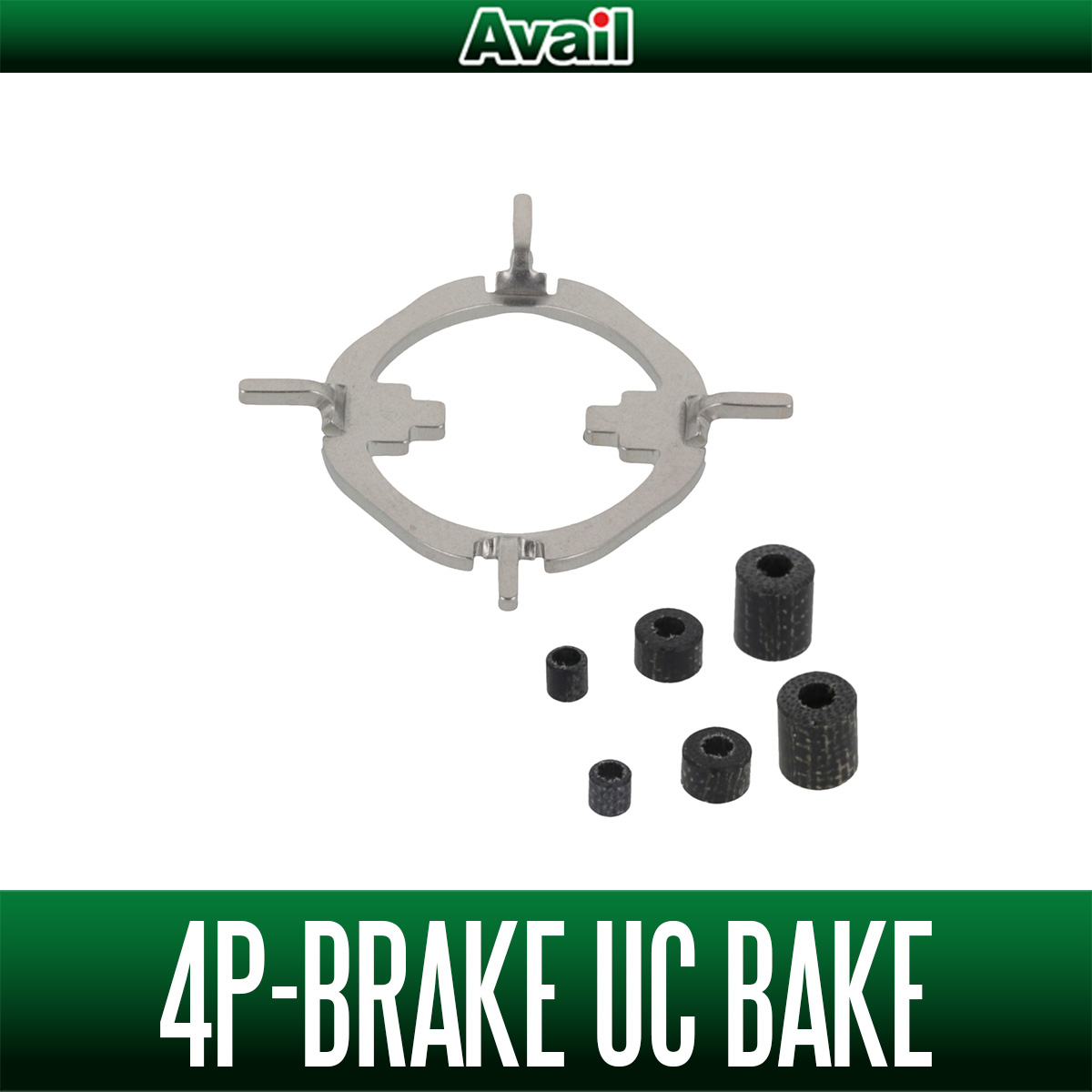

[Avail] 4-Point Brake UC Bakelite for ABU Ambassadeur 4000–6000 Series ULTRACAST [4p_brake_uc_bake]

[Avail] 4-Point Brake UC Bakelite for ABU Ambassadeur 4000–6000 Series ULTRACAST [4p_brake_uc_bake]

Our Selling Price: US$20.02 [Regular Price: US$28.60]

Quantity:
Return & Exchange Policy
Contact Us


| Product Description

These are replacement parts to convert the 2-point centrifugal brake (part #19372), used in the ULTRACAST Design Spool, to a 4-point brake.
By installing brake blocks in four positions, braking power can be increased compared to the genuine 2-point brake, and the adjustment range becomes larger.
Three types of brake blocks of different sizes (two of each) are included. Please use according to your preference.


| Specifications

Material Body: Stainless Steel
Brake Blocks: Bakelite
Weight Body: Approx. 1 g
Compatible Models Ambassadeur 4000–6000 series ULTRACAST reels
Models using part #19372
*Note: Not compatible with part #1366399
Compatible Brake Blocks Included brake blocks/
Genuine bakelite brake block (part #22565)
Included Brake Block Sizes Large: ø3 x ø1.4 x 3.5 mm
(Size equivalent to B-BLOCK Large brake block: ø3.0 mm x 3.5 mm)
Medium: ø3 x ø1.4 x 2.0 mm
(Size equivalent to genuine bakelite block included in factory tune)
Small: ø2 x ø1.4 x 2.0 mm
(Avail original size)
*2 of each



| Installation Method



1. Remove the spool from the reel.




Part #19372




2. Remove the wire C-ring and take off the brake unit.
Be careful not to lose the bearing.




3. Replace the brake unit with this product.
Attach either the included brake blocks or the genuine bakelite brake blocks.




4. Adjust the number and size of the brake blocks as needed.
When assembling, ensure brake blocks do not protrude outside the frame—push them inward.

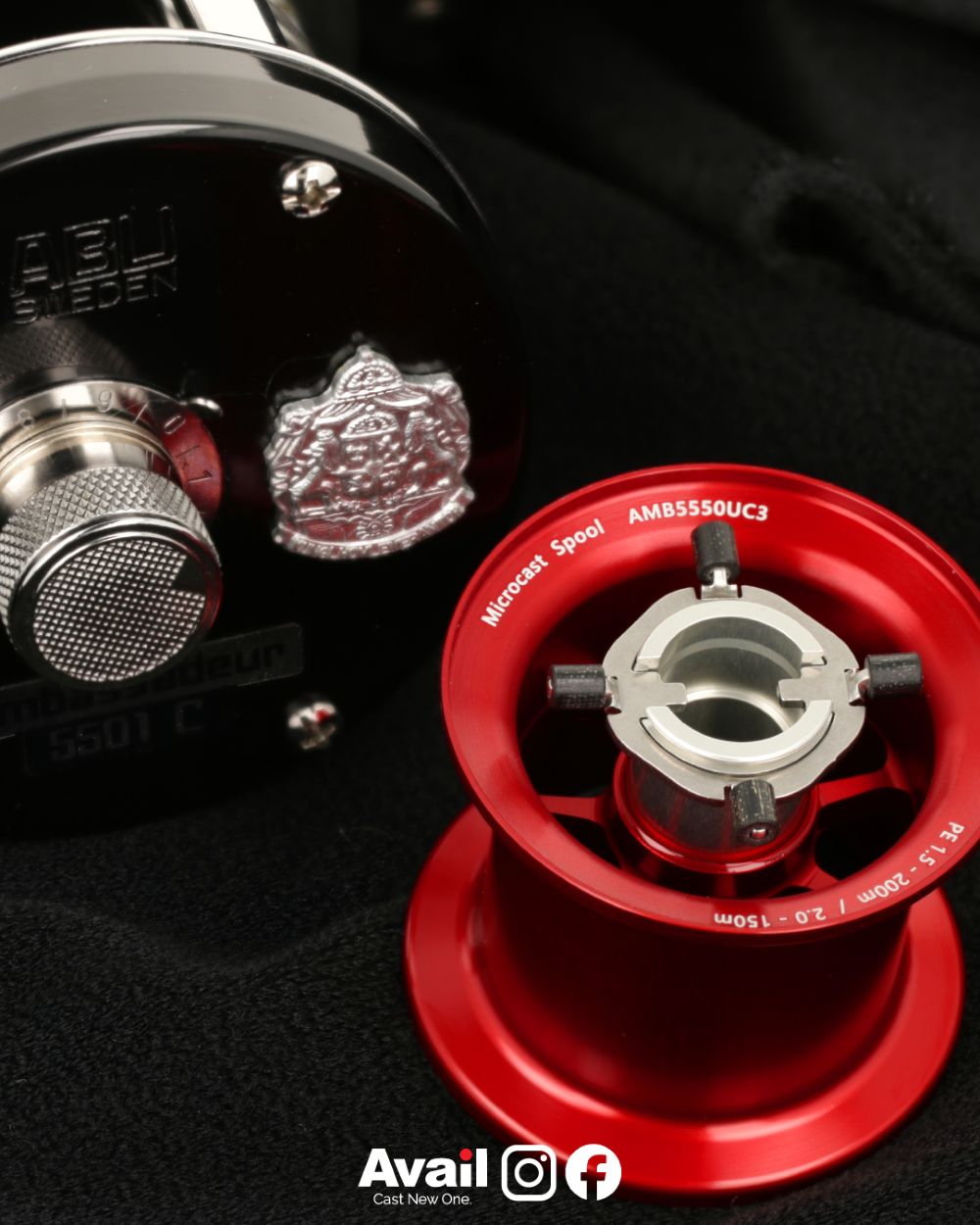

Also compatible with Avail Magnetic Brake Microcast Brake CR2 (CL2).


| Non-Compatible Reels



Not compatible with reels that have spools shaped as shown above.




Reels with 6-point brake (#1116726) are not compatible due to different spool attachment method.

ULTRACAST models released in recent years with bakelite 2-point brake (#1366399) are not compatible due to different pinion gear shape.
