[DAIWA] Genuine Spare Parts for 25 LEOBRITZ 400JL Product code: 00810053 **Back-order (Shipping in 3-4 weeks after receiving order)

[DAIWA] Genuine Spare Parts for 25 LEOBRITZ 400JL Product code: 00810053 **Back-order (Shipping in 3-4 weeks after receiving order)

Our Selling Price: US$0.77 - US$194.81 [Regular Price: US$1.10 - US$278.30]

Prices vary according to options.

View availability
Part Number:
Quantity:
Return & Exchange Policy
Contact Us

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship this item after you order unless we have in stock at the time of your order.

- We don't accept order cancellations, changes, or refunds after an order unless the products you ordered are not available because SHIMANO/DAIWA Japan doesn't accept our cancellations.



*Please make sure to read about the conditions before you order.

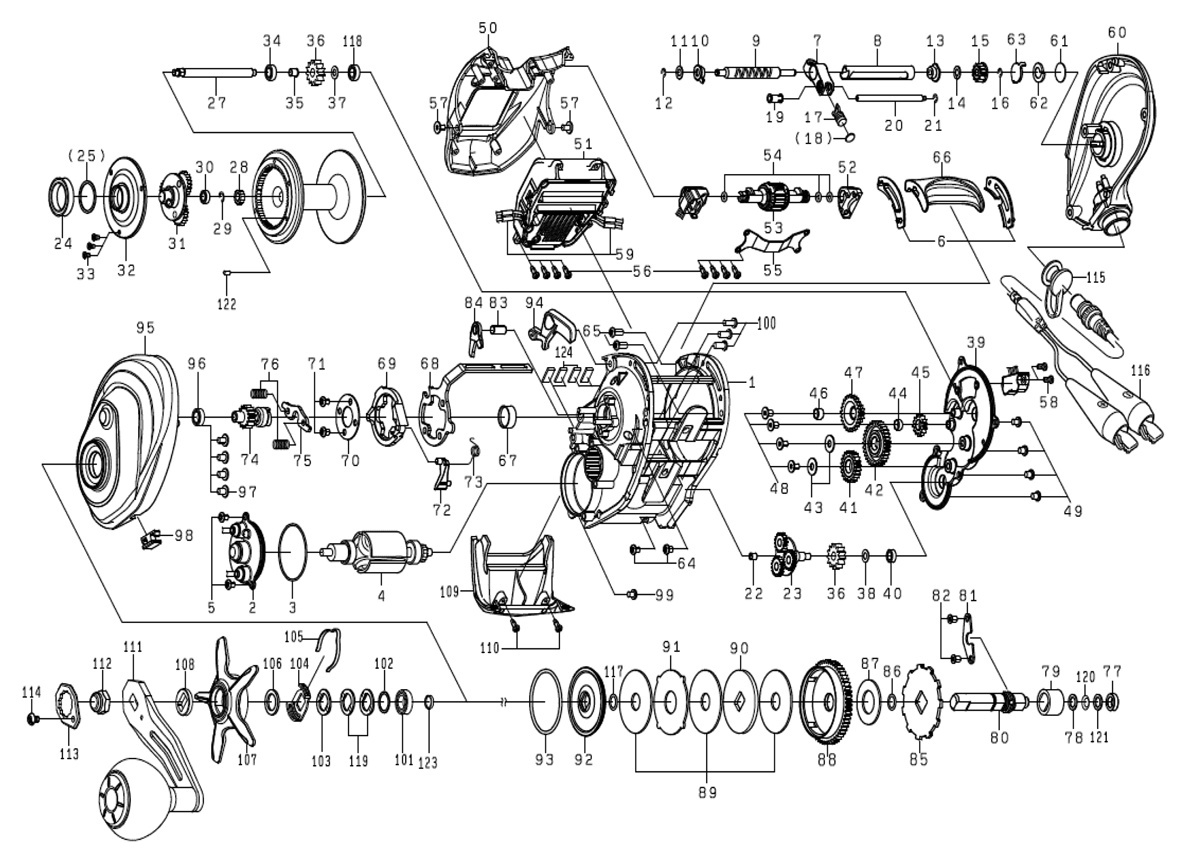

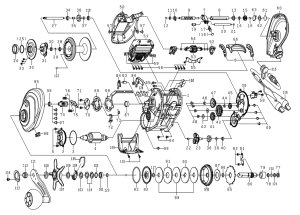

　Reel Part's Schematic Diagram



No. Part Name Part Code Price (USD)
1 FRAME *Cannot be ordered 6M730501 132.00
2 MOTOR HOLDER *Cannot be ordered 6Z028086 86.90
3 MOTOR HOLDER O-RING 6H055901 1.10
4 MOTOR *Cannot be ordered 6Z027999 63.80
5 MOTOR HOLDER SC 6B557601 2.20
6 CLUTCH LEVER PLATE *Not available 6J997401 2.20
7 LEVEL WINDING 6M405601 18.70
8 WORM SHIELD 6M401601 7.70
9 WORM SHAFT 6M401701 15.40
10 WORM SHAFT COLLAR (A) 6G925601 2.20
11 WORM SHAFT W 6F889102 1.10
12 WORM SHAFT RETAINER 6B864101 2.20
13 WORM SHAFT COLLAR (B) 6J594601 2.20
14 WORM SHAFT GEAR W 6F889102 1.10
15 WORM SHAFT GEAR 6J998001 4.40
16 WORM SHAFT RETAINER 6B864101 2.20
17 POLE 6H168601 15.40
18 POLE W 6G099801 1.10
19 LEVEL WINDING POST COLLAR 6H168701 2.20
20 LEVEL WINDING POST 6M401801 2.20
21 LEVEL-WIND POST RETAINER 6B864101 2.20
22 MOTOR GEAR COLLAR 6J998201 2.20
23 MOTOR GEAR 6J998301 36.30
24 SPOOL PLATE BALL BEARING 6G055101 8.80
25 SPOOL PLATE BALL BEARING W 6G205501 1.10
26 SPOOL 6M705401 79.20
27 SPOOL SHAFT 6M402001 9.90
28 SPOOL SHAFT GEAR 6J999101 7.70
29 SPOOL SHAFT GEAR RETAINER 6F550501 2.20
30 SPOOL SHAFT BALL BEARING 6G281605 8.80
31 SPOOL GEAR 6J999201 55.00
32 SPOOL PLATE 6J999601 15.40
33 SPOOL PLATE SC 6H842802 2.20
34 SPOOL BALL BEARING (MAG SHIELD) 6B358605 8.80
35 SPOOL SHAFT COLLAR 6M386201 3.30
36 IDLE GEAR (A) 6J999701 6.60
37 SPOOL SHAFT BEARING W 63754101 1.10
38 IDLE GEAR W 63754103 1.10
39 SET PLATE 6M034001 53.90
40 IDLE GEAR BALL BEARING 6G281605 8.80
41 IDLE GEAR (B) 6J999901 18.70
42 IDLE GEAR (C) 6M000201 20.90
43 IDLE GEAR W 6F440201 1.10
44 IDLE GEAR (D) COLLAR 6H869601 3.30
45 IDLE GEAR (D) 6M000401 3.30
46 IDOL GEAR (E) COLORS 6H869602 3.30
47 IDOL GEAR (E) 6M000501 4.40
48 IDLE GEAR SC 6G940409 2.20
49 SET PLATE SC 6B557601 2.20
50 IC MODULE COVER *Cannot be ordered 6M402104 39.60
51 IC MODULE *Cannot be ordered 6M034106 278.30
52 JOG POWER LEVER HOLDER 6M000801 2.20
53 JOG POWER LEVER *Cannot be ordered 6M705502 20.90
54 JOG POWER LEVER O-RING 6J037601 1.10
55 JOG POWER LEVER PLATE 6M402301 2.20
56 COVER PLATE SC 6H717101 2.20
57 IC MODULE COVER SC 6G940409 2.20
58 SENSOR SC 6H158201 2.20
59 CORD COVER 6G079503 2.20
60 RS PLATE *Cannot be ordered 6M389101 86.90
61 MECHANICAL BRAKE KNOB W (A) 6F673802 1.10
62 MECHANICAL BRAKE KNOB W (B) 6J197401 2.20
63 MECHANICAL BRAKE KNOB W (C) 6J056901 1.10
64 RS PLATE SC (A) 6B557606 2.20
65 RS PLATE SC (B) 6B557617 2.20
66 CLUTCH LEVER (A) 6M402401 8.80
67 CLUTCH CAM BEARING 6M002201 2.20
68 CLUTCH CAM PLATE (A) 6M420501 4.40
69 CLUTCH CAM 6M034601 5.50
70 CLUTCH CAM PLATE (B) 6M002501 2.20
71 CLUTCH CAM PLATE SC 6B557601 2.20
72 KICK LEVER 6M034701 5.50
73 KICK LEVER SP 6J407801 2.20
74 PINION 6M034901 22.00
75 CLUTCH PLATE 6M035001 2.20
76 CLUTCH PLATE SP 6M164601 2.20
77 GEAR SHAFT COLLAR 6G006601 3.30
78 GEAR SHAFT W (A) 63753005 1.10
79 DRAG COLLAR 6M003101 3.30
80 GEAR SHAFT 6M381702 16.50
81 GEAR SHAFT PLATE 6M003301 2.20
82 GEAR SHAFT PLATE SC 6G786102 2.20
83 STOPPER PIN 6M003401 2.20
84 STOPPER 6M003501 6.60
85 RATCHET 6M003801 2.20
86 GEAR SHAFT O-RING 6F657801 1.10
87 DRIVE GEAR W 6G791403 4.40
88 DRIVE GEAR W 6M389301 27.50
89 DRAG W 6M011701 7.70
90 DRAG DISK W 6M004001 2.20
91 DRAG LIP W 6H471001 2.20
92 DRAG DISC COLLAR 6M004101 12.10
93 DRAG DISC COLLAR O-RING 6M004201 2.20
94 CLUTCH LEVER (B) 6M035201 11.00
95 LS PLATE 6M035309 90.20
96 PINION BALL BEARING 6G467102 8.80
97 PINION BALL BEARING SC 6H022701 2.20
98 LINE STOPPER 6E286001 2.20
99 LS PLATE SC (A) 6B557606 2.20
100 LS PLATE SC (B) 6B557617 2.20
101 HANDLE BALL BEARING 6G431004 8.80
102 HANDLE BEARING W 6B553801 1.10
103 DRAG SP・W （A) 61508901 2.20
104 DRAG HOLDER 6F862901 3.30
105 DRAG LEAF SP 6H933201 2.20
106 STAR DRAG W 6H929501 2.20
107 STAR DRAG 6M265504 28.60
108 HANDLE COLLAR 6F863202 3.30
109 FINGER COVER 6M402603 11.00
110 FINGER COVER SC 6H717101 2.20
111 HANDLE AS 6M705601 67.10
112 HANDLE NUT 6J090312 4.40
113 HANDLE LOCK PLATE 6M095904 4.40
114 HANDLE LOCK PLATE SC 6G835505 2.20
115 CONNECTOR CAP 6F661002 5.50
116 CORD 6G868701 51.70
117 GEAR SHAFT O-RING 6F657801 1.10
118 SPOOL SHAFT BALL BEARING 6E088005 8.80
119 DRAG SP・W(B) 6E253501 2.20
120 GEAR SHAFT W (B) 6H351001 1.10
121 GEAR SHAFT W (C) 63753005 1.10
122 SPOOL PIN 6G643501 2.20
123 DRAG COLLAR (B) 6J640603 2.20
124 BUFFER SHEET *Not available 6M268301 2.20
200 ITDOOSHIP PIN (A) 6X090801 3.30
202 STAND COVER 6H091801 6.60
203 FALL BRAKE DIAL SEAL 6X368501 2.20
204 MANUAL (BETSURI) 199C34 6.60
300 HANDLE KNOB W 63753005 1.10
301 HANDLE KNOB COLOR 6F648301 4.40
302 HANDLE KNOB 6M705701 29.70
303 HANDLE KNOB SC 6E454003 2.20
304 HANDLE KNOB CAP 6H693002 14.30
305 HANDLE KNOB CAP O-RING 6H100001 1.10
