[DAIWA] Genuine Spare Parts for 25 SALTIGA 35HL Product code: 00631531 **Back-order (Shipping in 3-4 weeks after receiving order)

[DAIWA] Genuine Spare Parts for 25 SALTIGA 35HL Product code: 00631531 **Back-order (Shipping in 3-4 weeks after receiving order)

Our Selling Price: US$0.77 - US$127.05 [Regular Price: US$1.10 - US$181.50]

Prices vary according to options.

View availability
Part Number:
Quantity:
Return & Exchange Policy
Contact Us

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship this item after you order unless we have in stock at the time of your order.

- We don't accept order cancellations, changes, or refunds after an order unless the products you ordered are not available because SHIMANO/DAIWA Japan doesn't accept our cancellations.



*Please make sure to read about the conditions before you order.

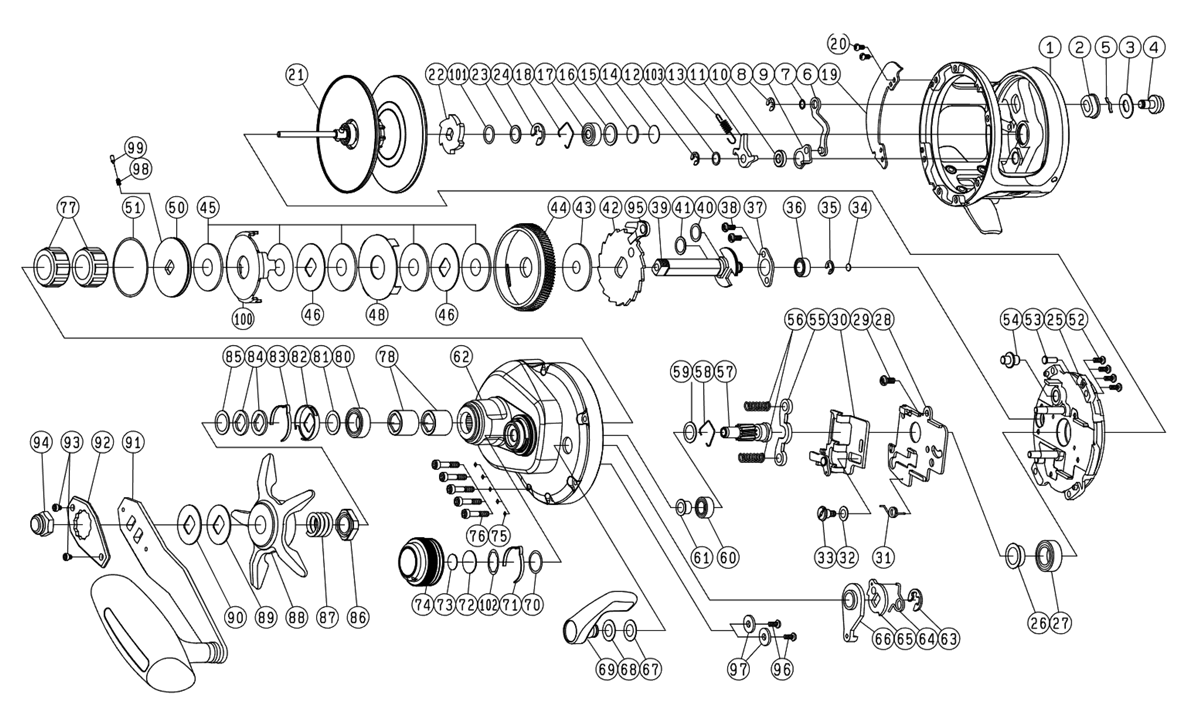

　Reel Part's Schematic Diagram



No. Part Name Part Code Price (USD)
1 FRAME *Not available 6M540801 154.00
2 SPOOL LOCK PLATE COLLAR 6M223301 2.20
3 SPOOL LOCK PLATE W 6M223501 2.20
4 SPOOL LOCK LEVER 6M188901 12.10
5 SPOOL LOCK LEVER LEAF SP 6E656502 2.20
6 LOCK LEVER PLATE (A) 6E746801 12.10
7 LOCK LEVER PLATE W 6G850702 1.10
8 LOCK LEVER PLATE RETAINER 63201402 2.20
9 LOCK LEVER PLATE (B) 6E747001 2.20
10 LOCK PLATE COLLAR 6E716601 2.20
11 LOCK PLATE 6E716701 4.40
12 LOCK PLATE RETAINER *Not available 63207601 2.20
13 LOCK PLATE SP 6M513001 2.20
14 RS BEARING W (A) 63757404 1.10
15 RS BEARING W (B) 63757411 1.10
16 RS BEARING W (C) 6E703301 1.10
17 RS BALL BEARING 6G427701 15.40
18 RS BEARING RING 6F032201 2.20
19 LS COVER PLATE 6M513102 18.70
20 LS COVER PLATE SC 63510906 2.20
21 SPOOL (21-24, 101) 6Z027817 159.50
22 LOCKING PLATE RATCHET 6M615801 4.40
23 LOCKING PLATE RATCHET SP・W 6G878201 1.10
24 LOCKING PLATE RATCHET RETAINER *Not available 63207601 2.20
25 SET PLATE 6M541001 30.80
26 SET PLATE BEARING COLLAR 6J946501 7.70
27 SET PLATE BALL BEARING 6G156803 15.40
28 BEARING HOLD PLATE 6M541201 2.20
29 BEARING HOLD PLATE SC 6B557610 2.20
30 SLIDE PLATE 6M541301 15.40
31 SLIDE PLATE SP 6E714201 2.20
32 SLIDE PLATE SC AND W 6G850702 1.10
33 SLIDE PLATE SC 6M234801 3.30
34 GEAR SHAFT W 6G099806 1.10
35 GEAR SHAFT BEARING RETAINER 63208002 2.20
36 GEAR SHAFT BALL BEARING 6G538003 15.40
37 GEAR SHAFT PLATE 6H928901 3.30
38 GEAR SHAFT PLATE SC 6E134505 2.20
39 GEAR SHAFT 6M514302 30.80
40 GEAR SHAFT O-RING (A) 6H156901 1.10
41 GEAR SHAFT O-RING (B) 6F657801 1.10
42 RATCHET 6M541501 16.50
43 DRIVE GEAR W 6M514701 8.80
44 PINION + DRIVE GEAR 6Z027437 82.50
45 DRAG W 6H470801 9.90
46 DRAG DISC W 6H470905 3.30
48 DRAG LIP W (A) 6M639001 2.20
50 DRAG COLLAR 6M515302 12.10
51 DRAG COLLAR O-RING 6M515401 1.10
52 SET PLATE SC 63516404 2.20
53 SET PLATE PIN 6E706501 3.30
54 STOPPER PIN 6E718401 3.30
55 CLUTCH PLATE 6M204301 8.80
56 CLUTCH PLATE SP 6M514401 2.20
57 PINION + DRIVE GEAR SET 6Z027437 82.50
58 PINION BEARING RING 6E720102 2.20
59 PINION BEARING W 6E720002 1.10
60 PINION BALL BEARING *Cannot be ordered 6J030302 45.10
61 PINION BEARING COLLAR *Cannot be ordered 6M516101 7.70
62 LS PLATE 6M542001 181.50
63 CLUTCH CAM RETAINER *Not available 63207601 2.20
64 CLUTCH CAM SP 6E713302 2.20
65 CLUTCH CAM 6E713201 8.80
66 CLUTCH CAM PLATE 6M241201 2.20
67 CLUTCH LEVER W (A) 6E711101 1.10
68 CLUTCH LEVER W (B) 63705159 1.10
69 CLUTCH LEVER 6M542201 46.20
70 MECHANICAL BRAKE O-RING 6E720201 1.10
71 MECHANICAL BRAKE LEAF SP 6M564201 2.20
72 MECHANICAL BRAKE W (A) 6M516701 1.10
73 MECHANICAL BRAKE W (B) 6B175503 1.10
74 MECHANICAL BRAKE KNOB 6M516601 22.00
75 LS PLATE SC AND O-RING 6E688801 1.10
76 LS PLATE SC 6M516201 2.20
77 ONE WAY CLUTCH 6G819801 20.90
78 CLUTCH RING 6M755601 8.80
80 HANDLE BALL BEARING 6G431008 15.40
81 HANDLE BEARING W 6B553801 1.10
82 DRAG HOLDER 6E709201 3.30
83 DRAG HOLDER LEAF SP 6E715601 2.20
84 DRAG SP AND W 61508901 2.20
85 DRAG NUT W 6H929501 2.20
86 DRAG NUT 6J935104 7.70
87 DRAG SP 6J011901 2.20
88 STAR DRAG 6M599001 42.90
89 HANDLE W (A) 6J102801 1.10
90 HANDLE W (B) 6J101301 3.30
91 HANDLE 6M516801 165.00
92 HANDLE LOCK PLATE 6M096503 4.40
93 HANDLE LOCK PLATE SC 6J632309 2.20
94 HANDLE NUT 6M517604 4.40
95 STOPPER 6M564601 8.80
96 ANODE PLATE SC 6H257001 2.20
97 ANODE PLATE 6M809301 3.30
98 DRIVE COLLAR SP 6M025201 2.20
99 DRIVE COLLAR PIN 6J566201 2.20
100 DRAG GRIP W (B) 6M515201 2.20
101 LOCK PLATE RATCHET W 63755807 1.10
102 MECHANICAL BRAKE LEAF SP・W 6E720401 1.10
103 LOCK PLATE W 63755806 1.10
200 HANDLE KNOB W 63753005 1.10
201 HANDLE KNOB BALL BEARING 6G466201 15.40
202 HANDLE KNOB *Not available 6M517101 82.50
203 HANDLE KNOB SC 6E454003 2.20
204 HANDLE KNOB CAP *Not available 6M517501 9.90
205 HANDLE KNOB CAP SC 6G352301 2.20
