[SHIMANO] Genuine Spare Parts for 23-24 Force Master 600 LEFT Product code: 045072 **Back-order (Shipping in 3-4 weeks after receiving order)

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.

- We don't accept order cancellations, changes, or refunds after an order unless the products you ordered are not available because SHIMANO/DAIWA Japan doesn't accept our cancellations.



*Please make sure to read about the conditions before you order.

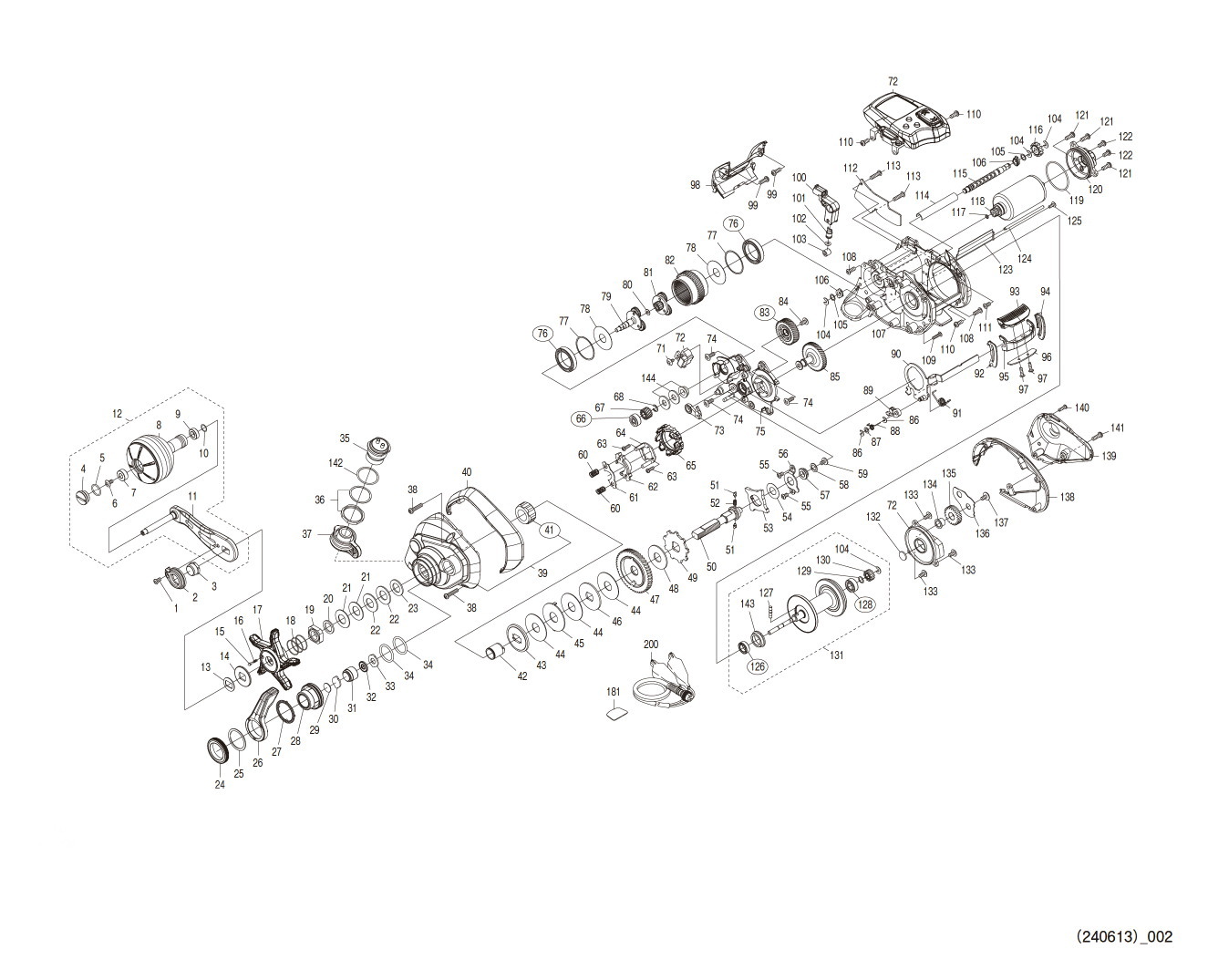

Reel Part's Schematic Diagram

* Circled figures indicate bearings.
* As for the "41 / ROLLER CLUTCH", "126,128 / BALL BEARING" and "127 / SPOOL CLUTCH PIN", they don't sell separately.
These parts are supposed to be provided when customers send the reel to have it repaired or overhauled.
So we cannot provide you with the products unfortunately.
* Please note disassembly is at your own risk.

No.	S Part No.	Description	Price (USD)
1	10R1Q	FIXING BOLT	1.65
2	10S80	RETAINER	3.85
3	13V3U	HANDLE FIXING NUT	6.05
4	1062R	HANDLE CAP	1.10
5	10LAB	O-RING	1.10
6	103E9	FIXING BOLT	1.10
7	10EU0	HANDLE GRIPPED BUSH (A)	1.65
8	10RPR	HANDLE KNOB	45.10
9	104UJ	HANDLE GRIPPED BUSH (B)	1.65
10	104FH	WASHER	2.20
11	13Z9S	HANDLE SHAFT ASSEMBLY	56.10
12	13Z9T	HANDLE ASSEMBLY	112.20
13	107QQ	HANDLE RECEIVING WASHER	1.65
14	10J22	STAR DRAG CLICK PLATE	1.65
15	10B27	CLICK PIN	1.65
16	10988	CLICK SPRING	1.65
17	1425Z	STAR DRAG	11.00
18	10A70	STAR DRAG SPRING	2.75
19	13V97	STAR DRAG FIXING NUT	2.75
20	10BR2	BEARING PUSH FLY	1.65
21	10EW3	DOWEL SPRING (DB8L)	1.65
22	1052E	DISK SPRING (DB8H)	1.65
23	10HVB	HANDLE SHAFT WASHER (A)	1.65
24	14270	LOCK RING	11.55
25	1426Z	BEARING WASHER (A)	1.10
26	14271	FALL LEVER	5.50
27	1426Y	LOCK SPACER	1.10
28	14254	MECHANICAL BRAKE KNOB	16.50
29	10896	MECHANICAL BRAKE WASHERS	1.10
30	14272	MECHANICAL BRAKE WASHER	2.75
31	145FP	ROLLER CLUTCH HOLDER ASSEMBLY	9.35
32	1426W	ROLLER CLUTCH SEAL	3.85
33	142AE	MECHANICAL BRAKE WASHER	3.30
34	108WK	O-RING SM14	1.65
35	100XP	CONNECTOR	22.55
36	10BGS	SOCKET NUT SET	6.05
37	10T2G	SOCKET CAP	3.85
38	10TDK	FIXING BOLT	1.10
39	13Z9U	BODY A SET	67.10
40	13UE6	BODY A2	22.55
41	10F3C	ROLLER CLUTCH *Cannot be ordered	17.05
42	10BN3	ROLLER CLUTCH INNER TUBE	6.05
43	10S66	STAR DRAG PLATE	3.85
44	13V8U	STAR DRAG WASHER	6.05
45	10LBA	STAR DRAG WASHER	1.65
46	10KZV	STAR DRAG WASHER	1.65
47	14260	DRIVE GEAR	17.60
48	13UML	STAR DRAG WASHERS	4.95
49	10D8S	STOPPER GEAR	1.65
50	14261	DRIVE GEAR SHAFT	16.50
51	10S04	CLUTCH RETURN GEAR PIN	1.10
52	10S78	CLUTCH RETURN GEAR SPRING	1.10
53	142AD	CLUTCH RETURN GEAR	1.65
54	10HV9	WASHER	1.10
55	103KS	FIXING BOLT	1.10
56	10TEQ	DRIVE GEAR SHAFT FIXING PLATE	1.65
57	10S7V	DRIVE GEAR SHAFT BUSHING	1.65
58	1058E	MAIN GEAR SHAFT WASHER (A)	1.10
59	10PVU	FIXING BOLT	1.65
60	1429V	CLUTCH YOKE SPRING	1.10
61	13T73	CLUTCH YOKE PLATE	1.65
62	1425B	CLUTCH YOKE	1.10
63	103NH	FIXING BOLT	1.10
64	10T0Q	CLUTCH CAM PUSH PLATE	2.75
65	13Z9Z	CLUTCH CAM ASSEMBLY	18.70
66	105C1	BALL BEARING (3X10X4)	13.75
67	144K5	PINION GEAR	11.55
68	105SA	C TOME WA (NO5103-18)	1.10
71	10MT5	FIXING BOLT	1.10
72	1425L	COUNTER UNIT ASSEMBLY	330.00
73	13H20	STOPPER CLAW ASSEMBLY	3.85
74	103GS	FIXING BOLT	1.10
75	13Z9W	MAIN UNIT A FIXING PLATE ASSEMBLY	8.80
76	108PG	BALL BEARING (15X21X4)	22.55
77	13PFL	MOTOR HOLDER COVER WASHER	1.10
78	13PFM	MOTOR HOLDER COVER WASHER	1.65
79	145FN	REDUCTION GEAR PLATE (B) ASSEMBLY	28.05
80	13JVH	PLANETARY GEAR ADJUSTMENT WASHER (A)	1.10
81	13H04	REDUCTION GEAR PLATE (A) ASSEMBLY	28.05
82	145FA	MOTOR HOLDER COVER	28.05
83	13Z9Y	PINION TRANSMISSION GEAR (A) ASSEMBLY (WITH BEARING)	25.30
84	10QG5	FIXING BOLT	1.10
85	14257	PINION TRANSMISSION GEAR (B)	32.45
86	105NC	E-TYPE RETAINING RING 2	1.10
87	10G8K	WASHER	1.10
88	10TEF	CLUTCH CLAW SPRING	3.85
89	1425C	CLUTCH CLAW	1.10
90	13H6D	CLUTCH PLATE ASSEMBLY	11.55
91	1425A	CLUTCH LEVER SPRING	1.10
92	13TCW	CLUTCH LEVER RECEIVER (B)	1.65
93	13T71	CLUTCH LEVER	6.05
94	14256	CLUTCH LEVER HOLDER (A)	2.20
95	13T72	CLUTCH LEVER NAMEPLATE	6.05
96	13UDL	CLUTCH LEVER PROTECTOR	1.65
97	1055B	FIXING BOLT	1.10
98	1425G	LEVEL WIND GUARD	11.55
99	10LZE	FIXING BOLT	1.10
100	13GFW	LEVEL-WIND ASSEMBLY	7.15
101	10FFZ	WORM SHAFT PIN	2.75
102	10RR9	WASHER	2.75
103	10FJX	LEVEL WINDING RECEIVER	1.65
104	105NK	E TYPE RETAINING RING 2.5	1.10
105	10G6B	WORMSHAFT WASHER	1.10
106	100AN	WORM SHAFT HOLDER	1.65
107	1425H	FRAME	60.50
108	103DE	FIXING BOLT	1.10
109	1055C	FIXING BOLT	1.65
110	10LST	FIXING BOLT	1.10
111	103KT	FIXING BOLT	1.10
112	13RU5	FRAME NAMEPLATE	3.85
113	1023A	FIXING BOLT	1.10
114	13S5Z	LEVEL WINDING PIPE	6.05
115	13S5Y	WORM SHAFT	11.55
116	10T25	WORM SHAFT GEAR (C)	2.75
117	10G9W	WASHER	1.10
118	1425N	MOTOR ASSEMBLY	84.70
119	10LAG	O-RING	1.65
120	13H0Q	MOTOR HOLDER ASSEMBLY	34.10
121	10LZF	FIXING BOLT	1.10
122	10LSQ	FIXING BOLT	1.10
123	13SH5	LEVEL-WIND COVER	2.75
124	13S60	LEVEL WINDING ROD	3.85
125	103C0	FIXING BOLT	1.10
126	104JT	BALL BEARING (6X10X3) *Cannot be ordered	13.75
127	13SVE	SPOOL CLUTCH PIN *Cannot be ordered	2.75
128	105CA	BALL BEARING (5X11X4) *Cannot be ordered	13.75
129	10TK0	WASHER	1.65
130	10JAJ	WORM SHAFT GEAR	2.75
131	13Z9V	SPOOL ASSEMBLY	56.10
132	1426F	SPOOL SHAFT CONTACT TALLY B	2.20
133	10PMK	FIXING BOLT	1.10
134	106PX	COLLAR FOR COUNTER GEAR (B)	1.65
135	105M0	WORM SHAFT GEAR (B)	2.75
136	13RZY	LEAD WIRE COVER	1.65
137	103KW	FIXING BOLT	1.10
138	13RN4	BODY B2	22.55
139	1425K	MAIN BODY B	20.35
140	13JX4	FIXING BOLT	1.10
141	10LT0	FIXING BOLT	1.10
142	13PKF	WASHER	1.65
143	1426B	FRAME (A) BUSH	1.10
144	148SW	BUSH SET	3.85
181	10CYP	LEG ADJUSTMENT SEAT	1.65
200	10004	CABLE	45.10
LINE	10CW0	LINE THREADING	1.65
