[DAIWA] Genuine Spare Parts for 19-24 TOURNAMENT SURF 45 LG 06PE Product code: 00067003 **Back-order (Shipping in 3-4 weeks after receiving order)

[DAIWA] Genuine Spare Parts for 19-24 TOURNAMENT SURF 45 LG 06PE Product code: 00067003 **Back-order (Shipping in 3-4 weeks after receiving order)

Our Selling Price: US$0.77 - US$101.64 [Regular Price: US$1.10 - US$145.20]

Prices vary according to options.

View availability
Part Number:
Quantity:
Return & Exchange Policy
Contact Us

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship this item after you order unless we have in stock at the time of your order.

- We don't accept order cancellations, changes, or refunds after an order unless the products you ordered are not available because SHIMANO/DAIWA Japan doesn't accept our cancellations.



*Please make sure to read about the conditions before you order.

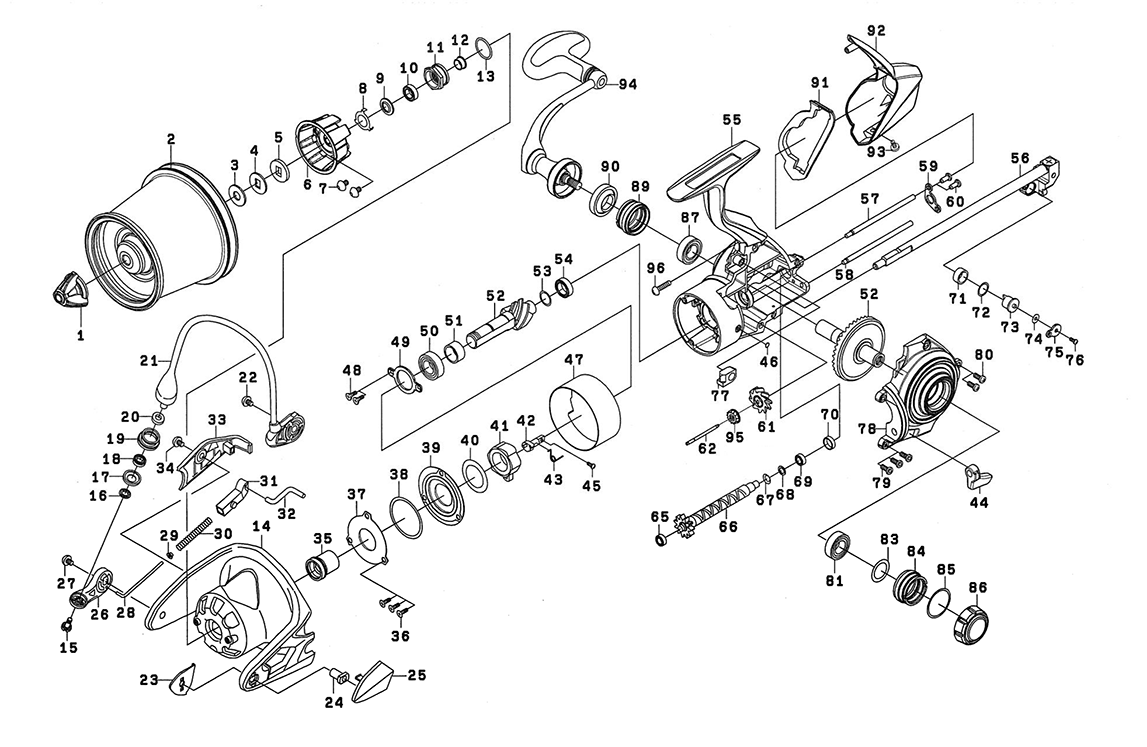

　Reel Part's Schematic Diagram



No. Part Name Part Code Price (USD)
1 SPOOL KNOB 6J748901 12.10
2 SPOOL W (A) 6J814301 121.00
3 SPOOL W (A) 6E399201 1.10
4 SPOOL W (B) 6E399203 1.10
5 MAIN SHAFT W 6H108201 1.10
6 ROTOR COVER 6J748701 8.80
7 ROTOR COVER SC *Not available 6H513602 2.20
8 ROTOR NUT PLATE 6H107301 2.20
9 ROTOR NUT BEARING PACKING 6H107201 2.20
10 ROTOR NUT BALL BEARING 6G522705 15.40
11 ROTOR NUT 6H107101 7.70
12 ROTOR NUT COLLAR 6G175401 3.30
13 ROTOR NUT W 6B270711 1.10
14 ROTOR *Cannot be ordered 6H105208 63.80
15 ROLLER SC 6J402301 2.20
16 ROLLER COLLAR 6J336001 2.20
17 ROLLER BEARING PACKING 6J335901 2.20
18 ROLLER BALL BEARING *Cannot be ordered 6J019304 45.10
19 LINE ROLLER *Cannot be ordered 6J335701 46.20
20 ROLLER COLLAR 6J042801 3.30
21 BAIL *Cannot be ordered 6J747801 80.30
22 BAIL HOLDER SC *Not available 6G162203 2.20
23 BAIL HOLDER PLATE 6H106501 2.20
24 BAIL HOLDER NUT 6H106601 3.30
25 BALE HOLDER COVER 6H106704 15.40
26 ARM LEVER 6H105907 12.10
27 ARM LEVER SC 6H503701 2.20
28 ARM LEVER SP SHAFT 6H105602 2.20
29 ARM LEVER SP COLLAR 6H105701 3.30
30 ARM LEVER SP 6H105801 2.20
31 BAIL LOCK SHAFT COLLAR 6H105501 2.20
32 BAIL LOCK SHAFT 6H105402 7.70
33 ARM LEVER COVER 6H106004 11.00
34 ARM LEVER COVER SC *Not available 6H656102 2.20
35 CLUTCH RING *Cannot be ordered 6M165801 9.90
36 MAG SHIELD PLATE SC 6H585003 2.20
37 MAG SHIELD PLATE *Cannot be ordered 6J428901 23.10
38 MAG SHIELD PLATE O-RING 6J212901 1.10
39 MAG SHIELD CAP 6Q295302 3.30
40 ONE-WAY CLUTCH W 6J746401 1.10
41 ONE-WAY CLUTCH *Cannot be ordered 6J309101 26.40
42 STOPPER CAM 6J746901 3.30
43 STOPPER CAM SP 6J747001 2.20
44 STOPPER LEVER 6J747101 7.70
45 STOPPER CAM SC 6J799301 2.20
46 INFINITE COVER O-RING 6J197901 1.10
47 INFINITE COVER *Cannot be ordered 6J747201 27.50
48 PINION BEARING PLATE SC 6H178101 2.20
49 PINION BEARING PLATE 6J020801 2.20
50 PINION BALL BEARING (A) 6G522803 15.40
51 PINION BEARING (A) COLLAR 6J745401 3.30
52 PINION + DRIVE GEAR SET *Cannot be ordered 6Z024782 77.00
53 PINION BEARING (B) SP/W 6G878101 1.10
54 PINION BALL BEARING (B) 6G431007 15.40
55 BODY *Cannot be ordered 6J743201 132.00
56 MAIN SHAFT *Cannot be ordered 6J744704 39.60
57 OSCILLATING POST (A) 6J745001 8.80
58 OSCILLATING POST (B) 6J745101 8.80
59 WORM SHAFT PLATE 6J744601 2.20
60 WORM SHAFT PLATE SC 6J429301 2.20
61 WORM SHAFT GEAR (A) 6J814401 9.90
62 WORM SHAFT GEAR (A) POST 6J744001 4.40
65 WORM SHAFT BALL BEARING 6G469007 15.40
66 WORM SHAFT 6J814701 26.40
67 WORM SHAFT SP, W 6H744801 1.10
68 WORM SHAFT W 6B411703 1.10
69 WORM SHAFT BALL BEARING 6G469007 15.40
70 WORM SHAFT BEARING COLLARS 6J744501 2.20
71 POLE HOLDER COLLAR 6H939001 2.20
72 POLE W (A) 6H129201 1.10
73 POLE W (B) 6H939101 6.60
74 POLE W (B) 63750801 1.10
75 POLE HOLDER PLATE *Not available 6J745501 2.20
76 POLE HOLDER PLATE SC 6J799301 2.20
77 STOPPER 6J743701 3.30
78 BODY COVER 6J745701 96.80
79 BODY COVER SC (A) 6J746201 2.20
80 BODY COVER SC (B) 6H585003 2.20
81 DRIVE BALL BEARING 6G522803 15.40
83 DRIVE BEARING W 6G529501 1.10
84 DRIVE BEARING COVER (L) 6J746501 27.50
85 HANDLE CAP O-RING 6G338401 1.10
86 HANDLE CAP 6J511403 8.80
87 DRIVE BALL BEARING 6G522803 15.40
89 DRIVE BEARING COVER (R) 6J745601 27.50
90 HANDLE PACKING 6J083201 2.20
91 REAR CAP PACKING 6J746601 4.40
92 REAR CAP 6J746703 22.00
93 REAR CAP SC (A) 6H741702 2.20
94 HANDLE 6J749001 145.20
95 WORM SHAFT GEAR (B) 6J926901 18.70
96 REAR CAP SC (B) 6J553602 2.20
200 HANDLE KNOB SP/W 6H744801 1.10
201 HANDLE KNOB W 6B411703 1.10
202 HANDLE KNOB BALL BEARING 6G469007 15.40
203 HANDLE KNOB 6J574001 36.30
204 HANDLE KNOB SC 6B679308 2.20
205 HANDLE KNOB CAP 6J574203 6.60
300 REAR CAP SC・W 6G913304 1.10
