[DAIWA] Genuine Spare Parts for 15 SALTIGA 15HL-SJ Product code: 00607265 **Back-order (Shipping in 3-4 weeks after receiving order)

[DAIWA] Genuine Spare Parts for 15 SALTIGA 15HL-SJ Product code: 00607265 **Back-order (Shipping in 3-4 weeks after receiving order)

Our Selling Price: US$0.77 - US$143.99 [Regular Price: US$1.10 - US$205.70]

Prices vary according to options.

View availability
Part Number:
Quantity:
Return & Exchange Policy
Contact Us

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship this item after you order unless we have in stock at the time of your order.

- We don't accept order cancellations, changes, or refunds after an order unless the products you ordered are not available because SHIMANO/DAIWA Japan doesn't accept our cancellations.



*Please make sure to read about the conditions before you order.

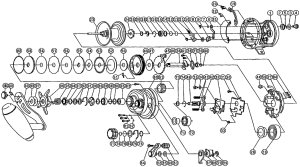

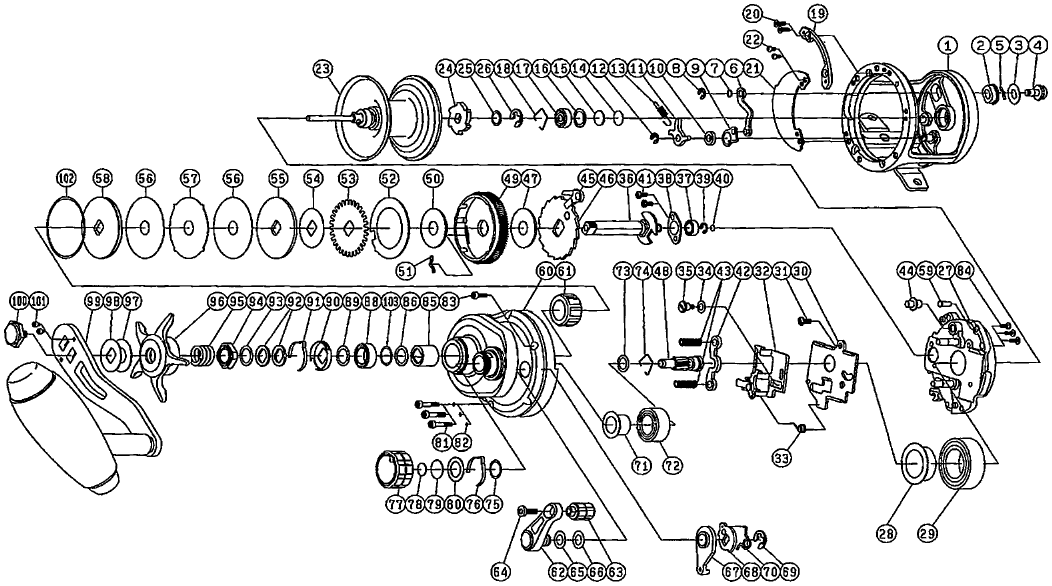

　Reel Part's Schematic Diagram



No. Part Name Part Code Price (USD)
1 FRAME 6E714601 140.80
2 SPOOL LOCK PLATE COLLAR 6E689201 2.20
3 SPOOL LOCK PLATE WASHER 6E709401 2.20
4 SPOOL LOCK LEVER 6E702401 18.70
5 SPOOL LOCK LEVER LEAF SP 6E656502 2.20
6 LOCK LEVER PLATE (A) 6E712201 6.60
7 LOCK LEVER PLATE W 63731602 1.10
8 LOCK LEVER PLATE RETAINER 63201402 2.20
9 LOCK LEVER PLATE (B) 6E712301 2.20
10 LOCK PLATE COLLAR 6E703001 2.20
11 LOCK LEVER PLATE 6E689901 3.30
12 LOCK PLATE RETAINER 63201402 2.20
13 LOCK PLATE SP 6E703101 2.20
14 RS BEARING W (A) 63757406 1.10
15 RS BEARING W (B) 6E710501 1.10
16 RS BEARING W (C) 6E703301 1.10
17 RS BALL BEARING 6G427701 15.40
18 RS BEARING RING 6E709501 2.20
19 GUARD PLATE 6E699102 12.10
20 GUARD PLATE SC 6E709601 2.20
21 LS COVER PLATE 6E699202 22.00
22 LS COVER PLATE SC 6E709701 2.20
23 SPOOL 6Z022521 94.60
24 LOCK PLATE RATCHET 6E699801 4.40
25 LOCKING PLATE RATCHET W 6E710601 1.10
26 LOCKING PLATE RATCHET RETAINER 63207601 2.20
27 SET PLATE 6E701801 18.70
28 SET PLATE BEARING COLLAR 6E700701 3.30
29 SET PLATE BALL BEARING 6G156803 15.40
30 BEARING HOLD PLATE 6E701901 2.20
31 BEARING HOLD PLATE SC 63508912 2.20
32 SLIDE PLATE 6E712401 15.40
33 SLIDE PLATE SP 6E714201 2.20
34 SLIDE PLATE SC・W 6E709801 1.10
35 SLIDE PLATE SC 6E706801 6.60
36 GEAR SHAFT 6E723402 55.00
37 GEAR SHAFT BALL BEARING 6G538007 15.40
38 GEAR SHAFT PLATE *Not available 6E700601 3.30
39 GEAR SHAFT BEARING RETAINER 63208002 2.20
40 GEAR SHAFT W 6E709901 1.10
41 GEAR SHAFT PLATE SC 6E705001 2.20
42 CLUTCH PLATE *Not available 6E701101 8.80
43 CLUTCH PLATE SP 6E708501 2.20
44 STOPPER PIN 6E704301 3.30
45 STOPPER 6E710001 8.80
46 RATCHET 6E708202 9.90
47 DRIVE GEAR W *Not available 6E714701 2.20
48 PINION + DRIVE GEAR SET 6Z022293 115.50
49 PINION + DRIVE GEAR SET 6Z022293 115.50
50 DRAG W (A) 6E708901 2.20
51 DRIVE CLICK GEAR LEAF SP 6E710701 2.20
52 DRIVE CLICK GEAR PLATE 6E710801 6.60
53 DRIVE CLICK GEAR 6E710901 2.20
54 DRIVE CLICK GEAR W 6E711001 2.20
55 DRAG DISK W (A) 6E704901 7.70
56 DRAG W (B) 6E630402 2.20
57 DRAG GRIP W 6E701401 4.40
58 DRAG DISC W (B) 6G604301 3.30
59 SET PLATE PIN 6E706501 3.30
60 LS PLATE 6E702304 163.90
61 ONE-WAY CLUTCH 6E633301 11.00
62 CLUTCH LEVER (A) 6E712901 36.30
63 CLUTCH LEVER (B) 6E708001 22.00
64 CLUTCH LEVER (B) SC 6E706001 2.20
65 CLUTCH LEVER W (A) 6E706901 1.10
66 CLUTCH LEVER W (B) 6E711101 1.10
67 CLUTCH CAM PLATE 6E713401 2.20
68 CLUTCH CAM 6E713201 8.80
69 CLUTCH CAM RETAINER 63207601 2.20
70 CLUTCH CAM SP 6E713301 2.20
71 PINION BALL BEARING COLLAR 6E700301 3.30
72 PINION BALL BEARING *Cannot be ordered 6J184402 45.10
73 PINION BALL BEARING W 6E700401 1.10
74 PINION BEARING RING 6E711201 2.20
75 MECHANICAL BRAKE O-RING 6E711301 1.10
76 MECHANICAL BRAKE LEAF SP 6E711401 2.20
77 MECHANICAL BRAKE KNOB 6E707701 46.20
78 MECHANICAL BRAKE W(A) 6B175503 1.10
79 MECHANICAL BRAKE W (B) 6E711501 1.10
80 MECHANICAL BRAKE W (C) 6E715001 1.10
81 LS PLATE SC (A) 6E705301 2.20
82 LS PLATE SC (A) O-RING 6E711601 1.10
83 LS PLATE SC (B) 6E706701 2.20
84 SET PLATE SC (A) *Discontinued 6E705002 2.20
85 CLUTCH RING 6E610701 18.70
86 HANDLE BEARING W (A) 6E709101 1.10
88 HANDLE BALL BEARING 6G523403 15.40
89 HANDLE BEARING W (C) 6E709103 1.10
90 DRAG HOLDER 6E709201 3.30
91 DRAG HOLDER LEAF SP 6E715601 2.20
92 DRAG SP・W 6E721001 2.20
93 STAR DRAG W 6G694201 2.20
94 DRAG NUT 6E721502 8.80
95 DRAG NUT SP 6E711701 2.20
96 STAR DRAG 6E721101 46.20
97 HANDLE W (A) 6E715101 1.10
98 HANDLE W (B) 6E711901 7.70
99 HANDLE W (A) 6E723001 205.70
100 HANDLE SC 6E676702 15.40
101 HANDLE LOCK SC 6E711801 2.20
102 DRAG DISK W (B) O-RING 6E725701 4.40
103 GEAR SHAFT O-RING 6E729601 2.20
200 HANDLE KNOB W 63753005 1.10
201 HANDLE KNOB (A)/NIGIRI 6E722801 84.70
202 HANDLE KNOB BALL BEARING 6G466205 15.40
203 HANDLE KNOB SHAFT 6E722501 24.20
204 HANDLE KNOB (A) O-RING 6E723301 2.20
205 HANDLE KNOB SC 6E454003 2.20
206 HANDLE KNOB (B) / SIDE CAP 6E722601 24.20
207 HANDLE KNOB (B) O-RING 6E722901 2.20
210 SCREWDRIVER / HANDLE KNOB SIDE CAP 6F800902 4.40
300 SPOOL BALL BEARING (CRBB) 6F812105 15.40
301 SPOOL PIN 6E703601 2.20
400 SCREWDRIVER (HANDLE KNOB CAP YAW) 6F800902 4.40
