[DAIWA] Genuine Spare Parts for 15 MILLIONAIRE BASARA 100SH Product code: 00621008 **Back-order (Shipping in 3-4 weeks after receiving order)

[DAIWA] Genuine Spare Parts for 15 MILLIONAIRE BASARA 100SH Product code: 00621008 **Back-order (Shipping in 3-4 weeks after receiving order)

Our Selling Price: US$0.77 - US$97.79 [Regular Price: US$1.10 - US$139.70]

Prices vary according to options.

View availability
Part Number:
Quantity:
Return & Exchange Policy
Contact Us

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.

- We don't accept order cancellations, changes, or refunds after an order unless the products you ordered are not available because SHIMANO/DAIWA Japan doesn't accept our cancellations.



*Please make sure to read about the conditions before you order.

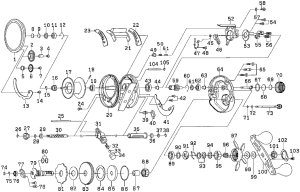

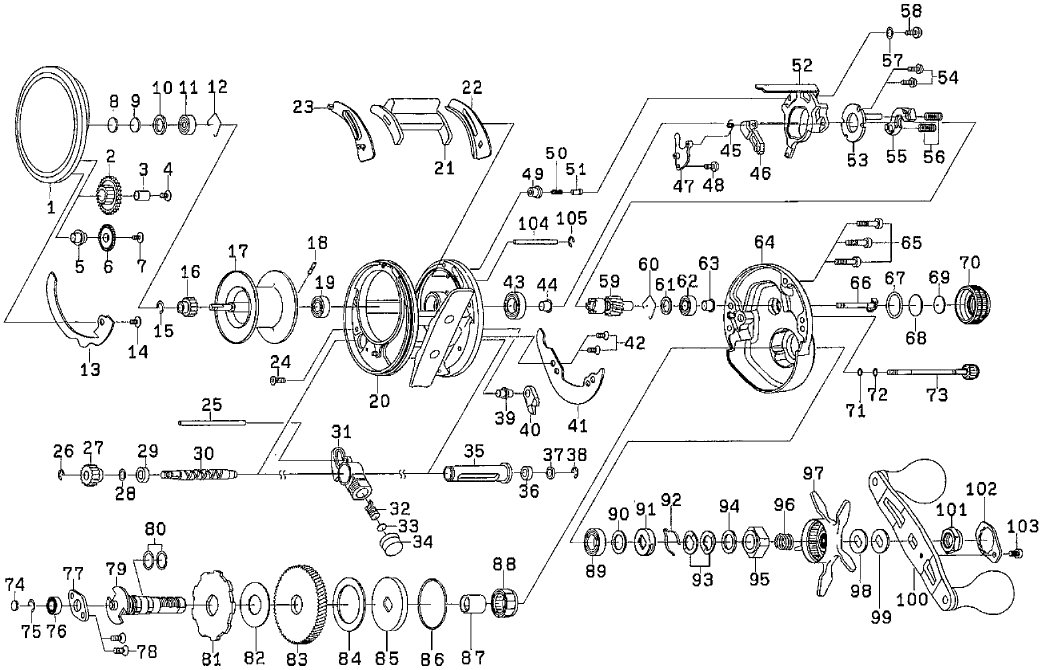

　Reel Part's Schematic Diagram



No. Part Name Part Code Price (USD)
1 LS PLATE 6J230603 91.30
2 LS PLATE GEAR (A) 6H472001 4.40
3 LS PLATE GEAR (A) COLLAR 6H471901 2.20
4 LS PLATE GEAR (A) SC 6H472203 2.20
5 LS PLATE GEAR (B) COLLAR 6H470001 2.20
6 LS PLATE GEAR (B) 6H472101 4.40
7 LS PLATE GEAR (B) SC 6H472204 2.20
8 LS BEARING W (A) 63757404 1.10
9 LS BEARING W (B) 63757411 1.10
10 LS BEARING W (C) 6G185101 1.10
11 LS BALL BEARING 6G511506 15.40
12 LS BEARING RING 6F032201 2.20
13 LS COVER PLATE 6J284502 3.30
14 LS COVER PLATE SC 6H666001 2.20
15 SPOOL GEAR RETAINER 6B339801 2.20
16 SPOOL GEAR 6H229401 2.20
17 SPOOL (15-19) 6Z024096 84.70
18 SPOOL PIN 6H358801 2.20
19 SPOOL BALL BEARING 6G498511 15.40
20 FRAME *Not available 6J219408 114.40
21 CLUTCH LEVER 6J219801 6.60
22 CLUTCH LEVER PLATE (R) 6J195001 2.20
23 CLUTCH LEVER PLATE (L) 6J195101 2.20
24 LEVEL WINDING POST SC 6H294101 2.20
25 LEVEL WINDING POST 6J220601 3.30
26 WORM SHAFT RETAINER 6B339801 2.20
27 WORM SHAFT GEAR 6H470301 4.40
28 WORM SHAFT GEAR W 6B411705 1.10
29 WORM SHAFT COLLAR 6H850402 2.20
30 WORM SHAFT 6J220101 11.00
31 LEVEL WINDING 6J195501 30.80
32 POLE 61214212 3.30
33 POLE W 63731303 1.10
34 POLE HOLDER NUT 63424803 3.30
35 WORM SHIELD 6J219901 4.40
36 WORM SHAFT COLLAR 6H850402 2.20
37 WORM SHAFT W 6B411703 1.10
38 WORM SHAFT RETAINER 63205901 2.20
39 STOPPER PIN 6J196101 3.30
40 STOPPER PIN 6H270401 8.80
41 RS COVER PLATE 6J195416 8.80
42 COVER PLATE SC 6H455407 2.20
43 CLUTCH BALL BEARING 6G431008 15.40
44 CLUTCH BEARING COLLAR 6M518401 7.70
45 KICK LEVER SP 6H450001 2.20
46 KICK LEVER 6H450101 9.90
47 KICK LEVER PLATE 6H912301 2.20
48 KICK LEVER PLATE SC 6H294101 2.20
49 CLUTCH CAM PLATE PIN SP COLLAR 6H910601 2.20
50 CLUTCH CAM PLATE PIN SP 6H928801 2.20
51 CLUTCH CAM PLATE PIN 6J055201 2.20
52 CLUTCH CAM 6J219602 6.60
53 CLUTCH CAM PLATE 6H659101 3.30
54 CLUTCH CAM PLATE SC (A) 6B032904 2.20
55 CLUTCH PLATE 6H929001 3.30
56 CLUTCH SP 6J055301 2.20
57 CLUTCH CAM PLATE SC・W 6H159201 1.10
58 CLUTCH CAM PLATE SC (B) 63522501 2.20
59 PINION + DRIVE GEAR SET 6Z024095 70.40
60 PINION RING 6H160801 2.20
61 PINION BEARING W 6J073501 1.10
62 PINION BALL BEARING *Cannot be ordered 6J019303 45.10
63 PINION BEARING COLLAR *Cannot be ordered 6J724501 7.70
64 RS PLATE *Not available 6J185108 93.50
65 RS PLATE SC (A) 6G945811 2.20
66 PINION SHAFT 6J198801 3.30
67 PINION SHAFT O-RING 6B055201 1.10
68 MECHANICAL BRAKE W (A) 6H161001 1.10
69 MECHANICAL BRAKE W (B) 6B175503 1.10
70 MECHANICAL BRAKE KNOB 6J194602 12.10
71 RS PLATE SC (B) O-RING 6B853101 1.10
72 RS PLATE SC (B) W 6G281401 1.10
73 RS PLATE SC (B) 6J219301 4.40
74 GEAR SHAFT W 6G099801 1.10
75 GEAR SHAFT BEARING RETINER 63208002 2.20
76 GEAR SHAFT BALL BEARING 6G538007 15.40
77 GEAR SHAFT PLATE 6H928901 3.30
78 GEAR SHAFT PLATE SC 6E134503 2.20
79 GEAR SHAFT O-RING 6J278301 18.70
80 GEAR SHAFT O-RING 6F657801 1.10
81 RATCHET 6H451902 4.40
82 DRIVE GEAR W 6J085101 1.10
83 PINION + DRIVE GEAR SET 6Z024095 70.40
84 DRAG W 6H452602 6.60
85 DRIVE COLLAR 6J278701 17.60
86 DRIVE GEAR O-RING 6H452801 1.10
87 CLUTCH RING 6G926101 14.30
88 ONE-WAY CLUTCH 6F552703 24.20
89 HANDLE BALL BEARING 6G523403 15.40
90 HANDLE BEARING W 63737813 1.10
91 DRAG HOLDER 6E709201 3.30
92 DRAG LEAF SP 6E715601 2.20
93 DRAG SP-W 61508901 2.20
94 STA-DRAG W 6H929501 2.20
95 STAR DRAG NUT 6J102303 15.40
96 STA-DRAG SPRING 6J011901 2.20
97 STA-DRAG 6J102210 24.20
98 HANDLE W (A) 6J102801 1.10
99 HANDLE W (B) 6J101301 3.30
100 HANDLE W (A) 6J688501 139.70
101 HANDLE NUT 6J090305 6.60
102 HANDLE LOCK PLATE 6H283610 6.60
103 HANDLE LOCK PLATE SC 6H257001 2.20
104 OSCILLATING POST 6J354001 3.30
105 OSCILLATING POST RETAINER 6J354201 2.20
106 FITTING PAD 6H091801 6.60
200 HANDLE KNOB W 63753005 1.10
201 HANDLE KNOB 6H088711 33.00
202 HANDLE KNOB COLLAR 6F648301 4.40
203 HANDLE KNOB SC 6B679308 2.20
204 HANDLE KNOB CAP 6H089030 18.70
205 HANDLE KNOB CAP O-RING 6H100001 1.10
