[SHIMANO] Genuine Spare Parts for 25 SURF LEADER SD35 Standard Specification Product Code: 048301 **Back-order (Shipping in 3-4 weeks after receiving order)

[SHIMANO] Genuine Spare Parts for 25 SURF LEADER SD35 Standard Specification Product Code: 048301 **Back-order (Shipping in 3-4 weeks after receiving order)

Our Selling Price: US$0.77 - US$61.60 [Regular Price: US$1.10 - US$88.00]

Prices vary according to options.

View availability
Part Number:
Quantity:
Return & Exchange Policy
Contact Us

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.

- We don't accept order cancellations, changes, or refunds after an order unless the products you ordered are not available because SHIMANO/DAIWA Japan doesn't accept our cancellations.



*Please make sure to read about the conditions before you order.

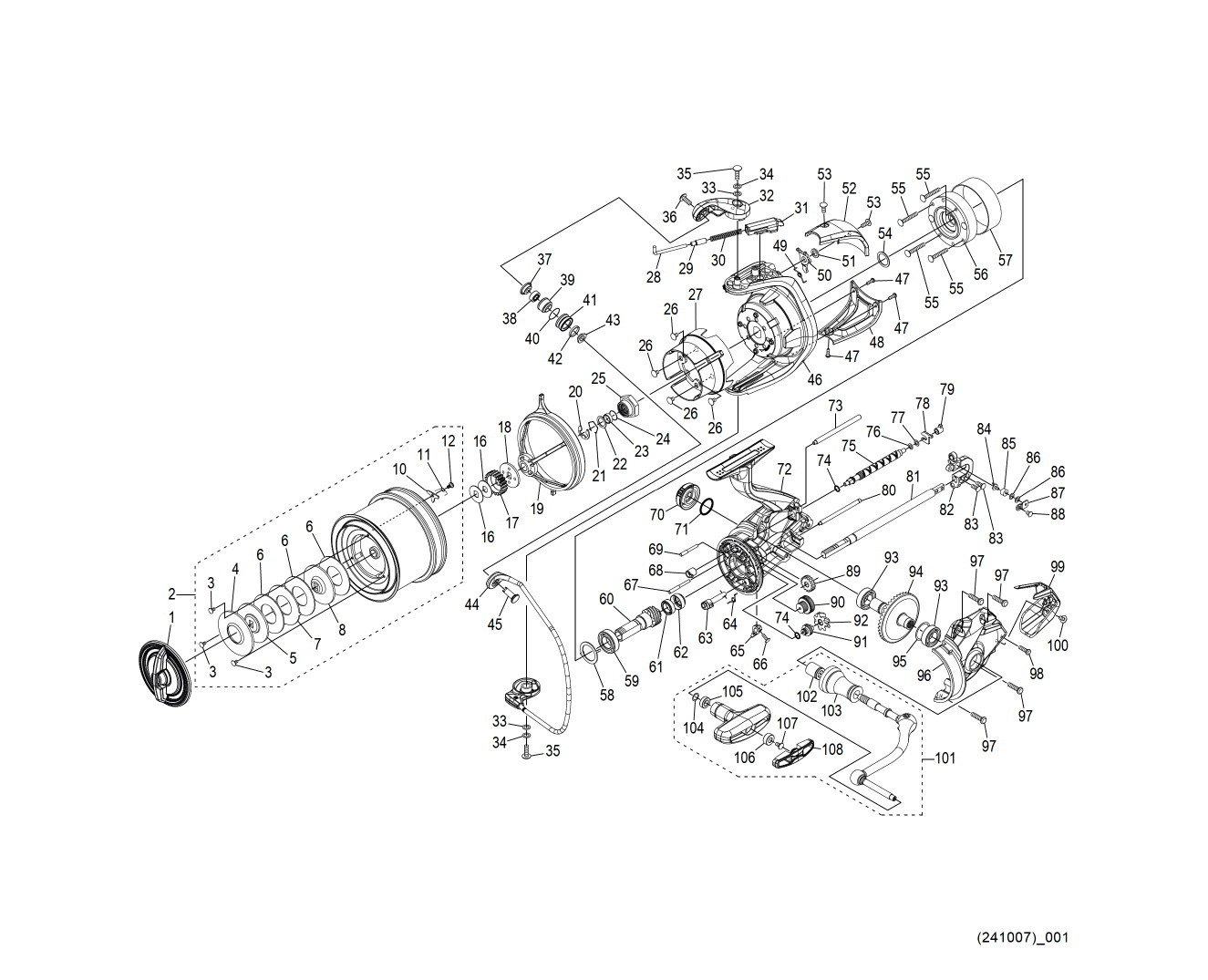

　Reel Part's Schematic Diagram


* Circled figures indicate bearings.
* Please note disassembly is at your own risk.

No. S Part No. Description Price (USD)
1 148ND DRAG KNOB ASSEMBLY 12.10
2 148PD SPOOL ASSEMBLY 88.00
3 10MPR BODY A SHEET B FIXING BOLT 1.10
4 10LR0 WATERPROOF SEAL 6.05
5 10PLQ OVAL WASHER 2.75
6 1459T DRAG WASHER 8.25
7 10N55 EAR WASHERS 2.75
8 10BCF OVAL WASHER 3.85
10 10DNM SPOOL PINS 1.10
11 100QY OTOIDE SHIBANE 1.10
12 10A6G FIXING BOLT 1.65
16 106VN SPOOL WASHER SET 1.10
17 101Y5 SPOOL HOLDER (A) 1.65
18 10GH5 SPOOL HOLDER (B) 1.65
19 10STY THREAD FALL PREVENTION COLLAR SET 9.35
20 105RZ E-TYPE RETAINING RING 6 1.10
21 1054D BEARING RETAINING CLIP 1.10
22 10GR8 WASHER 1.10
23 10RQW SPACER 1.10
24 1009E O-RING 1.65
25 145A2 ROTOR NUT 5.50
26 103L7 FIXING BOLT 1.10
27 10SHM ROTOR FLANGE 9.90
28 105YW ARM SPRING GUIDE (A) 1.65
29 10HDL SPRING GUIDE (A) COLLAR 1.65
30 105LK ARM CAM SPRING 1.65
31 107A8 ARM SPRING GUIDE (B) 1.65
32 148NY ARM CAM 7.15
33 10K96 WASHER 1.65
34 10KFA ADJUSTMENT WASHER 1.10
35 10LLK FIXING BOLT 1.65
36 10K92 FIXING BOLT 1.10
37 145AT BEARING COLLAR 2.75
38 104VQ BALL BEARING (4 X 8 X 3) 13.75
39 10RAQ BUSH 6.05
40 1015S O-RING 1.65
41 145D4 LINE ROLLER 4.95
42 10RAS SPACER 2.20
43 10QUP LINE ROLLER COLLAR 3.85
44 149QQ BAIL ASSEMBLY 55.00
45 13KLJ ARM FIXING SHAFT 3.85
46 149QR ROTOR ASSEMBLY 33.00
47 10L1T FIXING BOLT 1.10
48 10QVG MOUNTING CAM COVER 6.05
49 106PM INTERNAL GERI LEVER SPRING 1.10
50 1085E INTERNAL GERI LEVER 2.75
51 10764 INTERNAL GERI LEVER WASHER 1.10
52 10QV4 ARM CAM SPRING COVER 6.05
53 10LFF FIXING BOLT 1.10
54 10G4M WASHER 1.10
55 10LJ3 FIXING BOLT 1.10
56 10QL4 ROLLER CLUTCH ASSEMBLY 17.05
57 106HS ROLLER CLUTCH RING 2.75
58 106MU FRONT FLANGE BEARING WASHER 1.65
59 104PW BALL BEARING (10 X 19 X 5) 13.75
60 148N4 PINION GEAR 23.10
61 10EX6 BALL BEARING (8 X 12 X 3.5) 7.15
62 10RQX BUSH 1.10
63 1053M STOPPER CAM 1.65
64 10DCS CLICK SPRING 1.10
65 10G2T STOPPER LEVER 2.75
66 10LCY FIXING BOLT 1.10
67 10SHU INTERMEDIATE GEAR SHAFT (B) 2.75
68 106M2 WORM SHAFT BUSH (FRONT) 1.65
69 10SUG INTERMEDIATE GEAR SHAFT (C) 2.20
70 10SUA HANDLE SCREW CAP 3.30
71 10R22 O-RING 1.65
72 149QS BODY ASSEMBLY 49.50
73 10SHK SLIDER GUIDE (B) 2.20
74 10TM7 O-RING 1.65
75 10SHJ WORM SHAFT 8.80
76 10ECK WASHER 1.10
77 10K9C WASHER 1.10
78 10SU8 WORM SHAFT COVER 1.10
79 10SHS BUSH 1.65
80 10SUC SLIDER GUIDE (A) 2.20
81 10SU9 MAIN SHAFT 13.75
82 10SHP SLIDER 3.30
83 10ML9 FIXING BOLT 1.10
84 106V1 CROSS GEAR PIN 2.75
85 10JUY CROSS GEAR PIN COLLAR 1.65
86 10K98 WASHER 1.10
87 10HAD WORM SHAFT PIN PUSH PLATE 1.10
88 103LG FIXING BOLT 1.10
89 10HBG WORM SHAFT GEAR 6.05
90 148N2 INTERMEDIATE GEAR (C) 1.65
91 10SU1 INTERMEDIATE GEAR (SMALL) 1.65
92 148N1 INTERMEDIATE GEAR (B) 5.50
93 10BGD BALL BEARING (9X17X5) 13.75
94 13LD6 DRIVE GEAR 17.05
95 10DHR WASHER 2.75
96 148N7 LID 27.50
97 10SJ4 FIXING BOLT 1.65
98 10L26 FIXING BOLT 1.10
99 10SHT BODY GUARD 6.60
100 10PMK FIXING BOLT 1.10
101 148MZ HANDLE ASSEMBLY 66.00
102 13MGW HANDLE SHAFT FLANGE (B) 3.85
103 149QT HANDLE SHAFT FLANGE 12.65
104 104FH WASHER 2.20
105 104UJ HANDLE GRIPPED BUSH (B) 1.65
106 10EU0 HANDLE GRIPPED BUSH (A) 1.65
107 10LFA FIXING BOLT 1.10
108 10SHY HANDLE CAP 3.30
MH01 148NG NAMEPLATE ON BACK OF LEG 1.65
