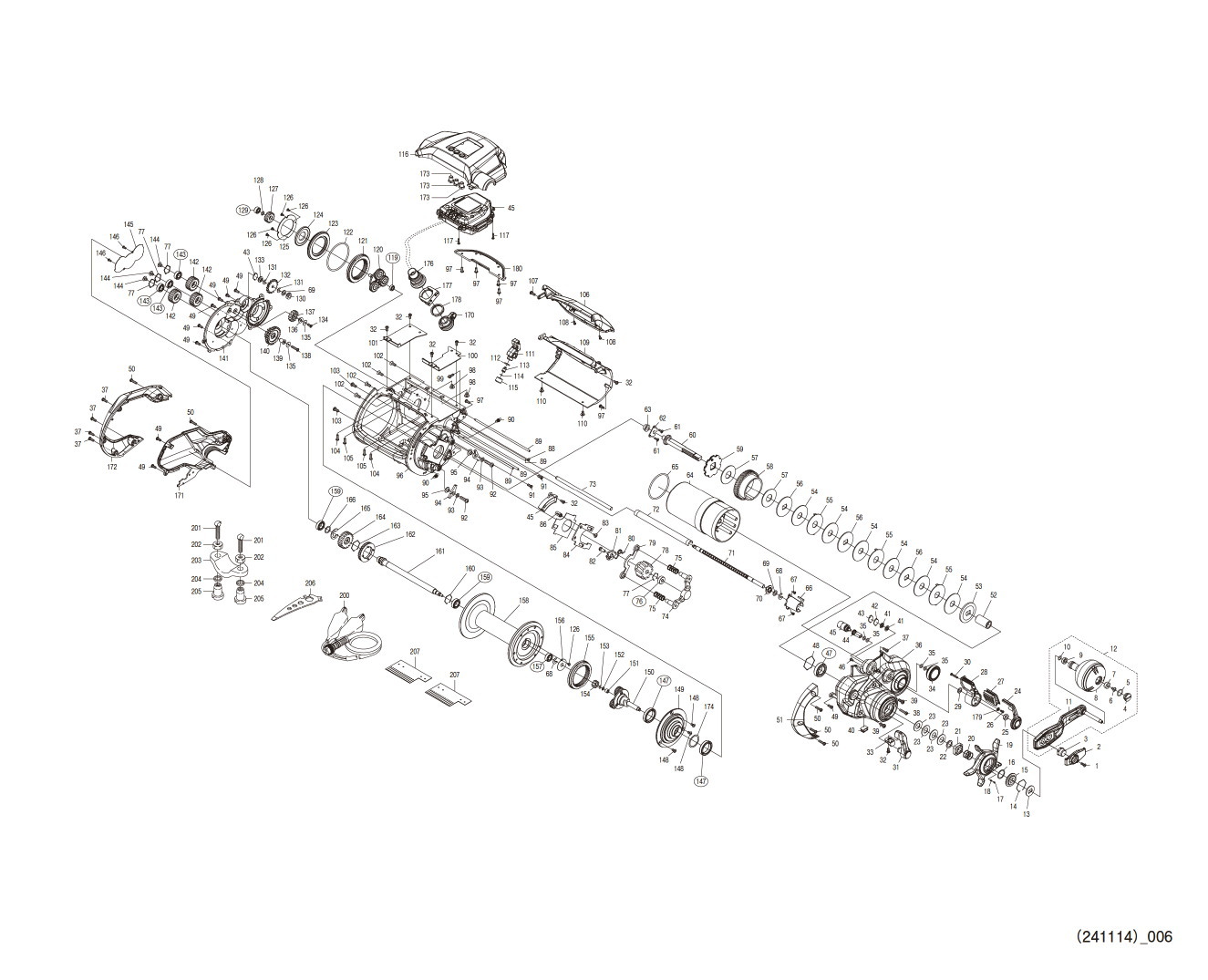

　Reel Part's Schematic Diagram


* Circled figures indicate bearings.
* Please note disassembly is at your own risk.

No S Part No. Description Price (USD)
1 101AA FIXING BOLT 1.65
2 13VAF RETAINER 9.35
3 101AS HANDLE FIXING NUT 6.05
4 10B2B HANDLE CAP 6.05
5 10LAB O-RING 1.10
6 103E9 FIXING BOLT 1.10
7 10EU0 HANDLE GRIPPED BUSH (A) 1.65
8 13E8W HANDLE KNOB ASSEMBLY 67.65
9 104UJ HANDLE GRIPPED BUSH (B) 1.65
10 104FH WASHER 2.20
11 13HW9 HANDLE SHAFT ASSEMBLY 56.10
12 13J85 HANDLE ASSEMBLY 112.20
13 107QM HANDLE HOLDER WASHER 1.10
14 10KXX STAR DRAG CLICK PLATE RETAINER 1.65
15 10J27 STAR DRAG CLICK PLATE 1.65
16 10G6M WASHER 1.10
17 10B27 CLICK PIN 1.65
18 10988 CLICK SPRING 1.65
19 13V4F STAR DRAG 45.10
20 10HZ2 STAR DRAG SPRING 1.65
21 10QY2 STAR DRAG FIXING NUT 4.95
22 10BR2 BEARING PUSH FLY 1.65
23 1052E SALA SPRING (DB8H) 1.65
24 13VN1 LEVER SWITCH NAMEPLATE 3.85
25 10NAS FIXING NUT 2.75
26 103N4 FIXING BOLT 1.10
27 13VMZ LEVER SWITCH (B) 1.65
28 13VN0 LEVER SWITCH 8.80
29 10NAQ OVAL WASHER 1.65
30 13JPC FIXING BOLT 1.65
31 10T78 CLUTCH LEVER ASSEMBLY 17.05
32 10LSQ FIXING BOLT 1.10
33 101AQ CLUTCH LEVER PROTECTOR 1.65
34 13U35 MECHANICAL BRAKE KNOB 10.45
35 10TNF O-RING 1.65
36 13XZR BODY A ASSEMBLY 132.00
37 10A6Q FIXING BOLT 1.65
38 13MBU FIXING BOLT 1.10
39 13JXJ FIXING BOLT 1.10
40 106NV THREAD CLAMP 2.75
41 105SC CS TYPE RETAINING RING 3 1.10
42 1085L SPOOLED LUG WASHER (A) 1.10
43 13UEX MECHANICAL BRAKE WASHER (B) 3.30
44 13VN2 LEVER INSERT SHAFT 5.50
45 13XZZ COUNTER UNIT ASSEMBLY 440.00
46 10MT3 FIXING BOLT 1.10
47 10KXA BALL BEARING (12 X 21 X 5) 17.05
48 13RH1 BEARING EXTRACTION STOPPER 1.65
49 10LZB FIXING BOLT 1.10
50 13MBV FIXING BOLT 1.10
51 13UEK BODY A2 15.40
52 13XFW DRIVE GEAR SHAFT SLEEVE 4.95
53 10D4H STAR DRAG PLATE 1.65
54 10L86 STAR DRAG WASHER 9.35
55 10LBB STAR DRAG WASHER 1.65
56 10KZW STAR DRAG WASHER 1.65
57 10CKR STAR DRAG WASHER 9.35
58 13UST DRIVE GEAR 34.10
59 13HWA STOPPER GEAR ASSEMBLY 37.95
60 13ULY DRIVE GEAR SHAFT 35.75
61 10MPU FIXING BOLT 1.10
62 109VJ DRIVE GEAR SHAFT FIXING PLATE 1.65
63 10BQ3 MAIN GEAR SHAFT BUSHING 1.65
64 13XFS MOTOR ASSEMBLY 330.00
65 13K3J O-RING 4.40
66 13SJ6 WORM SHAFT RETAINER 1.65
67 100BD FIXING BOLT 1.65
68 105NJ E TYPE STOP RING 4 1.10
69 109RN CROSS GEAR WASHER (B1) 0.6 1.10
70 104T6 WORM SHAFT RETAINER 1.10
71 13XFX WORM SHAFT 12.65
72 13XFY LEVEL-WIND PIPE 1.65
73 13XFZ LEVEL WINDING ROD (B) 2.75
74 13T7W CLUTCH YOKE PROP 18.15
75 13T21 CLUTCH YOKE SPRING 1.10
76 10KAF BALL BEARING (4X11X4) 13.75
77 13RBQ BEARING STOPPER 1.10
78 13GV4 PINION GEAR ASSEMBLY 11.55
79 13T20 CLUTCH YOKE 3.30
80 10JYX CLUTCH LEVER SPRING 1.65
81 1084C CLUTCH CAM 3.85
82 10F8M CLUTCH SWITCHING LEVER FIXING BOLT 2.75
83 10MT5 FIXING BOLT 1.10
84 13TDP CLUTCH PLATE 2.20
85 13TDQ CLUTCH PLATE WASHER 1.10
86 13JRP MAGNET HOLDER ASSEMBLY 55.00
88 10MP8 FIXING BOLT 1.10
89 13XG0 LEVEL WINDING ROD 2.75
90 10CBS STOPPER CLAW SPRING 1.10
91 103DE FIXING BOLT 1.10
92 10MG8 FIXING BOLT 1.65
93 10GCY WASHER 1.10
94 10PFV STOPPER CLAW 3.85
95 10PKN STOPPER COVER 2.75
96 13XZP FRAME ASSEMBLY 137.50
97 10LST FIXING BOLT 1.10
98 13JXH FIXING BOLT 1.10
99 10LZF FIXING BOLT 1.10
100 13XG1 COUNTER SIDE PLATE (A) 2.20
101 13XG2 COUNTER SIDE PLATE (B) 2.20
102 10MLK FIXING BOLT 1.10
103 13JXM FIXING BOLT 1.10
104 101GQ FIXING BOLT 1.65
105 103KP FIXING BOLT 1.10
106 13XG3 LEVEL WIND GUARD 19.80
107 1080B FIXING BOLT 1.10
108 103N9 FIXING BOLT 1.10
109 13XG4 LEVEL WIND GUARD NAMEPLATE 20.35
110 103EB FIXING BOLT 1.65
111 13GH9 LEVEL WIND GUARD ASSEMBLY 55.00
112 10LAA O-RING 1.10
113 10FFX CROSS GEAR PIN 2.75
114 10RR9 WASHER 2.75
115 10FJW LEVEL WINDING RECEIVER 1.65
116 13XFT COUNTER COVER ASSEMBLY 88.55
117 10LPQ FIXING BOLT 1.10
119 104VQ BALL BEARING (4X8X3) 13.75
120 13H0V REDUCTION GEAR PLATE (A) ASSEMBLY 40.15
121 13SW0 INNER GEAR 17.60
122 13K3K O-RING 4.40
123 13T1V MOTOR SEAL HOLDER 19.25
124 10MDF ROLLER CLUTCH SEAL 2.75
125 13T1W MOTOR SEAL PUSH PLATE 1.10
126 1055G FIXING BOLT 1.65
127 13RNW TRANSMISSION GEAR 9.35
128 10G6B WASHER 1.10
129 10KX2 BALL BEARING (4 X 9 X 4) 13.75
130 104SX CROSS GEAR UKE B 1.10
131 105NE E TYPE STOP RING 3 1.10
132 13S6K WORM SHAFT GEAR 1.65
133 13U7Y MECHANICAL BRAKE KNOB INTERSEAT 3.85
134 103GP FIXING BOLT 1.10
135 105EN CROSS GEAR TRANSMISSION GEAR A MOUNTING BRACKET 1.65
136 10PYU WORM SHAFT TRANSMISSION GEAR COLLAR A 1.65
137 13T1Y WORM SHAFT GEAR TRANSMISSION GEAR (C) 1.10
138 103LZ FIXING BOLT 1.65
139 10PYX WORM SHAFT TRANSMISSION GEAR COLLAR B 2.75
140 13T1X WORM SHAFT GEAR TRANSMISSION GEAR (B) 1.65
141 13RNX TRANSMISSION GEAR FIXING PLATE 62.70
142 13RNZ TRANSMISSION GEAR 11.00
143 108PE BALL BEARING (6 X 12 X 4) 13.75
144 103H4 FIXING BOLT 1.10
145 13RNY TRANSMISSION GEAR FIXING PLATE COVER 2.20
146 10LVA FIXING BOLT 1.10
147 14821 BALL BEARING (16X22X4) 22.55
148 10ML5 FIXING BOLT 1.10
149 13SW4 SPOOL SIDE PLATE 30.80
150 13H6S PLATE FOR REDUCTION GEAR (B) ASSEMBLY 20.90
151 13SW3 PLATE FOR REDUCTION GEAR (B) SHAFT BUSH 2.20
152 10GFJ WASHER 1.10
153 105NC E TYPE STOP RING 2 1.10
154 13T1Z SUN GEAR 7.70
155 13SW1 SPOOL INSERT 18.15
156 13SVG SPOOL BULKHEAD 1.65
157 108PD BALL BEARING (6 X 12 X 4) 13.75
158 13XFU SPOOL ASSEMBLY 165.00
159 104PS BALL BEARING (8X14X4) 13.75
160 10GGN EXTRACTION STOPPER 1.10
161 13XG5 SPOOL SHAFT 13.75
162 13SW2 WORM SHAFT GEAR TRANSMISSION GEAR (A) 1.65
163 13RBP BEARING RETAINING CLIP 1.65
164 13RP0 TRANSMISSION GEAR 12.65
165 13K3L E-SHAPED RETAINING RING 7 1.10
166 13LNG SOCKET CAP 1.10
170 10T2G SOCKET CAP 3.85
171 13RGW BODY B 26.95
172 13RNP BODY B2 25.85
173 13X9F SWITCH BUTTON 1.10
174 13PLD WASHER 1.10
176 100XP CONNECTOR 22.55
177 13S01 SOCKET BRACKET 2.75
178 10BGS SOCKET NUT SET 6.05
179 145VL WASHER 1.10
180 140LU COUNTER CASE SIDE COVER 15.40
200 10004 CABLE 45.10
201 10A79 LEG MOUNTING BOLTS 2.75
202 105N9 LEG MOUNTING HEX NUTS 1.65
203 10AR5 LEG MOUNTING BASE 4.95
204 10GA8 LEG MOUNTING NUT WASHERS 1.65
205 1046P LEG MOUNTING NUTS 2.75
206 10MJ6 REEL WRENCH 3.85
207 13XG6 THERMAL PROTECTION COVER 3.30
LINE 10CW0 LINE THREADING 1.65
