[SHIMANO] Genuine Spare Parts for 25 ACTIVE CAST SD1080 Product Code: 048271 **Back-order (Shipping in 3-4 weeks after receiving order)

[SHIMANO] Genuine Spare Parts for 25 ACTIVE CAST SD1080 Product Code: 048271 **Back-order (Shipping in 3-4 weeks after receiving order)

Our Selling Price: US$0.77 - US$34.65 [Regular Price: US$1.10 - US$49.50]

Prices vary according to options.

View availability
Part Number:
Quantity:
Return & Exchange Policy
Contact Us

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.

- We don't accept order cancellations, changes, or refunds after an order unless the products you ordered are not available because SHIMANO/DAIWA Japan doesn't accept our cancellations.



*Please make sure to read about the conditions before you order.

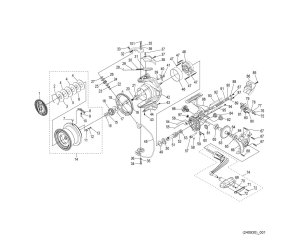

　Reel Part's Schematic Diagram


* Circled figures indicate bearings.
* Please note disassembly is at your own risk.

No. S Part No. Description Price (USD)
1 148S3 DRAG KNOB ASSEMBLY 21.45
2 10MZP RETAINERS 1.65
3 10PLN OVAL WASHER 2.75
4 1031E DRAG WASHER 1.65
5 10N2H EAR WASHER 3.85
6 10BCF OVAL WASHER 3.85
7 10ATX LINE CLIP 2.20
8 10JQU LINE CLIP HOLDER 1.65
9 10B03 THREAD CLAMP SPRING 1.10
10 105NC E TYPE RETAINING RING 2 1.10
11 1038F SPOOL PIN 1.10
12 102A2 SPOOL PIN SPRING 1.10
13 10A6G FIXING BOLT 1.65
14 1489K SPOOL ASSEMBLY 49.50
15 106VN SPOOL WASHER SET 1.10
16 101Y5 SPOOL HOLDER (A) 1.65
17 10J00 SPOOL HOLDER (B) 1.65
18 149XK THREAD FALL PREVENTION COLLAR SET 8.25
19 105RZ E-TYPE RETAINING RING 6 1.10
20 103MD MAIN SHAFT 11.55
21 107VW ROTATING FRAME NUT 1.65
22 10KF7 WASHER 1.65
23 10HAR ARM ROLLER COLLAR 1.10
24 10PFK ARM ROLLER BUSHING 1.10
25 10JLZ LINE ROLLER 3.30
26 10KFF ARM ROLLER SPACER 1.65
27 107WS ARM ROLLER WASHER 1.10
28 105YW ARM SPRING GUIDE (A) 1.65
29 10HDL SPRING GUIDE (A) COLLAR 1.65
30 105LK ARM CAM SPRING 1.65
31 107A8 ARM SPRING GUIDE (B) 1.65
32 10QV9 ARM CAM 4.95
33 10K92 FIXING BOLT 1.10
34 103J1 FIXING BOLT 1.10
35 10K96 ADJUSTMENT WASHER 1.65
36 10KFA ADJUSTMENT WASHER 1.10
37 10LFF FIXING BOLT 1.10
38 1087Q ARM CAM SPRING COVER 6.05
39 106PM INTERNAL GERI LEVER SPRING 1.10
40 1085E INTERNAL GERI LEVER 2.75
41 10764 INTERNAL GERI LEVER WASHER 1.10
42 149E7 ROTOR ASSEMBLY 31.35
43 10L1T FIXING BOLT 1.10
44 10MK3 MOUNTING CAM COVER 6.05
45 149E5 BAIL ASSEMBLY 14.85
46 106HS ROLLER CLUTCH RING 2.75
47 10LJ3 FIXING BOLT 1.10
48 10QL4 ROLLER CLUTCH ASSEMBLY 17.05
49 106MU FRONT FLANGE BEARING WASHER 1.65
50 104PX BALL BEARING (10 X 19 X 5) 8.25
51 13L92 PINION GEAR 11.55
52 10HHX WASHER 1.65
53 142YY BUSH 1.10
54 10H4E INTERMEDIATE GEAR (C) SHAFT 1.65
55 10CKK INTERMEDIATE GEAR (B) SHAFT 1.65
56 106M2 WORM SHAFT BUSH (FRONT) 1.65
57 1053M STOPPER CAM 1.65
58 10DCS CLICK SPRING 1.10
59 10G2T STOPPER LEVER 2.75
60 10LCY FIXING BOLT 1.10
61 10HBG WORM SHAFT GEAR 6.05
63 13LDC DRIVE GEAR 11.55
64 10DHR WASHER 2.75
65 107FL BALL BEARING (9X17X5) 8.25
66 1489F LID 16.50
67 10DN6 FIXING BOLT 1.10
68 10L6Q FIXING BOLT 1.10
69 104FH WASHER (9X17X5) 2.20
70 10LJ7 FIXING BOLT 1.10
71 10HF1 HANDLE KNOB NAMEPLATE 2.75
72 10LS9 FIXING BOLT 1.10
74 148AR HANDLE ASSEMBLY 33.00
75 10S6U FIXING BOLT 1.10
76 10HAD WORM SHAFT PIN PUSH PLATE 1.10
77 10K98 WASHER 1.10
78 10JUY CROSS GEAR PIN COLLAR 1.65
79 10DMP WORM SHAFT PIN 2.75
80 10ML9 FIXING BOLT 1.10
81 10G62 SLIDER 2.75
82 13MMT INTERMEDIATE GEAR (B) 3.85
84 10H4B INTERMEDIATE GEAR (C) 1.65
85 10LHY FIXING BOLT 1.65
86 14445 BODY GUARD 7.70
87 10L22 FIXING BOLT 1.65
88 10AT4 WORM SHAFT COVER 1.65
89 106M3 WORM SHAFT BUSH (REAR) 1.65
90 10ECK WASHER 1.10
91 10K9C WASHER 1.10
92 10STT WORM SHAFT 9.35
93 104M7 SLIDER GUIDE (B) 2.75
94 10LHN FIXING BOLT 1.10
95 10357 SLIDER GUIDE (A) 2.75
96 149MN BODY ASSEMBLY 27.50
97 10S0B OIL CAP 1.10
98 148D3 HANDLE SCREW CAP ASSEMBLY 5.50
101 10LLK FIXING BOLT 1.65
MH01 1484T NAMEPLATE ON BACK OF LEG 1.65
