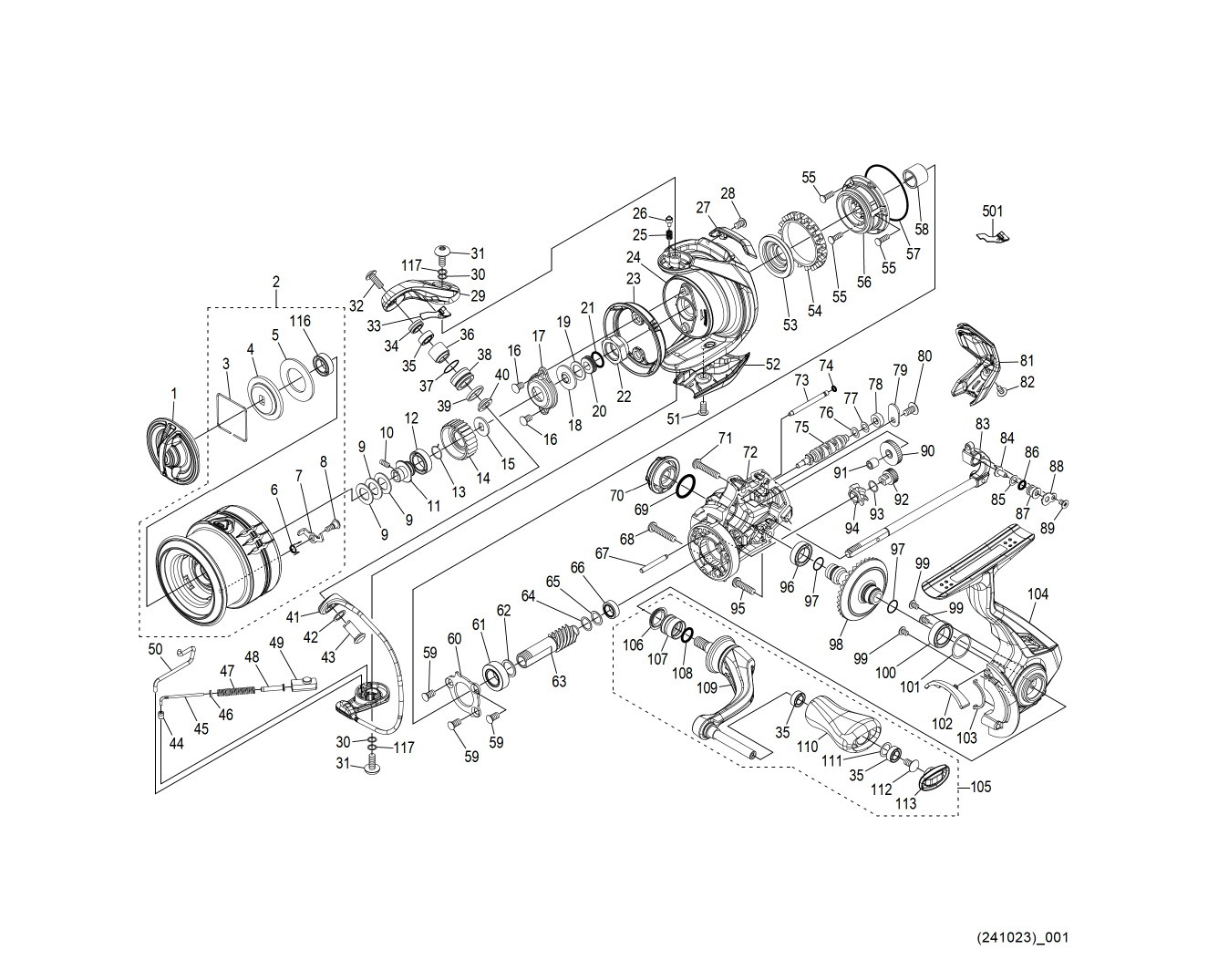

　Reel Part's Schematic Diagram


* Circled figures indicate bearings.
* Please note disassembly is at your own risk.

No. S Part No. Description Price (USD)
1 1493R DRAG KNOB ASSEMBLY 19.80
2 1495A SPOOL ASSEMBLY 84.70
3 10B87 STOPPER SPRING 1.65
4 13K0V OVAL WASHER 1.65
5 13K3C DRAG WASHER 2.75
6 10BQF SPOOL PIN SPRING 1.65
7 102H5 SPOOL PIN 1.65
8 10TRB FIXING BOLT 1.65
9 10BU9 SPOOL WASHER 1.10
10 10PN3 SET SCREW (M2 X 5) 1.65
11 10THY SPOOL SHAFT BEARING GUIDE 3.85
12 104PP BALL BEARING (7X11X3) 13.75
13 107V2 RATCHET SPRING 1.65
14 10SYS DRAG CLICK SILRATCHET 2.75
15 103PE SPOOL BEARING 1.65
16 103GW FIXING BOLT 1.65
17 1076N RETAINER 2.75
18 1017W ROTOR BEARING SEAL 1.65
19 100RU WASHER 1.65
20 10RDL MAIN SHAFT COLLAR 3.85
21 10DXE O-RING 1.65
22 1427D ROTOR NUT 6.05
23 146GZ ROTOR FLANGE 8.80
24 14A3V ROTOR ASSEMBLY 41.80
25 13ZAA CLICK SPRING 1.65
26 106ZC CLICK PIN 1.65
27 146GY BALANCER GUARD 2.75
28 10RNG FIXING BOLT 1.65
29 1493Q ARM CAM 8.25
30 10K96 WASHER 1.65
31 10RFW FIXING BOLT 1.65
32 10TLJ FIXING BOLT 2.75
33 13ZA9 ARM CAM FIN 1.10
34 1E+45 LINE ROLLER COLLAR 2.75
35 104VX BALL BEARING (4X7X2.5) 13.75
36 1009K LINE ROLLER BUSH 1.65
37 1009E O-RING 1.65
38 1009A LINE ROLLER 6.05
39 10RFZ LINE ROLLER SPACER 1.65
40 10TJM LINE ROLLER BEARING COLLAR 2.75
41 14A3W BAIL ASSEMBLY 53.90
42 1018Z WASHER 1.65
43 13KLM ARM FIXING SHAFT 3.85
44 142QB ARM SPRING GUIDE (A) BUSH 1.65
45 142Q8 ARM SPRING GUIDE (A) 1.10
46 142Q7 ARM SPRING GUIDE (A) COLLAR 1.65
47 142Q9 ARM CAM SPRING 1.65
48 142PV ARM SPRING GUIDE (C) 1.65
49 144RE ARM SPRING GUIDE (B) 1.65
50 146HF INNER GERI LEVER 2.75
51 10SH9 FIXING BOLT 1.65
52 146GW BAIL MOUNTING COVER 8.25
53 101D5 ROTOR COLLAR 9.35
54 10QXQ FRICTION RING 2.75
55 100WT FIXING BOLT 1.65
56 10S2L ROLLER CLUTCH ASSEMBLY 12.65
57 1009Z O-RING 1.65
58 1009Y ROLLER CLUTCH INNER 3.85
59 100WY FIXING BOLT 1.65
60 10DWD BEARING PUSH PLATE 1.65
61 10DZB BALL BEARING (7X13X4) 7.15
62 143G5 WASHER 1.10
63 144S4 PINION GEAR 19.80
64 10HE5 WASHER 1.65
65 10SYU WASHER 1.65
66 104JZ BALL BEARING (5 X 8 X 2.5) 13.75
67 144RJ INTERMEDIATE GEAR SHAFT 3.85
68 10TND FIXING BOLT 1.65
69 10E3K O-RING 1.65
70 144RK HANDLE SCREW CAP 5.50
71 146AR FIXING BOLT 1.65
72 14958 BODY 33.00
73 144RM SLIDER GUIDE 1.65
74 100BH O-RING 1.10
75 144RN WORM SHAFT 6.05
76 10ECK WASHER 1.10
77 10K98 WASHER 1.10
78 1009C WORM SHAFT BUSHING 1.65
79 10S7C WORM SHAFT COVER 1.65
80 10QG5 FIXING BOLT 1.10
81 1451F BODY GUARD 11.55
82 10RX2 FIXING BOLT 1.65
83 143RE MAIN SHAFT ASSEMBLY 22.00
84 1018D WORM SHAFT PIN 6.05
85 10K9C WASHER 1.10
86 100WX O-RING 1.65
87 1009L WORM SHAFT PIN COLLAR 1.65
88 144RR WORM SHAFT PIN PUSH PLATE 1.65
89 1055H FIXING BOLT 1.65
90 10DK0 WORM SHAFT GEAR 9.35
91 144RP BUSH 1.10
92 10DK2 INTERMEDIATE GEAR (S) 8.25
93 10TBA WASHER 1.65
94 144S5 INTERMEDIATE GEAR (LARGE) 9.35
95 10M2L FIXING BOLT 1.10
96 107FA BALL BEARING (7 X 11 X 3) 7.15
97 1009S O-RING 1.65
98 142QC DRIVE GEAR 20.35
99 10SH0 FIXING BOLT 1.65
100 10EX6 BALL BEARING (8X12X3.5) 7.15
101 101AY WASHER 2.20
102 1017Y INNER GERI HITARI 1.65
103 1009W FOOT FLANGE SEAL 2.75
104 14A3Z COVER ASSEMBLY 33.00
105 1493G HANDLE ASSEMBLY 99.00
106 10PXV HANDLE SHAFT SEAL 2.75
107 14957 HANDLE SHAFT FLANGE (B) 6.05
108 108WQ O-RING 1.65
109 14A3Y HANDLE SHANK ASSEMBLY 77.00
110 14285 HANDLE KNOB 11.55
111 104FH WASHER 2.20
112 10LFA FIXING BOLT 1.10
113 14286 HANDLE CAP 4.95
116 104JT BALL BEARING (6 X 10 X 3) 13.75
117 10KFA ADJUSTMENT WASHER 1.10
501 13ZAB ARM CAM FIN 1.10
MH01 1493S NAMEPLATE ON BACK OF LEG 2.75
