[SHIMANO] Genuine Spare Parts for 25 ALDEBARAN DC 30HG RIGHT Product code: 047830 **Back-order (Shipping in 3-4 weeks after receiving order)

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.

- We don't accept order cancellations, changes, or refunds after an order unless the products you ordered are not available because SHIMANO/DAIWA Japan doesn't accept our cancellations.



*Please make sure to read about the conditions before you order.

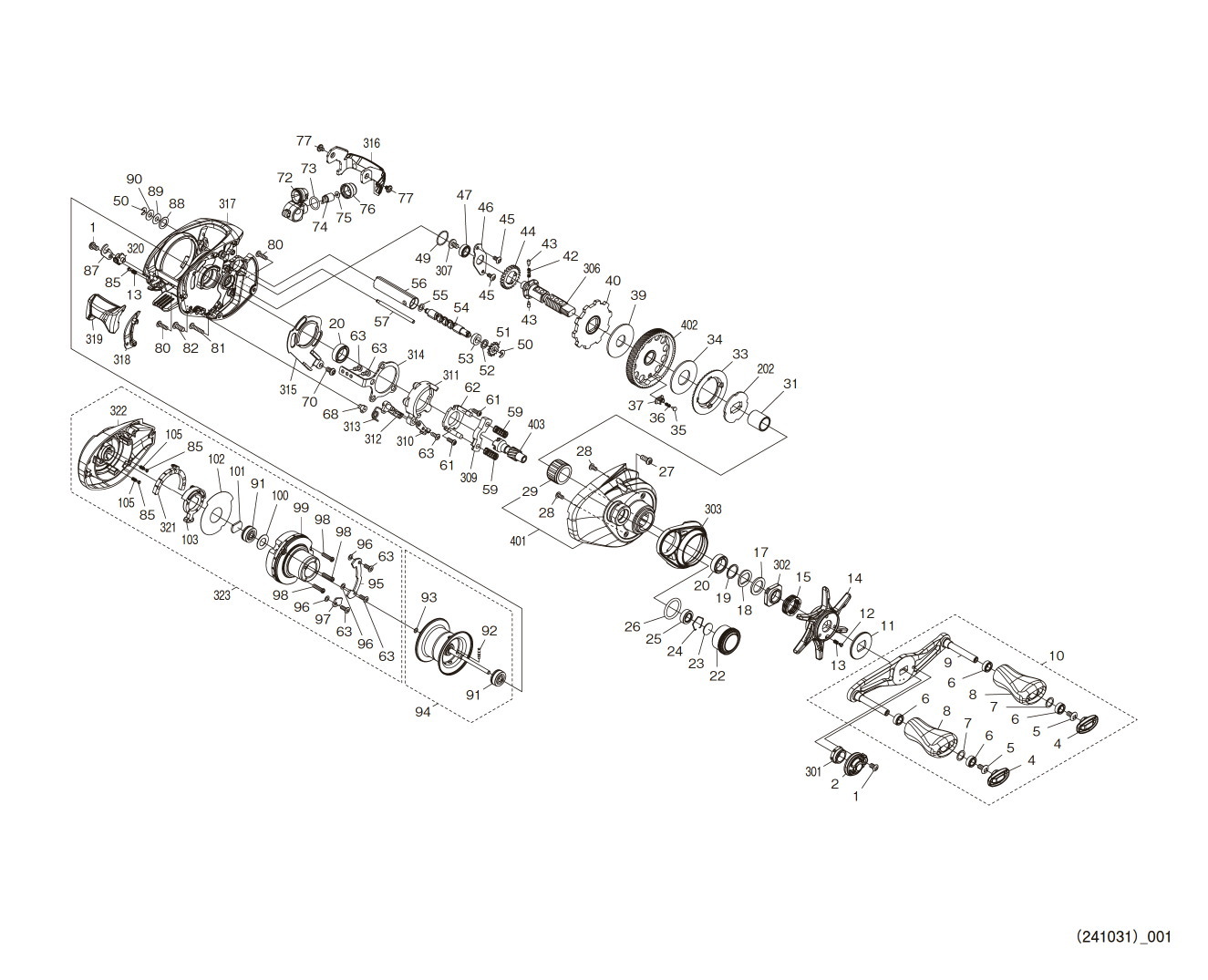

Reel Part's Schematic Diagram

* Circled figures indicate bearings.
* As for the "29 / ROLLER CLUTCH", "91 / BALL BEARING" and "92 / SPOOL CLUTCH PIN", they don't sell separately.
These parts are supposed to be provided when customers send the reel to have it repaired or overhauled.
So we cannot provide you with the products unfortunately.
* Please note disassembly is at your own risk.

No.	S Part No.	Description	Price (USD)
1	10DN7	FIXING BOLT	1.65
2	10RZU	RETAINER	1.10
4	10SML	HANDLE CAP	4.95
5	10DQN	FIXING BOLT	1.65
6	104VX	BALL BEARING (4X7X2.5)	13.75
7	104FH	WASHER	2.20
8	1004X	HANDLE KNOB	11.55
9	14A6J	HANDLE SHAFT ASSEMBLY	34.10
10	14A6K	HANDLE ASSEMBLY	88.00
11	101JC	STAR DRAG CLICK PLATE	1.65
12	10B27	CLICK PIN	1.65
13	10988	CLICK SPRING	1.65
14	10RZT	STAR DRAG	11.55
15	10A78	STAR DRAG SPRING	2.75
17	10J1N	STAR DRAG SPACER	1.65
18	10D60	MAIN GEAR WASHER (C)	1.65
19	105PW	STAR DRAG BEARING WASHER (8X12X3.5)	1.10
20	10EX8	BALL BEARING (8X12X3.5)	13.75
22	1481W	MECHANICAL BRAKE KNOB	9.35
23	1057Q	SPOOL SHAFT TATARI (B)	1.10
24	1057X	EXTRACTION STOPPER	1.65
25	105BP	BALL BEARING (5X9X3)	13.75
26	10LA9	O-RING	1.65
27	10SMM	FIXED BOLT	1.10
28	1055J	FIXED BOLT	1.65
29	10TM8	ROLLER CLUTCH *Cannot be ordered	17.05
31	14016	ROLLER CLUTCH INNER TUBE	13.75
33	10JB0	DRAG CLICK RATCHET	2.75
34	10CKS	STAR DRAG WASHER	6.05
35	10C0T	DRAG CLICK PIN	2.75
36	10J8A	DRAG CLICK SPRING	1.65
37	10J87	DRAG SPRING HOLDER	1.65
39	10CJ4	STAR DRAG WASHER (A)	3.85
40	1497Q	STOPPER GEAR	9.35
42	10JDX	WORM SHAFT GEAR SPRING	1.65
43	10HJF	WORM SHAFT GEAR PIN	1.65
44	10EE3	WORM SHAFT GEAR	1.10
45	10MT2	FIXING BOLT	1.10
46	10RZG	DRIVE GEAR SHAFT FIXING PLATE	1.65
47	104JZ	BALL BEARING (5X8X2.5)	13.75
49	10SZ4	O-RING	1.65
50	105NC	TYPE E STOPPER RING 2	1.10
51	10EEL	WORM SHAFT GEAR	1.10
52	10J1J	WASHER	1.10
53	10PXY	HANDLE GRIPPED BUSH (B)	1.65
54	10EET	WORM SHAFT	2.75
55	10GHF	WASHER	1.10
56	10NFW	LEVEL WINDING PIPE	1.65
57	10RZL	LEVEL WINDING ROD	3.30
59	148GL	CLUTCH YOKE SPRING	1.10
61	10LVH	CLUTCH CAM FIXING BOLT	1.10
62	10EE6	CLUTCH CAM PUSH PLATE	8.80
63	10559	FIXED BOLT	1.65
68	10EDY	CLUTCH SPRING HOLDER	1.10
70	10DSZ	FIXED BOLT	1.10
72	10NYH	LEVEL WINDING ASSEMBLY	22.55
73	108WQ	O-RING	1.65
74	100BT	WORM SHAFT PIN	2.75
75	10CFW	ADJUSTMENT WASHER SET	1.10
76	10FJB	LEVEL WINDING RECEIVER	1.65
77	10S2Y	FIXING BOLT	1.10
80	1055A	FIXING BOLT	1.65
81	10TGT	FIXING BOLT	1.10
82	103DF	FIXING BOLT	1.10
85	144NT	CLICK PIN	1.10
87	1481Z	BODY B CAM LEVER PRESSING PLATE	2.75
88	10J4L	WASHER	1.10
89	10E7G	WASHER	1.10
90	13PK5	WASHER	1.10
91	10S37	BALL BEARING (3X10X4) *Cannot be ordered	13.75
92	10MCZ	SPOOL CLUTCH PIN *Cannot be ordered	2.75
93	10E7H	O-RING	1.10
94	14A6N	SPOOL ASSEMBLY	137.50
95	1481L	CAM PLATE (A)	4.40
96	14889	WASHER	1.10
97	1481M	CAM PLATE (B)	4.40
98	141R6	FIXING BOLT	1.10
99	1481N	DC ASSEMBLY	132.00
100	10B94	BEARING SEAL	1.65
101	144NQ	SPOOL SHAFT CONTACT B	1.10
102	1485C	BODY B NAMEPLATE DC DIAL ASSEMBLY	1.10
103	14A6P	DC DIAL ASSEMBLY	11.00
105	10T6Z	CLICK SPRING	1.10
202	10D55	STAR DRAG PLATE	6.05
301	10EE5	HANDLE FIXING NUT	4.40
302	10EDV	STAR DRAG FIXING NUT	4.40
303	1481V	BODY A NAMEPLATE	9.35
306	1480K	DRIVE GEAR SHAFT	18.70
307	10PVT	FIXING BOLT	1.65
309	1004W	CLUTCH YOKE	1.10
310	10RWM	CLUTCH CLAW (B)	1.65
311	10SX6	CLUTCH CAM	2.75
312	10RVS	CLUTCH CLAW (A)	1.65
313	10RRB	CLUTCH CLAW SPRING	1.65
314	10EE7	CLUTCH PLATE	2.20
315	10RZB	BODY A SEAT	1.10
316	14823	LEVEL WIND GUARD	11.00
317	14A6U	FRAME ASSEMBLY	143.00
318	10EDW	CLUTCH LEVER RECEIVING KE	1.10
319	10RZD	CLUTCH LEVER	5.50
320	1481Y	BODY B CAM LEVER	1.10
321	14A6V	BRAKE DIAL ASSEMBLY	9.90
322	1481E	BODY B	36.30
323	14A6W	BODY B ASSEMBLY	198.00
401	14A6X	BODY A ASSEMBLY	69.30
402	10RZE	DRIVE GEAR	24.75
403	10RZS	PINION GEAR	17.05
