[SHIMANO] Genuine Spare Parts for 25 Barchetta F CUSTOM 151 LEFT Product code: 048325 **Back-order (Shipping in 3-4 weeks after receiving order)

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.

- We don't accept order cancellations, changes, or refunds after an order unless the products you ordered are not available because SHIMANO/DAIWA Japan doesn't accept our cancellations.



*Please make sure to read about the conditions before you order.

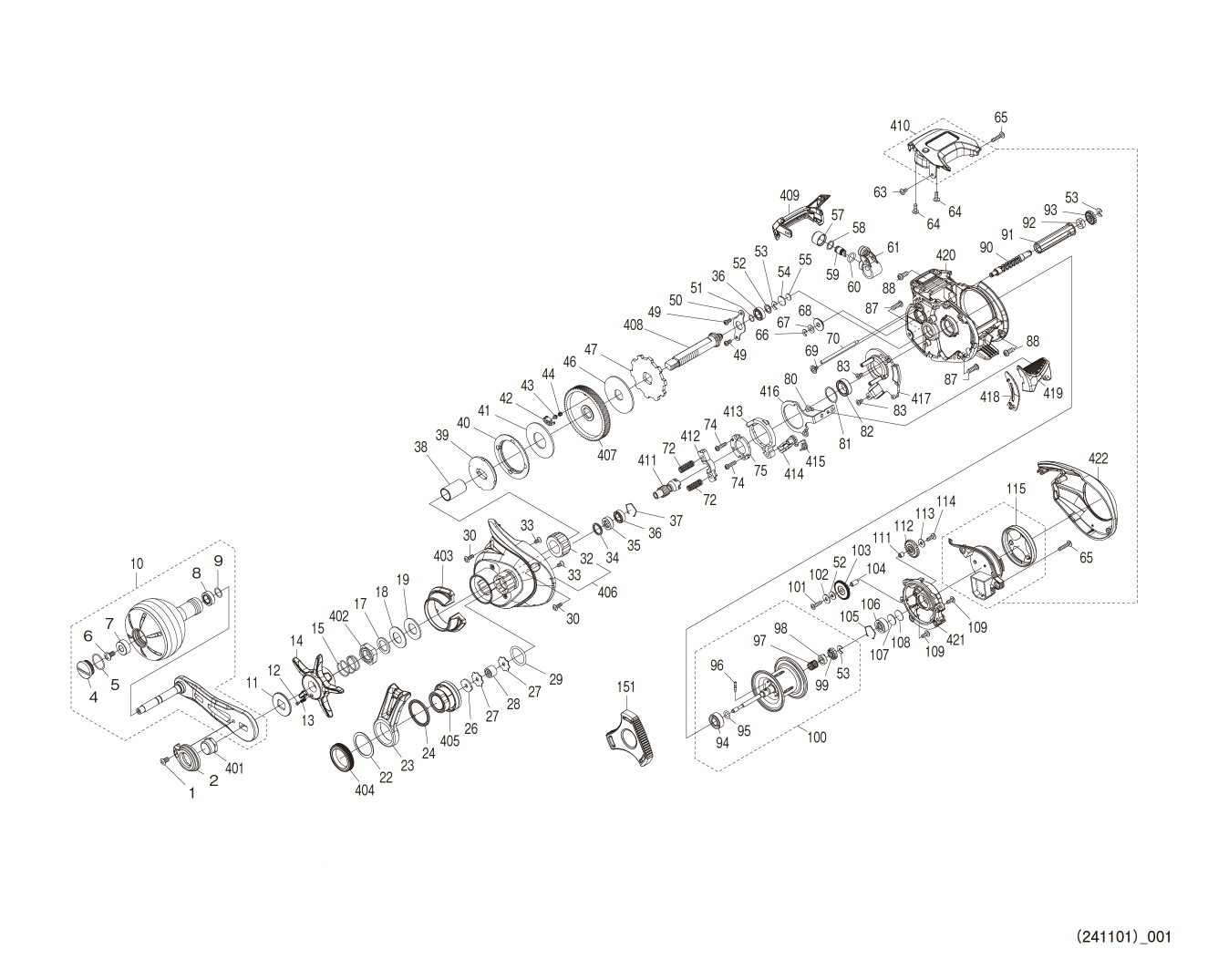

Reel Part's Schematic Diagram

* Circled figures indicate bearings.
* As for the "32 / ROLLER CLUTCH" and "96 /SPOOL CLUTCH PIN", they don't sell separately.
These parts are supposed to be provided when customers send the reel to have it repaired or overhauled.
So we cannot provide you with the products unfortunately.
* Please note disassembly is at your own risk.

No.	S Part No.	Description	Price (USD)
1	10DV5	FIXING BOLT	1.10
2	10SSK	RETAINER	3.85
4	13MBD	HANDLE CAP	6.05
5	10LAB	O-RING	1.10
6	10LFA	FIXING BOLT	1.10
7	10EU0	HANDLE GRIPPED BUSH (A)	1.65
8	104UJ	HANDLE GRIPPED BUSH (B)	1.65
9	104FH	WASHER	2.20
10	148KL	HANDLE ASSEMBLY	90.20
11	10J22	STAR DRAG CLICK PLATE	1.65
12	10MFC	CLICK PIN	1.65
13	10BT2	CLICK SPRING	1.65
14	148U4	STAR DRAG	4.40
15	10A70	STAR DRAG SPRING	2.75
17	10J1N	STAR DRAG SPACER	1.65
18	10EW3	SARA SPRING (DB8L)	1.65
19	109LA	SARA SPRING (DB-8H)	1.65
22	13B6Z	WASHER	1.65
23	1489N	FALL LEVER	4.95
24	13UD3	LOCK SPACER B	1.65
26	145AB	MECHANICAL BRAKE WASHER	5.50
27	13UET	MECHANICAL BRAKE WASHER	3.85
28	13SVY	ROLLER CLUTCH	16.50
29	10R22	O-RING	1.65
30	10LCY	FIXING BOLT	1.10
32	10F5D	ROLLER CLUTCH BEARING A-RB *Cannot be ordered	17.05
33	10LA3	FIXING BOLT	1.65
34	148U3	SPACER	1.10
35	101V3	BEARING SPACER	2.75
36	105BP	BALL BEARING (5X9X3)	13.75
37	1057X	STOPPER	1.65
38	1489R	ROLLER CLUTCH INNER TUBE	9.90
39	143C6	STAR DRAG PLATE	4.95
40	143C8	DRAG CLICK SILRATCHET	1.65
41	10CM0	STAR DRAG WASHER	6.05
42	143CC	DRAG SPRING HOLDER	1.10
43	143C9	CLICK PIN	1.65
44	143CA	CLICK SPRING	1.10
46	1023U	STAR DRAG WASHER	6.05
47	100BJ	STOPPER GEAR	3.85
49	10E23	FIXING BOLT	1.10
50	109T1	DRIVE GEAR SHAFT FIXING PLATE	2.75
51	108WU	O-RING	1.65
52	10G6D	WASHER	1.65
53	105NK	E-TYPE RETAINING RING 2.5	1.10
54	143CG	METAL SPACER	1.10
55	14079	RUBBER SPACER	1.65
57	10FJW	LEVEL WINDING RECEIVER	1.65
58	10CFU	WASHER	1.10
59	10BHQ	WORM SHAFT PIN	2.75
60	108WQ	O-RING	1.65
61	13GED	LEVEL WINDING ASSEMBLY	9.35
63	10LCQ	FIXING BOLT	1.10
64	10LCM	FIXING BOLT	1.10
65	13JWV	FIXING BOLT	1.65
66	105NC	E TYPE RETAINING RING 2	1.10
67	10FJZ	WASHER	1.10
68	100G7	LEVEL WINDING GUARD BUSH	1.10
69	1022E	FIXING BOLT	1.65
70	13B5P	LEVEL-WIND GUIDE	1.65
72	100U9	CLUTCH YOKE SPRING	1.10
74	10LV0	FIXING BOLT	1.10
75	100US	CLUTCH CAM PUSH PLATE	3.85
80	10LF4	FIXING BOLT	1.10
81	10190	WASHER	1.65
82	10EX8	BALL BEARING (8X12X3.5)	13.75
83	100S4	FIXING BOLT	1.10
87	10LFP	FIXING BOLT	1.10
88	13JQQ	FIXING BOLT	1.65
90	13S61	WORM SHAFT	11.55
91	13S6D	LEVEL WINDING PIPE	1.10
92	10PXZ	HANDLE KNOB BUSHING	1.65
93	13S5T	WORM SHAFT GEAR	2.75
94	105CA	BALL BEARING (5 X 11 X 4)	13.75
95	10TM7	O-RING	1.65
96	10MD0	SPOOL CLUTCH PIN *Cannot be ordered	1.65
97	13SVD	SPOOL SHAFT SPRING	1.65
98	10MCY	SPOOL SHAFT CAM	1.65
99	10JAH	WORM SHAFT GEAR	3.85
100	148KR	SPOOL ASSEMBLY	66.00
101	13JXR	FIXING BOLT	1.65
102	146B4	WASHER	1.10
103	13RTV	WORM SHAFT GEAR	1.65
104	13SGH	WORM SHAFT GEAR (B) HOLDER B	2.75
105	1054D	BEARING STOPPER	1.10
106	105C2	BALL BEARING (3X10X4)	13.75
107	13Z0G	SPOOL SHAFT ATTACHMENT B	1.10
108	13PE6	WASHER	1.65
109	10LCF	FIXING BOLT	1.10
111	13RU2	WORM SHAFT GEAR (B) HOLDER	1.65
112	13S5R	WORM SHAFT GEAR	2.75
113	1019V	WORM SHAFT GEAR (B) WASHER	1.65
114	10LCP	FIXING BOLT	1.65
115	143CM	BATTERY COVER ASSEMBLY	7.70
151	143CQ	BATTERY CAP WRENCH	2.75
401	1494P	HANDLE FIXING NUT	6.05
402	10A3U	STAR DRAG FIXING NUT	3.85
403	1494R	BODY A NAMEPLATE	3.85
404	13UDA	LOCK RING	1.65
405	1494Q	MECHANICAL BRAKE KNOB	22.00
406	14A28	BODY A ASSEMBLY	71.50
407	1494S	DRIVE GEAR	28.60
408	1494U	DRIVE GEAR SHAFT	11.00
409	1494X	LEVEL WINDING GUARD	4.40
410	14A29	COUNTER UNIT ASSEMBLY	176.00
411	1494Z	PINION GEAR	11.00
412	10TFA	CLUTCH YOKE	1.65
413	100W0	CLUTCH CAM	2.75
414	10MQM	CLUTCH CLAW	3.85
415	10TMC	CLUTCH CLAW SPRING	1.65
416	143H4	CLUTCH PLATE	2.20
417	10R5C	BODY A SEAT	3.30
418	143H5	CLUTCH LEVER RECEIVER (B)	1.10
419	13H6R	CLUTCH LEVER ASSEMBLY	5.50
420	14A2A	FRAME ASSEMBLY	57.20
421	13RUC	CLUTCH LEVER SEAT (B)	6.05
422	14950	BODY B	11.55
