[SHIMANO] Genuine Spare Parts for 25 ULTEGRA C3000HG Product Code: 048004 **Back-order (Shipping in 3-4 weeks after receiving order)

[SHIMANO] Genuine Spare Parts for 25 ULTEGRA C3000HG Product Code: 048004 **Back-order (Shipping in 3-4 weeks after receiving order)

Our Selling Price: US$0.77 - US$42.35 [Regular Price: US$1.10 - US$60.50]

Prices vary according to options.

View availability
Part Number:
Quantity:
Return & Exchange Policy
Contact Us

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship this item after you order unless we have in stock at the time of your order.

- We don't accept order cancellations, changes, or refunds after an order unless the products you ordered are not available because SHIMANO/DAIWA Japan doesn't accept our cancellations.



*Please make sure to read about the conditions before you order.

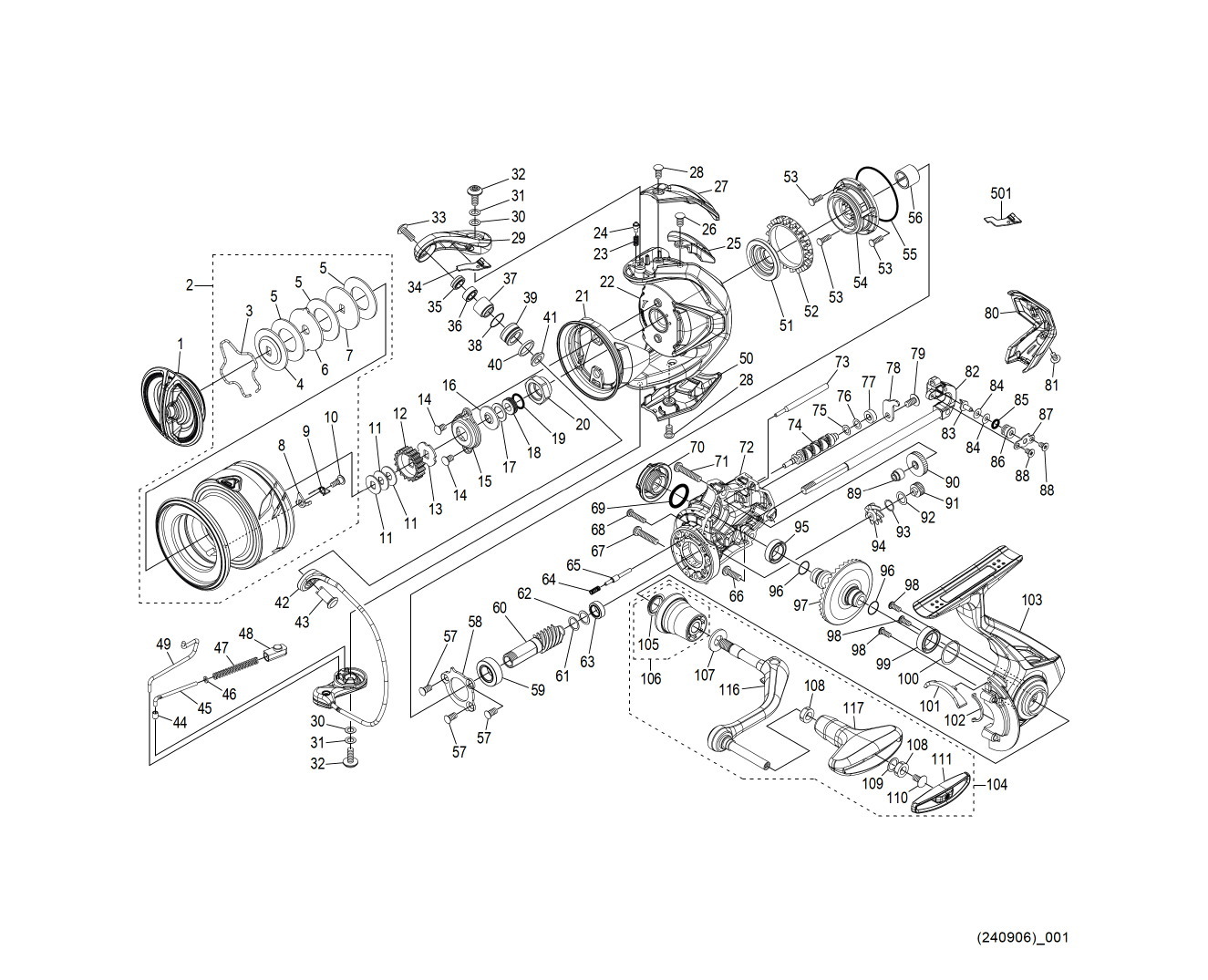

　Reel Part's Schematic Diagram


* Circled figures indicate bearings.
* Please note disassembly is at your own risk.

No. S Part No. Description Price (USD)
1 13YX6 DRAG KNOB ASSEMBLY 15.95
2 147WK SPOOL ASSEMBLY 60.50
3 1427A STOPPER SPRING 1.65
4 10QBT OVAL WASHER 1.65
5 102ZG DRAG WASHER 1.65
6 147ZU EAR WASHERS 1.65
7 10BCE OVAL WASHERS 1.65
8 10DS4 SPOOL PINS 1.65
9 10DS5 SPOOL PIN SPRING 1.10
10 10A6F FIXING BOLT 1.65
11 10BXN SPOOL WASHER SET 1.10
12 103MU SPOOL HOLDER (A) 1.65
13 10J04 SPOOL HOLDER (B) 1.65
14 103GW FIXING BOLT 1.65
15 1076N RETAINER 2.75
16 1017W ROTOR BEARING SEAL 1.65
17 100RU WASHER 1.65
18 10RDL MAIN SHAFT COLLAR 3.85
19 10DXE O-RING 1.65
20 1427D ROTOR NUT 6.05
21 14802 ROTOR FLANGE 7.70
22 147ZY ROTOR 11.55
23 10HE7 CLICK SPRING 1.65
24 106ZC CLIC PIN 1.65
25 1427G BALANCE WEIGHT 3.85
26 103KS FIXING BOLT 1.10
27 1427H ARM CAM SPRING COVER 8.25
28 10PS2 FIXING BOLT 1.65
29 14800 ARM CAM 3.30
30 10KF9 WASHER 1.10
31 10K96 WASHER 1.65
32 10PS5 FIXING BOLT 1.65
33 10PMH FIXING BOLT 1.65
34 1427J ARM CAM FIN 1.10
35 10187 LINE ROLLER COLLAR 2.75
36 104VX BALL BEARING (4X7X2.5) 13.75
37 1009K LINE ROLLER BUSH 1.65
38 1009E O-RING 1.65
39 1009A LINE ROLLER 6.05
40 10RFZ LINE ROLLER SPACER 1.65
41 10QY7 LINE ROLLER BEARING COLLAR 2.75
42 149DL BAIL ASSEMBLY 33.00
43 10TPC ARM FIXING SHAFT 6.05
44 1009B ARM SPRING GUIDE (A) COLLAR BUSH 1.65
45 10SAN ARM SPRING GUIDE (A) 3.85
46 101D9 ARM SPRING GUIDE (A) COLLAR 1.65
47 105R6 ARM CAM SPRING 1.65
48 107AB ARM CAM SPRING SEAT 2.75
49 1427L INNER GERI LEVER 2.75
50 1427M BAIL MOUNTING COVER 8.25
51 101D5 ROTOR COLLAR 9.35
52 10QXQ FRICTION RING 2.75
53 100WT FIXING BOLT 1.65
54 10S2L ROLLER CLUTCH ASSEMBLY 12.65
55 1009Z O-RING 1.65
56 1009Y ROLLER CLUTCH INNER 3.85
57 100WY FIXING BOLT 1.65
58 10DWD BEARING PUSH PLATE 1.65
59 10DZB BALL BEARING (7X13X4) 7.15
60 1428A PINION GEAR 19.80
61 10HE5 WASHER 1.65
62 10SYU WASHER 1.65
63 104JZ BALL BEARING (5X8X2.5) 13.75
64 1427P INTERMEDIATE GEAR SPRING 1.10
65 1427Q INTERMEDIATE GEAR SHAFT 3.85
66 10LZG FIXING BOLT 1.10
67 10M31 FIXING BOLT 1.10
68 10TP1 FIXING BOLT 1.10
69 108WH O-RING 1.65
70 1427T HANDLE SCREW CAP 5.50
71 146AR FIXING BOLT 1.65
72 14805 BODY 22.00
73 1427V SLIDER GUIDE 1.65
74 1427W WORM SHAFT 6.05
75 10ECK WASHER 1.10
76 10K9C WASHER 1.10
77 1009C WORM SHAFT BUSHING 1.65
78 1427X WORM SHAFT COVER 1.65
79 10QG5 FIXING BOLT 1.10
80 141HU BODY GUARD 11.55
81 10PRZ FIXING BOLT 1.65
82 149DM MAIN SHAFT ASSEMBLY 12.10
83 1018D WORM SHAFT PIN 6.05
84 1070D WASHER 1.10
85 100WX O-RING 1.65
86 1009L WORM SHAFT PIN COLLAR 1.65
87 10182 WORM SHAFT PIN PUSH PLATE 1.65
88 1055H FIXING BOLT 1.65
89 1427Y BUSH 1.10
90 10DK0 WORM SHAFT GEAR 9.35
91 147W5 INTERMEDIATE GEAR (SMALL) 8.25
92 10G6D WASHER 1.65
93 10TBA WORM SHAFT GEAR (LARGE) 1.65
94 147VA INTERMEDIATE GEAR (LARGE) 8.25
95 107FA BALL BEARING (7 X 11 X 3) 7.15
96 1009S O-RING 1.65
97 1428C DRIVE GEAR 20.35
98 100UL FIXING BOLT 1.65
99 10EX6 BALL BEARING (8X12X3.5) 7.15
100 1022D WASHER 2.75
101 14282 INTERNAL GERI CONTACT 1.65
102 1009W FOOT FLANGE SEAL 2.75
103 149DU COVER ASSEMBLY 33.00
104 1493B HANDLE ASSEMBLY 55.00
105 10PXV HANDLE SHAFT SEAL 2.75
106 149DP HANDLE SHAFT FLANGE ASSEMBLY 8.80
107 10E5X HANDLE WASHER 1.65
108 10PXZ HANDLE KNOB BUSH 1.65
109 104FH HANDLE WASHER 2.20
110 10LFA FIXING BOLT 1.10
111 10R3A HANDLE CAP 3.85
116 149KJ HANDLE SHANK ASSEMBLY 34.65
117 10R38 HANDLE KNOB 17.05
501 14287 ARM CAM FIN 1.10
MH01 1478A NAMEPLATE ON BACK OF LEG 2.20
