[SHIMANO] Genuine Spare Parts for 25 OCEA CONQUEST CT 200HG RIGHT Product code: 047700 **Back-order (Shipping in 3-4 weeks after receiving order)

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.

- We don't accept order cancellations, changes, or refunds after an order unless the products you ordered are not available because SHIMANO/DAIWA Japan doesn't accept our cancellations.



*Please make sure to read about the conditions before you order.


- Genuine Spool Purchase

* If you just want the genuine spool (No.101 / Spool Unit), you can purchase it from the following link without waiting for weeks if it's in our stock now.
https://www.hedgehog-studio.co.jp/product/8812

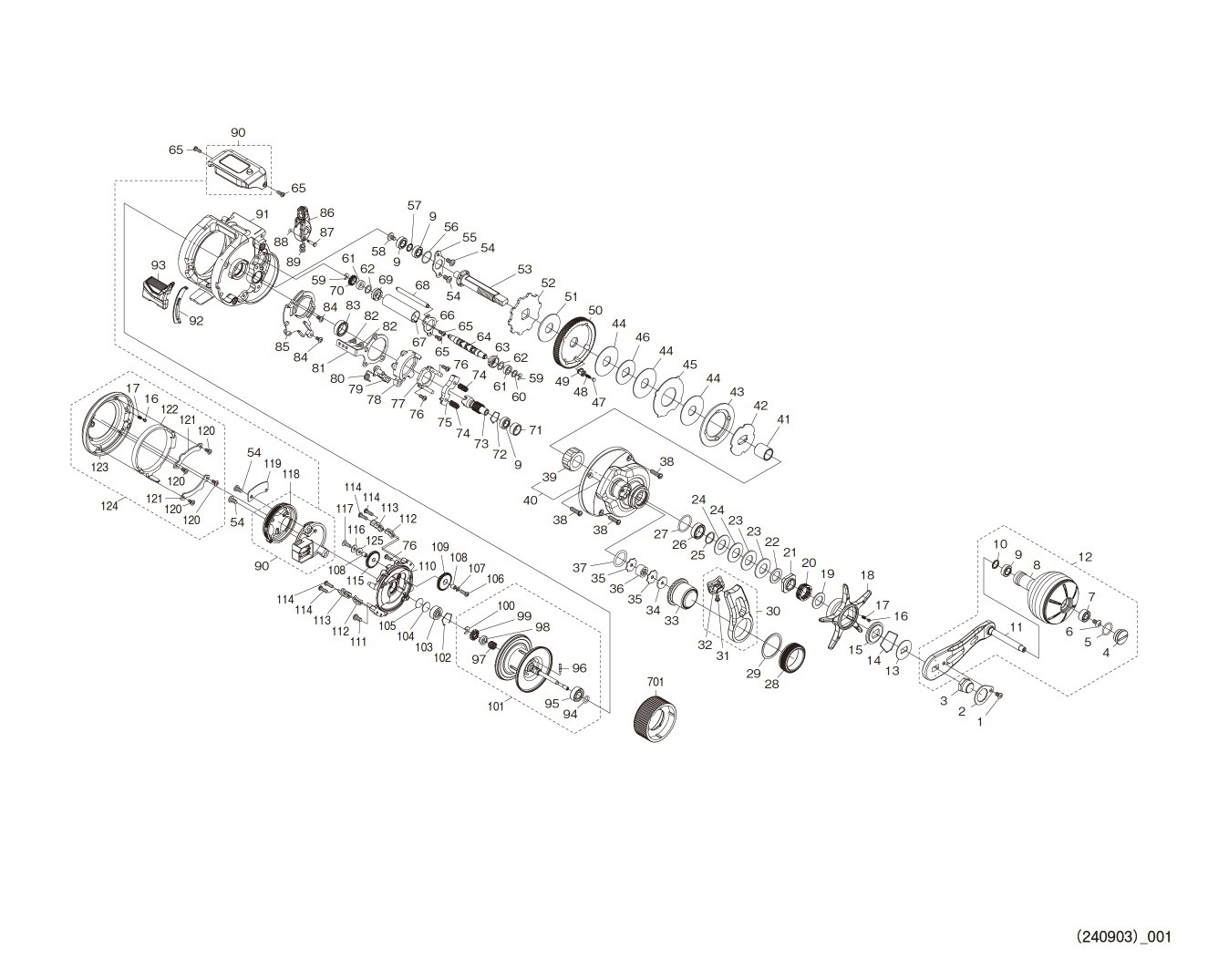

Reel Part's Schematic Diagram

* Circled figures indicate bearings.
* As for the "39 / ROLLER CLUTCH", "95 / BALL BEARING" and "96 / SPOOL CLUTCH PIN", they don't sell separately.
These parts are supposed to be provided when customers send the reel to have it repaired or overhauled.
So we cannot provide you with the products unfortunately.
* Please note disassembly is at your own risk.

No.	S Part No.	Description	Price (USD)
1	103GY	FIXING BOLT	2.75
2	1486S	RETAINER	2.75
3	14863	HANDLE FIXING NUT	6.60
4	10B2B	HANDLE CAP	6.05
5	10LAB	O-RING	1.10
6	103E9	FIXING BOLT	1.10
7	10KX2	BALL BEARING (4 X 9 X 4)	13.75
8	1400X	HANDLE KNOB ASSEMBLY	56.10
9	105BP	BALL BEARING (5X9X3)	13.75
10	104FH	WASHER	2.20
11	149KN	HANDLE SHAFT ASSEMBLY	39.60
12	149KP	HANDLE ASSEMBLY	93.50
13	13V36	HANDLE HOLDER WASHER	1.65
14	10KXV	STAR DRAG CLICK PLATE RETAINER	1.65
15	10J1Y	STAR DRAG CLICK PLATE	1.65
16	10B27	CLICK PIN	1.65
17	10988	CLICK SPRING	1.65
18	13Z8A	STAR DRAG	28.60
19	10QXM	WASHER	1.10
20	10A71	STAR DRAG SPRING	2.75
21	10A0B	STAR DRAG FIXING NUT	2.75
22	10J1N	STAR DRAG SPACER	1.65
23	1052E	DOWEL SPRING (DB8H)	1.65
24	10EW3	DOWEL SPRING (DB8L)	1.65
25	10GHN	WASHER	1.65
26	105BS	BALL BEARING (8X12X3.5)	13.75
27	1027V	O-RING	1.65
28	13Z85	LOCK RING	13.75
29	13PK8	WASHER	1.65
30	149KQ	FALL LEVER ASSEMBLY	44.00
31	10LVD	FIXING BOLT	1.10
32	13UEU	LEVER PROTECTOR	1.65
33	1485W	MECHANICAL BRAKE KNOB	17.05
34	13UES	MECHANICAL BRAKE WASHER	1.10
35	13UET	MECHANICAL BRAKE WASHER	3.85
36	13SVY	ROLLER CLUTCH	16.50
37	109EB	O-RING S11.2	1.65
38	14015	FIXING BOLT	6.05
39	10F33	ROLLER CLUTCH *Cannot be ordered	22.55
40	149KR	BODY A SET	138.05
41	14016	ROLLER CLUTCH INNER TUBE	13.75
42	13UTZ	STAR DRAG PLATE	3.85
43	13VC1	DRAG CLICK SYLLATIC RATCHET	1.65
44	10CHW	STAR DRAG WASHER	6.05
45	10KQL	STAR DRAG WASHER	1.65
46	13V7Q	STAR DRAG WASHER	1.65
47	10C0S	DRAG CLICK PINE	2.75
48	10J89	DRAG CLICK SPRING	1.65
49	13VG9	DRAG SPRING HOLDER	1.65
50	14017	DRIVE GEAR	28.05
51	10CJ4	STAR DRAG WASHER (A)	3.85
52	10D6Y	STOPPER GEAR	6.05
53	1485S	DRIVE GEAR SHAFT	14.30
54	1055F	FIXING BOLT	1.65
55	13VAE	DRIVE GEAR SHAFT FIXING PLATE	1.65
56	10SZ4	O-RING	1.65
57	13Y0Z	WASHER	1.10
58	10PVT	FIXING BOLT	1.65
59	105NC	E TYPE RETAINING RING 2	1.10
60	10J16	WASHER	1.10
61	10PXY	HANDLE GRIPPED BUSH (B)	1.65
62	10G8J	WORMSHAFT WASHER (A)	1.10
63	10N9Q	WORM SHAFT RECEIVER (A)	1.65
64	14019	WORM SHAFT	9.35
65	10LVF	FIXING BOLT	1.10
66	10T7S	WORM SHAFT STOPPER	1.10
67	1485Q	LEVEL WINDING PIPE	7.15
68	1485R	LEVEL WINDING GUIDE	3.30
69	104SP	WORM SHAFT RECEIVING BRACKET (B)	1.65
70	1401A	WORM SHAFT GEAR (C)	2.75
71	1485V	BEARING SPACER	1.10
72	1057X	EXTRACTION STOPPER	1.65
73	1401B	PINION GEAR	20.90
74	1401C	CLUTCH YOKE SPRING	1.10
75	13T1S	CLUTCH YOKE	1.65
76	101CN	FIXING BOLT	1.65
77	13UEP	CLUTCH CAM PUSH PLATE	3.85
78	10SX6	CLUTCH CAM	2.75
79	105ZU	CLUTCH CLAW	3.85
80	10N1Z	CLUTCH CLAW SPRING	1.10
81	101G3	CLUTCH PLATE	2.20
82	10559	FIXING BOLT	1.65
83	10EX8	BALL BEARING (8X12X3.5)	13.75
84	100BD	FIXING BOLT	1.65
85	101Q6	BODY A SEAT	1.10
86	149KS	LEVEL-WIND ASSEMBLY	51.70
87	100GC	WORM SHAFT PIN EXTRACTION STOPPER	1.10
88	10908	O-RING	1.65
89	100GJ	WORM SHAFT PIN	4.40
90	149KT	COUNTER UNIT ASSEMBLY	192.50
91	149KU	FRAME ASSEMBLY	220.00
92	101Q7	CLUTCH LEVER HOLDER	1.10
93	10U0N	CLUTCH LEVER ASSEMBLY	7.70
94	10TNF	O-RING	1.65
95	105CA	BALL BEARING (5X11X4) *Cannot be ordered	13.75
96	10MD0	SPOOL CLUTCH PIN *Cannot be ordered	1.65
97	10E20	SPOOL SHAFT SPRING	1.65
98	10MCY	SPOOL SHAFT CAM	1.65
99	1401F	WORM SHAFT GEAR (A)	2.75
100	105NK	E-TYPE STOPPER RING 2.5	1.10
101	149KV	SPOOL ASSEMBLY	79.20
102	10GEW	BEARING PULL-OUT STOPPER	1.10
103	105C1	BALL BEARING (3X10X4)	13.75
104	1057Q	SPOOL SHAFT CONTACT (B)	1.10
105	141QP	WASHER	1.10
106	10LVM	FIXING BOLT	1.10
107	10HVD	WASHER	1.10
108	1401G	WORM SHAFT GEAR HOLDER (A)	2.75
109	1401H	WORM SHAFT GEAR (B)	2.75
110	1485J	FRAME B BEARING	27.50
111	10LSL	FIXING BOLT	1.10
112	13Z7M	WORMSHAFT GEAR WASHER	1.10
113	13Z7S	FRAME B BEARING CAM	1.65
114	142MD	FIXING BOLT	1.10
115	1401K	WORM SHAFT GEAR (D)	2.75
116	10HYM	WORM SHAFT GEAR (D)	1.10
117	10MPU	FIXING BOLT	1.10
118	13Z8F	BATTERY COVER	4.40
119	13Z7L	FRAME B RECEIVER NAMEPLATE	1.65
120	10S65	FIXING BOLT	1.10
121	13Z7D	BODY B CAM LEVER PUSH PLATE	1.10
122	1485G	BODY B CAM LEVER	1.10
123	1485E	BODY B	52.80
124	149KW	BODY B ASSEMBLY	60.50
125	13PKE	WORM GEAR ADJUSTMENT WASHER	1.10
701	145AV	BATTERY CAP WRENCH	5.50
