[SHIMANO] Genuine Spare Parts for 25SLX BFS XG LEFT Product code: 048196 **Back-order (Shipping in 3-4 weeks after receiving order)

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.

- We don't accept order cancellations, changes, or refunds after an order unless the products you ordered are not available because SHIMANO/DAIWA Japan doesn't accept our cancellations.



*Please make sure to read about the conditions before you order.

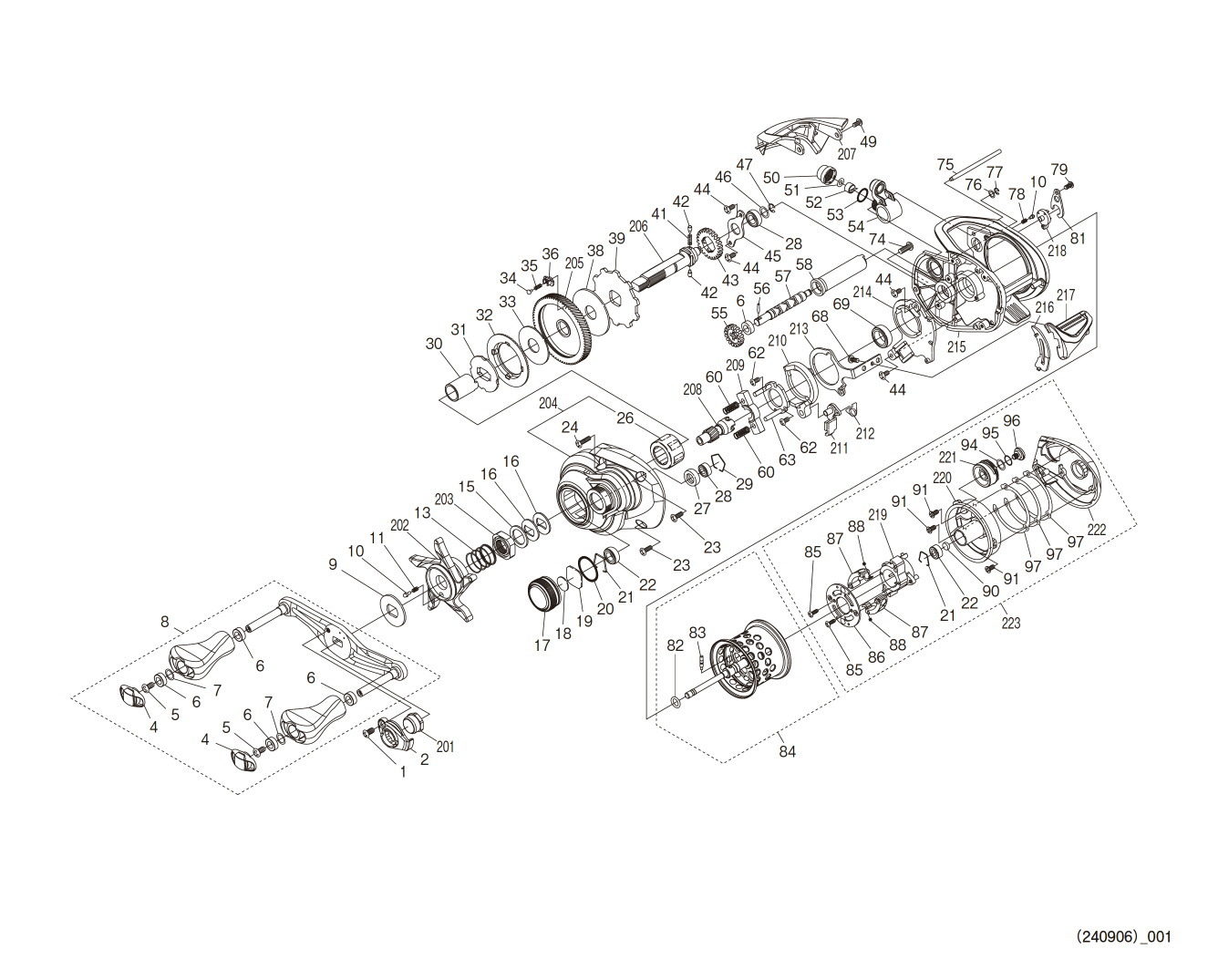

Reel Part's Schematic Diagram

* Circled figures indicate bearings.
* As for the "26 / ROLLER CLUTCH" and "83 /SPOOL CLUTCH PIN, they don't sell separately.
These parts are supposed to be provided when customers send the reel to have it repaired or overhauled.
So we cannot provide you with the products unfortunately.
* Please note disassembly is at your own risk.

No.	S Part No.	Description	Price (USD)
1	10DV5	FIXING BOLT	1.10
2	10Q5T	RETAINER	3.85
4	10FMJ	HANDLE CAP	2.75
5	103E9	FIXING BOLT	1.10
6	10PXZ	HANDLE KNOB BUSH	1.65
7	104FH	WASHER	2.20
8	148JA	HANDLE ASSEMBLY	50.60
9	10J22	STAR DRAG CLICK PLATE	1.65
10	10MFC	CLICK PIN	1.65
11	10BT2	CLICK SPRING	1.65
13	10A70	STAR DRAG SPRING	2.75
15	10J1P	STAR DRAG SPACER	2.75
16	109F5	DRIVE GEAR WASHER	1.65
17	148JE	MECHANICAL BRAKE KNOB	11.00
18	10896	MECHANICAL BRAKE WASHER	1.10
19	1085F	MECHANICAL BRAKE WASHER	1.10
20	10R22	O-RING	1.65
21	101V5	BEARING RETAINING CLAMP	1.65
22	10KDE	BALL BEARING (3X7X3)	13.75
23	10MPV	FIXING BOLT	1.10
24	10LCW	THUMB REST FIXING BOLT	1.10
26	10F5D	ROLLER CLUTCH BEARING A-RB *Cannot be ordered	17.05
27	101V3	BEARING SPACER	2.75
28	105BP	BALL BEARING (5X9X3)	13.75
29	101V6	BEARING STOPPER	1.65
30	10E4S	ROLLER CLUTCH INNER TUBE	5.50
31	10DQL	STAR DRAG PLATE	3.85
32	10JB0	DRAG CLICK SILRATCHET	2.75
33	10DQJ	STAR DRAG WASHER	6.05
34	10C0T	DRAG CLICK PIN	2.75
35	10J8A	DRAG CLICK SPRING	1.65
36	10J87	DRAG SPRING HOLDER	1.65
38	10DQK	STAR DRAG WASHER	6.05
39	10D73	STOPPER GEAR	6.05
41	10JDY	WORM SHAFT GEAR SPRING	1.65
42	10HJG	WORM SHAFT GEAR PINS	1.65
43	10J47	WORM SHAFT GEAR	2.75
44	10S57	FIXING BOLT	1.65
45	109T1	DRIVE GEAR SHAFT FIXING PLATE	2.75
46	10G6D	WASHER	1.65
47	105NK	E TYPE RETAINING RING 2.5	1.10
49	10MPD	FIXING BOLT	1.10
50	10FJB	LEVEL WINDING RECEIVING PLATE	1.65
51	104TX	WORM SHAFT PIN	1.10
52	10BHQ	WORM SHAFT PIN	2.75
53	108WQ	O-RING	1.65
54	10NVR	LEVEL WINDING ASSEMBLY	9.35
55	10FNV	WORM SHAFT GEAR	2.75
56	10AEZ	WORM SHAFT PIN	1.10
57	10TPP	WORM SHAFT	6.05
58	10R10	LEVEL-WIND PIPE	1.65
60	10487	CLUTCH YOKE SPRING	1.10
62	10LVE	FIXING BOLT	1.10
63	10F3X	CLUTCH CAM PUSH PLATE	3.85
68	103C0	FIXING BOLT	1.10
69	10EX6	BALL BEARING (8X12X3.5)	7.15
74	10LFL	FIXING BOLT	1.65
75	10QSH	LEVEL WINDING GUIDE	1.65
76	10FJZ	WASHER	1.10
77	105NC	E TYPE STOP RING 2	1.10
78	10GQZ	CLICK SPRING	1.10
79	1055H	FIXING BOLT	1.65
81	10RYX	BODY B CAM LEVER PUSH PLATE	1.65
82	10TM7	O RING	1.65
83	10MD0	SPOOL CLUTCH PIN *Cannot be ordered	1.65
84	148JL	SPOOL ASSEMBLY	124.30
85	10TNZ	FIXING BOLT	1.65
86	148JQ	BRAKE FIXING PLATE	2.75
87	10DPG	MAGNET HOLDER ASSEMBLY	11.55
88	10TM9	BRAKE COIL SPRING	1.65
90	1085H	MECHANICAL BRAKE WASHER	1.10
91	1055J	FIXING BOLT	1.65
94	10DGC	ADJUSTMENT WASHER SET	1.65
95	108WS	O-RING 4X6	1.10
96	10A6K	FIXING BOLT	6.05
97	10R0U	B-RECEIVING ADJUSTING WASHER	1.65
201	1007V	HANDLE FIXING NUT	6.05
202	100DS	STAR DRAG	11.55
203	10A3U	STAR DRAG FIXING NUT	3.85
204	149MJ	BODY A SET	33.00
205	101KN	DRIVE GEAR	22.55
206	13ULP	DRIVE GEAR SHAFT	7.15
207	148JJ	LEVEL WINDING GUARD	4.40
208	101KP	PINION GEAR	11.55
209	10DQC	CLUTCH YOKE	1.65
210	10K0P	CLUTCH CAM	2.75
211	10MME	CLUTCH CLAW	3.85
212	10TMC	CLUTCH CLAW SPRING	1.65
213	10TME	CLUTCH PLATE	4.95
214	10TMU	BODY A SEAT	3.85
215	149MK	FRAME ASSEMBLY	46.20
216	10TMF	CLUTCH LEVER RECEIVER (B)	1.65
217	10TMD	CLUTCH LEVER	6.05
218	1019C	BODY B CAM LEVER	2.75
219	101CM	BRAKE MOUNTING BASE	2.75
220	101KL	FRAME B RECEIVER	17.05
221	1019A	BR KNOB	2.75
222	148JP	BODY B	7.70
223	149ML	BODY B ASSEMBLY	64.35
