[SHIMANO] Genuine Spare Parts for 25SLX BFS XG RIGHT Product code: 048189 **Back-order (Shipping in 3-4 weeks after receiving order)

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.

- We don't accept order cancellations, changes, or refunds after an order unless the products you ordered are not available because SHIMANO/DAIWA Japan doesn't accept our cancellations.



*Please make sure to read about the conditions before you order.

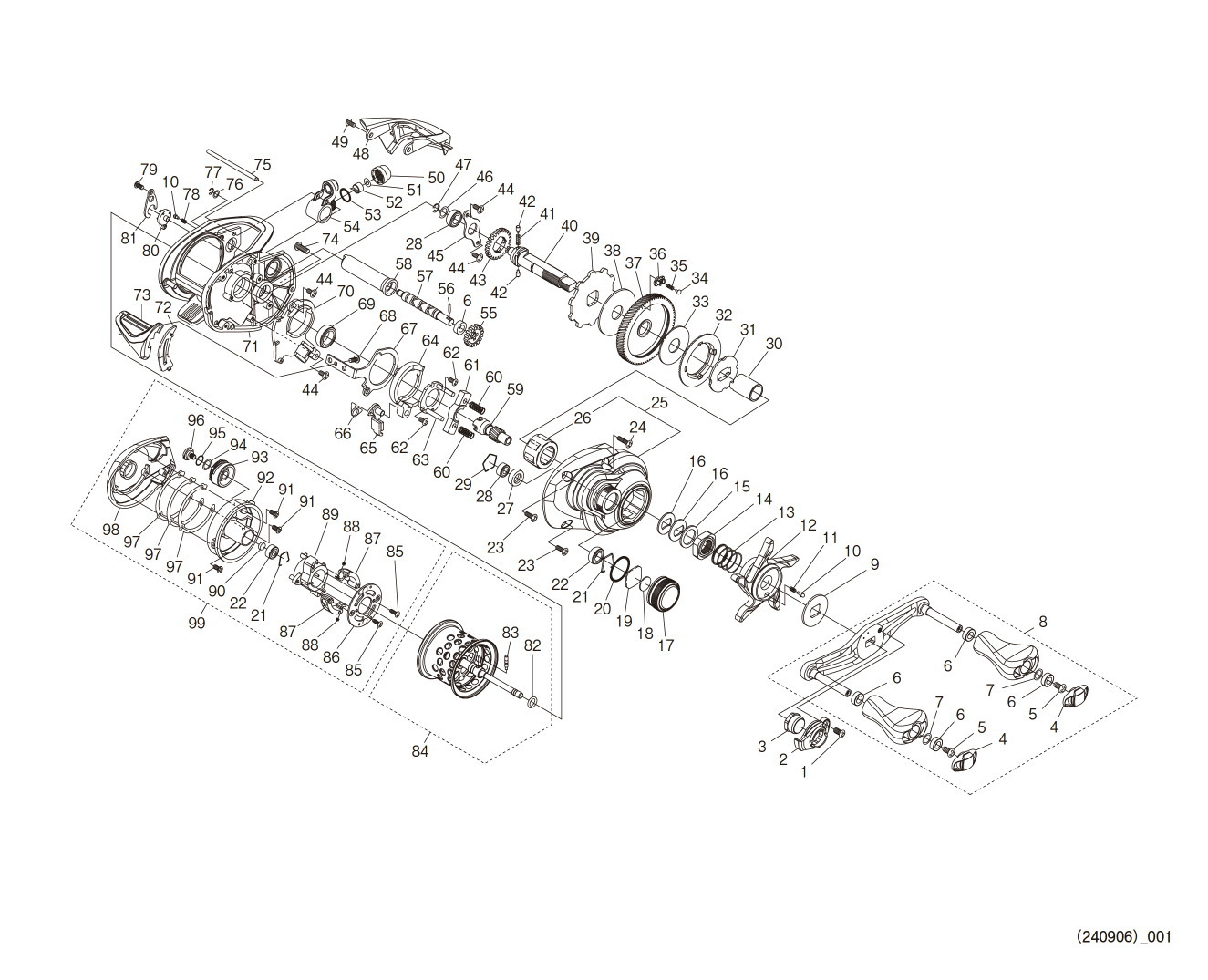

Reel Part's Schematic Diagram

* Circled figures indicate bearings.
* As for the "26 / ROLLER CLUTCH" and "83 /SPOOL CLUTCH PIN, they don't sell separately.
These parts are supposed to be provided when customers send the reel to have it repaired or overhauled.
So we cannot provide you with the products unfortunately.
* Please note disassembly is at your own risk.

No.	S Part No.	Description	Price (USD)
1	10DV5	FIXING BOLT	1.10
2	10Q5T	RETAINER	3.85
3	1013J	HANDLE FIXING NUT	6.05
4	10FMJ	HANDLE CAP	2.75
5	103E9	FIXING BOLT	1.10
6	10PXZ	HANDLE KNOB BUSH	1.65
7	104FH	WASHER	2.20
8	148JA	HANDLE ASSEMBLY	50.60
9	10J22	STAR DRAG CLICK PLATE RETAINER	1.65
10	10MFC	CLICK PIN	1.65
11	10BT2	CLICK SPRING	1.65
12	100HF	STAR DRAG	11.55
13	10A70	STAR DRAG SPRING	2.75
14	10A3T	STAR DRAG FIXING NUT	3.85
15	10J1P	STAR DRAG SPACER	2.75
16	109F5	DRIVE GEAR WASHER	1.65
17	148JE	MECHANICAL BRAKE KNOB	11.00
18	10896	MECHANICAL BRAKE WASHER	1.10
19	1085F	MECHANICAL BRAKE WASHER	1.10
20	10R22	O-RING	1.65
21	101V5	BEARING RETAINING CLAMP	1.65
22	10KDE	BALL BEARING (3X7X3)	13.75
23	10MPV	FIXING BOLT	1.10
24	10LCW	THUMB REST FIXING BOLT	1.10
25	149MF	BODY A SET	33.00
26	10F5D	ROLLER CLUTCH BEARING A-RB *Cannot be ordered	17.05
27	101V3	BEARING SPACER SEAT	2.75
28	105BP	BALL BEARING (5X9X3)	13.75
29	101V6	BEARING STOPPER	1.65
30	10E4S	ROLLER CLUTCH INNER TUBE	5.50
31	10DQL	STAR DRAG PLATE	3.85
32	10JB0	DRAG CLICK SILRATCHET	2.75
33	10DQJ	STAR DRAG WASHER	6.05
34	10C0T	DRAG CLICK PIN	2.75
35	10J8A	DRAG CLICK SPRING	1.65
36	10J87	DRAG SPRING HOLDER	1.65
37	101KM	DRIVE GEAR	22.55
38	10DQK	STAR DRAG WASHER	6.05
39	10D73	STOPPER GEAR	6.05
40	13ULQ	DRIVE GEAR SHAFT	7.70
41	10JDY	WORM SHAFT GEAR SPRING	1.65
42	10HJG	WORM SHAFT GEAR PINS	1.65
43	10J47	WORM SHAFT GEAR	2.75
44	10S57	FIXING BOLT	1.65
45	109T1	DRIVE GEAR SHAFT FIXING PLATE	2.75
46	10G6D	WASHER	1.65
47	105NK	E TYPE STOP RING 2.5	1.10
48	148JY	LEVEL WINDING GUARD	4.40
49	10MPD	FIXING BOLT	1.10
50	10FJB	LEVEL WINDING RECEIVER	1.65
51	104TX	WASHER	1.10
52	10BHQ	WORM SHAFT PIN	2.75
53	108WQ	O-RING	1.65
54	10NVR	LEVEL WINDING ASSEMBLY	9.35
55	10FNV	WORM SHAFT GEAR	2.75
56	10AEZ	WORM SHAFT PIN	1.10
57	10TPP	WORM SHAFT	6.05
58	10R10	LEVEL WINDING PIPE	1.65
59	1026T	PINION GEAR	11.55
60	10487	CLUTCH YOKE SPRING	1.10
61	10TMB	CLUTCH YOKE	1.65
62	10LVE	FIXING BOLT	1.10
63	10F3X	CLUTCH CAM PUSH PLATE	3.85
64	10K0N	CLUTCH CAM	2.75
65	10MME	CLUTCH CLAW	3.85
66	10R1H	CLUTCH CLAW SPRING	1.65
67	10QZV	CLUTCH PLATE	4.95
68	103C0	FIXING BOLT	1.10
69	10EX6	BALL BEARING (8 X 12 X 3.5)	7.15
70	10R09	BODY A SEAT	3.85
71	149MG	FRAME ASSEMBLY	46.20
72	10QZW	CLUTCH LEVER RECEIVER (B)	1.65
73	10R1J	CLUTCH LEVER	6.05
74	10LFL	FIXING BOLT	1.65
75	10QSH	LEVEL-WIND GUIDE	1.65
76	10FJZ	WASHER	1.10
77	105NC	E TYPE STOP RING 2	1.10
78	10GQZ	CLICK SPRING	1.10
79	1055H	FIXING BOLT	1.65
80	1019B	BODY B CAM LEVER	2.75
81	10RYX	BODY B CAM LEVER PUSH PLATE	1.65
82	10TM7	O RING	1.65
83	10MD0	SPOOL CLUTCH PIN *Cannot be ordered	1.65
84	148JL	SPOOL ASSEMBLY	124.30
85	10TNZ	FIXING BOLT	1.65
86	148JQ	BRAKE FIXING PLATE	2.75
87	10DPG	MAGNET HOLDER ASSEMBLY	11.55
88	10TM9	BRAKE COIL SPRING	1.65
89	101CJ	BRAKE MOUNTING STAND	2.75
90	1085H	MECHANICAL BRAKE WASHER	1.10
91	1055J	FIXING BOLT	1.65
92	101V4	FRAME B HOLDER	17.05
93	10199	BR KNOB	2.75
94	10DGC	ADJUSTMENT WASHER SET	1.65
95	108WS	O-RING 4X6	1.10
96	10A6K	FIXING BOLT	6.05
97	10R0U	ADJUSTMENT WASHER FOR FRAME B	1.65
98	148JV	BODY B	7.70
99	149MH	BODY B SET	64.35
