[SHIMANO] Genuine Spare Parts for 25 ANTARES 101XG LEFT Product code: 047779 **Back-order (Shipping in 3-4 weeks after receiving order)

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.

- We don't accept order cancellations, changes, or refunds after an order unless the products you ordered are not available because SHIMANO/DAIWA Japan doesn't accept our cancellations.



*Please make sure to read about the conditions before you order.

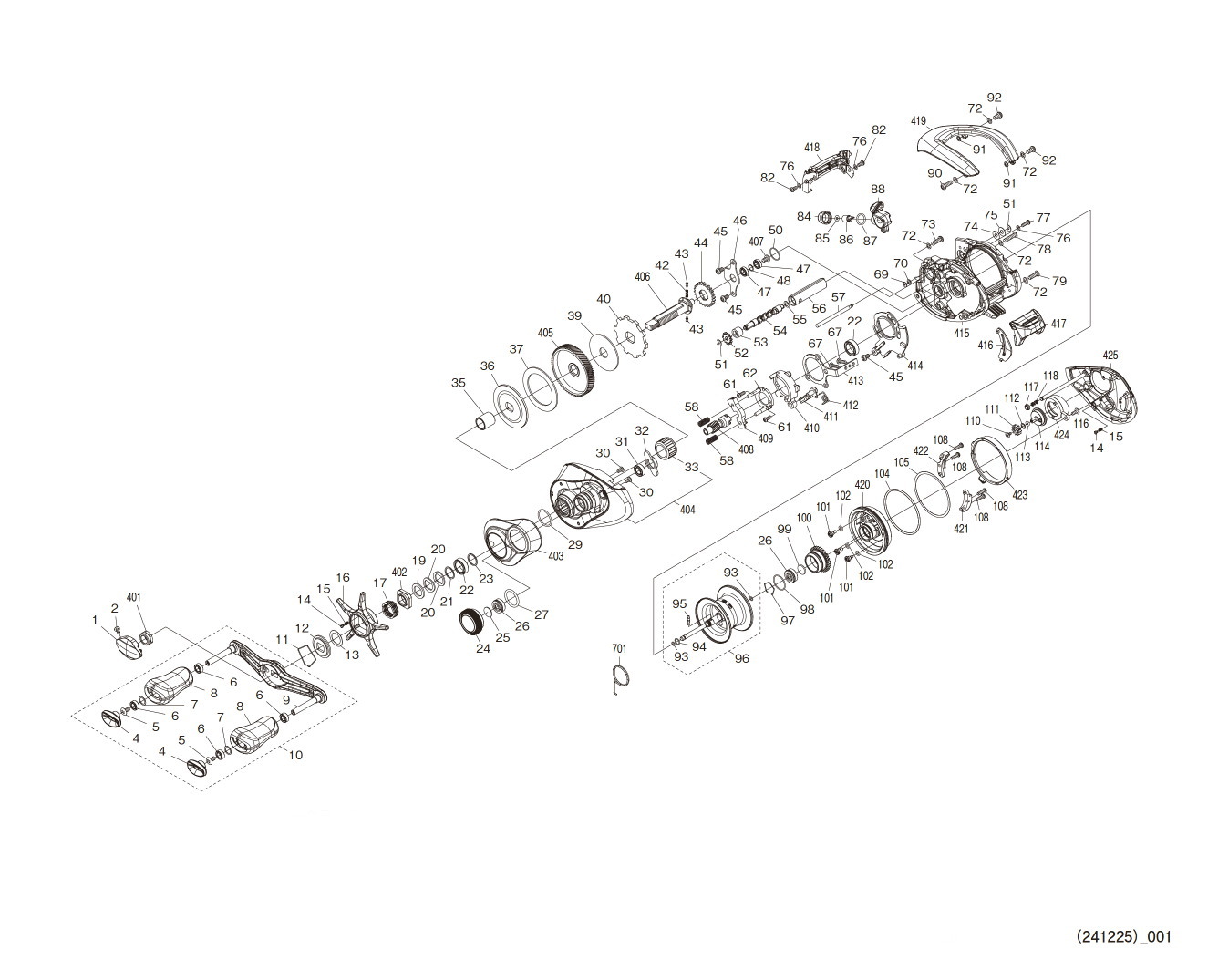

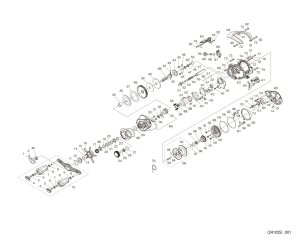

Reel Part's Schematic Diagram

* Circled figures indicate bearings.
* As for the "33 / ROLLER CLUTCH", "95 /SPOOL CLUTCH PIN", "BRKS /BRAKE SHOE S" and "BST1 /BRAKE SHAFT", they don't sell separately.
These parts are supposed to be provided when customers send the reel to have it repaired or overhauled.
So we cannot provide you with the products unfortunately.
* Please note disassembly is at your own risk.

No.	S Part No.	Description	Price (USD)
1	14744	RETAINER	7.70
2	10RNG	FIXING BOLT	1.65
4	1472W	HANDLE CAP	4.40
5	103E9	FIXING BOLT	1.10
6	104VX	BALL BEARING (4X7X2.5)	13.75
7	104FH	WASHER	2.20
8	1472U	HANDLE KNOB	11.55
9	14A0F	HANDLE SHAFT ASSEMBLY	55.00
10	14A0G	HANDLE ASSEMBLY	110.00
11	10KXV	STAR DRAG CLICK PLATE RETAINER	1.65
12	10J1Y	STAR DRAG CLICK PLATE	1.65
13	148TE	WASHER	1.10
14	10B27	CLICK PIN	1.65
15	10988	CLICK SPRING	1.65
16	146LH	STAR DRAG	30.80
17	10A71	STAR DRAG SPRING	2.75
19	10J1N	STAR DRAG SPACER	1.65
20	10D60	MAIN GEAR WASHER (C)	1.65
21	105PW	STAR DRAG BEARING WASHER	1.10
22	10EX8	BALL BEARING (8X12X3.5)	13.75
23	13ZXU	STAR DRAG BEARING WASHER	1.10
24	146LD	MECHANICAL BRAKE KNOB	33.00
25	1057Q	SPOOL SHAFT CONTACT TALLY (B)	1.10
26	10S37	BALL BEARING (3X10X4)	13.75
27	10LA9	O-RING	1.65
29	1027V	O-RING	1.65
30	1055J	FIXING BOLT	1.65
31	105BP	BALL BEARING (5X9X3)	13.75
32	144NV	STOPPER	1.10
33	1005E	ROLLER CLUTCH *Cannot be ordered	17.05
35	14016	ROLLER CLUTCH INNER TUBE	13.75
36	146LG	STAR DRAG PLATE	3.30
37	1071T	STAR DRAG WASHER	4.95
39	10CJ1	STAR DRAG WASHER	3.85
40	109BB	STOPPER GEAR	6.05
42	10JDX	SPRING FOR WORM SHAFT GEAR	1.65
43	10HJF	PIN FOR WORM SHAFT GEAR	1.65
44	146L8	WORM SHAFT GEAR (A)	2.75
45	10DSZ	FIXING BOLT	1.10
46	146LK	DRIVE GEAR SHAFT FIXING PLATE	2.75
47	10SAM	BALL BEARING (4X7X2)	13.75
48	13PKS	WASHER	1.10
50	10SZ4	O-RING	1.65
51	105NC	E TYPE STOP RING 2	1.10
52	146L2	WORM SHAFT GEAR (C)	2.75
53	13ZTS	WORM SHAFT BUSH	1.65
54	13ZTK	WORM SHAFT	2.75
55	10GHF	WASHER	1.10
56	10NFW	LEVEL-WIND PIPE	1.65
57	1480G	LEVEL-WIND GUIDE	3.85
58	13T1T	CLUTCH YOKE SPRING	1.10
61	101CN	FIXING BOLT	1.65
62	144P7	CLUTCH CAM PUSH PLATE	9.90
67	1055A	FIXING BOLT	1.65
69	105NB	E TYPE STOP RING 1.5	1.10
70	10GA7	WASHER	1.10
72	13PKW	CLUTCH CAM WASHER	1.10
73	10SJV	FIXING BOLT	1.65
74	10E7G	WASHER	1.10
75	13PK5	WASHER	1.10
76	13PKU	WASHER	1.10
77	10LVL	FIXING BOLT	1.10
78	10RL4	FIXING BOLT	1.65
79	101GQ	FIXING BOLT	1.65
82	10U0S	FIXING BOLT	1.10
84	10FJB	LEVEL WINDING RECEIVER	1.65
85	10CFV	WASHER	1.10
86	10211	WORM SHAFT PIN	2.75
87	108WQ	O-RING	1.65
88	14A0L	LEVEL WINDING ASSEMBLY	41.25
90	13JXC	FIXING BOLT	1.10
91	1484Y	WASHER	1.10
92	13JRF	FIXING BOLT	1.10
93	10E7H	O-RING	1.10
94	147G0	O-RING	1.65
95	10MD0	SPOOL CLUTCH PIN *Cannot be ordered	1.65
96	14A0M	SPOOL ASSEMBLY	121.00
97	10GEW	BEARING RETAINING CLAMP	1.10
98	10LA8	O-RING	1.65
99	1057S	SPOOL SHAFT CONTACT (B)	1.10
100	100N4	BRAKE PIPE GEAR ASSEMBLY	13.75
101	10RMF	FIXING BOLT	3.85
102	10E2J	O-RING	1.65
104	144NL	O-RING	1.10
105	147W2	WASHER	1.10
108	10E69	FIXING BOLT	1.10
110	10PRT	FIXING BOLT	1.10
111	14857	BRAKE DIAL GEAR	1.10
112	10SEJ	WASHER	1.10
113	10FMT	O-RING	1.10
114	14A0P	BRAKE DIAL ASSEMBLY	23.10
116	10MPS	FIXING BOLT	1.65
117	10RLZ	BODY B SHAFT GUIDE	1.65
118	148AW	DAMPER SPRING	1.65
401	13V3H	HANDLE FIXING NUT	6.05
402	10A0C	STAR DRAG FIXING NUT	2.75
403	146LY	BODY A NAMEPLATE	16.50
404	14A0U	BODY A ASSEMBLY	137.50
405	13ZTR	DRIVE GEAR	28.05
406	13ULL	DRIVE GEAR SHAFT	13.20
407	10DR5	FIXING BOLT	1.10
408	146LT	PINION GEAR	23.10
409	13T1U	CLUTCH YOKE	1.65
410	10SKS	CLUTCH CAM	2.75
411	105ZV	CLUTCH CLAW	3.85
412	10N1V	CLUTCH CLAW SPRING	1.65
413	13TD6	CLUTCH PLATE	2.20
414	146LZ	BODY A SEAT	3.85
415	14A0V	FRAME ASSEMBLY	143.00
416	146LW	CLUTCH LEVER HOLDER	1.65
417	14A0W	CLUTCH LEVER ASSEMBLY	15.40
418	146LS	LEVEL WIND GUARD	7.70
419	146LM	THUMB REST	69.30
420	14A0X	FRAME B RECEIVER ASSEMBLY	26.95
421	146LQ	FRAME B RECEIVING CAM	2.75
422	146LR	FRAME B CAM (B)	2.75
423	146LL	BODY B CAM LEVER	2.20
424	14A1B	BRAKE DIAL NAMEPLATE	4.40
425	14A0Y	BODY B ASSEMBLY	104.50
701	14A1A	TOOL (FOR DISASSEMBLING HANDLE CAP)	1.65
BRKS	10RC4	BRAKE SHOE S *Cannot be ordered	1.10
BST1	14A60	BRAKE SHAFT *Cannot be ordered	1.10
