[SHIMANO] Genuine Spare Parts for 25 ANTARES 100MG RIGHT Product code: 047724 **Back-order (Shipping in 3-4 weeks after receiving order)

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.

- We don't accept order cancellations, changes, or refunds after an order unless the products you ordered are not available because SHIMANO/DAIWA Japan doesn't accept our cancellations.



*Please make sure to read about the conditions before you order.

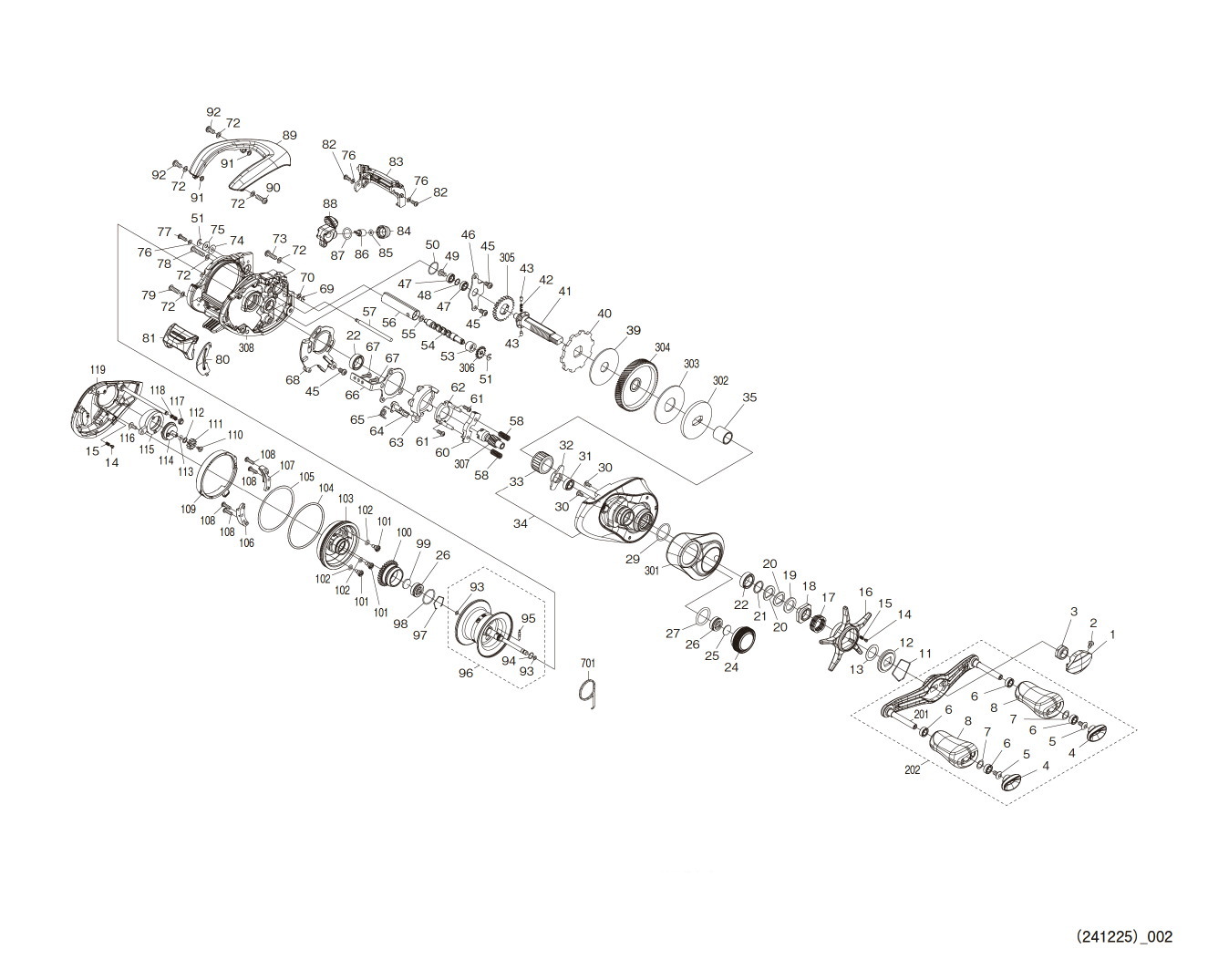

Reel Part's Schematic Diagram

* Circled figures indicate bearings.
* As for the "33 / ROLLER CLUTCH", "95 /SPOOL CLUTCH PIN", "BRKS /BRAKE SHOE S" and "BST1 /BRAKE SHAFT", they don't sell separately.
These parts are supposed to be provided when customers send the reel to have it repaired or overhauled.
So we cannot provide you with the products unfortunately.
* Please note disassembly is at your own risk.

No.	S Part No.	Description	Price (USD)
1	14744	RETAINER	7.70
2	10RNG	FIXING BOLT	1.65
3	10RMH	HANDLE FIXING NUT	6.05
4	1472W	HANDLE CAP	4.40
5	103E9	FIXING BOLT	1.10
6	104VX	BALL BEARING (4X7X2.5)	13.75
7	104FH	WASHER	2.20
8	1472U	HANDLE KNOB	11.55
11	10KXV	STAR DRAG CLICK PLATE RETAINER	1.65
12	10J1Y	STAR DRAG CLICK PLATE	1.65
13	148TE	WASHER	1.10
14	10B27	CLICK PIN	1.65
15	10988	CLICK SPRING	1.65
16	146LH	STAR DRAG	30.80
17	10A71	STAR DRAG SPRING	2.75
18	10A0B	STAR DRAG FIXING NUT	2.75
19	10J1N	STAR DRAG SPACER	1.65
20	10D60	MAIN GEAR WASHER (C)	1.65
21	105PW	STAR DRAG BEARING WASHER	1.10
22	10EX8	BALL BEARING (8 X12 X3.5)	13.75
24	146LD	MECHANICAL BRAKE KNOB	33.00
25	1057Q	SPOOL SHAFT CONTACT TALLY (B)	1.10
26	10S37	BALL BEARING (3X10X4)	13.75
27	10LA9	O-RING	1.65
29	1027V	O-RING	1.65
30	1055J	FIXING BOLT	1.65
31	105BP	BALL BEARING (5X9X3)	13.75
32	144NV	STOPPER	1.10
33	1005E	ROLLER CLUTCH *Cannot be ordered	17.05
34	14A0H	BODY A ASSEMBLY	137.50
35	14016	ROLLER CLUTCH INNER TUBE	13.75
39	10CJ1	STAR DRAG WASHER	3.85
40	109BB	STOPPER GEAR	6.05
41	10T7U	DRIVE GEAR SHAFT	13.20
42	10JDX	WORM SHAFT GEAR SPRING	1.65
43	10HJF	PIN FOR WORM SHAFT GEAR	1.65
45	10DSZ	FIXING BOLT	1.10
46	146LK	FIXING PLATE FOR DRIVE GEAR SHAFT	2.75
47	10SAM	BALL BEARING (4X7X2)	13.75
48	13PKS	WASHER	1.10
49	10DR4	FIXING BOLT	1.10
50	10SZ4	O-RING	1.65
51	105NC	E TYPE STOP RING 2	1.10
53	13ZTS	WORM SHAFT BUSHING	1.65
54	13ZTK	WORM SHAFT	2.75
55	10GHF	WASHER	1.10
56	10NFW	LEVEL-WIND PIPE	1.65
57	1480G	LEVEL-WIND GUIDE	3.85
58	13T1T	CLUTCH YOKE SPRING	1.10
60	13T1S	CLUTCH YOKE	1.65
61	101CN	FIXING BOLT	1.65
62	144P7	CLUTCH CAM PUSH PLATE	9.90
63	10SX6	CLUTCH CAM	2.75
64	105ZU	CLUTCH CLAW	3.85
65	10N1Z	CLUTCH CLAW SPRING	1.10
66	13TD4	CLUTCH PLATE	2.20
67	1055A	FIXING BOLT	1.65
68	146LF	BODY A SEAT	3.85
69	105NB	E TYPE STOP RING 1.5	1.10
70	10GA7	CLUTCH WASHER	1.10
72	13PKW	CLUTCH PLATE	1.10
73	10SJV	FIXING BOLT	1.65
74	10E7G	WASHER	1.10
75	13PK5	WASHER	1.10
76	13PKU	WASHER	1.10
77	10LVL	FIXING BOLT	1.10
78	10RL4	FIXING BOLT	1.65
79	101GQ	FIXING BOLT	1.65
80	146LB	CLUTCH LEVER ASSEMBLY	1.65
81	14A0K	CLUTCH LEVER ASSEMBLY	15.40
82	10U0S	FIXING BOLT	1.10
83	146L3	LEVEL WINDING GUARD	7.70
84	10FJB	LEVEL WINDING RECEPTACLE	1.65
85	10CFV	WASHER	1.10
86	10211	WORM SHAFT PIN	2.75
87	108WQ	O-RING	1.65
88	14A0L	LEVEL WINDING ASSEMBLY	41.25
89	146KU	THUMB REST	69.30
90	13JXC	FIXING BOLT	1.10
91	1484Y	WASHER	1.10
92	13JRF	FIXING BOLT	1.10
93	10E7H	O-RING	1.10
94	147G0	O-RING	1.65
95	10MD0	SPOOL CLUTCH PIN *Cannot be ordered	1.65
96	14A0M	SPOOL ASSEMBLY	121.00
97	10GEW	BEARING RETAINING CLAMP	1.10
98	10LA8	O-RING	1.65
99	1057S	SPOOL SHAFT CONTACT (B)	1.10
100	100N4	BRAKE PIPE GEAR ASSEMBLY	13.75
101	10RMF	FIXING BOLT	3.85
102	10E2J	O-RING	1.65
103	14A0N	FRAME B RECEIVER ASSEMBLY	26.95
104	144NL	O-RING	1.10
105	147W2	WASHER	1.10
106	146KX	FRAME B BEARING CAM	2.75
107	146KY	FRAME B CAM (B)	2.75
108	10E69	FIXING BOLT	1.10
109	146KS	BODY B CAM LEVER	2.20
110	10PRT	FIXING BOLT	1.10
111	14857	BRAKE DIAL GEAR	1.10
112	10SEJ	WASHER	1.10
113	10FMT	O-RING	1.10
114	14A0P	BRAKE DIAL ASSEMBLY	23.10
115	146KT	BRAKE DIAL NAMEPLATE	4.40
116	10MPS	FIXING BOLT	1.65
117	10RLZ	BODY B SHAFT GUIDE	1.65
118	148AW	DAMPER SPRING	1.65
119	14A0Q	BODY B ASSEMBLY	104.50
201	14A0E	HANDLE SHAFT ASSEMBLY	55.00
202	14A0R	HANDLE ASSEMBLY	110.00
301	146KE	BODY A NAMEPLATE	16.50
302	13UXZ	STAR DRAG PLATE	3.30
303	10RWJ	STAR DRAG WASHER	9.35
304	10CR8	DRIVE GEAR	28.05
305	10057	WORM SHAFT GEAR	2.75
306	10FNX	WORM SHAFT GEAR	2.75
307	146KD	PINION GEAR	23.10
308	14A0T	FRAME ASSEMBLY	143.00
701	14A1A	TOOL (FOR DISASSEMBLING HANDLE CAP)	1.65
BRKS	10RC4	BRAKE SHOE S *Cannot be ordered	1.10
BST1	14A60	BRAKE SHAFT *Cannot be ordered	1.10
