[SHIMANO] Genuine Spare Parts for 17 OCEA JIGGER 1500PG Product code: 036698 **Back-order (Shipping in 3-4 weeks after receiving order)

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship this item after you order unless we have in stock at the time of your order.

- We don't accept order cancellations, changes, or refunds after an order unless the products you ordered are not available because SHIMANO/DAIWA Japan doesn't accept our cancellations.



*Please make sure to read about the conditions before you order.


- Genuine Spool Purchase

* If you just want the genuine spool (No.72 / Spool Unit), you can purchase it from the following link without waiting for weeks if it's in our stock now.
https://www.hedgehog-studio.co.jp/product/4287

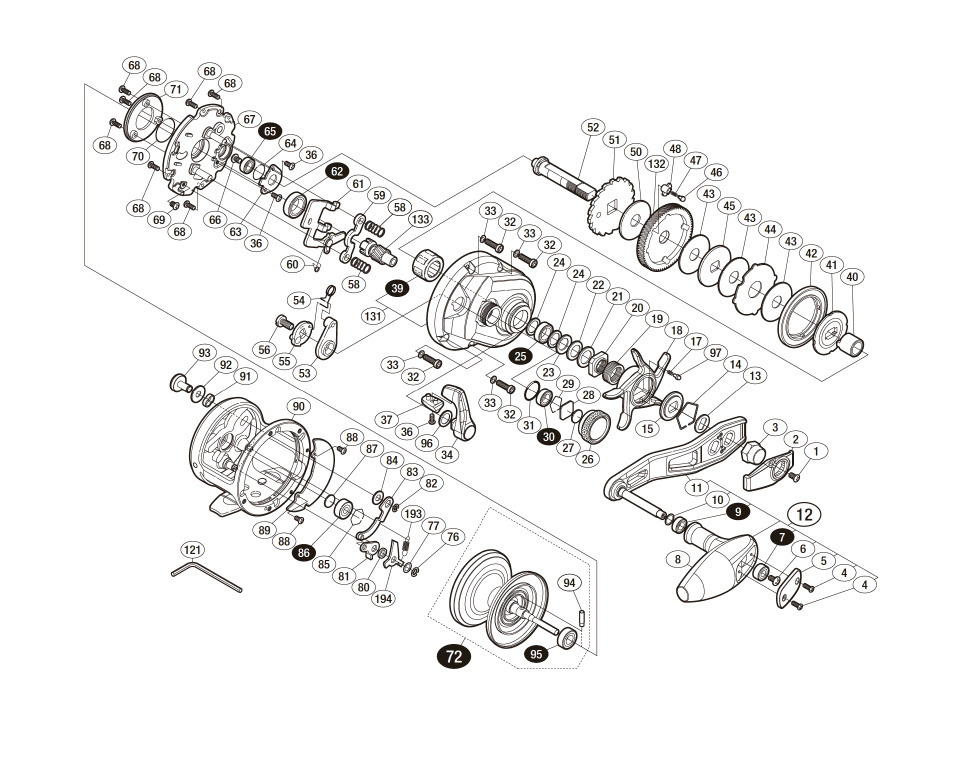

Reel Part's Schematic Diagram

* Circled figures indicate bearings.
* As for the "39 / ROLLER CLUTCH", "94 / SPOOL CLUTCH PIN"and "95 / BALL BEARING", they don't sell separately.
These parts are supposed to be provided when customers send the reel to have it repaired or overhauled.
So we cannot provide you with the products unfortunately.
* Please note disassembly is at your own risk.

No.	S Part No.	Description	Price (USD)
1	101AA	FIXING BOLT	1.65
2	10SZ6	RETAINER	2.75
3	10Q1L	HANDLE FIXING NUT	6.05
4	103NH	FIXING BOLT	1.10
5	10TNM	HANDLE KNOB NAMEPLATE	2.75
6	103E9	FIXING BOLT	1.10
7	10KX2	BALL BEARING (4X9X4)	13.75
8	10SZH	HANDLE KNOB	45.10
9	105BP	BALL BEARING (5X9X3)	13.75
10	104FH	WASHER	2.20
11	10ED6	HANDLE	112.20
12	10SB2	HANDLE ASSEMBLY	168.30
13	107QM	HANDLE HOLDER WASHER	1.10
14	10KXV	STAR DRAG CLICK PLATE RETAINER	1.65
15	10J1Y	STAR DRAG CLICK PLATE	1.65
17	10988	CLICK SPRING	1.65
18	10SZX	STAR DRAG	22.55
19	10A78	STAR DRAG SPRING	2.75
20	10A3V	STAR DRAG FIXING NUT	3.85
21	10J1N	STAR DRAG SPACER	1.65
22	10EW3	DISK SPRING (DB8L)	1.65
23	1052E	DOWEL SPRING (DB8H)	1.65
24	10J4J	WASHER	1.10
25	105BS	BALL BEARING (8X12X3.5)	13.75
26	10SZY	MECHANICAL BRAKE KNOB	17.05
27	10896	MECHANICAL BRAKE WASHER	1.10
28	1085F	MECHANICAL BRAKE WASHER	1.10
29	10GEW	BEARING PULL-OUT STOPPER	1.10
30	104JT	BALL BEARING (6X10X3)	13.75
31	10LAF	O-RING	1.65
32	10SZN	FIXING BOLT	1.65
33	10J4B	CLUTCH WASHER	1.65
34	10SB3	CLUTCH LEVER ASSEMBLY	22.55
36	10LVJ	FIXING BOLT	1.10
37	10SZU	CLUTCH LEVER PROTECTOR	1.65
39	10F3D	ROLLER CLUTCH *Cannot be ordered	17.05
40	10BPF	INNER TUBE	6.05
41	10SZG	STAR DRAG PLATE	3.85
42	10SZ9	DRAG CLICK SYLLATIC RATCHET	3.85
43	10L8H	STAR DRAG WASHER	6.05
44	10SZS	STAR DRAG WASHER	1.65
45	10SZ7	STAR DRAG WASHER	1.65
46	10C0S	DRAG CLICK PINE	2.75
47	10J89	DRAG CLICK SPRING	1.65
48	10SZP	DRAG SPRING HOLDER	1.65
50	10CLY	STAR DRAG WASHER	9.35
51	10A2Q	STOPPER GEAR ASSEMBLY	3.85
52	10SZ5	DRIVE GEAR SHAFT	13.75
53	10L2B	CLUTCH CAM COLLAR	3.85
54	10JYZ	CLUTCH LEVER SPRING	1.65
55	1084J	CLUTCH CAM	3.85
56	10F8M	CLUTCH SWITCHING LEVER FIXING BOLT	2.75
58	104C3	CLUTCH YOKE SPRING	1.65
59	10484	CLUTCH YOKE	2.75
60	10QCU	CLUTCH CLAW SPRING	1.65
61	10MU7	CLUTCH LEVER PLATE ASSEMBLY	9.35
62	10KX7	BALL BEARING (10X15X4)	13.75
63	10SZR	DRIVE GEAR SHAFT FIXING PLATE	1.65
64	10SZ4	O-RING	1.65
65	105BV	BALL BEARING (5X9X3)	13.75
66	10PVT	FIXING BOLT	1.65
67	10SZE	MAIN UNIT FIXING PLATE	34.10
68	101AN	FIXING BOLT	1.10
69	10MPG	FIXING BOLT	1.10
70	108WF	O-RING	1.10
71	10SZC	DRAINAGE PLATE	1.65
72	10TDF	SPOOL ASSEMBLY (WITH BEARINGS)	73.15
76	105NE	E-TYPE RETAINING RING 3	1.10
77	10G6E	WASHER	1.10
80	10907	F STOPPER RECEIVER	1.65
81	108SH	F STOPPER LEVER	2.75
82	105NK	TYPE E STOPPER RING 2.5	1.10
83	10NL9	F STOPPER LINK	2.75
84	10GA5	F STOPPER LINK	1.10
85	10GGM	BEARING PULL-OUT STOPPER	1.10
86	10KAF	BALL BEARING (4 X 11 X 4)	13.75
87	1057Q	SPOOL SHAFT CONTACT (B)	1.10
88	10LVF	FIXING BOLT	1.10
89	10SZW	BODY FIXING PLATE NAMEPLATE	6.05
90	10ED5	FRAME	134.75
91	104MS	CLICK BEARING KE	1.65
92	104H2	CLICK BUTTON WASHER (A)	1.10
93	108W2	F STOPPER KNOB	3.85
94	10RAK	SPOOL CLUTCH PIN *Cannot be ordered	1.65
95	108PE	BALL BEARING (6 X 12 X 4) *Cannot be ordered	13.75
96	10RJS	WASHER (A)	2.20
97	10B27	CLICK PIN	1.65
121	10SY5	REEL WRENCH	1.65
131	100SS	MAIN BODY A SET	90.20
132	10SZ8	DRIVE GEAR	22.55
133	10SZB	PINION GEAR	17.05
193	10S2W	STOPPER CLAW SPRING	1.65
194	1000V	F STOPPER CLAW	1.65
