[DAIWA] Genuine Spare Parts for 24 SEABORG 100J Product code: 00810045 **Back-order (Shipping in 3-4 weeks after receiving order)

[DAIWA] Genuine Spare Parts for 24 SEABORG 100J Product code: 00810045 **Back-order (Shipping in 3-4 weeks after receiving order)

Our Selling Price: US$0.77 - US$234.85 [Regular Price: US$1.10 - US$335.50]

Prices vary according to options.

View availability
Part Number:
Quantity:
Return & Exchange Policy
Contact Us

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship this item after you order unless we have in stock at the time of your order.

- We don't accept order cancellations, changes, or refunds after an order unless the products you ordered are not available because SHIMANO/DAIWA Japan doesn't accept our cancellations.



*Please make sure to read about the conditions before you order.

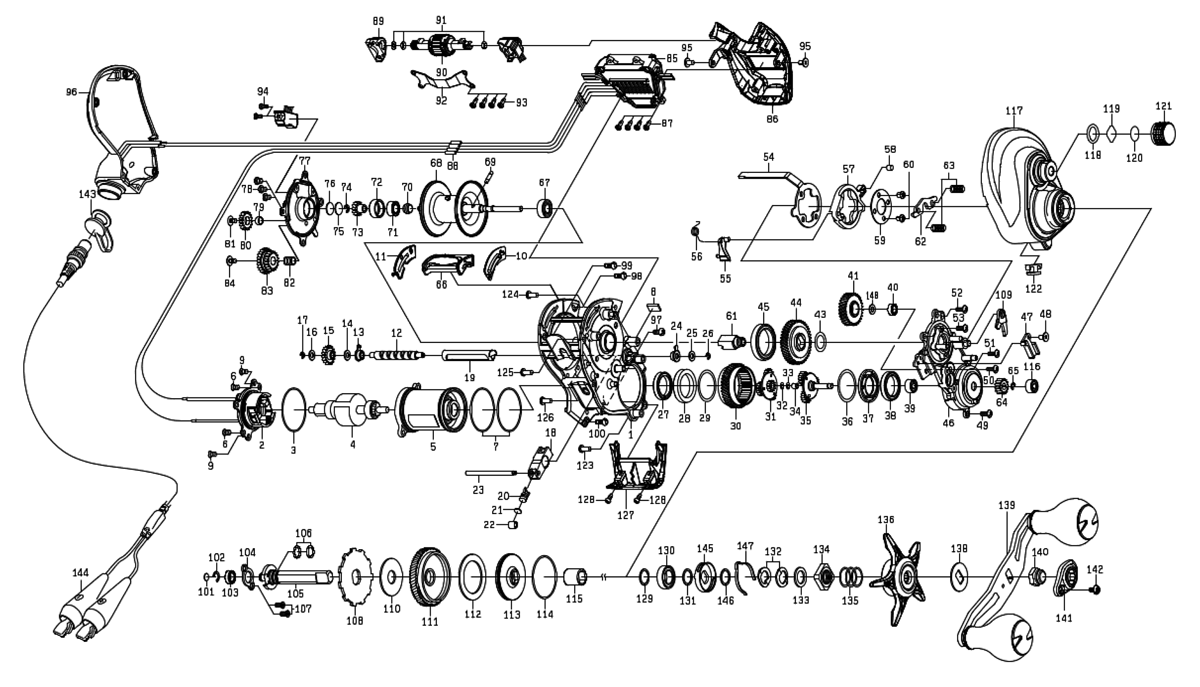

　Reel Part's Schematic Diagram



No. Part Name Part Code Price (USD)
1 FRAME *Not available 6M535401 60.50
2 MOTOR HOLDER *Not available 6Z027504 86.90
3 MOTOR HOLDER O-RING 6M554301 1.10
4 MOTOR CASE *Not available 6Z027506 72.60
5 MOTOR CASE *Not available 6M554201 74.80
6 MOTOR HOLDER SC (A) 6B557601 2.20
7 MOTOR CASE O-RING 6M379701 1.10
8 CUSHION SHEET 6M730901 2.20
9 MOTOR HOLDER SC (B) 6B557601 2.20
10 CLUTCH PLATE (R) 6M535501 2.20
11 CLUTCH PLATE (L) 6M554501 2.20
12 WORM SHAFT 6M535801 15.40
13 WORM SHAFT COLLAR (A) 6G925601 2.20
14 WORM SHAFT W (A) 6F889103 1.10
15 WORM SHAFT GEAR (A) 6M260901 4.40
16 WORM SHAFT W (B) 6F889103 1.10
17 WORM SHAFT RETAINER (A) 6B864101 2.20
18 LEVEL WINDING 6H515102 11.00
19 WORM SHIELD 6M535701 5.50
20 POLE 6F859401 4.40
21 POLE W 6G099801 1.10
22 LEVEL WIND POST COLOR 6H724201 2.20
23 LEVEL WIND POST 6M535901 2.20
24 WORM SHAFT COLLAR (B) 6G925601 2.20
25 WORM SHAFT W (C) 6F889103 1.10
26 WORM SHAFT RETAINER (B) 6B864101 2.20
27 MOTOR HOUSE BALL BEARING (A) 6G370701 15.40
28 MOTOR HOUSE COLLAR (A) 6M536301 2.20
29 MOTOR HOUSE BEARING W (A) 6M536201 1.10
30 MOTOR HOUSE GEAR (A) 6M536101 52.80
31 MOTOR GEAR (A) 6M536401 29.70
32 MOTOR GEAR (A) W/0.3 6H352803 1.10
33 MOTOR GEAR (A) W/0.1 6H352801 1.10
34 MOTOR GEAR (B) COLLAR 6M536901 2.20
35 MOTOR GEAR (B) 6M537001 34.10
36 MOTOR HOUSE BEARING W (B) 6M536201 1.10
37 MOTOR HOUSE COLLAR (B) 6M537201 2.20
38 MOTOR HOUSE BALL BEARING (B) 6G431008 15.40
39 MOTOR GEAR (B) BALL BEARING 6G281606 15.40
40 RS SET PLATE BALL BEARING 6G469002 8.80
41 SET PLATE GEAR (A) 6M537601 24.20
43 SET PLATE GEAR (B) W 6F366803 1.10
44 SET PLATE GEAR (B) 6M537901 22.00
45 SET PLATE GEAR (B) BALL BEARING 6G055101 8.80
46 RS SET PLATE 6M537301 52.80
47 KICK LEVER PLATE 6M535101 2.20
48 KICK LEVER PLATE SC 6H294101 2.20
49 RS SET PLATE SC 6B557606 2.20
50 RS SET PLATE SC 6B557606 2.20
51 RS SET PLATE SC 6B557606 2.20
52 RS SET PLATE SC 6B557606 2.20
53 RS SET PLATE SC 6B557606 2.20
54 CLUTCH CAM PLATE (A) 6M538001 7.70
55 KICK LEVER 6M535601 7.70
56 KICK LEVER SP 6J407701 2.20
57 CLUTCH CAM 6M538101 6.60
58 CLUTCH CAM MAGNET 6F270901 2.20
59 CLUTCH CAM PLATE (B) 6M538201 2.20
60 CLUTCH CAM PLATE SC 6B557601 2.20
61 SET PLATE GEAR (B) SHAFT 6M538301 12.10
62 CLUTCH PLATE 6M537801 2.20
63 CLUTCH PLATE SP 6M409101 2.20
64 PINION 6M547401 11.00
65 PINION RETAINER 6B339801 2.20
66 CLUTCH LEVER 6M538501 7.70
67 SPOOL BALL BEARING 6G498511 15.40
68 SPOOL 6M538701 52.80
69 SPOOL PIN 6H844704 2.20
70 SPOOL GEAR BELLING COLLAR 6M579301 2.20
71 SPOOL GEAR BALL BEARING *Not available 6J019303 45.10
72 SPOOL GEAR COLLARS 6J169001 3.30
73 SPOOL GEAR 6M539201 3.30
74 SPOOL GEAR RETAINER 6B339801 2.20
75 SPOOL W/0.5 63757413 1.10
76 SPOOL W/0.2 63757412 1.10
77 LS SET PLATE 6M539301 27.50
78 LS SET PLATE SC 6B557601 2.20
79 SET PLATE GEAR (C) COLLAR 6H869601 3.30
80 SET PLATE GEAR (C) 6M263001 3.30
81 SET PLATE GEAR (C) SC 6F505702 2.20
82 SET PLATE GEAR (D) COLLAR 6H869501 4.40
83 SET PLATE GEAR (D) 6M539401 3.30
84 SET PLATE GEAR (D) SC 6F505702 2.20
85 IC MODULE *Not available 6M451601 335.50
86 IC MODULE COVER *Not available 6M539101 42.90
87 IC MODULE SC 6H717101 2.20
88 CORD COVER 6G079503 2.20
89 JOG POWER LEVER HOLDER 6M000801 2.20
90 JOG POWER LEVER *Not available 6M554601 60.50
91 JOG POWER LEVER O-RING 6J037601 1.10
92 JOG POWER LEVER PLATE 6M546601 2.20
93 COVER PLATE SC 6H717101 2.20
94 SENSOR SC 6G299003 2.20
95 IC MODULE COVER SC 6G940409 2.20
96 LS PLATE *Not available 6M546701 72.60
97 LS PLATE SC (A) 6B557610 2.20
98 LS PLATE SC (B) 6B557609 2.20
99 LS PLATE SC (C) 6B557609 2.20
100 LS PLATE SC (D) 6J255202 2.20
101 GEAR SHAFT W 6G099801 1.10
102 GEAR SHAFT BEARING RETAINER 63208002 2.20
103 GEAR SHAFT BALL BEARING 6G466201 15.40
104 GEAR SHAFT PLATE 6J281101 3.30
105 GEAR SHAFTS 6M730801 17.60
106 GEAR SHAFT O-RINGS 6F657801 1.10
107 GEAR SHAFT PLATE SC 6E134514 2.20
108 RATCHET 6M546901 2.20
109 STOPPER 6M003501 6.60
110 DRIVE GEAR W 6E708901 2.20
111 DRIVE GEAR W 6M547001 27.50
112 DRAG W 6H359001 8.80
113 DRAG DISC COLLAR 6M547301 12.10
114 DRAG DISC COLLAR O-RING 6J458101 1.10
115 DRAG COLLAR 6J327701 8.80
116 PINION BALL BEARING 6G281606 15.40
117 RS PLATE 6M547604 72.60
118 MECHANICAL BRAKE O-RING 6J279701 1.10
119 MECHANICAL BRAKE KNOB W (A) 6B175401 1.10
120 MECHANICAL BRAKE KNOB W (B) 6B175503 1.10
121 MECHANICAL BRAKE KNOB 6M547701 8.80
122 LINE STOPPER 6M265401 2.20
123 RS PLATE SC (A) 6B557610 2.20
124 RS PLATE SC (B) 6B557609 2.20
125 RS PLATE SC (C) 6B557609 2.20
126 RS PLATE SC (D) 6B557609 2.20
127 FINGER COVER 6M547801 9.90
128 FINGER COVER SC 6H717101 2.20
129 HANDLE BALL BEARING W 6B553803 1.10
130 HANDLE BALL BEARING 6G431008 15.40
131 DRAG COLLAR W 6B553804 1.10
132 DRAG SP・W 61508901 2.20
133 STAR DRAG W 6H929501 2.20
134 DRAG NUT 6J141001 7.70
135 DRAG NUT SP 6J011901 2.20
136 STAR DRAG 6J140015 18.70
138 HANDLE W 6F576601 1.10
139 HANDLE W 6M554701 111.10
140 HANDLE NUT 6G793318 4.40
141 HANDLE LOCK PLATE 6J625401 4.40
142 HANDLE LOCK PLATE SC 6G835504 2.20
143 CONNECTOR CAP 6F661002 5.50
144 CORD 6M367401 42.90
145 DRAG HOLDER 6F028203 3.30
146 DRAG HOLDER W 6B553803 1.10
147 DRAG HOLDER LEAF SP 6F032401 2.20
148 SET PLATE GEAR (A) W 6B411705 1.10
150 HANDLE KNOB W 6B411703 1.10
151 HANDLE KNOB COLLAR 6G720001 2.20
152 HANDLE KNOB 6M300101 24.20
153 HANDLE KNOB COLLAR 6G720001 2.20
154 HANDLE KNOB SC 6B679308 2.20
155 HANDLE KNOB CAP 6Z027512 17.60
156 HANDLE KNOB CAP O-RING 6H100001 1.10
200 SCREWDRIVER 6H699701 4.40
201 ITO-DOOSHI PIN 6X090801 3.30
202 REEL BUCRO 6X097102 9.90
203 STAND COVER 6H091801 6.60
204 SHIMASAKI GAUGE 6X398501 2.20
205 MANUAL / SEABORG 100J (L) *Not available 199C29 6.60
