[DAIWA] Genuine Spare Parts for 15 RYOGA SHRAPNEL C3000H Product code: 00613630 **Back-order (Shipping in 3-4 weeks after receiving order)

[DAIWA] Genuine Spare Parts for 15 RYOGA SHRAPNEL C3000H Product code: 00613630 **Back-order (Shipping in 3-4 weeks after receiving order)

Our Selling Price: US$0.77 - US$152.46 [Regular Price: US$1.10 - US$217.80]

Prices vary according to options.

View availability
Part Number:
Quantity:
Return & Exchange Policy
Contact Us

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship this item after you order unless we have in stock at the time of your order.

- We don't accept order cancellations, changes, or refunds after an order unless the products you ordered are not available because SHIMANO/DAIWA Japan doesn't accept our cancellations.



*Please make sure to read about the conditions before you order.

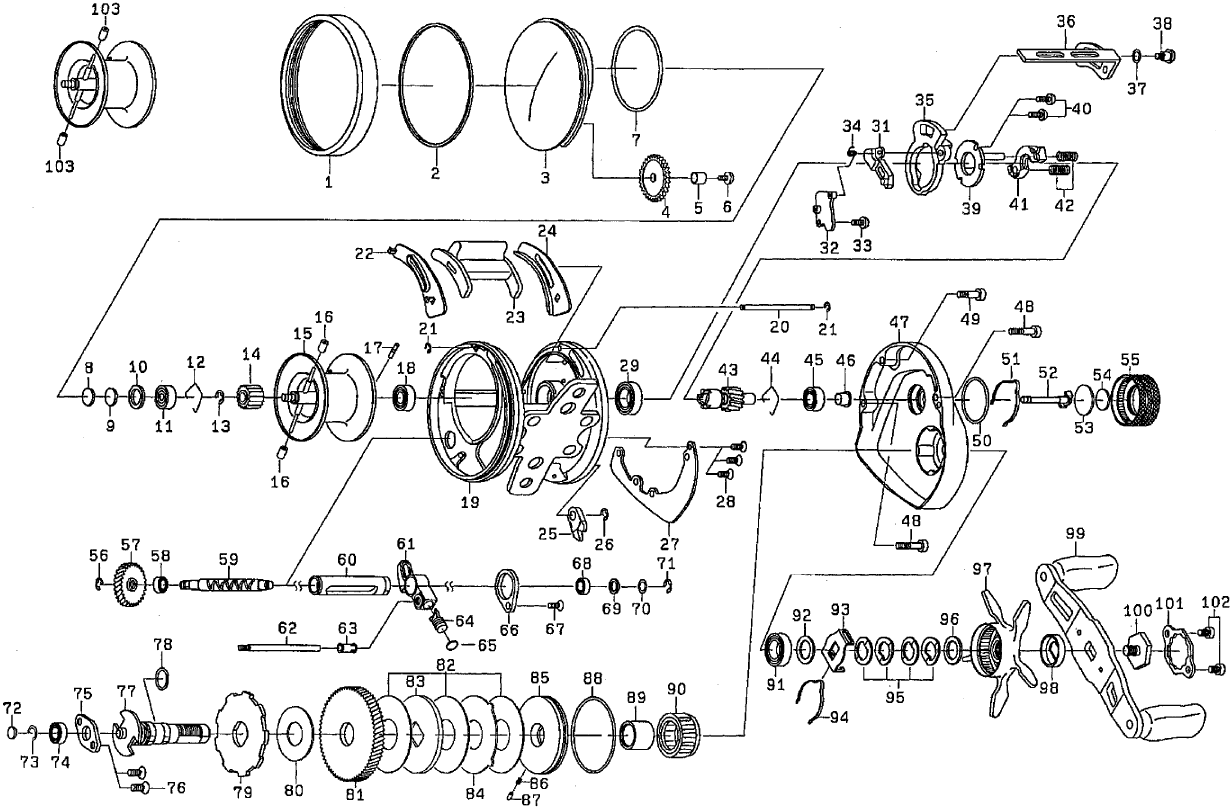

　Reel Part's Schematic Diagram



No. Part Name Part Code Price (USD)
1 LS RING *Discontinued (cannot be ordered) 6H228203 27.50
2 LS PLATE RING *Discontinued (cannot be ordered) 6H448501 2.20
3 LS PLATE 6J071801 91.30
4 LS PLATE GEAR 6H228501 4.40
5 LS PLATE GEAR COLLAR *Discontinued (cannot be ordered) 6H228401 2.20
6 LS PLATE GEAR SC *Discontinued (cannot be ordered) 6H228601 2.20
7 LS PLATE O-RING 6H455301 1.10
8 LS BEARING W (A) 63757404 1.10
9 LS BEARING W (B) 63757411 1.10
10 LS BEARING W (C) 6G185101 1.10
11 LS BALL BEARING 6G511506 15.40
12 LS BEARING RING 6F032201 2.20
13 CLICK GEAR RETAINER 6B339801 2.20
14 CLICK GEAR 6H229401 2.20
15 SPOOL (13-15, 17-18) 6Z021659 121.00
16 BRAKE COLLAR (S) *Discontinued (cannot be ordered) 6J161802 3.30
17 SPOOL PIN 6G717501 2.20
18 SPOOL BALL BEARING 6G498511 15.40
19 FRAME *Discontinued (cannot be ordered) 6J055101 123.20
20 FRAME POST *Discontinued (cannot be ordered) 6J031501 2.20
21 FRAME POST RETAINER 6B864101 2.20
22 CLUTCH LEVER PLATE (L) *Discontinued (cannot be ordered) 6H161201 2.20
23 CLUTCH LEVER *Discontinued (cannot be ordered) 6J031301 6.60
24 CLUTCH LEVER PLATE (R) *Discontinued (cannot be ordered) 6H161101 2.20
25 STOPPER 6H270401 8.80
26 STOPPER HOLD RETAINER 6B339801 2.20
27 RS COVER PLATE *Discontinued (cannot be ordered) 6H270010 9.90
28 COVER PLATE SC 6G159902 2.20
29 CLUTCH BALL BEARING 6G523403 15.40
31 KICK LEVER *Discontinued (cannot be ordered) 6H161301 9.90
32 KICK LEVER PLATE *Discontinued (cannot be ordered) 6H166401 2.20
33 KICK LEVER PLATE SC 6H294101 2.20
34 KICK LEVER SP *Discontinued (cannot be ordered) 6J079301 2.20
35 CLUTCH CAM 6H441001 3.30
36 CLUTCH CAM PLATE (A) *Discontinued (cannot be ordered) 6J031401 4.40
37 CLUTCH CAM PLATE W 6H159201 1.10
38 CLUTCH CAM PLATE SC 6H159301 3.30
39 CLUTCH CAM PLATE (B) 6H266801 9.90
40 CLUTCH CAM PLATE (B) SC 6B032904 2.20
41 CLUTCH PLATE 6H159701 2.20
42 CLUTCH SP 6J142501 2.20
43 PINION + DRIVE GEAR SET 6Z021657 94.60
44 PINION RING 6H160801 2.20
45 PINION BALL BEARING *Discontinued (cannot be ordered) 6F811805 15.40
46 PINION BEARING COLLAR 6H159501 7.70
47 RS PLATE *Discontinued (cannot be ordered) 6H271014 103.40
48 RS PLATE SC (A) *Discontinued (cannot be ordered) 6H160302 2.20
49 RS PLATE SC (B) 6H160102 3.30
50 MECHANICAL BRAKE O-RING 6H157002 1.10
51 MECHANICAL BRAKE SP 6H160901 2.20
52 PINION SHAFT *Discontinued (cannot be ordered) 6H225801 3.30
53 MECHANICAL BRAKE W (A) 6H161001 1.10
54 MECHANICAL BRAKE W (B) 6B175503 1.10
55 MECHANICAL BRAKE KNOB *Discontinued (cannot be ordered) 6J031001 33.00
56 WORM SHAFT RETAINER 6B339801 2.20
57 WORM SHAFT GEAR *Discontinued (cannot be ordered) 6H226501 4.40
58 WORM SHAFT BALL BEARING 6G469009 15.40
59 WORM SHAFT *Discontinued (cannot be ordered) 6J031901 12.10
60 WORM SHIELD *Discontinued (cannot be ordered) 6J031701 8.80
61 LEVEL WIND *Discontinued (cannot be ordered) 6H166502 55.00
62 LEVEL WIND POST SC *Discontinued (cannot be ordered) 6J032001 3.30
63 LEVEL WIND POST COLLAR 6H168701 2.20
64 PAWL 6H168601 15.40
65 PAWL W 6G099801 1.10
66 WORM SHAFT PLATE *Discontinued (cannot be ordered) 6H158101 3.30
67 WORM SHAFT PLATE SC 6G159902 2.20
68 WORM SHAFT BALL BEARING 6G469009 15.40
69 WORM SHAFT W (A)/1.0 6B411711 1.10
70 WORM SHAFT W (A)/0.5 6B411701 1.10
71 WORM SHAFT GEAR RETAINER 63205901 2.20
72 GEAR SHAFT W 6G099801 1.10
73 GEAR SHAFT BEARING RETAINER 63208002 2.20
74 GEAR SHAFT BALL BEARING 6G538007 15.40
75 GEAR SHAFT RETAINER 6H156501 6.60
76 GEAR SHAFT RETAINER SC 6E134501 2.20
77 GEAR SHAFT *Discontinued (cannot be ordered) 6J176401 29.70
78 GEAR SHAFT O-RING 6H156901 1.10
79 RATCHET 6H312501 4.40
80 RATCHET W *Discontinued (cannot be ordered) 6H359401 4.40
81 PINION + DRIVE GEAR SET 6Z021657 94.60
82 DRAG W *Discontinued (cannot be ordered) 6H227101 9.90
83 DRAG DISC W 6H359301 3.30
84 DRAG LIP W 6H227301 2.20
85 DRIVE COLLAR 6H384601 17.60
86 DRIVE COLLAR SP *Discontinued (cannot be ordered) 6H157401 2.20
87 DRIVE COLLAR PIN 6H157301 2.20
88 DRIVE COLLAR O-RING 6H183401 1.10
89 CLUTCH RING *Discontinued (cannot be ordered) 6H384701 16.50
90 ONE-WAY CLUTCH 6F552703 24.20
91 HANDLE BALL BEARING 6G523403 15.40
92 HANDLE BEARING W 63737810 1.10
93 DRAG HOLDER 6H158801 2.20
94 DRAG LEAF SP 6H158701 2.20
95 DRAG SP/W 61508901 2.20
96 STAR DRAG W 6G694201 2.20
97 STAR DRAG *Discontinued (cannot be ordered) 6J041805 27.50
98 HANDLE COLLAR 6H326801 3.30
99 HANDLE 6J032301 217.80
100 HANDLE NUT *Discontinued (cannot be ordered) 6J176501 9.90
101 HANDLE LOCK PLATE 6J090201 7.70
102 HANDLE LOCK PLATE SC 6H257001 2.20
103 BRAKE COLLAR (L) *Discontinued (cannot be ordered) 6J161801 3.30
200 HANDLE KNOB W 6B411703 1.10
201 HANDLE KNOB *Discontinued (cannot be ordered) 6J070201 36.30
202 HANDLE KNOB BALL BEARING 6G469009 15.40
203 HANDLE KNOB SC 6B679308 2.20
204 HANDLE KNOB CAP 6J084901 9.90
300 KICK LEVER SP (STRONG) *Repair only (cannot be ordered) 133011 2.20
301 KICK LEVER SP (STRONGEST) *Repair only (cannot be ordered) 133014 2.20
