[DAIWA] Genuine Spare Parts for 00 TD-Z 103H Type R Product code: 00613961 **Back-order (Shipping in 3-4 weeks after receiving order)

[DAIWA] Genuine Spare Parts for 00 TD-Z 103H Type R Product code: 00613961 **Back-order (Shipping in 3-4 weeks after receiving order)

Our Selling Price: US$0.77 - US$73.92 [Regular Price: US$1.10 - US$105.60]

Prices vary according to options.

View availability
Part Number:
Quantity:
Return & Exchange Policy
Contact Us

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.

- We don't accept order cancellations, changes, or refunds after an order unless the products you ordered are not available because SHIMANO/DAIWA Japan doesn't accept our cancellations.



*Please make sure to read about the conditions before you order.

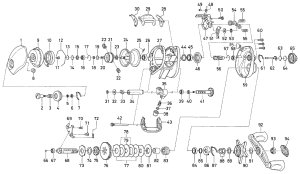

　Reel Part's Schematic Diagram



No. Part Name Part Code Price (USD)
1 LS PLATE *Discontinued (cannot be ordered) 6G036805 24.20
2 BRAKE DIAL SC 6F577901 3.30
3 BRAKE DIAL SP 6E167101 2.20
4 BRAKE DIAL *Discontinued (cannot be ordered) 6F577802 6.60
5 BRAKE DIAL RETAINER (A) 6B339801 2.20
6 BRAKE DIAL COLLAR 6F637701 1.10
7 BRAKE DIAL LEAF SP 6F051701 2.20
8 BRAKE DIAL RETAINER (B) 6F613401 2.20
9 SET PLATE *Discontinued (cannot be ordered) 6G011901 17.60
10 MAG HOLDER 6F717702 17.60
11 MAG HOLDER SC 63510906 2.20
12 MAG HOLDER RING 6B543201 2.20
13 LS BEARING W (A) 63757404 1.10
14 LS BEARING W (B) 63757411 1.10
15 LS BEARING W (C) 6F574303 1.10
16 LS BALL BEARING *Discontinued (cannot be ordered) 6F577703 8.80
17 LS BEARING RING 6E219701 2.20
18 LS BEARING RETAINER 63208202 2.20
19 SPOOL HOLDER W 6G150301 1.10
20 SPOOL HOLDER SP *Discontinued (cannot be ordered) 6F737501 2.20
21 SPOOL HOLDER *Discontinued (cannot be ordered) 6G262201 22.00
22 BALANCER *Discontinued (cannot be ordered) 6F737601 2.20
23 SPOOL W 6F574303 1.10
24 SPOOL (18-26) *Discontinued (cannot be ordered) 6Z017347 94.60
25 SPOOL PIN 6G034101 2.20
26 SPOOL BALL BEARING *Discontinued (cannot be ordered) 6F798403 8.80
27 FRAME *Discontinued (cannot be ordered) 6G528106 70.40
28 CLUTCH LEVER PLATE (R) *Discontinued (cannot be ordered) 6G009301 2.20
29 CLUTCH LEVER *Discontinued (cannot be ordered) 6G009501 7.70
30 CLUTCH LEVER PLATE (L) *Discontinued (cannot be ordered) 6G009401 2.20
31 WORM SHAFT RETAINER 63205901 2.20
32 WORM SHAFT W 6F655501 1.10
33 WORM SHAFT BUSHING 6B715601 2.20
34 WORM SHIELD *Discontinued (cannot be ordered) 6F836501 2.20
35 LEVEL WIND *Discontinued (cannot be ordered) 6G010401 18.70
36 PAWL 61214212 3.30
37 PAWL W *Discontinued (cannot be ordered) 63731302 1.10
38 PAWL HOLDER NUT 63424803 3.30
39 WORM SHAFT BALL BEARING 6F055601 8.80
40 WORM SHAFT COLLAR 6G010701 3.30
41 WORM SHAFT *Discontinued (cannot be ordered) 6G010801 15.40
42 FRONT COVER SC 6G011702 7.70
43 FRONT COVER *Discontinued (cannot be ordered) 6G011605 7.70
44 CLUTCH CAM COLLAR *Discontinued (cannot be ordered) 6F834701 2.20
45 CLUTCH CAM BALL BEARING 6B861702 8.80
46 CLUTCH CAM 6F793501 7.70
47 CLUTCH CAM PLATE *Discontinued (cannot be ordered) 6G009601 6.60
48 CLUTCH CAM SP *Discontinued (cannot be ordered) 6G010101 2.20
50 CLUTCH CAM PLATE SC *Discontinued (cannot be ordered) 6G009701 4.40
51 KICK LEVER *Discontinued (cannot be ordered) 6G009801 3.30
52 KICK LEVER W 63716906 1.10
53 KICK LEVER RETAINER 63201402 2.20
54 CLUTCH PLATE 6F794801 2.20
55 CLUTCH SP *Discontinued (cannot be ordered) 6G047201 2.20
56 PINION *Discontinued (cannot be ordered) 6G010301 8.80
57 PINION RING 6E219701 2.20
58 PINION BALL BEARING 6F055601 8.80
59 RS PLATE *Discontinued (cannot be ordered) 6G280901 105.60
60 RS PLATE SC 6G040801 2.20
61 MECHANICAL BRAKE LEAF SP 6F262701 2.20
62 PINION SHAFT 6G015501 3.30
63 MECHANICAL BRAKE W (A) 6B175401 1.10
64 MECHANICAL BRAKE W (B) 6B175503 1.10
65 MECHANICAL BRAKE KNOB *Discontinued (cannot be ordered) 6F833901 8.80
66 GEAR SHAFT W (A) 6F647201 1.10
67 GEAR SHAFT BALL BEARING 6F055601 8.80
68 GEAR SHAFT *Discontinued (cannot be ordered) 6G009901 23.10
69 GEAR SHAFT RETAINER *Discontinued (cannot be ordered) 6G010001 2.20
70 GEAR SHAFT RETAINER SC (A) 6E134503 2.20
71 GEAR SHAFT RETAINER SC (B) 6G021201 3.30
72 GEAR SHAFT RETAINER SP 6G010201 2.20
73 RATCHET *Discontinued (cannot be ordered) 6F836901 2.20
74 GEAR SHAFT W (B) 6E489503 1.10
75 WORM SHAFT GEAR 6G011201 6.60
76 DRIVE GEAR *Discontinued (cannot be ordered) 6G278801 22.00
77 DRAG LIP W 6F796102 3.30
78 DRAG W (A) 6F796201 3.30
79 DRAG DISC W (A) 6F796303 3.30
80 DRAG W (B) *Discontinued (cannot be ordered) 6F967801 3.30
81 DRAG DISC W (B) 6B360303 2.20
82 DRAG COLLAR 6G011401 8.80
83 ONE-WAY CLUTCH *Discontinued (cannot be ordered) 6F999803 17.60
84 HANDLE BALL BEARING 6F582501 8.80
85 HANDLE BEARING W 6B553801 1.10
86 DRAG HOLDER 6F028201 2.20
87 DRAG HOLDER LEAF SP 6F032401 2.20
88 DRAG SP/W 61508901 2.20
89 HANDLE COLLAR 63737810 1.10
90 STAR DRAG *Discontinued (cannot be ordered) 6G011501 22.00
91 HANDLE W 6F576601 1.10
92 HANDLE *Discontinued (cannot be ordered) 6F837201 63.80
93 HANDLE NUT 6B433601 2.20
94 HANDLE CAP *Discontinued (cannot be ordered) 6F577202 4.40
95 CLUTCH CAM SP COVER PLATE 6G262301 2.20
100 HANDLE KNOB *Discontinued (cannot be ordered) 6F847801 11.00
101 HANDLE KNOB W 6B411703 1.10
102 HANDLE KNOB BALL BEARING *Discontinued (cannot be ordered) 6F283101 8.80
103 HANDLE KNOB SC 6B679308 2.20
