[DAIWA] Genuine Spare Parts for 10 PX68 PX68R Product code: 00614073 **Back-order (Shipping in 3-4 weeks after receiving order)

[DAIWA] Genuine Spare Parts for 10 PX68 PX68R Product code: 00614073 **Back-order (Shipping in 3-4 weeks after receiving order)

Our Selling Price: US$0.77 - US$135.52 [Regular Price: US$1.10 - US$193.60]

Prices vary according to options.

View availability
Part Number:
Quantity:
Return & Exchange Policy
Contact Us

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship this item after you order unless we have in stock at the time of your order.

- We don't accept order cancellations, changes, or refunds after an order unless the products you ordered are not available because SHIMANO/DAIWA Japan doesn't accept our cancellations.



*Please make sure to read about the conditions before you order.

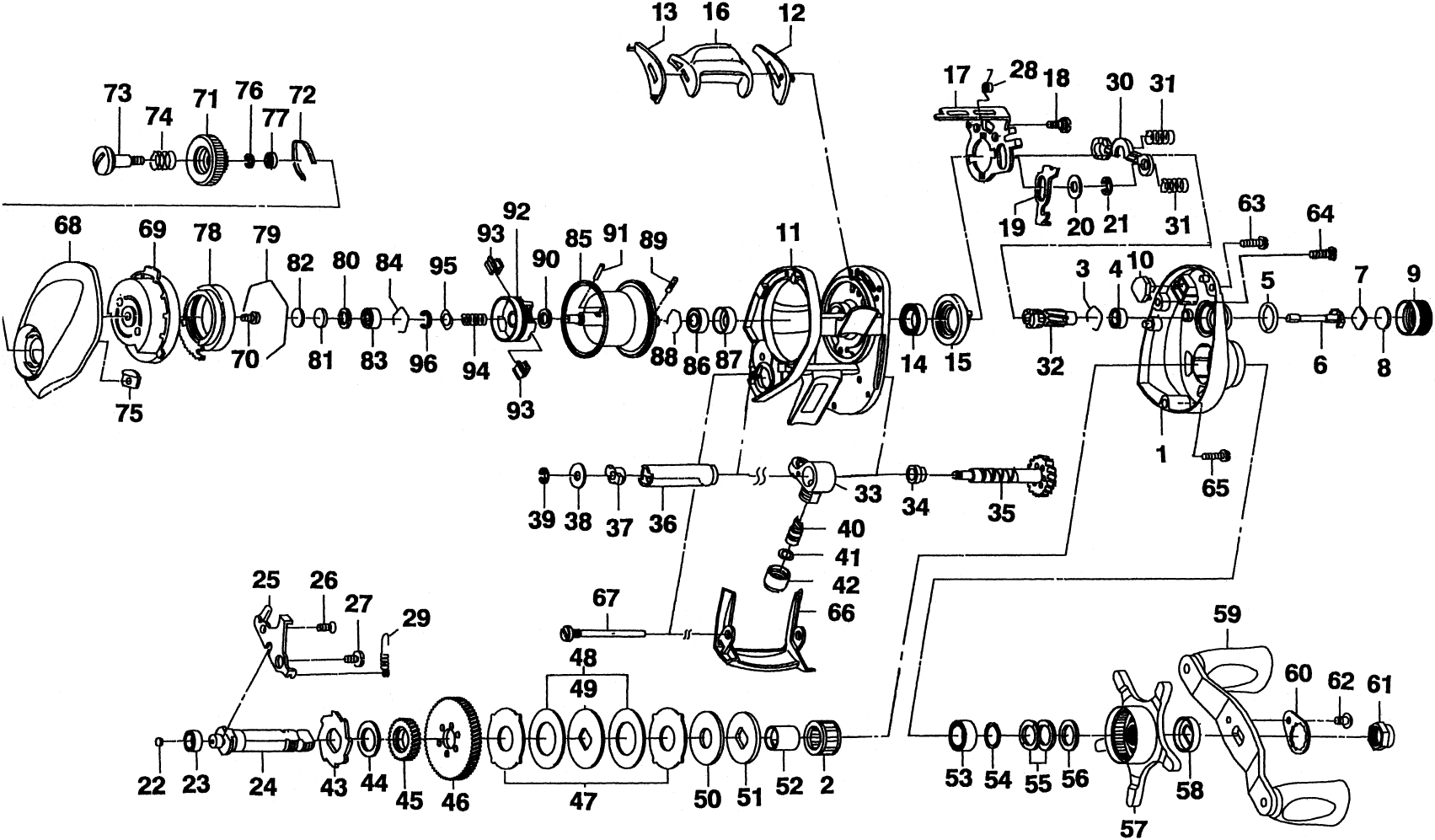

　Reel Part's Schematic Diagram



No. Part Name Part Code Price (USD)
1 RS PLATE *Discontinued 6H486101 53.90
2 ONE-WAY CLUTCH 6G819801 20.90
3 PINION RING 6E219701 2.20
4 PINION BALL BEARING 6F055601 8.80
5 MECHANICAL BRAKE O-RING 61715201 1.10
6 PINION SHAFT 6G015501 3.30
7 MECHANICAL BRAKE W (A) 6B175401 1.10
8 MECHANICAL BRAKE W (B) 6B175503 1.10
9 MECHANICAL BRAKE KNOB *Discontinued 6F574416 3.30
10 CLUTCH CAM SP COVER PLATE 6G262301 2.20
11 CLUTCH CAM SP COVER PLATE FRAME *Discontinued 6G359205 68.20
12 CLUTCH LEVER PLATE (R) 6G356901 2.20
13 CLUTCH LEVER PLATE (L) 6G357001 2.20
14 CLUTCH CAM BALL BEARING 6B861702 8.80
15 CLUTCH CAM 6G357101 3.30
16 CLUTCH LEVER 6G357202 6.60
17 CLUTCH CAM PLATE *Discontinued 6G357302 3.30
18 CLUTCH CAM PLATE SC 6M070101 4.40
19 CLUTCH LEVER 6G357401 4.40
20 CLUTCH LEVER W 6G539401 1.10
21 CLUTCH LEVER RETAINER 63205901 2.20
22 GEAR SHAFT W (A) *Discontinued 6G357506 1.10
23 GEAR SHAFT BALL BEARING 6F055601 8.80
24 GEAR - SHAFT RETAINER *Discontinued 6H486301 20.90
25 GEAR - SHAFT RETAINER 6G357701 2.20
26 GEAR - SHAFT RETAINER - SC (A) 6E134503 2.20
27 GEAR - SHAFT RETAINER - SC (B) 6G021201 3.30
28 CLUTCH CAM SP 6G357801 2.20
29 CLUTCH LEVER - SP 6G010201 2.20
30 CLUTCH PLATE 6G357901 2.20
31 CLUTCH SP 6G358001 2.20
32 PINION *Discontinued 6H486401 27.50
33 LEVEL WINDING *Discontinued 6H486501 9.90
34 WORMSHAFT COLLAR *Not available 6G417801 3.30
35 WORM SHAFT 6G418002 19.80
36 WORM SHIELD 6F836502 3.30
37 WORM SHAFT BUSHING 6B715601 2.20
38 WORM SHAFT W 6F655501 1.10
39 WARM SHAFT RETAINER 6F550501 2.20
40 POLE 61214212 3.30
41 POLE W 63731303 1.10
42 POLE HOLDER NUT 63424808 4.40
43 LATIETTO 6F836901 2.20
44 LATIETTO W 6E489503 1.10
45 WORM SHAFT GEAR 6G011201 6.60
46 DRIVE GEAR 6H486701 27.50
47 DRAG GRIP W 6F796102 3.30
48 DRAG W (A) 6G428501 3.30
49 DRAG DISK W (A) 6F796303 3.30
50 DRAG W (B) 6G455801 3.30
51 DRAG DISK W (B) 6B360306 3.30
52 DRAG COLLAR 6G011401 8.80
53 HANDLE BALL BEARING 6F582501 8.80
54 HANDLE BEARING W 6B553801 1.10
55 DRAG SP・W 61508901 2.20
56 DRAG KNOB W 63737810 1.10
57 STAR DRAG *Discontinued 6H486801 20.90
58 HANDLE COLOR 6H326801 3.30
59 HANDLE COLOR *Discontinued 6H486901 193.60
60 HANDLE LOCK PLATE (L) *Not available 60403206 3.30
61 HANDLE NUT 6G793309 4.40
62 HANDLE LOCK PLATE SC 63538301 2.20
63 RS PLATE SC (A) 6G040805 2.20
64 RS PLATE SC (B) 6G040806 2.20
65 RS PLATE SC (C) *Discontinued 6G040807 2.20
66 FRONT COVER *Discontinued 6G358606 7.70
67 FRONT COVER SC 6G358705 4.40
68 LS PLATE *Discontinued 6G360713 23.10
69 SET PLATE 6G363701 17.60
70 MAG HOLDER SC 63510906 2.20
71 BRAKE DIAL *Discontinued 6G360501 6.60
72 BRAKE DIAL LEAF SP 6F051701 2.20
73 BRAKE DIAL SC 6F577901 3.30
74 BRAKE DIAL SP 6E167101 2.20
75 BRAKE DIAL RITINER (A) 6G846201 2.20
76 BRAKE DIAL RITINER (B) 6B339801 2.20
77 BRAKE DIAL COLLAR 6F637701 1.10
78 MAG HOLDER 6F717702 17.60
79 MAG HOLDER RING 6B543201 2.20
80 LS BEARING W (A) 6F574303 1.10
81 LS BEARING W (B) 63757411 1.10
82 LS BEARING W (C) 63757404 1.10
83 LS BALL BEARING 6G431102 8.80
84 LS BEARING RING 6E219701 2.20
85 SPOOL (85-96) *Discontinued 6Z019704 138.60
86 SPOOL BALL BEARING 6G511503 8.80
87 SPOOL BEARING COLLAR 6H232201 2.20
88 SPOOL BEARING COLLAR RING 6H160801 2.20
89 SPOOL PIN 6G717501 2.20
90 SPOOL HOLDER W 6F574303 1.10
91 SPOOL HOLDER PIN 6H022901 2.20
92 SPOOL HOLDER *Discontinued 6H487801 33.00
93 BALANCER *Discontinued 6F737601 2.20
94 SPOOL HOLDER SP *Discontinued 6H487901 2.20
95 SPOOL HOLDER SP・W 6G150301 1.10
96 SPOOL HOLDER RETAINER 63208202 2.20
200 HANDLE KNOB W 6F352701 1.10
201 HANDLE KNOB 6F976401 11.00
202 HANDLE KNOB BALL BEARING 6F283101 8.80
203 HANDLE KNOB COLOR (4 7 2.5) 6G720001 2.20
204 HANDLE KNOB SC 6B679308 2.20
205 HANDLE KNOB CAP 6F950001 2.20
300 HANDLE LOCK PLATE (MAHE) S 20.5 *Discontinued 6G779202 3.30
