[DAIWA] Genuine Spare Parts for 08 TD ZILLION PE SPECIAL 100HL Product code: 00613947 **Back-order (Shipping in 3-4 weeks after receiving order)

[DAIWA] Genuine Spare Parts for 08 TD ZILLION PE SPECIAL 100HL Product code: 00613947 **Back-order (Shipping in 3-4 weeks after receiving order)

Our Selling Price: US$0.77 - US$87.78 [Regular Price: US$1.10 - US$125.40]

Prices vary according to options.

View availability
Part Number:
Quantity:
Return & Exchange Policy
Contact Us

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.

- We don't accept order cancellations, changes, or refunds after an order unless the products you ordered are not available because SHIMANO/DAIWA Japan doesn't accept our cancellations.



*Please make sure to read about the conditions before you order.

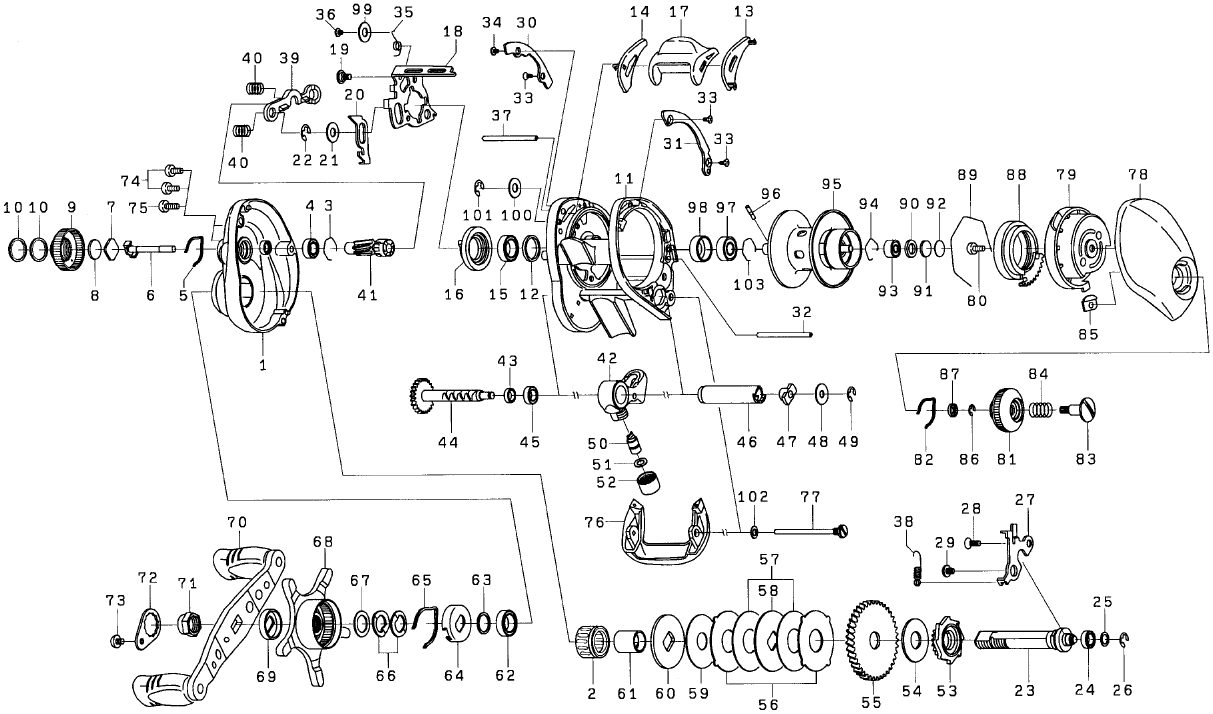

　Reel Part's Schematic Diagram



No. Part Name Part Code Price (USD)
1 LS PLATE *Discontinued (cannot be ordered) 6H146201 60.50
2 ONE-WAY CLUTCH 6G819801 20.90
3 PINION RING 6B421601 2.20
4 LS BALL BEARING 6G538007 15.40
5 MECHANICAL BRAKE LEAF SP 6G894401 2.20
6 PINION SHAFT 6F744101 3.30
7 MECHANICAL BRAKE KNOB W (A) 6B175401 1.10
8 MECHANICAL BRAKE KNOB W (B) 6B175503 1.10
9 MECHANICAL BRAKE KNOB *Discontinued (cannot be ordered) 6H145901 15.40
10 MECHANICAL BRAKE KNOB O-RING 6G162402 1.10
11 FRAME *Discontinued (cannot be ordered) 6H027602 66.00
12 CLUTCH CAM COLLAR *Discontinued (cannot be ordered) 6F834701 2.20
13 CLUTCH LEVER PLATE (R) *Discontinued (cannot be ordered) 6G260702 2.20
14 CLUTCH LEVER PLATE (L) *Discontinued (cannot be ordered) 6G260802 2.20
15 CLUTCH CAM BALL BEARING 6G431008 15.40
16 CLUTCH CAM 6F997401 3.30
17 CLUTCH LEVER *Discontinued (cannot be ordered) 6G260901 7.70
18 CLUTCH CAM PLATE *Discontinued (cannot be ordered) 6G801701 3.30
19 CLUTCH CAM PLATE SC 6M070101 4.40
20 KICK LEVER *Discontinued (cannot be ordered) 6G801801 4.40
21 KICK LEVER W 63716906 1.10
22 KICK LEVER RETAINER 63201402 2.20
23 GEAR SHAFT *Discontinued (cannot be ordered) 6G790208 33.00
24 GEAR SHAFT BALL BEARING 6G466205 15.40
25 GEAR SHAFT W *Discontinued (cannot be ordered) 6G755201 1.10
26 GEAR SHAFT RETAINER 63205901 2.20
27 GEAR SHAFT PLATE *Discontinued (cannot be ordered) 6G801901 2.20
28 GEAR SHAFT PLATE SC (A) 6E134503 2.20
29 GEAR SHAFT PLATE SC (B) *Discontinued (cannot be ordered) 6G850401 3.30
30 GUARD PLATE (L) *Discontinued (cannot be ordered) 6G794106 4.40
31 GUARD PLATE (R) *Discontinued (cannot be ordered) 6G795706 4.40
32 FRAME GUARD POST (A) *Discontinued (cannot be ordered) 6H144501 4.40
33 GUARD PLATE SC (A) *Discontinued (cannot be ordered) 6G318503 2.20
34 GUARD PLATE SC (B) 6G611501 2.20
35 CLUTCH CAM SP *Discontinued (cannot be ordered) 6G802001 2.20
36 CLUTCH CAM SP HOLD SC *Discontinued (cannot be ordered) 6F505701 2.20
37 FRAME GUARD POST (B) *Discontinued (cannot be ordered) 6H144401 4.40
38 KICK LEVER SP *Discontinued (cannot be ordered) 6G790501 2.20
39 CLUTCH PLATE 6F998201 2.20
40 CLUTCH SP 6G850301 2.20
41 PINION *Discontinued (cannot be ordered) 6H040701 18.70
42 LEVEL WIND *Discontinued (cannot be ordered) 6G410301 22.00
43 WORM SHAFT COLLAR 6G010701 3.30
44 WORM SHAFT *Discontinued (cannot be ordered) 6H337201 17.60
45 WORM SHAFT BALL BEARING 6G466205 15.40
46 WORM SHIELD 6F836502 3.30
47 WORM SHAFT BUSHING 6B715601 2.20
48 WORM SHAFT W 6F655501 1.10
49 WORM SHAFT RETAINER 63205901 2.20
50 PAWL 61214212 3.30
51 PAWL W 63731303 1.10
52 PAWL HOLDER NUT *Discontinued (cannot be ordered) 63424807 3.30
53 RATCHET *Discontinued (cannot be ordered) 6H146001 15.40
54 DRIVE GEAR W 6G863501 6.60
55 DRIVE GEAR *Discontinued (cannot be ordered) 6G802302 18.70
56 DRAG LIP W 6G791301 2.20
57 DRAG W (A) 6G791402 7.70
58 DRAG DISC W (A) 6F904902 2.20
59 DRAG W (B) 6H118401 8.80
60 DRAG DISC W (B) 6G358501 2.20
61 CLUTCH RING 6G011401 8.80
62 DRAG BALL BEARING 6G431001 15.40
63 DRAG BEARING W 6B553801 1.10
64 DRAG HOLDER 6F028201 2.20
65 DRAG LEAF SP 6F032401 2.20
66 DRAG SP/W 61508901 2.20
67 STAR DRAG W 63737810 1.10
68 STAR DRAG *Discontinued (cannot be ordered) 6H145002 35.20
69 HANDLE COLLAR 6F850402 3.30
70 HANDLE *Discontinued (cannot be ordered) 6H145101 90.20
71 HANDLE NUT 6G793302 4.40
72 HANDLE LOCK PLATE 60403212 3.30
73 HANDLE LOCK PLATE SC 63538301 2.20
74 LS PLATE SC (A) 6G040805 2.20
75 LS PLATE SC (B) 6G040801 2.20
76 FRONT COVER *Discontinued (cannot be ordered) 6G261505 7.70
77 FRONT COVER SC 6G011702 7.70
78 RS PLATE *Discontinued (cannot be ordered) 6G261614 20.90
79 SET PLATE *Discontinued (cannot be ordered) 6G261802 20.90
80 SET PLATE SC 63510906 2.20
81 BRAKE DIAL *Discontinued (cannot be ordered) 6F577802 6.60
82 BRAKE DIAL LEAF SP 6F051701 2.20
83 BRAKE DIAL SC 6F577901 3.30
84 BRAKE DIAL SP 6E167101 2.20
85 BRAKE DIAL RETAINER (A) 6F613401 2.20
86 BRAKE DIAL RETAINER (B) 6B339801 2.20
87 BRAKE DIAL COLLAR 6F637701 1.10
88 MAG HOLDER 6F717702 17.60
89 MAG HOLDER RING 6B543201 2.20
90 RS BEARING W (A) 6F574303 1.10
91 RS BEARING W (B) 63757411 1.10
92 RS BEARING W (C) 63757406 1.10
93 RS BALL BEARING 6G431105 15.40
94 RS BEARING RING 6E219701 2.20
95 SPOOL (95-98, 103) *Discontinued (cannot be ordered) 6H145401 125.40
96 SPOOL PIN 6G717501 2.20
97 SPOOL BALL BEARING 6G511506 15.40
98 SPOOL BEARING COLLAR 6H232201 2.20
99 CLUTCH CAM SP HOLD W 6F440201 1.10
100 CLUTCH CAM PLATE HOLD W 6G850701 1.10
101 CLUTCH CAM PLATE HOLD RETAINER 63205901 2.20
102 FRONT COVER SC/W 6G684801 1.10
103 SPOOL BEARING COLLAR RING 6H160801 2.20
104 MECHANICAL BRAKE KNOB W (C) 6F625502 1.10
200 HANDLE KNOB W 6B411703 1.10
201 HANDLE KNOB 6G935601 17.60
202 HANDLE KNOB BALL BEARING (CRBB) 6G469009 15.40
203 HANDLE KNOB SC 6B679308 2.20
204 HANDLE KNOB CAP *Discontinued (cannot be ordered) 6H145301 4.40
