[DAIWA] Genuine Spare Parts for 18 ZILLION TW HLC 1516SH Product code: 00613462 **Back-order (Shipping in 3-4 weeks after receiving order)

[DAIWA] Genuine Spare Parts for 18 ZILLION TW HLC 1516SH Product code: 00613462 **Back-order (Shipping in 3-4 weeks after receiving order)

Our Selling Price: US$0.77 - US$135.52 [Regular Price: US$1.10 - US$193.60]

Prices vary according to options.

View availability
Part Number:
Quantity:
Return & Exchange Policy
Contact Us

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.

- We don't accept order cancellations, changes, or refunds after an order unless the products you ordered are not available because SHIMANO/DAIWA Japan doesn't accept our cancellations.



*Please make sure to read about the conditions before you order.

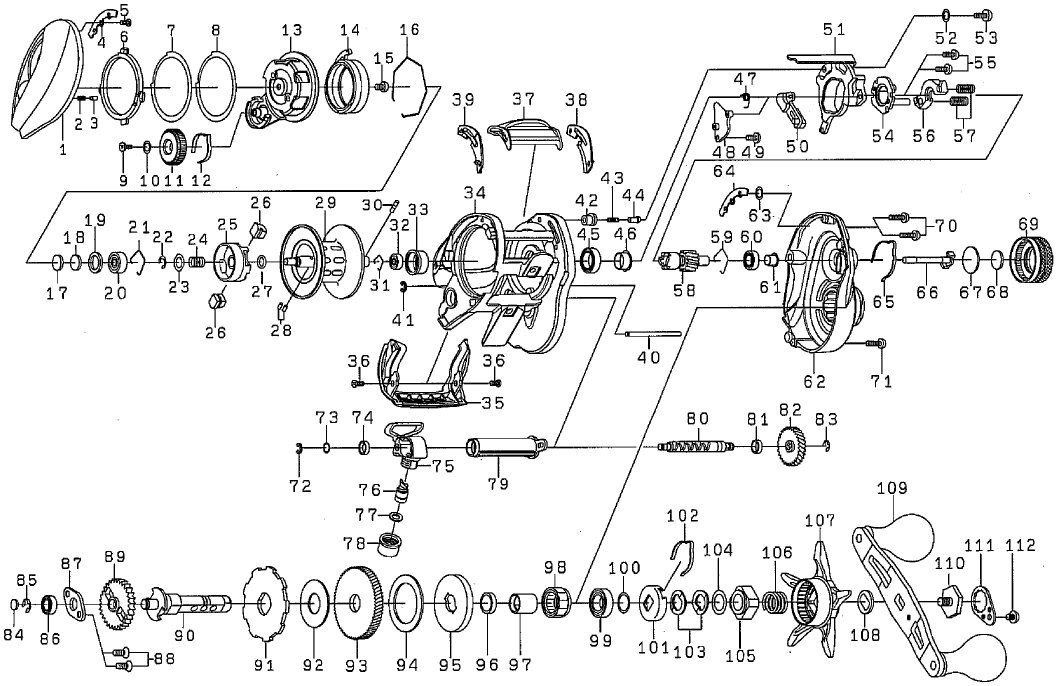

　Reel Part's Schematic Diagram



No. Part Name Part Code Price (USD)
1 LS PLATE 6J703201 34.10
2 LEVER PLATE SP 6J631901 2.20
3 LEVER PLATE PIN 6J286301 2.20
4 GUARD PLATE (L) 6J409803 6.60
5 GUARD PLATE SC 6H881504 2.20
6 LEVER PLATE (A) 6J641201 2.20
7 LEVER PLATE (B) 6J286101 2.20
8 LEVER PLATE (C) 6J645203 2.20
9 BRAKE DIAL SC 6G940402 2.20
10 BRAKE DIAL W 6H159201 1.10
11 BRAKE DIAL 6J282604 9.90
12 BRAKE DIAL LEAF SP 6H663401 2.20
13 SET PLATE 6J641001 44.00
14 MUG HOLDER 6J641301 24.20
15 SET PLATE SC 6H666002 2.20
16 MUG HOLDER RING 6J315701 2.20
17 LS BEARING W (A) 63757404 1.10
18 LS BEARING W (B) 63757411 1.10
19 LS BEARING W (C) 6G185101 1.10
20 LS BALL BEARING 6G511506 15.40
21 LS BEARING RING 6F032201 2.20
22 SPOOL HOLDER SP RETAINER 63208202 2.20
23 SPOOL HOLDER SP/W 6J497001 1.10
24 SPOOL HOLDER SP 6J373401 2.20
25 SPOOL HOLDER 6J702401 19.80
26 SPOOL HOLDER COLOR 6G360901 2.20
27 SPOOL HOLDER O RING 6H078001 1.10
28 SPOOL HOLDER PIN 6H665301 2.20
29 SPOOL (22-33) 6Z024146 157.30
30 SPOOL PIN 6H358801 2.20
31 SPOOL BEARING RING 6J149501 2.20
32 SPOOL BALL BEARING 6G511506 15.40
33 SPOOL BEARING COLLAR 6H232201 2.20
34 FLAME 6J044612 28.60
35 FRONT COVER 6J045204 8.80
36 FRONT COVER SC 6H455407 2.20
37 CLUTCH LEVER 6J101604 6.60
38 CLUTCH LEVER PLATE (R) 6H915601 2.20
39 CLUTCH LEVER PLATE (L) 6H915701 2.20
40 OSCILLATING POST 6H912101 2.20
41 OSCILLATING POST RETAINER 6H704101 2.20
42 CLUTCH CAM PLATE PIN SP COLLAR 6H910601 2.20
43 CLUTCH CAM PLATE PIN SP 6H928801 2.20
44 CLUTCH CAM PLATE PIN 6J055201 2.20
45 CLUTCH CAM BALL BEARING 6G431004 8.80
46 CLUTCH CAM BEARING COLLAR 6M518401 7.70
47 KICK LEVER SP 6H450001 2.20
48 KICK LEVER PLATE (A) 6H912301 2.20
49 KICK LEVER PLATE (A) SC 6H294101 2.20
50 KICK LEVER 6J221401 12.10
51 CLUTCH CAM PLATE 6H928701 4.40
52 CLUTCH CAM PLATE SC/W 6H159201 1.10
53 CLUTCH CAM PLATE SC 63522501 2.20
54 KICK LEVER PLATE (B) 6H659101 3.30
55 KICK LEVER PLATE (B) SC 6B032904 2.20
56 CLUTCH PLATE 6H929001 3.30
57 CLUTCH PLATE SP 6J055301 2.20
58 PINION + DRIVE GEAR SET 6Z024144 57.20
59 PINION RING 6H448401 2.20
60 PINION BALL BEARING 6G538007 15.40
61 PINION BEARING COLLAR 6H159501 7.70
62 RS PLATE 6J701501 71.50
63 GUARD PLATE (R) O RING 6H770601 1.10
64 GUARD PLATE (R) 6J409803 6.60
65 MECHANICAL BRAKE KNOB SP 6H160901 2.20
66 PINION SHAFT 6H159601 3.30
67 MECHANICAL BRAKE W (A) 6H161003 1.10
68 MECHANICAL BRAKE W (B) 6B175503 1.10
69 MECHANICAL BRAKE KNOB 6J097412 33.00
70 RS PLATE SC (A) 6G040822 3.30
71 RS PLATE SC (B) 6G040826 2.20
72 WORM SHAFT RETAINER 63205901 2.20
73 WORM SHAFT W 6B411702 1.10
74 WORM SHAFT BEARING 6G469002 8.80
75 LEVEL WIND 6J176602 50.60
76 POLE 61214212 3.30
77 PAUL W 63731303 1.10
78 POLE HOLDER NUT 6F402801 2.20
79 WARM SHIELD 6H910801 3.30
80 WORM SHAFT 6H911702 8.80
81 WORM SHAFT BEARING 6G469002 8.80
82 WORM SHAFT GEAR 6H910501 3.30
83 WORM SHAFT GEAR RETAINER 6B339801 2.20
84 GEAR SHAFT W 6G099801 1.10
85 GEAR SHAFT RETAINER 63208002 2.20
86 GEAR SHAFT BALL BEARING 6G538003 15.40
87 GEAR SHAFT PLATE 6H928901 3.30
88 GEAR SHAFT PLATE SC 6E134509 2.20
89 WORM GEAR 6H912701 4.40
90 GEAR SHAFT 6J640503 17.60
91 RATCHET 6H929401 3.30
92 DRIVE GEAR W 6J085101 1.10
93 PINION + DRIVE GEAR SET 6Z024144 57.20
94 DRAG W 6H452602 6.60
95 DRAG DISC W 6H913201 3.30
96 CLUTCH RING COLOR 6J640601 2.20
97 CLUTCH RING 6J327701 8.80
98 ONE WAY CLUTCH 6G819801 20.90
99 HANDLE BALL BEARING 6G431004 8.80
100 HANDLE BEARING W 6B553801 1.10
101 DRAG HOLDER 6F028203 3.30
102 DRAG HOLDER LEAF SP 6F032401 2.20
103 DRAG SP・W 61508901 2.20
104 STAR DRAG W 6H929501 2.20
105 STAR DRAG NUT 6J102301 7.70
106 STAR DRAG SP 6J011901 2.20
107 STAR DRAG 6J140001 20.90
108 HANDLE W 6F576601 1.10
109 HANDLE 6J701901 193.60
110 HANDLE SC 6G779101 6.60
111 HANDLE LOCK PLATE 6H834502 7.70
112 HANDLE LOCK PLATE SC 63538301 2.20
200 HANDLE KNOB W 6B411703 1.10
201 HANDLE KNOB 6H834201 15.40
202 HANDLE KNOB BALL BEARING 6G469002 8.80
203 HANDLE KNOB COLOR 6G720001 2.20
204 HANDLE KNOB SC 6B679308 2.20
205 HANDLE KNOB CAP (WITH O-RING) 6Z021886 15.40
206 HANDLE KNOB CAP O RING 6H100001 1.10
