[DAIWA] Genuine Spare Parts for 24 TIERRA AIR IC 100XHL Product code: 00631561 **Back-order (Shipping in 3-4 weeks after receiving order)

[DAIWA] Genuine Spare Parts for 24 TIERRA AIR IC 100XHL Product code: 00631561 **Back-order (Shipping in 3-4 weeks after receiving order)

Our Selling Price: US$0.77 - US$75.46 [Regular Price: US$1.10 - US$107.80]

Prices vary according to options.

View availability
Part Number:
Quantity:
Return & Exchange Policy
Contact Us

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.

- We don't accept order cancellations, changes, or refunds after an order unless the products you ordered are not available because SHIMANO/DAIWA Japan doesn't accept our cancellations.



*Please make sure to read about the conditions before you order.

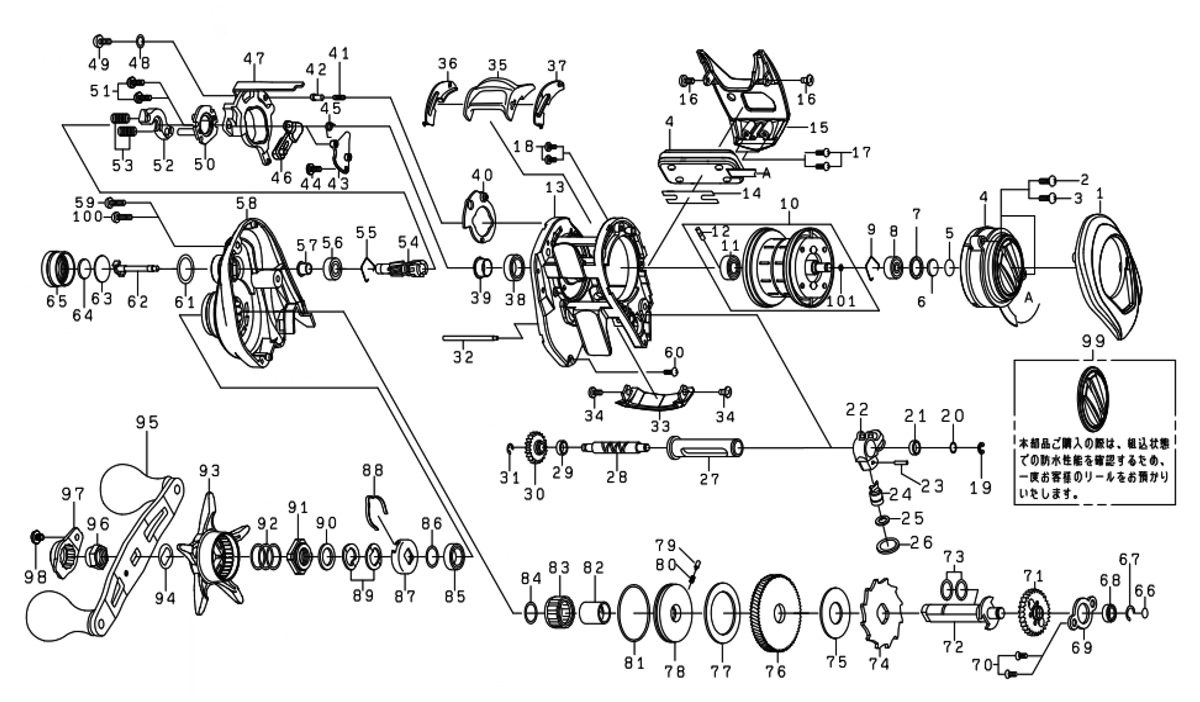

　Reel Part's Schematic Diagram



No. Part Name Part Code Price (USD)
1 RS PLATE 6M570901 30.80
2 IC MODULE SC (A) 6H662205 2.20
3 IC MODULE SC (B) 6H662205 2.20
4 IC MODULE 6J851904 107.80
5 RS BEARING W (A) 63757406 1.10
6 RS BEARING W (B) 63757411 1.10
7 RS BEARING W (C) 63753003 1.10
8 RS BALL BEARING 6G431102 8.80
9 RS BEARING RETAINER 6E219701 2.20
10 SPOOL (10-12) 6M567401 49.50
11 SPOOL BALL BEARING 6G511506 15.40
12 SPOOL PIN 6J252301 2.20
13 FRAME 6J916801 30.80
14 IC MODULE HOLD SEAL 6J911901 2.20
15 FINGER COVER 6J913404 9.90
16 FINGER COVER SC (A) 6H881502 2.20
17 FINGER COVER SC (B) 6H881501 2.20
18 RS PLATE SC 6H005701 2.20
19 WORM SHAFT RETAINER 63205901 2.20
20 WORM SHAFT BEARING W 6B411703 1.10
21 WORM SHAFT BEARING 6G720001 2.20
22 LEVEL WINDING 6J912201 9.90
23 POLE 6J740201 3.30
24 POLE HOLDER PIN 6J740101 3.30
25 POLE W 6G099801 1.10
26 POLE HOLDER O-RING 6G252202 1.10
27 WORM SHIELD 6J917001 3.30
28 WORM SHAFT 6M567301 7.70
29 WORM SHAFT COLLAR 6G720001 2.20
30 WORM SHAFT GEAR 6J281401 4.40
31 WORM SHAFT GEAR RETAINER 6B339801 2.20
32 OSCILLATING POST 6J912401 2.20
33 FRONT COVER 6J913502 8.80
34 FRONT COVER SC 6H638404 2.20
35 CLUTCH LEVER 6M567101 6.60
36 CLUTCH LEVER PLATE (L) 6J738501 2.20
37 CLUTCH LEVER PLATE (R) 6J738401 2.20
38 CLUTCH BALL BEARING 6G431002 15.40
39 CLUTCH BALL BEARING COLLAR 6M518401 7.70
40 KICK LEVER PLATE (A) 6J765601 2.20
41 KICK LEVER PLATE (A) SP 6H928801 2.20
42 KICK LEVER PLATE (A) SC 6J055201 2.20
43 KICK LEVER PLATE (B) 6J765701 3.30
44 KICK LEVER PLATE (B) SC 6H881502 2.20
45 KICK LEVER SP 6J915301 2.20
46 KICK LEVER 6J638601 6.60
47 CLUTCH CAM PLATE 6J765302 9.90
48 CLUTCH CAM PLATE W 6H450701 1.10
49 CLUTCH CAM PLATE SC 6G939303 2.20
50 KICK LEVER PLATE (B) 6H659101 3.30
51 KICK LEVER PLATE (B) SC 6H581001 2.20
52 CLUTCH PLATE 6H944401 3.30
53 CLUTCH PLATE SP 6J313901 2.20
54 PINION + DRIVE GEAR SET 6Z025384 79.20
55 PINION BEARING RING 6H448401 2.20
56 PINION BALL BEARING 6G538003 15.40
57 PINION BEARING COLLAR *Cannot be ordered 6J724501 7.70
58 LS PLATE 6J916709 39.60
59 LS PLATE SC (A) *Not available 6H380403 2.20
60 LS PLATE SC (B) 6J255202 2.20
61 MECHANICAL BRAKE KNOB O-RING 6J279701 1.10
62 PINION SHAFT 6J198801 3.30
63 MECHANICAL BRAKE W (A) 6H161001 1.10
64 MECHANICAL BRAKE W (B) 6B175503 1.10
65 MECHANICAL BRAKE KNOB 6J911603 8.80
66 GEAR SHAFT W 6G099801 1.10
67 GEAR SHAFT RETAINER 63208002 2.20
68 GEAR SHAFT BALL BEARING 6G466201 15.40
69 GEAR SHAFT PLATE 6J281101 3.30
70 GEAR SHAFT PLATE SC 6G997301 2.20
71 WORM GEARS 6J281001 7.70
72 GEAR SHAFTS 6J912102 17.60
73 GEAR SHAFT O-RINGS 6F657801 1.10
74 RATCHET 6H660901 3.30
75 DRIVE GEAR W 63746605 1.10
76 PINION + DRIVE GEAR SET 6Z025384 79.20
77 DRAG W 6H359001 8.80
78 DRIVE COLLAR 6J443001 17.60
79 DRIVE COLLAR PIN 6J566201 2.20
80 DRIVE COLLAR SP 6M025201 2.20
81 DRIVE COLLAR O-RING 6J458101 1.10
82 CLUTCH RING 6J327701 8.80
83 ONE-WAY CLUTCH 6G819801 20.90
84 CLUTCH RING W 6B553801 1.10
85 HANDLE BALL BEARING 6G431002 15.40
86 HANDLE BALL BEARING W 6B553801 1.10
87 DRAG HOLDER 6F028203 3.30
88 DRAG HOLDER LEAF SP 6F032401 2.20
89 DRAG SP・W 61508901 2.20
90 DRAG NUT W 6H929501 2.20
91 DRAG NUT 6J141002 7.70
92 DRAG NUT SP 6J011901 2.20
93 STAR DRAG 6J140002 24.20
94 HANDLE W 6F576601 1.10
95 HANDLE W 6M570701 106.70
96 HANDLE NUT 6G793310 4.40
97 HANDLE LOCK PLATE 6J625401 4.40
98 HANDLE LOCK PLATE SC 6G835504 2.20
99 BATTERY CAP (WITH O-RING) *Cannot be ordered 6J737601 11.00
100 LS PLATE SC (C) 6H380404 2.20
101 SPOOL SHAFT O-RING 6H770601 1.10
201 HANDLE KNOB W 6B411703 1.10
202 HANDLE KNOB COLOR 6G720001 2.20
203 HANDLE KNOB 6H834201 15.40
204 HANDLE KNOB SC 6B679308 2.20
205 HANDLE KNOB CAP (WITH O-RING) 6Z021138 15.40
206 HANDLE KNOB CAP O-RING 6H100001 1.10
