[DAIWA] Genuine Spare Parts for 24 ADMIRA A150XH Product code: 00621088 **Back-order (Shipping in 3-4 weeks after receiving order)

[DAIWA] Genuine Spare Parts for 24 ADMIRA A150XH Product code: 00621088 **Back-order (Shipping in 3-4 weeks after receiving order)

Our Selling Price: US$0.77 - US$65.45 [Regular Price: US$1.10 - US$93.50]

Prices vary according to options.

View availability
Part Number:
Quantity:
Return & Exchange Policy
Contact Us

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.

- We don't accept order cancellations, changes, or refunds after an order unless the products you ordered are not available because SHIMANO/DAIWA Japan doesn't accept our cancellations.



*Please make sure to read about the conditions before you order.

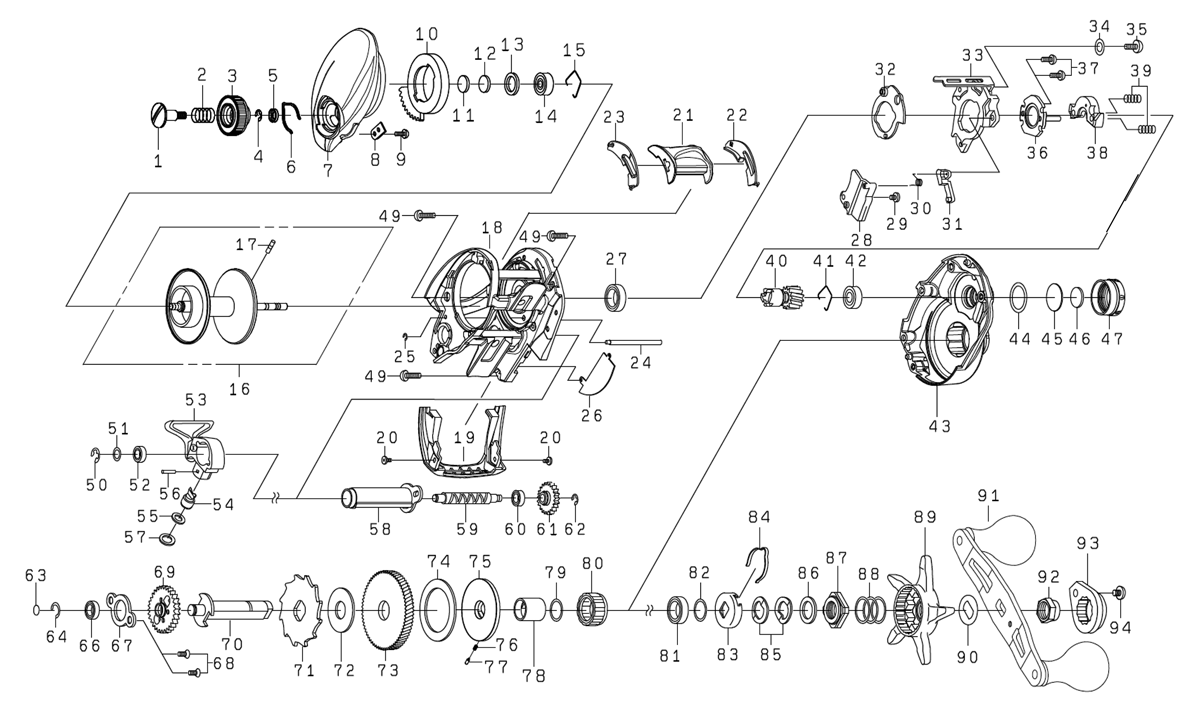

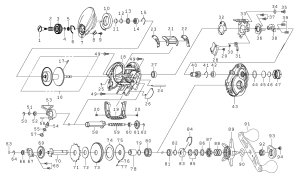

　Reel Part's Schematic Diagram



No. Part Name Part Code Price (USD)
1 BRAKE DIAL SC 6J716301 3.30
2 BRAKE DIAL SP 6E167101 2.20
3 BRAKE DIAL 6M160703 8.80
4 BRAKE DIAL RETAINER (A) 6B339801 2.20
5 BRAKE DIAL COLLAR 6F637701 1.10
6 BRAKE DIAL LEAF SP 6H663401 2.20
7 LS PLATE 6M598201 25.30
8 BRAKE DIAL RETAINER (B) 6J843301 2.20
9 BRAKE DIAL RETAINER (B) SC 6G939301 2.20
10 MAG HOLDER 6M162401 8.80
11 LS BEARING W (A) 63757411 1.10
12 LS BEARING W (B) 63757404 1.10
13 LS BEARING W (C) 6G185101 1.10
14 LS BALL BEARING 6G511506 15.40
15 LS BEARING RING 6F032201 2.20
16 SPOOL (16+17) 6M594601 60.50
17 SPOOL PIN 6J339401 2.20
18 FRAME 6M212307 34.10
19 FRONT COVER 6J956613 9.90
20 FRONT COVER SC 6H531508 2.20
21 CLUTCH LEVER 6J956101 9.90
22 CLUTCH LEVER PLATE (R) 6J955501 2.20
23 CLUTCH LEVER PLATE (L) 6J955601 2.20
24 OSCILLATING POST 6M134001 2.20
25 OSCILLATING POST RETAINER 6H704101 2.20
26 RS COVER PLATE 6J972901 2.20
27 CLUTCH CAM BALL BEARING 6G431002 15.40
28 KICK LEVER PLATE (A) 6J739101 3.30
29 KICK LEVER PLATE (A) SC 6H531508 2.20
30 KICK LEVER - SP 6J915201 2.20
31 KICK LEVER 6J622901 6.60
32 CLUTCH CAM PLATE 6J739001 2.20
33 CLUTCH CAM 6J972601 9.90
34 CLUTCH CAM PLATE SC-W 6M070001 1.10
35 CLUTCH CAM PLATE SC 6B360406 2.20
36 KICK LEVER PLATE (B) 6H659101 3.30
37 KICK LEVER PLATE (B) SC 6B032904 2.20
38 CLUTCH PLATE 6H929001 3.30
39 CLUTCH SP 6J313901 2.20
40 PINION + DRIVE GEAR SET 6Z027609 55.00
41 PINION RING 6H448401 2.20
42 PINION BALL BEARING 6G431107 15.40
43 RS PLATE 6M597701 35.20
44 MECHANICAL BRAKE KNOB O-RING 6J279701 1.10
45 MECHANICAL BRAKE KNOB W (A) 6J692001 1.10
46 MECHANICAL BRAKE KNOB W (B) 6B175503 1.10
47 MECHANICAL BRAKE KNOB 6M111901 7.70
49 RS PLATE SC 6G945806 2.20
50 WORM SHAFT RETAINER 63205901 2.20
51 WORM SHAFT W 6B411702 1.10
52 WORM SHAFT COLLAR 6G720001 2.20
53 LEVEL WINDING 6M470501 46.20
54 POLE 6J740101 3.30
55 POLE W 6M161301 1.10
56 POLE HOLDER PIN 6J740201 3.30
57 POLE HOLDER O-RING 6G252202 1.10
58 WORM SHIELD 6J740001 3.30
59 WORM SHAFT 6J912601 7.70
60 WORM SHAFT COLLAR 6G720001 2.20
61 WORM SHAFT GEAR 6J693901 3.30
62 WORM SHAFT GEAR RETAINER 6B339801 2.20
63 GEAR SHAFT W 6G099801 1.10
64 GEAR SHAFT RETAINER 63208002 2.20
66 GEAR SHAFT COLLAR 6F648301 4.40
67 GEAR SHAFT PLATE 6J693701 3.30
68 GEAR SHAFT PLATE SC 6G297002 2.20
69 WORM GEAR 6J693601 4.40
70 GEAR SHAFTS 6M308401 18.70
71 RATCHET 6H660901 3.30
72 DRIVE GEAR W 63746605 1.10
73 PINION + DRIVE GEAR SET 6Z027609 55.00
74 DRAG W 6H359002 6.60
75 DRAG COLLAR 6J740501 17.60
76 DRAG COLLAR SP 6M025201 2.20
77 DRAG COLLAR PIN 6J566201 2.20
78 DRAG COLLAR 6J327701 8.80
79 HANDLE BEARING W (A) 6B553803 1.10
80 ONE-WAY CLUTCH 6J540401 20.90
81 HANDLE BALL BEARING 6B861705 8.80
82 HANDLE BEARING W (B) 6B553801 1.10
83 DRAG HOLDER 6F028203 3.30
84 DRAG HOLDER LEAF SP 6F032401 2.20
85 DRAG SP・W 61508901 2.20
86 STAR DRAG W 6H929501 2.20
87 DRAG NUT 6J141001 7.70
88 DRAG NUT SP 6J011901 2.20
89 STAR DRAG 6J140005 27.50
90 HANDLE W 6M422101 1.10
91 HANDLE 6M595401 93.50
92 HANDLE NUT 6G793309 4.40
93 HANDLE CAP 6J625401 4.40
94 HANDLE CAP SC 6G835504 2.20
200 HANDLE KNOB W 6B411703 1.10
201 HANDLE KNOB COLLARS 6G720001 2.20
202 HANDLE KNOB 6H834201 15.40
203 HANDLE KNOB SC 6B679308 2.20
204 HANDLE KNOB CAP (WITH O-RING) 6M594801 12.10
205 HANDLE KNOB CAP O-RING 6H100001 1.10
