[DAIWA] Genuine Spare Parts for 24 GEKKABIJIN X LT2000S Product code: 00060307 **Back-order (Shipping in 3-4 weeks after receiving order)

[DAIWA] Genuine Spare Parts for 24 GEKKABIJIN X LT2000S Product code: 00060307 **Back-order (Shipping in 3-4 weeks after receiving order)

Our Selling Price: US$0.77 - US$67.76 [Regular Price: US$1.10 - US$96.80]

Prices vary according to options.

View availability
Part Number:
Quantity:
Return & Exchange Policy
Contact Us

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.



*Please make sure to read about the conditions before you order.

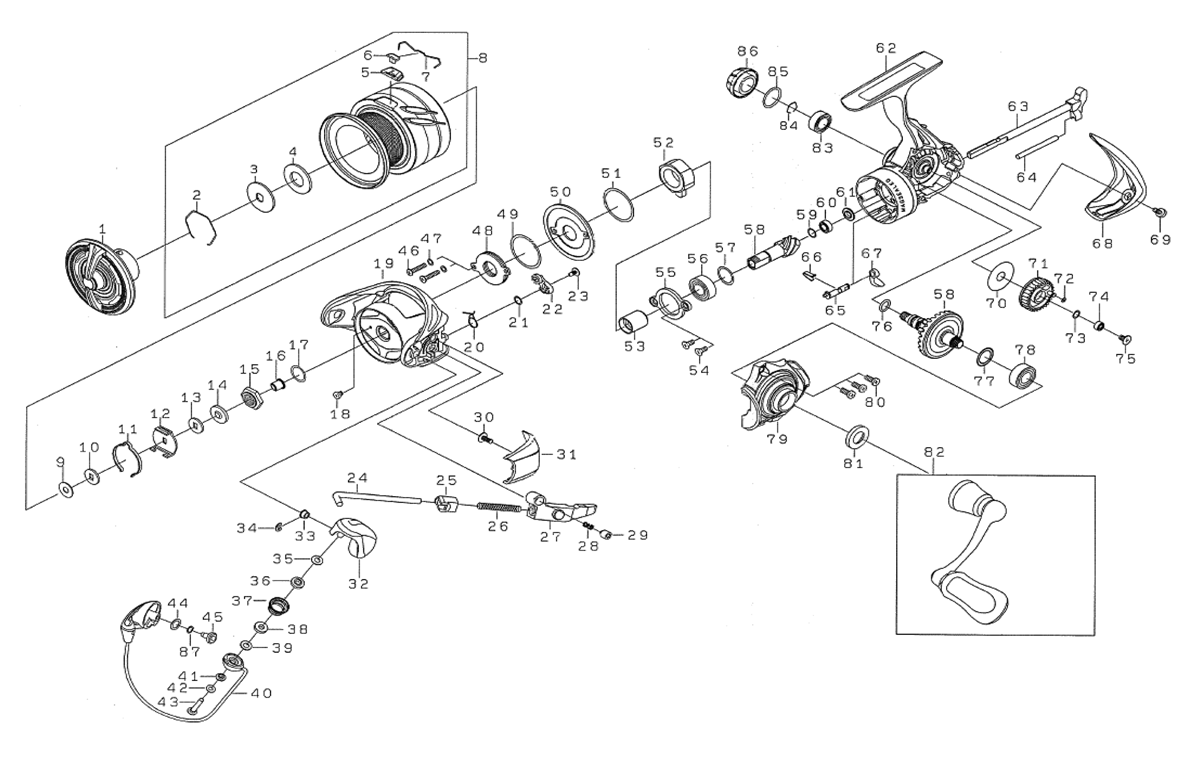

　Reel Part's Schematic Diagram



No. Part Name Part Code Price (USD)
1 DRAG KNOB 6Q376801 12.10
2 DRAG RINGS 6Q346101 2.20
3 DRAG DISK W 6Q621901 2.20
4 DRAG W 6Q917501 6.60
5 LINE STOPPER PLATE 6Q376701 2.20
6 LINE STOPPER 6Q345501 2.20
7 LINE STOPPER SP 6Q345701 2.20
8 SPOOL (2-7) 6Q963101 96.80
9 SPOOL W (A) 6E398003 1.10
10 SPOOL W (B) 6Q348502 1.10
11 CLICK REEF SP 6Q797701 2.20
12 CLICK HOLDER 6Q798201 2.20
13 CLICK HOLDER W 6Q344001 1.10
14 ROTOR NUT PACKING 6H986901 3.30
15 ROTOR NUT 6Q748401 3.30
16 ROTOR NUT COLLAR 6Q858101 3.30
17 ROTOR NUT W 63727602 1.10
18 ROTOR NUT SC 6H022701 2.20
19 ROTOR *Cannot be ordered 6Q825302 14.30
20 KICK LEVER SP 6Q825401 2.20
21 KICK LEVER W 6M194601 1.10
22 KICK LEVER 6Q825501 2.20
23 KICK LEVER SC 6Q957301 2.20
24 ARM LEVER SHAFT 6Q810901 2.20
25 ARM LEVER SHAFT COLLAR 6Q808501 3.30
26 ARM LEVER SP 6Q873901 2.20
27 ARM LEVER SP HOLDER 6Q826001 2.20
28 ARM LEVER HOLDER SP 6Q812001 2.20
29 ARM LEVER HOLDER PIN 6Q808701 2.20
30 ARM LEVER SP COVER SC 6Q812201 2.20
31 ARM LEVER SP COVER 6Q826401 3.30
32 ARM LEVER 6Q826302 6.60
33 ARM LEVER COLLAR 6Q809101 2.20
34 ARM LEVER RETAINER 6B339801 2.20
35 ROLLER COLLAR (A) 6Q810001 2.20
36 ROLLER COLLAR (B) 6Q809901 2.20
37 LINE ROLLER 6Q809803 7.70
38 ROLLER COLLAR (C) 6Q809901 2.20
39 ROLLER W 6Q810101 1.10
40 BAIL 6Q968901 24.20
41 ROLLER SC COLLAR 6Q809701 2.20
42 ROLLER SC-W 63731306 1.10
43 ROLLER SC 6M398901 2.20
44 BALE HOLDER SC/W 6Q416203 1.10
45 BALE HOLDER SC 6Q812301 2.20
46 MAGSHIELD PLATE SC 6G837101 2.20
47 MAGSHIELD PLATE SC/W 63754102 1.10
48 MAG SHIELD PLATE *Cannot be ordered 6J688201 23.10
49 MAG SHIELD PLATE O-RING 6J354801 1.10
50 MAG SHIELD CAP *Cannot be ordered 6Q266601 3.30
51 MAGSHIELD CAP W 6J639902 1.10
52 ONE WAY CLUTCH *Cannot be ordered 6J388401 26.40
53 CLUTCH RING *Cannot be ordered 6J001403 6.60
54 PINION BEARING PLATE SC 6Q126201 2.20
55 PINION BEARING PLATE 6Q195601 2.20
56 PINION BALL BEARING (A) 6G467302 8.80
57 PINION BEARING (A) W 63758502 1.10
58 PINION + DRIVE GEAR SET *Cannot be ordered 6Z701008 19.80
59 PINION BEARING (B)W 6H931701 1.10
60 PINION BALL BEARING (B) 6H959601 8.80
61 PINION BALL BEARING (B) COLLAR 6J387701 3.30
62 BODY *Cannot be ordered 6Q962101 27.50
63 MAIN SHAFT *Cannot be ordered 6Q375301 8.80
64 OSCILLATING POST 6Q119104 2.20
65 STOPPER CAM 6Q118101 2.20
66 STOPPER CAM SP 6H697801 2.20
67 STOPPER LEVER 6Q118001 2.20
68 REAR CAP 6Q825201 5.50
69 REAR CAP SC 6G270801 2.20
70 OSCILLATING GEAR W 6H607902 1.10
71 OSCILLATING GEAR O-RING *Cannot be ordered 6Q375201 6.60
72 OSCILLATING GEAR O-RING 6H770601 1.10
73 OSCILLATING GEAR BEARING W 6H129201 1.10
74 OSCILLATING GEAR BALL BEARING 6G469005 8.80
75 OSCILLATING GEAR SC 6Q126101 2.20
76 DRIVE GEAR O-RING 6G670501 1.10
77 DRIVE W 63758502 1.10
78 DRIVE BALL BEARING (A) 6G467302 8.80
79 BODY COVER *Cannot be ordered 6Q962301 15.40
80 BODY COVER SC 6G115001 2.20
81 HANDLE PACKING 6J100201 3.30
82 HANDLE 6Q940301 61.60
83 DRIVE BALL BEARING (B) 6G522706 8.80
84 DRIVE BEARING (B) RING 6G472401 2.20
85 HANDLE CAP O-RING 6G162401 2.20
86 HANDLE CAP 6Q345101 4.40
87 BAIL HOLDER SC/W 6F037404 1.10
200 HANDLE KNOB W 6B411703 1.10
201 HANDLE KNOB COLLAR 6G720001 2.20
202 HANDLE KNOB 6J850001 15.40
203 HANDLE KNOB W 6G720001 2.20
204 HANDLE KNOB SC 6G752603 3.30
