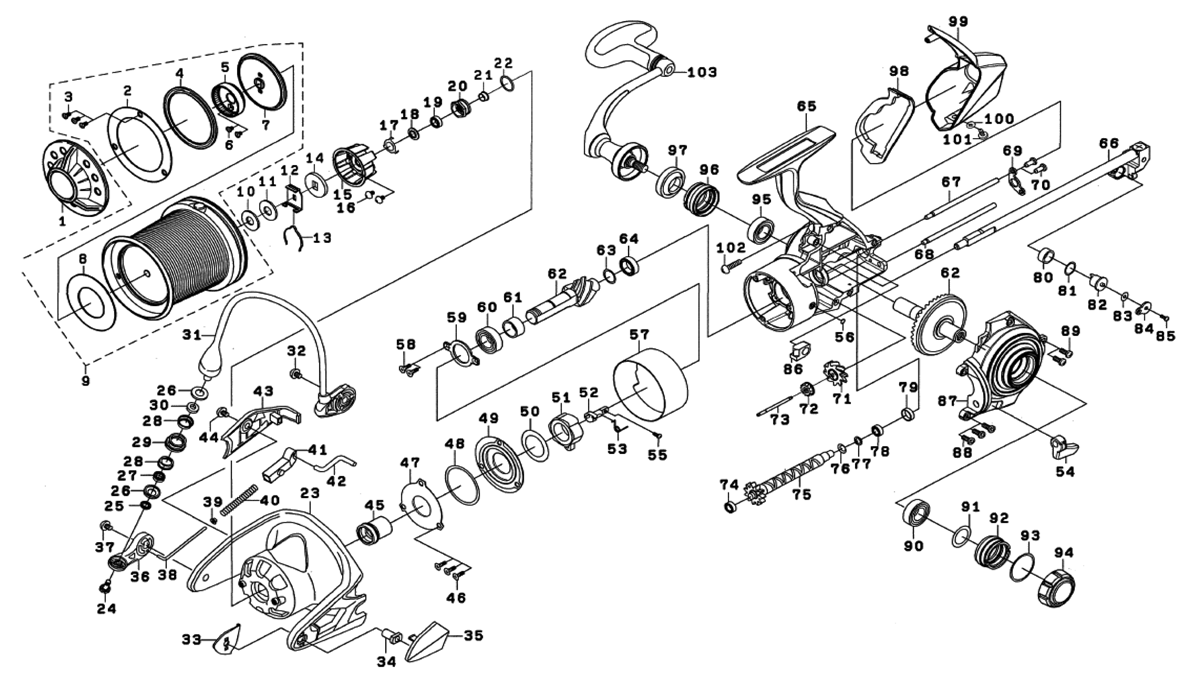

　Reel Part's Schematic Diagram



No. Part Name Part Code Price (USD)
1 DRAG KNOB 6G962908 40.70
2 DRAG PLATE 6G373701 4.40
3 DRAG PLATE SC 6G318501 2.20
4 DRAG PACKING 6G374601 4.40
5 DRAG RATCHET 6G373601 11.00
6 DRAG RATCHET SC 6G159901 2.20
7 DRAG RATCHET PLATE 6G373501 22.00
8 DRAG W 6G373401 3.30
9 SPOOL (2-9) 6M149501 119.90
10 SPOOL W (A) 6E399201 1.10
11 SPOOL W (B) 6E399203 1.10
12 CLICK HOLDER 6H050601 2.20
13 CLICK LEAF SP 6F704902 2.20
14 MAIN SHAFT W 6H108201 1.10
15 ROTOR COVER 6J748701 8.80
16 ROTOR COVER SC 6H513602 2.20
17 ROTOR NUT PLATE 6H107301 2.20
18 ROTOR NUT BEARING PACKING 6H107201 2.20
19 ROTOR NUT BALL BEARING 6G522702 8.80
20 ROTOR NUT 6H107101 7.70
21 ROTOR NUT COLLAR 6G175401 3.30
22 ROTOR NUT W 6B270711 1.10
23 ROTOR *Repair only (cannot be ordered) 6H105211 63.80
24 ROLLER SC 6F608901 2.20
25 ROLLER COLLAR (A) 6G740701 2.20
26 ROLLER BEARING PACKING 6G740501 2.20
27 ROLLER BALL BEARING 6G370906 12.10
28 ROLLER COLLAR (B) 6G740601 3.30
29 LINE ROLLER 6G745101 7.70
30 ROLLER COLLAR (C) 6F648301 4.40
31 BAIL *Repair only (cannot be ordered) 6H106102 80.30
32 BAIL HOLDER SC 63516105 2.20
33 BAIL HOLDER PLATE 6H106501 2.20
34 BAIL HOLDER NUT 6H106601 3.30
35 BAIL HOLDER COVER 6H106701 15.40
36 ARM LEVER 6H105909 12.10
37 ARM LEVER SC 6E007601 2.20
38 ARM LEVER SP SHAFT 6H105602 2.20
39 ARM LEVER SP COLLAR 6H105701 3.30
40 ARM LEVER SP 6H105801 2.20
41 BAIL LOCK SHAFT COLLAR 6H105501 2.20
42 BAIL LOCK SHAFT 6H105402 7.70
43 ARM LEVER COVER 6H106001 11.00
44 ARM LEVER COVER SC 6B842102 2.20
45 CLUTCH RING *Repair only (cannot be ordered) 6M165801 9.90
46 MAG SHIELD PLATE SC 6H585003 2.20
47 MAG SHIELD PLATE *Repair only (cannot be ordered) 6J428901 23.10
48 MAG SHIELD PLATE O-RING 6J212901 1.10
49 MAG SHIELD CAP *Repair only (cannot be ordered) 6Q295302 3.30
50 ONE-WAY CLUTCH W 6J746401 1.10
51 ONE-WAY CLUTCH *Repair only (cannot be ordered) 6J309101 26.40
52 STOPPER CAM 6J746901 3.30
53 STOPPER CAM SP 6J747001 2.20
54 STOPPER LEVER 6J747106 7.70
55 STOPPER CAM SC 6J799301 2.20
56 INFINITE COVER O-RING 6J197901 1.10
57 INFINITE COVER *Repair only (cannot be ordered) 6J747205 24.20
58 PINION BEARING PLATE SC 6H178101 2.20
59 PINION BEARING PLATE 6J020801 2.20
60 PINION BALL BEARING (A) 6G522803 15.40
61 PINION BEARING (A) COLLAR 6J745401 3.30
62 PINION + DRIVE GEAR SET *Repair only (cannot be ordered) 6Z024781 77.00
63 PINION BEARING (B) SP/W 6G878101 1.10
64 PINION BALL BEARING (B) 6G431007 15.40
65 BODY *Repair only (cannot be ordered) 6M148901 97.90
66 MAIN SHAFT *Repair only (cannot be ordered) 6J744704 39.60
67 OSCILLATING POST (A) 6J745001 8.80
68 OSCILLATING POST (B) 6M123001 8.80
69 WORM SHAFT PLATE 6J744601 2.20
70 WORM SHAFT PLATE SC 6J429301 2.20
71 WORM SHAFT GEAR (A) 6J813901 9.90
72 WORM SHAFT GEAR (B) 6J926801 18.70
73 WORM SHAFT GEAR POST 6J744001 4.40
74 WORM SHAFT BALL BEARING 6G469009 15.40
75 WORM SHAFT 6J744101 26.40
76 WORM SHAFT SP/W 6H744801 1.10
77 WORM SHAFT W 6B411703 1.10
78 WORM SHAFT BALL BEARING 6G469009 15.40
79 WORM SHAFT BEARING COLLAR 6J744501 2.20
80 PAWL HOLDER COLLAR 6H939001 2.20
81 PAWL W (A) 6H129201 1.10
82 PAWL 6H939101 6.60
83 PAWL W (B) 63750801 1.10
84 PAWL HOLDER PLATE 6J745501 2.20
85 PAWL HOLDER PLATE SC 6J799301 2.20
86 STOPPER 6J743701 3.30
87 BODY COVER *Repair only (cannot be ordered) 6M149201 88.00
88 BODY COVER SC (A) 6J746201 2.20
89 BODY COVER SC (B) 6H585003 2.20
90 DRIVE BALL BEARING 6G522802 8.80
91 DRIVE BEARING W 6G529501 1.10
92 DRIVE BEARING COVER (L) *Repair only (cannot be ordered) 6M873801 27.50
93 HANDLE CAP O-RING 6G338401 1.10
94 HANDLE CAP 6J511401 4.40
95 DRIVE BALL BEARING 6G522802 8.80
96 DRIVE BEARING COVER (R) *Repair only (cannot be ordered) 6M873701 27.50
97 HANDLE PACKING 6J083201 2.20
98 REAR CAP PACKING 6J746601 4.40
99 REAR CAP 6J746711 22.00
100 REAR CAP SC/W 6G684801 1.10
101 REAR CAP SC (A) 6H741702 2.20
102 REAR CAP SC (B) 6J553602 2.20
103 HANDLE 6M149601 105.60
104 BEARING COVER O-RING (SH) 6M864801 3.30
200 HANDLE KNOB W 6B411703 1.10
201 HANDLE KNOB COLLAR 6G720001 2.20
202 HANDLE KNOB 6Q353601 17.60
203 HANDLE KNOB SC 6B679308 2.20
204 HANDLE KNOB CAP 6Q353801 2.20
