[DAIWA] Genuine Spare Parts for 17 LIBERTY CLUB 3500 Product code: 00059624 **Back-order (Shipping in 3-4 weeks after receiving order)

[DAIWA] Genuine Spare Parts for 17 LIBERTY CLUB 3500 Product code: 00059624 **Back-order (Shipping in 3-4 weeks after receiving order)

Our Selling Price: US$0.77 - US$16.17 [Regular Price: US$1.10 - US$23.10]

Prices vary according to options.

View availability
Part Number:
Quantity:
Return & Exchange Policy
Contact Us

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.

- We don’t accept order cancellations, changes, or refunds after an order unless the products you ordered are not available because SHIMANO/DAIWA Japan doesn’t accept our cancellations.



*Please make sure to read about the conditions before you order.

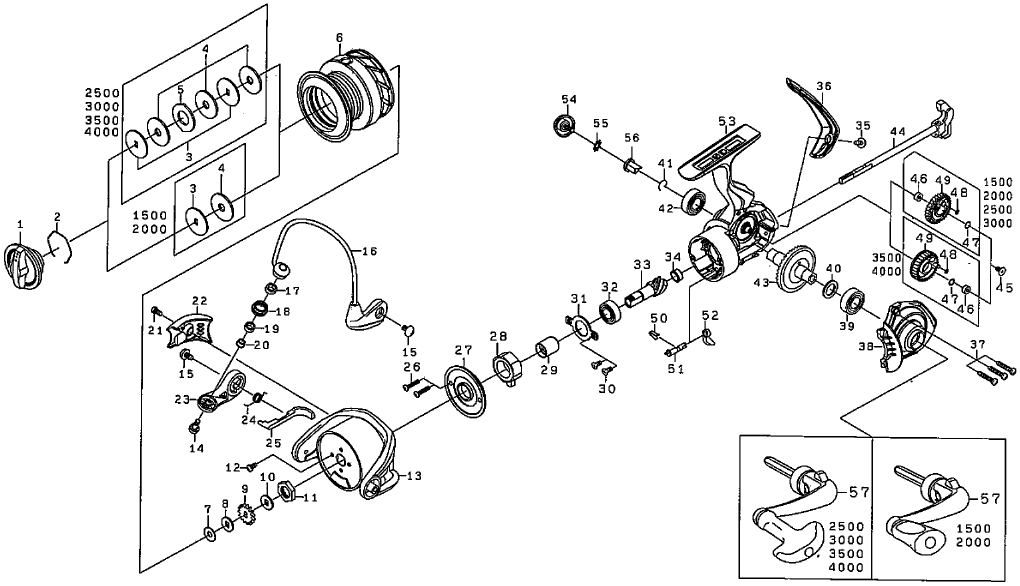

　Reel Part's Schematic Diagram



No. Part Name Part Code Price (USD)
1 DRAG KNOB 6Q065701 3.30
2 DRAG RING 6F373301 2.20
3 DRAG DISC W 6E467201 2.20
4 DRAG W 6E136001 2.20
5 DRAG LIP W 63733606 2.20
6 SPOOL (2-6) 6Q332701 20.90
7 SPOOL W (A) 6E398003 1.10
8 SPOOL W (B) 6E467101 1.10
9 CLICK GEAR 6G839301 2.20
10 CLICK HOLDER W 6H118501 1.10
11 ROTOR NUT 6G123301 2.20
12 ROTOR NUT SC 6G627701 2.20
13 ROTOR 6G844148 6.60
14 ROLLER SC 6G195602 2.20
15 HOLDER SC 6G205001 2.20
16 BAIL 6H223201 7.70
17 ROLLER COLLAR (A) 6Q203401 2.20
18 LINE ROLLER 6F625005 3.30
19 ROLLER SLEEVE 6G874301 2.20
20 ROLLER COLLAR (B) 6G152502 2.20
21 ARM LEVER SP COVER SC 6G270801 2.20
22 ARM LEVER SP COVER 6G844303 2.20
23 ARM LEVER 6G838801 3.30
24 ARM LEVER SP 6Q635201 2.20
25 KICK LEVER 6G844201 4.40
26 ONE-WAY CLUTCH PLATE SC 6G837101 2.20
27 ONE-WAY CLUTCH PLATE 6Q206401 2.20
28 ONE-WAY CLUTCH *Repair only (cannot be ordered) 6J015701 23.10
29 CLUTCH RING 6Q206301 5.50
30 PINION BEARING PLATE SC 6Q195701 2.20
31 PINION BEARING PLATE 6Q205901 2.20
32 PINION BALL BEARING 6H735002 8.80
33 PINION 6Q231301 11.00
34 PINION COLLAR 6Q175201 2.20
35 REAR CAP SC 6G270801 2.20
36 REAR CAP 6Q175602 3.30
37 BODY COVER SC 6G115001 2.20
38 BODY COVER 6Q332301 4.40
39 DRIVE BALL BEARING (A) 6G523405 8.80
40 DRIVE W 63737808 1.10
41 DRIVE BALL BEARING (B) RING 6G525101 2.20
42 DRIVE BALL BEARING (B) 6B861705 8.80
43 DRIVE GEAR 6H509202 6.60
44 MAIN SHAFT 6Q205701 4.40
45 OSCILLATING GEAR SC 6H463401 2.20
46 OSCILLATING GEAR COLLAR 6Q332201 2.20
47 OSCILLATING GEAR COLLAR W 6G522103 1.10
48 OSCILLATING GEAR O-RING 6B853101 1.10
49 OSCILLATING GEAR 6Q205601 3.30
50 STOPPER CAM SP 6H697801 2.20
51 STOPPER CAM 6Q133401 2.20
52 STOPPER LEVER 6Q118001 2.20
53 BODY 6Q332101 5.50
54 HANDLE SC 6Q136101 3.30
55 HANDLE SC/W 61608401 2.20
56 HANDLE COLLAR 6F721202 2.20
57 HANDLE 6Q332401 22.00
